92 OPERATORS STATION, CONTROLS, ACCESSORIES

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	MULTIFUNCTION UNIT (W/O ELECTR. REVERSER CONTROL)	-
-	-	1	RANGE SHIFTING (POWRQUAD WITH REVERSER CONTROL AT SHIFT CONSOLE)	-
-	-	1	RADIO COVER / REAR WIPER SWITCH	-
-	-	1	RADIO AERIAL	-
-	-	1	RADIO - FIELD INSTALLATION KIT	-
-	-	1	OUTSIDE MIRROR	-
-	-	1	OPERATOR'S MANUAL HOLDER	-
-	-	1	OPERATING CONSOLE FOR HEATER AND AIR CONDITIONING	-
-	-	1	MULTIFUNCTION UNIT (WITH ELECTR. REVERSER CONTROL)	-
-	-	1	RANGE SHIFTING (POWRQUAD WITH REVERSER CONTROL AT STEERING COLUMN)	-
-	-	1	LOUDSPEAKER	-
-	-	1	INSTRUMENT UNIT	-
-	-	1	INSTRUMENT PANEL	-
-	-	1	INSIDE REAR VIEW MIRROR	-
-	-	1	GEAR SHIFTING WITH 16-GEAR TRANSMISSION (POWRQUAD WITH REVERSER CONTROL AT SHIFT CONSOLE)	-
-	-	1	GEAR SHIFTING WITH 16-GEAR TRANSM. (POWRQUAD WITH REVERSER CONTROL AT SHIFT CONSOLE)	-
-	-	1	GEAR SHIFTING (POWRQUAD WITH REVERSER CONTROL AT STEERING COLUMN)	-
-	-	1	GEAR SHIFT COMPONENTS WITH 12-SPEED TRANSMISSION (SYNCROPLUS)	-
-	-	1	SELECTIVE CONTROL VALVE, CONTROL LINKAGE	-
-	-	1	WINDSCREEN WASHER SYSTEM WITH RESERVOIR	-
-	-	1	SWITCH FOR BACKUP ALARM	-
-	-	1	Swing-Away Multi-Function Lever For ECV (Armrest Integrated)	-
-	-	1	Swing Away Multi-Function Lever	-
-	-	1	SUN-SHADE FOR FRONT AND REAR WINDOWS	-
-	-	1	SUN VISOR	-
-	-	1	SPEED CONTROL LINKAGE	-
-	-	1	SHIFT LEVER SUPPORT	-
-	-	1	GEAR SHIFT BOWDEN CABLES AND PARKING LOCK (SYNCROPLUS)	-
-	-	1	ROCKSHAFT, REMOTE CONTROL (SHORT FENDER)	-
-	-	1	ROCKSHAFT, REMOTE CONTROL (LONG FENDER)	-
-	-	1	ROCKSHAFT CONTROL, LOCKING LEVER FOR SCV	-
-	-	1	ROCKSHAFT CONTROL, LOCKING LEVER FOR SCV	-
-	-	1	ROCKSHAFT CONTROL	-
-	-	1	REAR WINDOW WIPER	-
-	-	1	REAR PTO, SWITCH	-
-	-	1	RANGE SHIFTING (SYNCROPLUS)	-
-	-	1	CLOTHES HOOK	-
-	-	1	DASH/COWL, LOWER	-
-	-	1	CREEPER, CONTROL LINKAGE	-
-	-	1	CREEPER SHIFT CONTROL SUPPORT	-
-	-	1	CONTROL CONSOLE (CAB)	-
-	-	1	CONTROL CABLES FOR HEATER AND AIR CONDITIONING	-
-	-	1	CLUTCH OPERATING PARTS, CLUTCH PEDAL	-
-	-	1	CLUTCH OPERATING PARTS, CLUTCH PEDAL	-
-	-	1	CLUTCH OPERATING PARTS, BOWDEN CABLE	-
-	-	1	DASH/COWL, UPPER	-
-	-	1	BOWDEN CABLES, GEAR SHIFTING AND PARKING LOCK (POWRQUAD WITH REVERSER CONTROL AT SHIFT CONSOLE)	-
-	-	1	BOWDEN CABLES FOR SWING-AWAY MULTIFUNCTION LEVER FOR MCV (CONSOLE INTEGRATED)	-
-	-	1	BOWDEN CABLES FOR RANGE SHIFT AND PARKING LOCK (POWRQUAD WITH REVERSER CONTROL AT STEERING COL.)	-
-	-	1	BOWDEN CABLES FOR RANGE SHIFT (SYNCROPLUS)	-
-	-	1	BOWDEN CABLES FOR RANGE SHIFT (POWRQUAD WITH REVERSER CONTROL AT SHIFT CONSOLE)	-
-	-	1	BOWDEN CABLE RETAINER ASSEMBLY	-
-	-	1	ATTACHING PARTS, SWING-AWAY MULTI-FUNCTION LEVER FOR ECV (ARMREST INTEGRATED)	-
-	-	1	ASHTRAY / STORAGE COMPARTMENT	-
-	-	1	FIELD KIT, CONTROL AND MOUNTING PART FOR SCV POS. II	-
-	-	1	GEAR SHIFT BOWDEN CABLE (POWRQUAD WITH REVERSER CONTROL AT STEERING COLUMN)	-
-	-	1	FRONT WINDSHIELD WIPER	-
-	-	1	FRONT PTO SWITCH	-
-	-	1	FOOT THROTTLE	-
-	-	1	FOOT THROTTLE	-
-	-	1	FIELD KIT, SINGLE LEVER CONTROL FOR SCV POS. IV OR POS III AND IV	-
-	-	1	FIELD KIT, CONTROL AND MOUNTING PARTS FOR SCV POS. I	-
-	-	1	FIELD KIT, CONTROL AND MOUNTING PARTS FOR SCV POS III	-
-	-	1	AIR CONDITIONING AND HEATER CONTROL	-
-	-	1	ELECTRICAL INSTRUMENTS	-
-	-	1	ELECTRICAL INSTRUMENTS	-
-	-	1	ELECTRICAL INSTRUMENTS	-
-	-	1	ELECTRICAL CONTROL LEVER AND MOUNTING PARTS	-
-	-	1	DOME CONSOLE LIGHT	-
-	-	1	DIFFERENTIAL LOCK SWITCH	-
-	-	1	DECALS	-

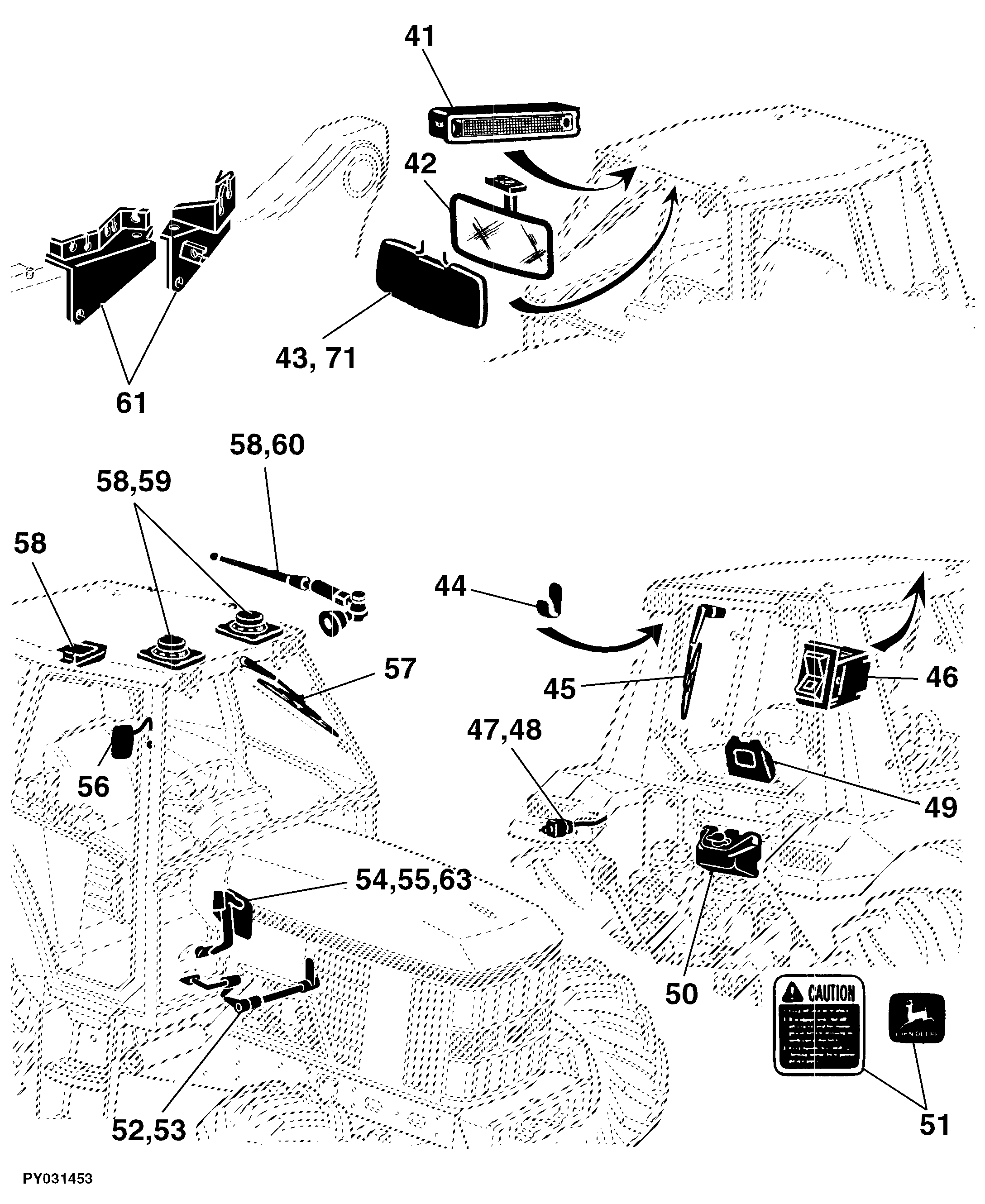

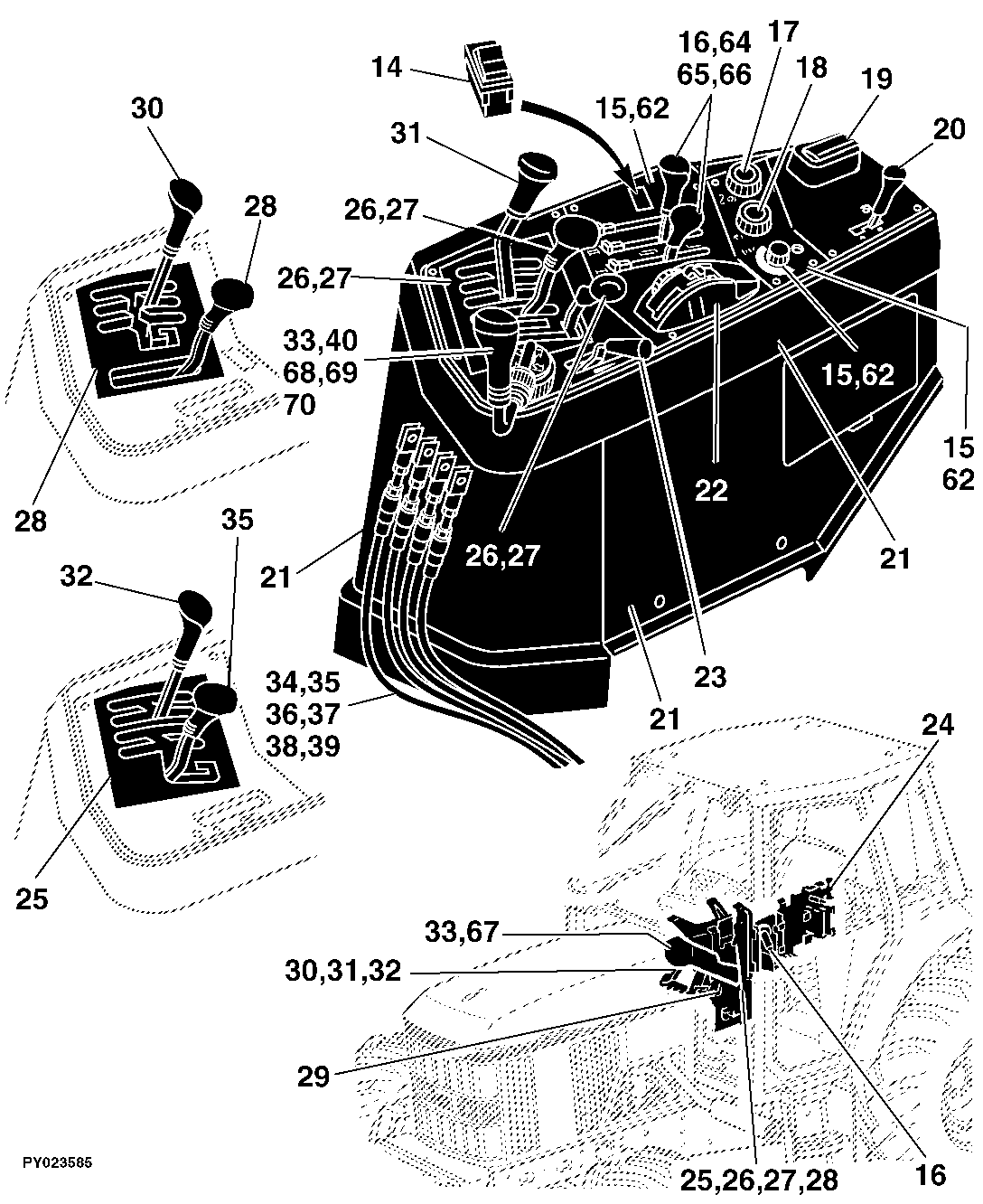

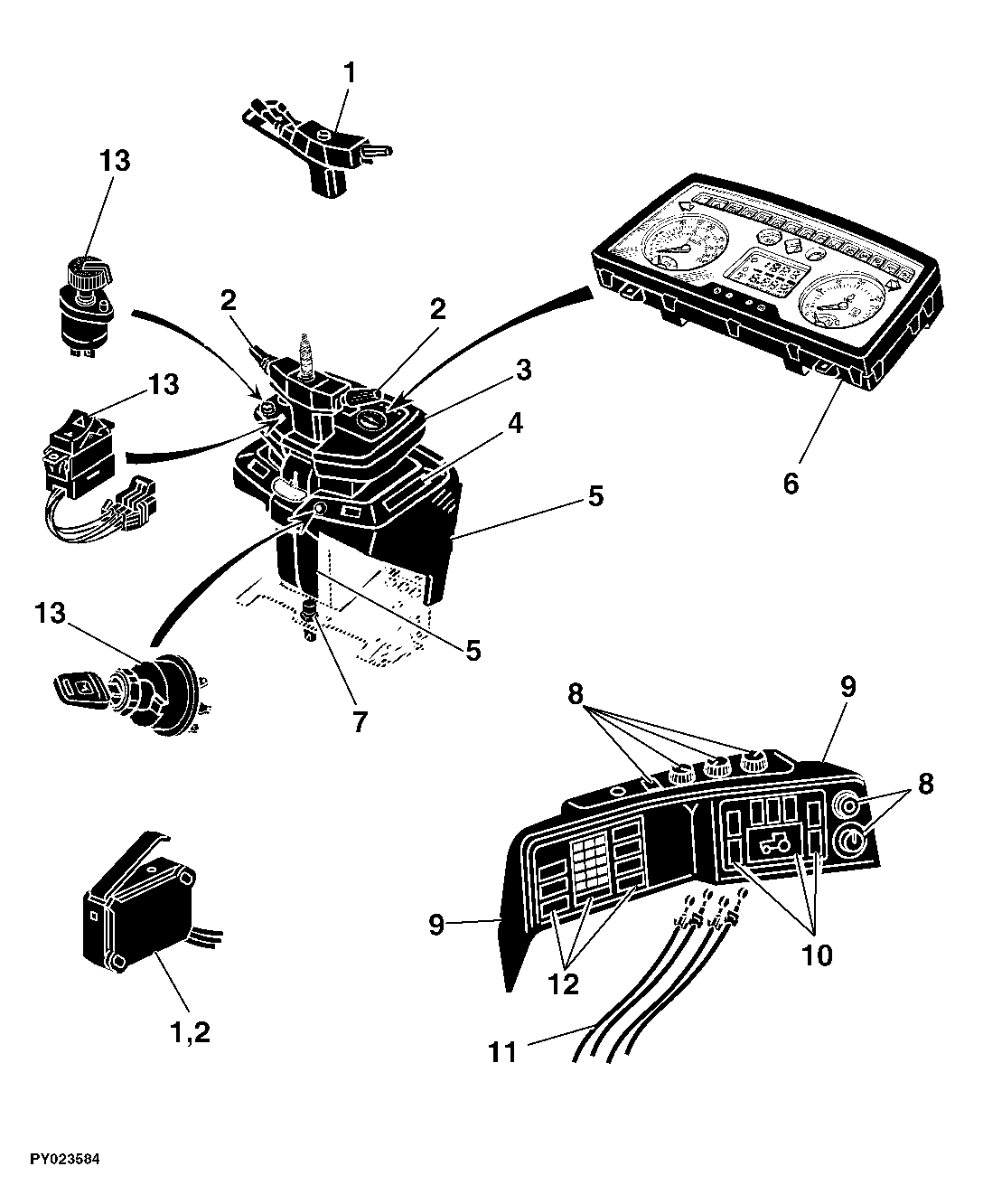

92 OPERATORS STATION, CONTROLS, ACCESSORIES
