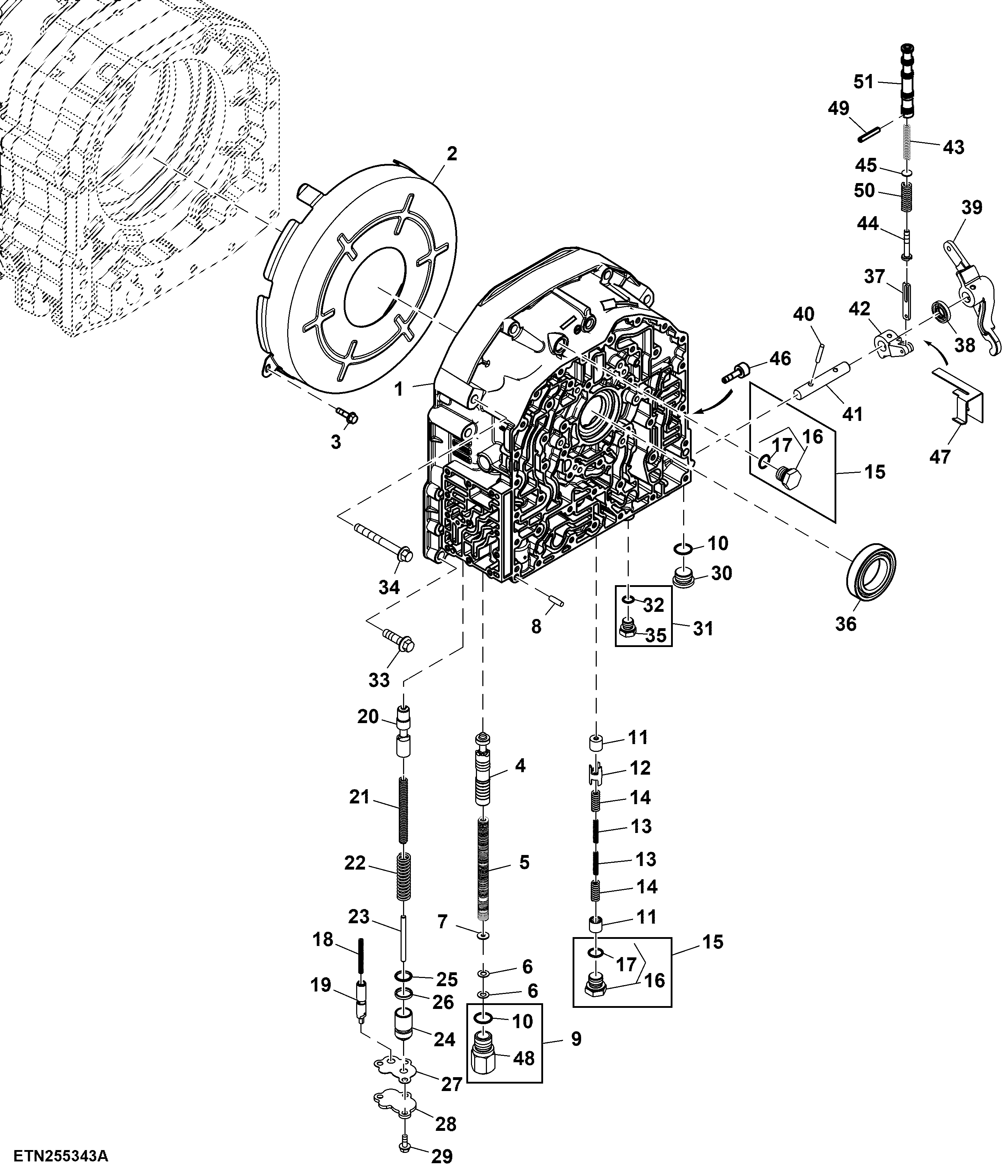

Transmission Front Cover, PowrQuad™ Transmission, 17 Bar (010000 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R331119	1	Cover	Transmission Front
2	R212399	1	Shield	-
3	R115215	2	Screw	-
4	R120947	1	Valve	Pressure Regulating Valve
5	R95059	1	Spring	-
6	R86638	2	Shim	TK = 0.76 mm
7	24M7138	1	Washer	5.300 X 15 X 1 mm
8	R38295	1	Needle Roller	-
9	RE180029	1	Fitting Plug	-
10	51M7045	2	O-Ring	19.300 X 2.200 mm
11	R241994	2	Spool Valve	Clutch Cooling
12	R273498	1	Spool Valve	Clutch Cooling Middle
13	R273530	2	Compression Spring	Clutch Cooling Inner
14	R276022	2	Compression Spring	Clutch Cooling Outer
15	RE46685	2	Fitting Plug	-
16	R107770	2	Fitting Plug	-
17	51M7043	2	O-Ring	15.300 X 2.200 mm
18	R54174	1	Spring	-
19	R176198	1	Valve	Transmission Cover
20	R252208	1	Spool Valve	Modulator
21	R299263	1	Compression Spring	PQ MOD Valve Inner
22	R299262	1	Compression Spring	PQ MOD Valve Outer
23	R299264	1	Pin	-
24	R299265	1	Piston	-
25	P48347	1	O-Ring	-
26	R559032	1	Seal	-
27	R341955	1	Gasket	-
28	R171412	1	Cover	Piston
29	19M7775	3	Screw	M6 X 16
30	L78975	1	Fitting Plug	-
31	RE46684	4	Fitting Plug	-
32	51M7041	4	O-Ring	11.300 X 2.200 mm
33	R115141	8	Screw	-
34	R112063	5	Screw	-
35	R107768	4	Drain Plug	-
36	L224170	1	Ball Bearing	-
37	R95072	1	Link	-
38	AR103873	1	Seal	-
39	L154133	1	Arm	LH
40	34M7272	2	Spring Pin	5 X 30 mm
41	R95063	1	Pin Fastener	-
42	R109666	1	Arm	RH
43	R104814	1	Spring	-
44	R121609	1	Guide	-
45	R116473	1	Disk	-
46	R58941	1	Pin Fastener	-
47	R213853	1	Stop	-
48	R171411	1	Drain Plug	-
49	R107252	1	Spring Pin	-
50	R104815	1	Compression Spring	-
51	R95066	1	Valve	Traction Clutch
