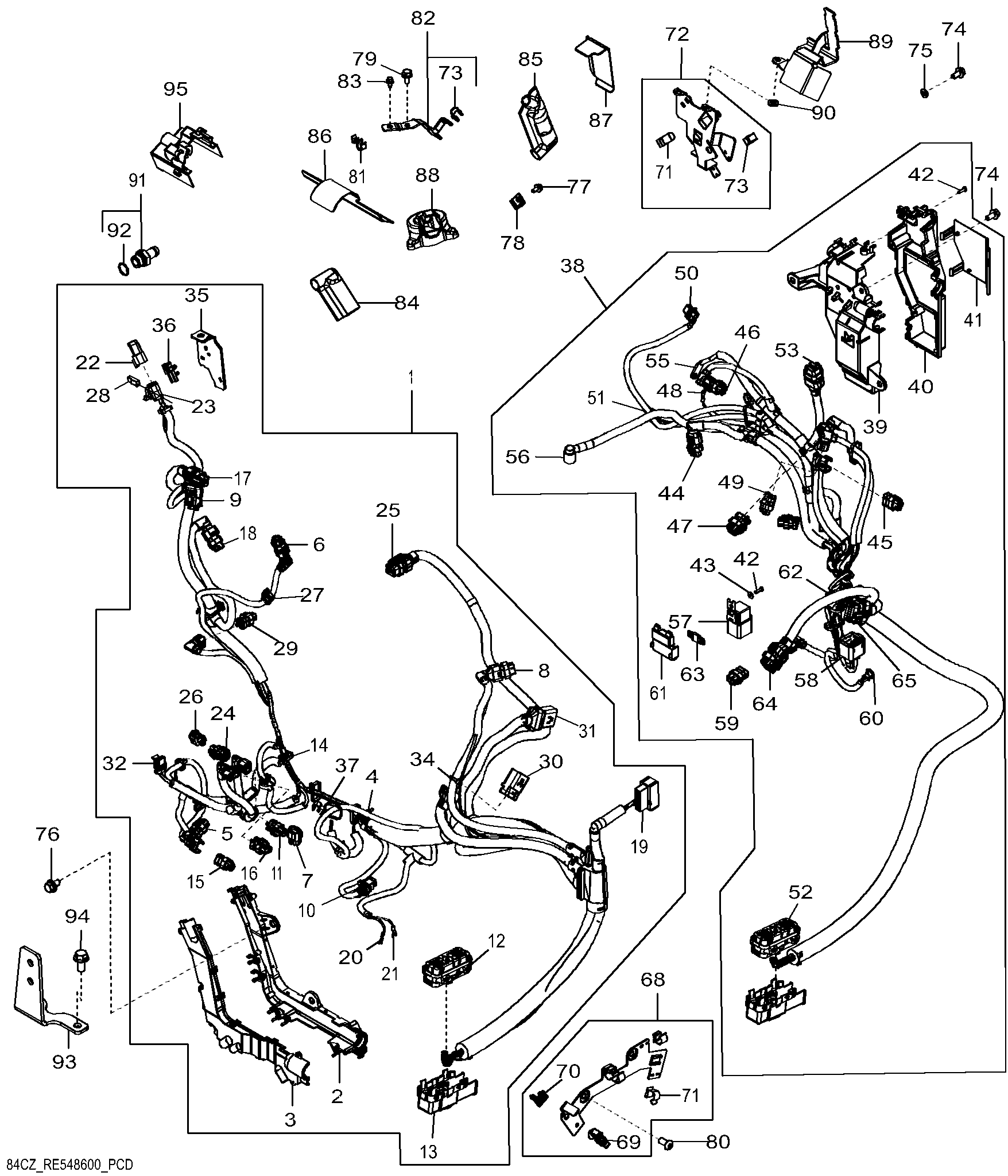

84CZ Engine Wiring Harness

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL212395	1	Wiring Harness	SUB FOR AL208371
2	L205747	1	Channel	-
3	L205746	1	Channel	-
4	37M7181	6	Screw	-
5	57M9808	2	Elec. Connector Terminal	-
5	57M9775	1	Elec. Connector Housing	X1043F, Crank Position Sensor
6	57M9775	1	Elec. Connector Housing	X1037F, Turbocharger Speed
6	57M9846	1	Elec. Connector Accessory	-
6	57M9808	2	Elec. Connector Terminal	-
7	57M8407	1	Elec. Connector Housing	X625F, Rail Pressure Sensor
7	57M8402	3	Elec. Connector Terminal	-
7	57M7833	3	Elec. Connector Seal	-
8	57M9786	1	Elec. Connector Housing	X1023F, EGR Valve
8	57M10230	1	Elec. Connector Accessory	-
8	57M10321	5	Elec. Connector Terminal	-
9	57M9144	1	Elec. Connector Housing	X1023F, Intake Air Throttle
9	57M9149	4	Elec. Connector Seal	-
9	57M9831	4	Elec. Connector Terminal	-
10	57M8557	1	Elec. Connector Housing	X1023F, Oil Pressure Sensor
10	57M8613	3	Elec. Connector Terminal	-
10	57M8603	3	Elec. Connector Seal	-
11	57M9774	1	Elec. Connector Housing	X1036F, Fuel Temprature
11	57M10157	1	Elec. Connector Accessory	-
11	57M10321	2	Elec. Connector Terminal	-
12	RE538503	1	Elec. Connector Accessory	X1022F-1, Engine Controller-1 INCLUDES RE545538
12	57M9808	12	Elec. Connector Terminal	-
12	57M10321	26	Elec. Connector Terminal	-
13	R528122	1	Elec. Connector Accessory	-
14	R44302	4	Tie Band	-
15	57M9772	1	Elec. Connector Housing	X567F, Water in Fuel
15	57M10155	1	Elec. Connector Accessory	-
15	57M10321	2	Elec. Connector Terminal	-
16	57M9780	1	Elec. Connector Housing	X1026F, Fuel Pressure Sensor (Low)
16	57M10158	1	Elec. Connector Accessory	-
16	57M10321	3	Elec. Connector Terminal	-
17	57M9817	1	Elec. Connector Housing	-
17	57M10321	4	Elec. Connector Terminal	-
17	57M9840	1	Elec. Connector Accessory	X1040F, Exhaust Manifold Pressure Sensor
18	57M9781	1	Elec. Connector Housing	X1027F, VGT Actuator Position
18	57M9843	1	Elec. Connector Accessory	-
18	57M10321	3	Elec. Connector Terminal	-
19	57M7399	4	Elec. Connector Seal	-
19	57M7400	3	Elec. Connector Seal	-
19	57M9532	3	Elec. Connector Terminal	-
19	57M8072	1	Elec. Connector Housing	X1080F, Auxillary Connector
19	57M8079	4	Elec. Connector Terminal	-
20	-	1	Part 47	-
21	57M7054	2	Elec. Connector Terminal	M1-50, Starter Ground
22	57M8131	1	Electronic Terminator	-
23	57M8637	1	Elec. Connector Housing	-
23	57M7546	2	Elec. Connector Terminal	-
24	57M9775	1	Elec. Connector Housing	X1044F, Cam Position Sensor
24	57M10155	1	Elec. Connector Accessory	-
24	57M9808	2	Elec. Connector Terminal	-
25	57M9792	1	Elec. Connector Housing	X1140F, Fuel Injector Connector
25	57M9808	6	Elec. Connector Terminal	-
25	57M9843	1	Elec. Connector Accessory	-
26	57M9828	1	Elec. Connector Housing	-
26	57M9831	2	Elec. Connector Terminal	X566F, SCV
27	57M10828	3	Clamp	-
28	57M7170	1	Elec. Connector Housing	-
28	57M7106	1	Elec. Connector Terminal	-
29	57M10321	2	Elec. Connector Terminal	-
29	57M9773	1	Elec. Connector Housing	X1048F, Coolant Temp Sensor
29	57M10155	1	Elec. Connector Accessory	-
30	57M9804	1	Elec. Connector Housing	X1206M, Interface Engine RHS 1
30	57M9844	1	Elec. Connector Accessory	-
30	57M10322	12	Elec. Connector Terminal	-
31	57M9805	1	Elec. Connector Housing	X1207M, Interface Engine RHS 2
31	57M9844	1	Elec. Connector Accessory	-
31	57M10322	9	Elec. Connector Terminal	-
32	57M7309	1	Elec. Connector Housing	X79F, Fuel Preheater
32	57M7298	2	Elec. Connector Terminal	-
32	R78059	2	Elec. Connector Seal	-
33	57M7304	1	Elec. Connector Housing	-
34	L205558	2	Clip	-
35	-	1	Part 77	-
36	57M9717	1	Elec.Connect Locking Device	-
37	L210257	2	Tie Band	-
38	AL213301	1	Wiring Harness	SUB FOR AL208373
39	L207201	1	Channel	-
40	L207200	1	Channel	-
41	L207199	1	Channel	-
42	37M7179	8	Screw	-
43	24M7146	1	Washer	4.300 X 12 X 1 mm
44	57M10158	1	Elec. Connector Accessory	-
44	57M9781	1	Elec. Connector Housing	X1028F, Intake Manifold Pressure
44	57M10321	3	Elec. Connector Terminal	-
45	57M9780	1	Elec. Connector Housing	X1025F, EGR Valve
45	57M10321	3	Elec. Connector Terminal	-
45	57M10156	1	Elec. Connector Accessory	-
46	57M9773	1	Elec. Connector Housing	X1045F, Charge Air Outlet
46	57M10155	1	Elec. Connector Accessory	-
46	57M10321	2	Elec. Connector Terminal	-
47	57M9786	1	Elec. Connector Housing	X1024F, Intake Air Throttle
47	57M10230	1	Elec. Connector Accessory	-
47	57M10321	5	Elec. Connector Terminal	-
48	57M7052	1	Elec. Connector Terminal	G2-1, Alternator Excitation
49	57M10155	1	Elec. Connector Accessory	-
49	57M10321	2	Elec. Connector Terminal	-
49	57M9774	1	Elec. Connector Housing	-
50	57M7309	1	Elec. Connector Housing	X130F, Compressor Clutch
50	57M7298	2	Elec. Connector Terminal	-
50	57M7292	2	Elec. Connector Seal	-
51	57M7254	1	Elec. Connector Housing	X130F, AC Clutch
51	R104846	2	Elec. Connector Terminal	-
51	57M9215	2	Elec. Connector Seal	-
52	RE538504	1	Elec. Connector Accessory	X1022F-2, Engine Controller-2 INCLUDES RE545538
52	57M10321	24	Elec. Connector Terminal	-
53	57M9792	1	Elec. Connector Housing	X1053F, Aftertreatment
53	57M9842	1	Elec. Connector Accessory	-
53	57M10321	7	Elec. Connector Terminal	-
54	57M11337	1	Elec. Connector Accessory	-
55	57M7924	1	Elec. Connector Terminal	X1136, Glow Plug Power Supply
56	L205772	1	Electrical Connector Assy	-
57	AL156697	1	Relay	-
58	57M8234	2	Elec. Connector Terminal	-
58	57M8726	2	Elec. Connector Seal	-
58	57M8237	2	Elec. Connector Seal	-
58	57M8725	2	Elec. Connector Terminal	-
58	57M8233	1	Electrical Connector Assy	K46, Glow Plug Relay
59	57M9783	1	Elec. Connector Housing	X1195F, Crankcase Pressure
59	57M10156	1	Elec. Connector Accessory	-
59	57M10321	3	Elec. Connector Terminal	-
60	57M7083	1	Elec. Connector Terminal	-
61	57M10662	1	Elec. Connector Accessory	-
62	57M7855	2	Elec. Connector Terminal	-
63	57M8048	1	Fuse	-
64	57M9800	1	Elec. Connector Housing	X1206F, Interface Engine LHS 1
64	57M10321	12	Elec. Connector Terminal	-
64	57M9844	1	Elec. Connector Accessory	-
65	57M9801	1	Elec. Connector Housing	X1207F, Interface Engine LHS 2
65	57M9844	1	Elec. Connector Accessory	-
65	57M10321	9	Elec. Connector Terminal	-
66	57M7304	1	Elec. Connector Housing	-
67	57M11253	1	Elec. Connector Housing	-
68	RE560408	1	Bracket	SUB FOR RE548617
69	AL157115	1	Clip	-
70	57M9940	2	Elec. Connector Accessory	-
71	L115766	4	Clamp	-
72	RE548615	1	Bracket	-
73	L173956	3	Clamp	-
74	RE66334	4	Cap Screw	-
75	24M7055	1	Washer	8.400 X 16 X 1.600 mm
76	19M7783	1	Screw	M10 X 16
77	19M7774	4	Screw	M6 X 12
78	AH77724	1	Clip	-
79	19M7865	2	Screw	M8 X 16
80	L100285	2	Screw	-
81	L207500	2	Clip	SUB FOR R224392
82	RE548614	1	Bracket	-
83	37M7089	1	Screw	M6 X 12
84	RE552407	2	Heat Shield	Sensor with Elbow Connector
85	RE553586	1	Heat Shield	Sensor with Elbow Connector
86	RE553585	1	Heat Shield	Starter Motor
87	RE553584	1	Heat Shield	Actuator
88	RE553635	1	Heat Shield	EGR Valve
89	R535140	1	Heat Shield	With Harness Retainer
90	24M7106	1	Washer	10 X 18 X 2.500 mm
91	L158360	1	Fitting	-
92	51M7045	1	O-Ring	19.300 X 2.200 mm
93	RE554539	1	Bracket	-
94	19M7788	2	Screw	M12 X 25
95	RE564582	1	Cover	SUB FOR APPL AL110505
96	57M9773	1	Elec. Connector Housing	X1046F, Manifold Air Temprature
96	57M10157	1	Elec. Connector Accessory	-
96	57M10321	2	Elec. Connector Terminal	-
97	RE545538	2	Bolt Kit	Not Illustrated

84CZ Engine Wiring Harness

Нет текстового описания
