Открытый узел

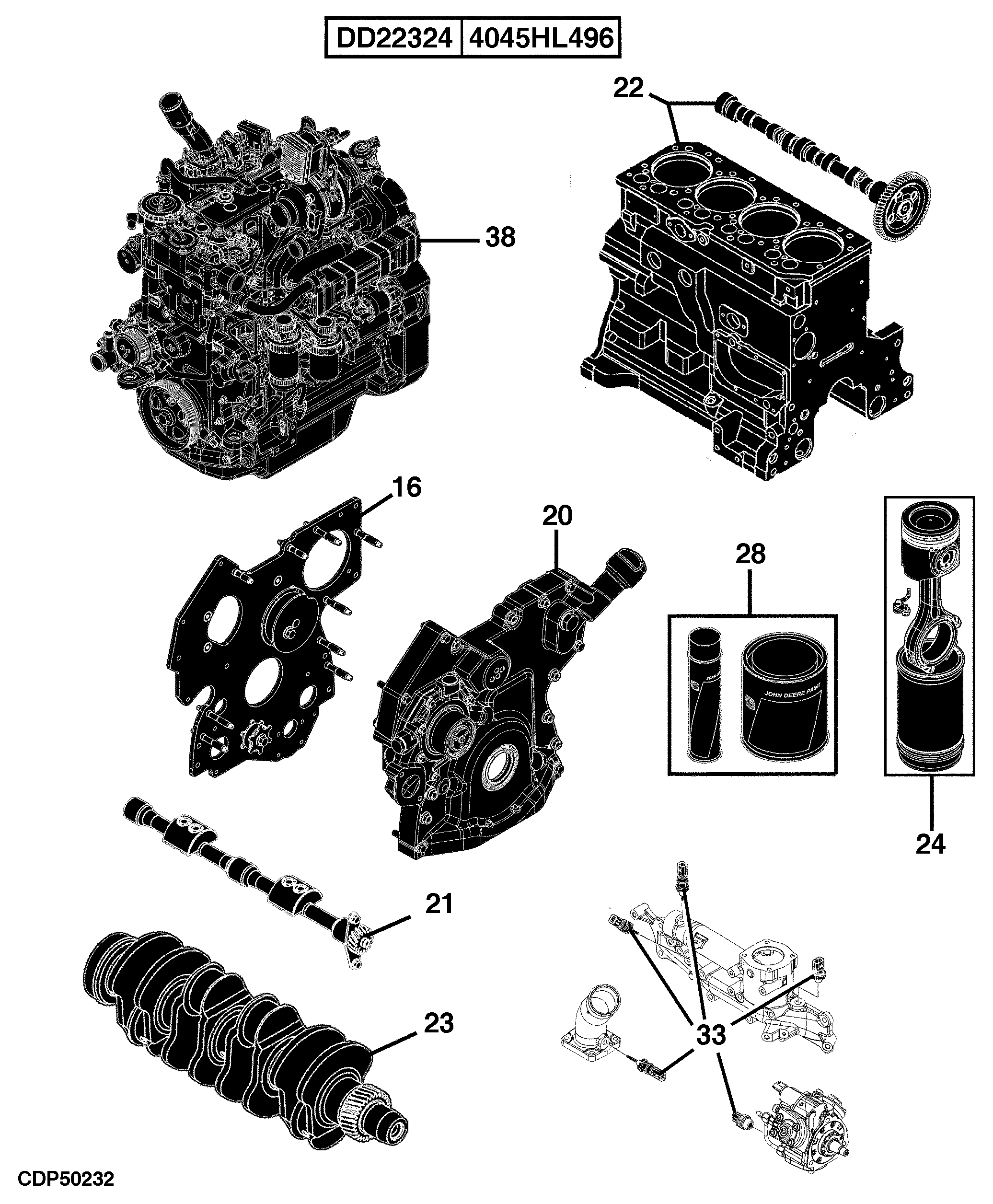

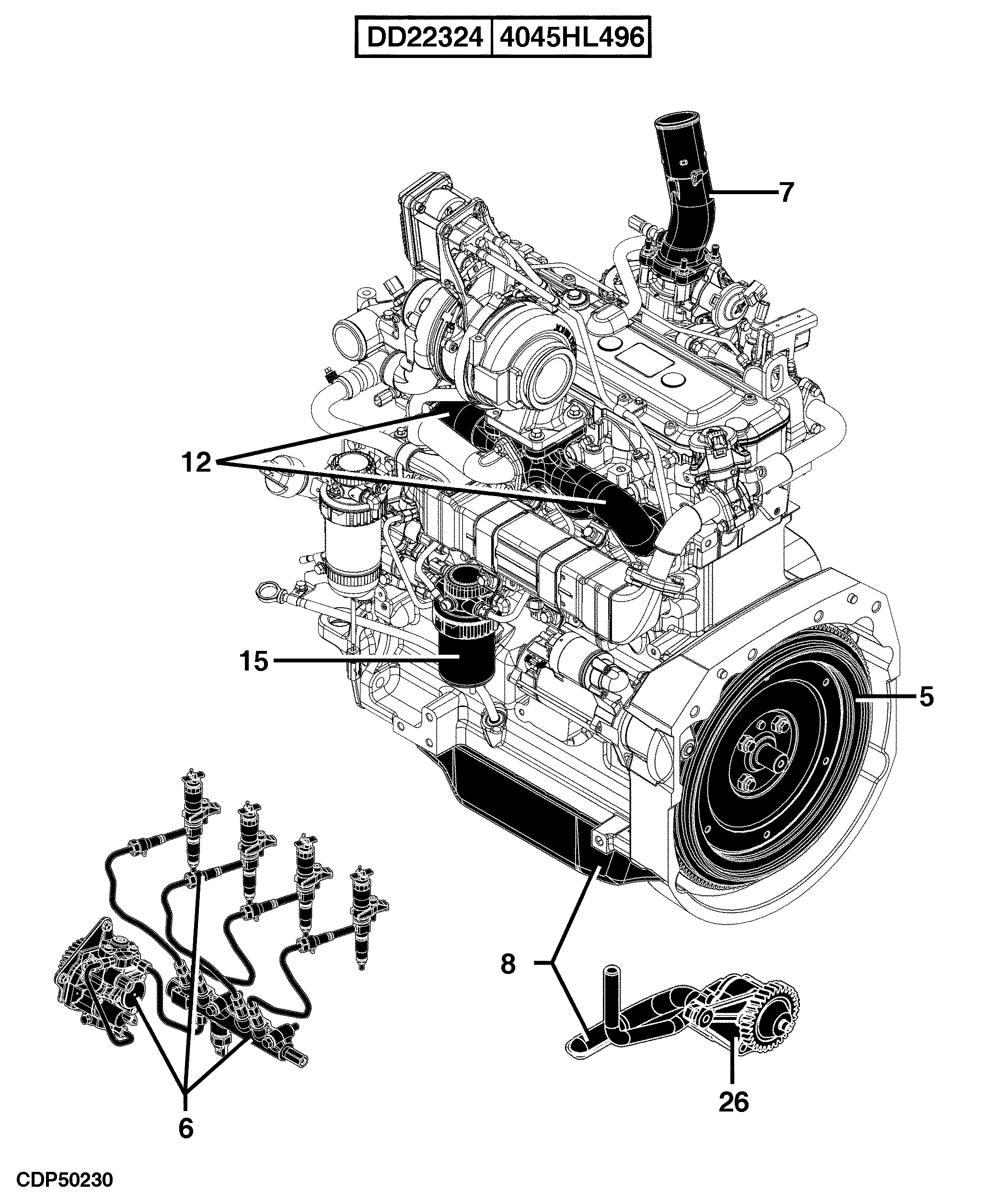

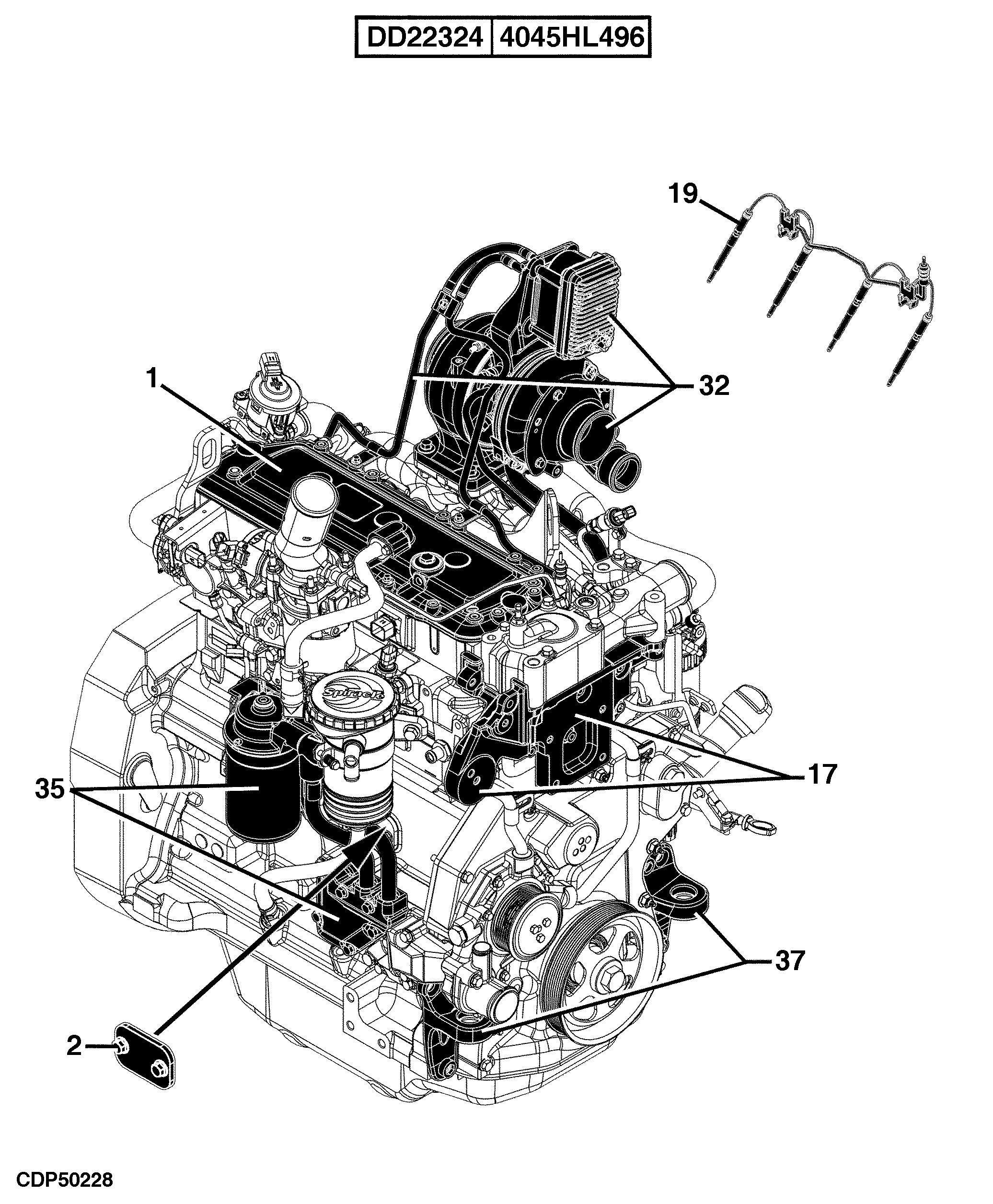

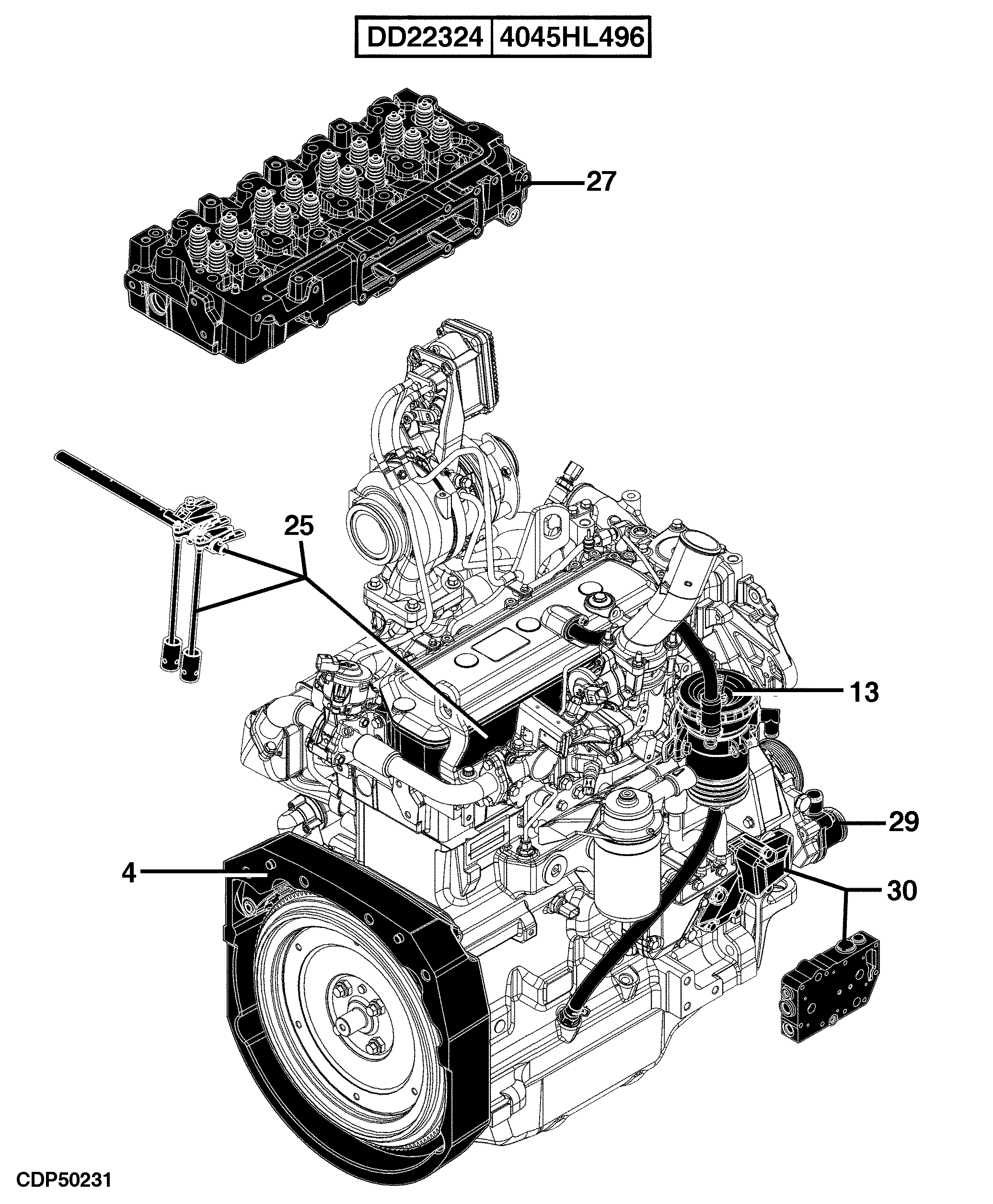

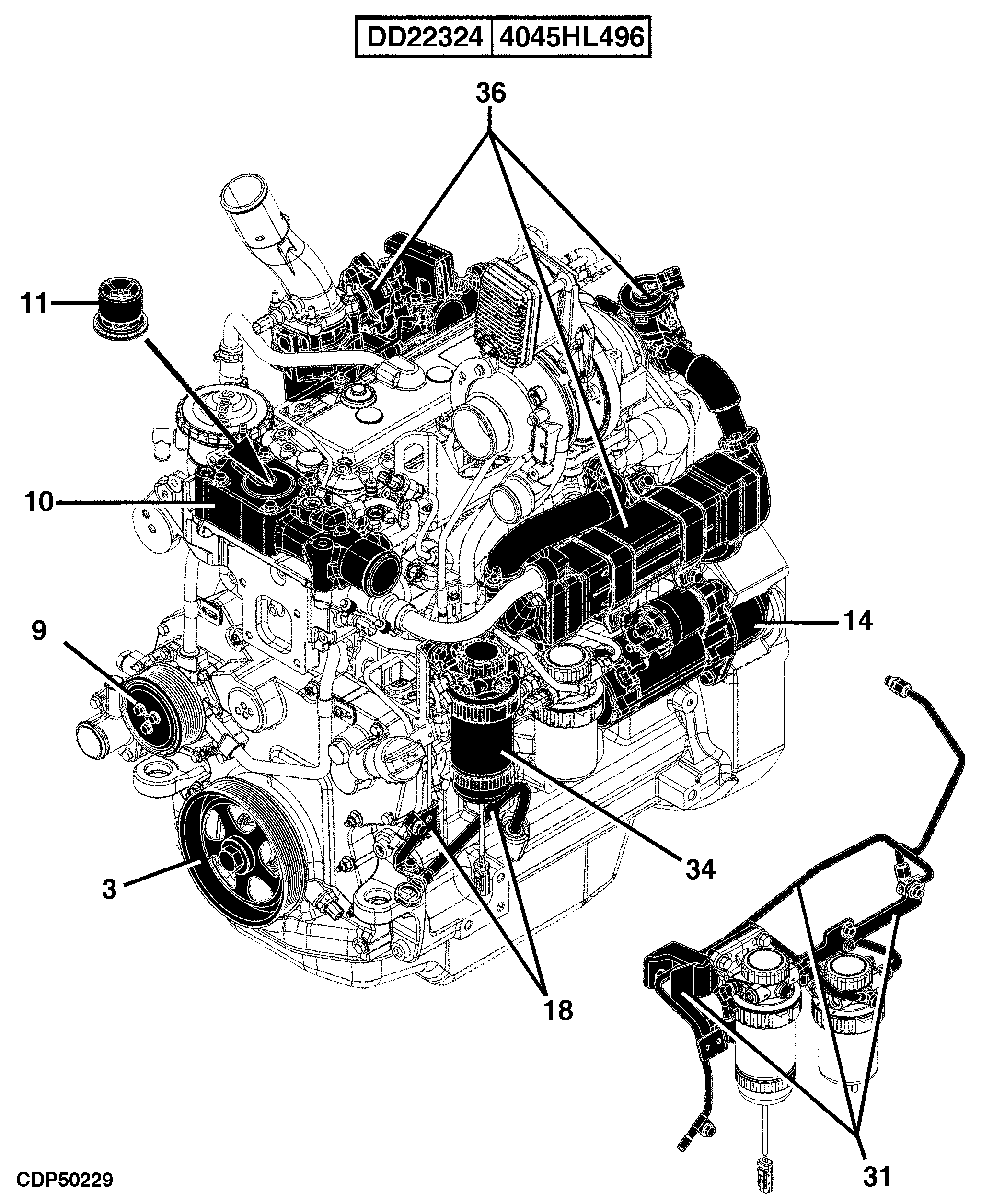

24 Engine 4045HL496-DD22324-DD22368-PE11447-DD22362-ETN97385-ETN97386-ETN108617-ETN108618-ETN110955-ETN110956-ETN97384-ETN108616-ETN110954

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	8929 Exhaust Gas Recirculation (EGR)	-
-	-	1	9901 Engine Overhaul Gasket Kit (1/3)	-
-	-	1	9901 Engine Coolant Pump Kit	-
-	-	1	9901 Cylinder Head Bolt Kit	-
-	-	1	9901 Crankshaft Bearing Kit	-
-	-	1	9901 Connecting Rod Bearing Kit	-
-	-	1	9901 Connecting Rod Bearing Kit	-
-	-	1	9901 Complete Block Assembly	-
-	-	1	95AU Engine Front Brackets	-
-	-	1	9901 Engine Overhaul Gasket Kit (2/3)	-
-	-	1	880G Engine Oil Filter	-
-	-	1	84CZ Engine Wiring Harness	-
-	-	1	81BD Primary Fuel Filter	-
-	-	1	6763 Engine Sensors	-
-	-	1	65ZV Turbocharger	-
-	-	1	63DW Low Pressure Fuel Lines	-
-	-	1	6125 Exhaust Filter / Diesel Particulate Filter	-
-	-	1	9901 Piston Ring Kit	-
-	-	1	Replacement Engine	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	9901 Starter Motor Kit	-
-	-	1	9901 Short Block Hardware Kit (2/2)	-
-	-	1	9901 Short Block Hardware Kit (1/2)	-
-	-	1	9901 Short Block Assembly	-
-	-	1	5903 Engine Oil Cooler	-
-	-	1	9901 Piston Liner Kit	-
-	-	1	9901 O Ring Kit, Cylinder Liner	-
-	-	1	9901 Injection Nozzle	-
-	-	1	9901 Gasket Kit	-
-	-	1	9901 Engine Overhaul Kit (2/2)	-
-	-	1	9901 Engine Overhaul Kit (1/2)	-
-	-	1	9901 Engine Overhaul Gasket Kit (3/3)	-
-	-	1	2001 Water Pump Pulley	-
-	-	1	35FU Final Fuel Filter	-
-	-	1	30BE Starting Motor ( - 018536)	-
-	-	1	3095 Starter Motor (018537 - )	-
-	-	1	29ED Crankcase Ventilation System (109683 - )	-
-	-	1	2979 Ventilating System ( - 109682)	-
-	-	1	2854 Exhaust Manifold	-
-	-	1	2228 Thermostat	-
-	-	1	2180 Thermostat Cover	-
-	-	1	3612 Front Plate	-
-	-	1	1975 Oil Pan	-
-	-	1	17DU Air Intake	-
-	-	1	16KK Fuel Injection Pump	-
-	-	1	1594 Flywheel	-
-	-	1	1447 Flywheel Housing	-
-	-	1	1327 Crankshaft Pulley	-
-	-	1	1297 Oil Filler Cover	-
-	-	1	1183 Valve Cover	-
-	-	1	3941 Thermostat Housing ( - 103060)	-
-	-	1	3941 Thermostat Housing (109610 - )	-
-	-	1	3969 Thermostat Housing (103061 - ), ( - 109609)	-
-	-	1	4040 Engine Oil Dipstick	-
-	-	1	4356 Starting Aid	-
-	-	1	4464 Timing Gear Cover and Water Pump	-
-	-	1	4501 Balancer Shaft	-
-	-	1	4671 Cylinder Block	-
-	-	1	4715 Crankshaft and Bearings	-
-	-	1	4849 Connecting Rods and Pistons	-
-	-	1	4914 Valve Actuating Mechanism	-
-	-	1	5024 Engine Oil Pump	-
-	-	1	5138 Cylinder Head With Valves	-
-	-	1	5602 Green Paint	-
-	-	1	5715 Water Pump Inlet	-

24 Engine 4045HL496-DD22324-DD22368-PE11447-DD22362-ETN97385-ETN97386-ETN108617-ETN108618-ETN110955-ETN110956-ETN97384-ETN108616-ETN110954

Нет текстового описания
