Открытый узел

Field Office / Power Outlet Socket

Field Office / Power Outlet Socket

Field Office / Power Outlet Socket

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

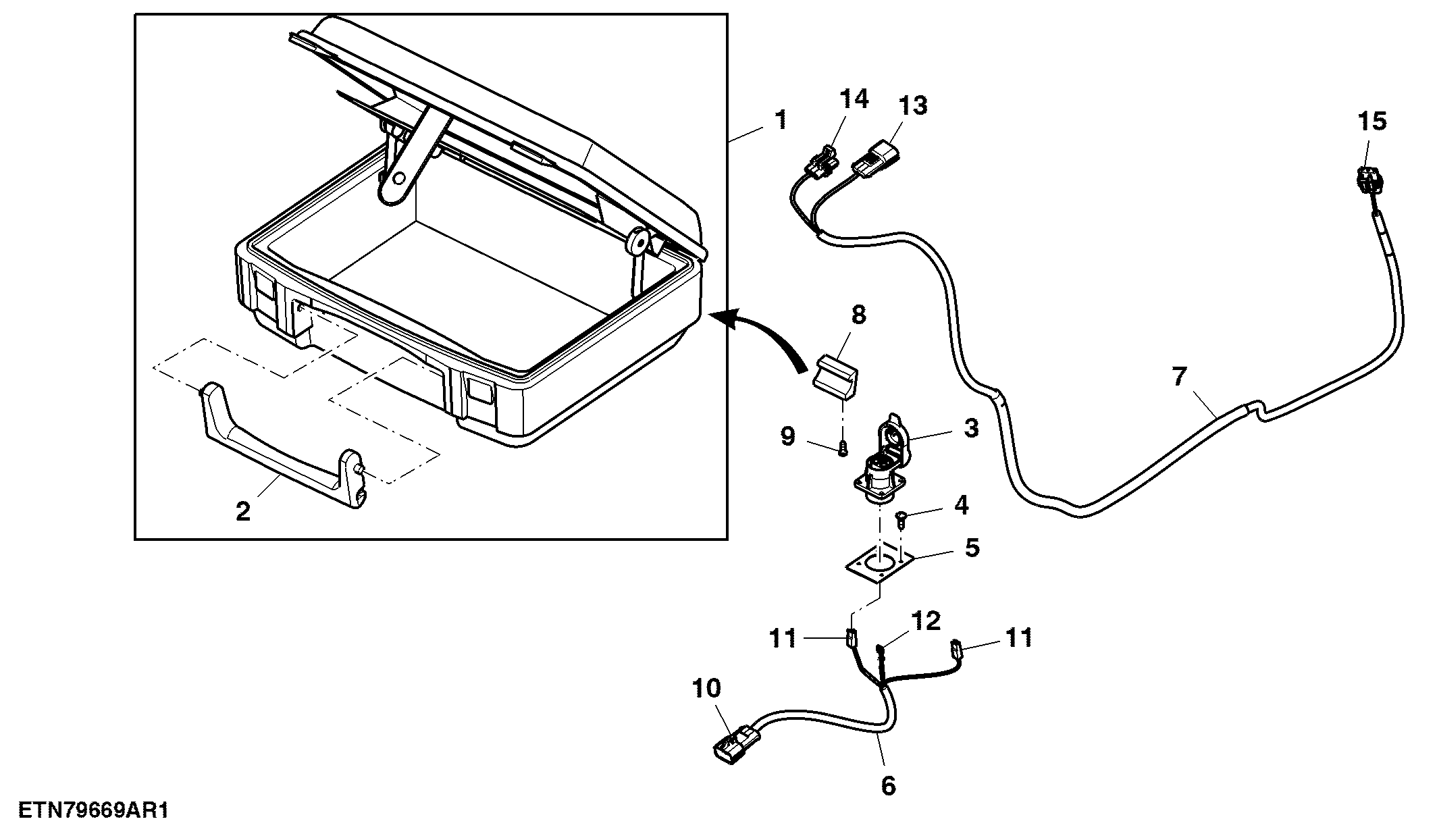

Field Office / Power Outlet Socket

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL178270	1	Container	-
2	L166733	1	Handle	-
3	AL66414	1	Socket Outlet	-
4	37M7095	4	Screw	-
5	L157467	1	Strap	-
6	AL114895	1	Wiring Harness	-
7	AL221617	1	Wiring Harness	SUB FOR AL116176 APPL
8	R250425	2	Retainer	-
9	37M7355	4	Screw	-
10	57M7285	1	Elec. Connector Terminal	Cavity A
10	57M7307	1	Electrical Connector Assy	-
10	R78062	1	Elec. Connector Seal	Cavity C
10	R78063	1	Elec. Connector Seal	Cavity B
10	R78059	1	Elec. Connector Seal	Cavity A
10	57M7286	2	Elec. Connector Terminal	Cavity B, C
10	57M7305	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W201 and W021 X239M
11	57M7170	2	Elec. Connector Housing	3-Terminal Power Outlet Socket X006-15, X006-31
11	57M7106	2	Elec. Connector Terminal	-
12	57M7113	1	Elec. Connector Terminal	3-Terminal Power Outlet Socket X006-82
13	57M7527	2	Elec. Connector Terminal	Cavity A, B
13	57M7286	1	Elec. Connector Terminal	Cavity C
13	57M9218	2	Elec. Connector Seal	Cavity A, B
13	57M9217	1	Elec. Connector Seal	Cavity C
13	57M7307	1	Electrical Connector Assy	-
13	57M7305	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W201 and W022 X239M-1
14	57M9218	2	Elec. Connector Seal	Cavity A, B
14	57M7274	1	Elec. Connector Accessory	-
14	57M9217	1	Elec. Connector Seal	Cavity C
14	57M7299	1	Elec. Connector Terminal	Cavity C
14	57M7491	2	Elec. Connector Terminal	Cavity A, B
14	57M7280	1	Elec. Connector Housing	Connection Point between Harnesses W022 and W021 X239F-2
15	57M7280	1	Elec. Connector Housing	Connection Point between Harnesses W022 and W021 X239F-3
15	57M7491	2	Elec. Connector Terminal	Cavity A, B
15	57M7299	1	Elec. Connector Terminal	Cavity C
15	57M9218	2	Elec. Connector Seal	Cavity A, B
15	57M9217	1	Elec. Connector Seal	Cavity C
15	57M7274	1	Elec. Connector Accessory	-
