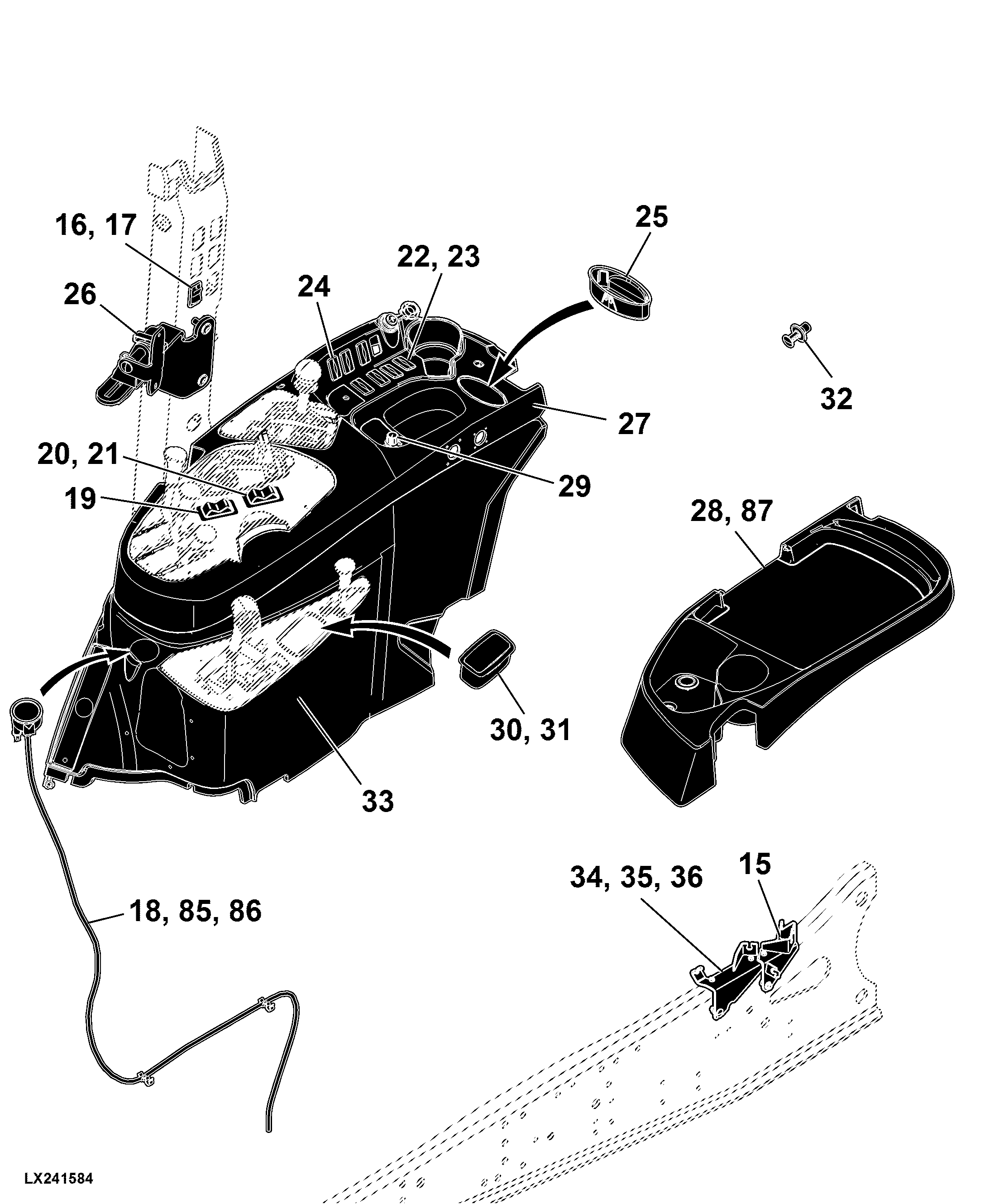

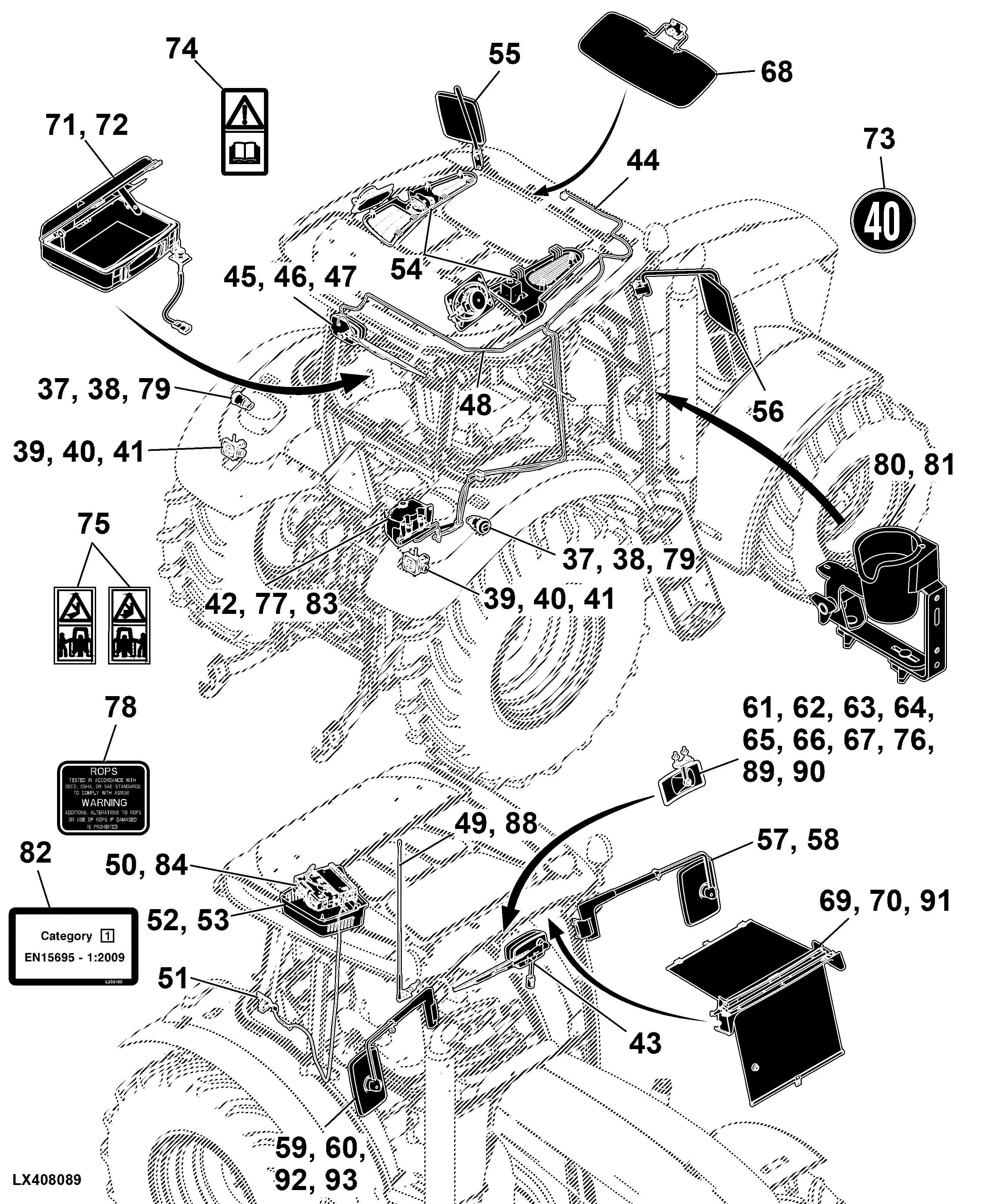

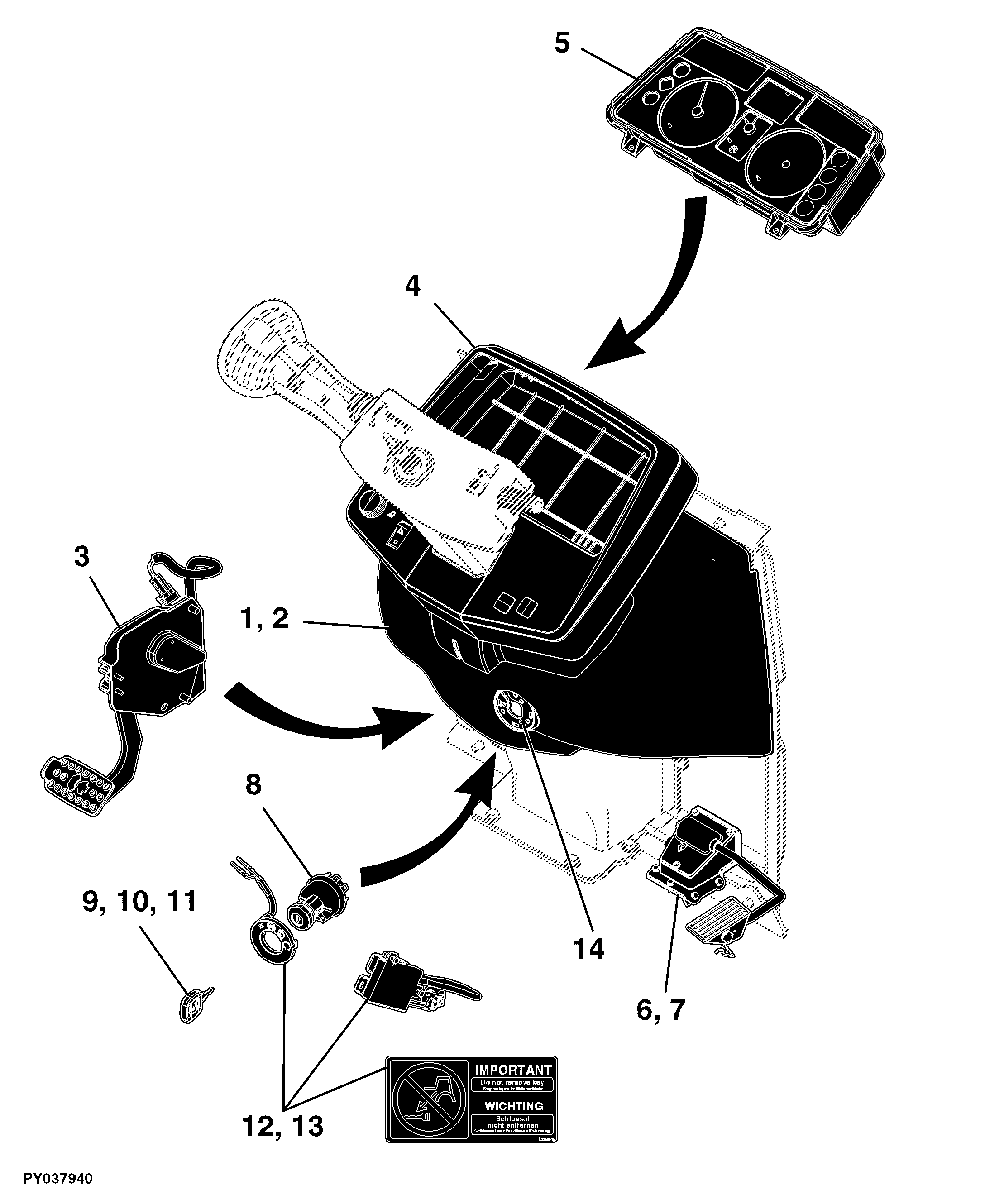

93 Operator's Station, Controls and Accessories

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	Radio Console, W/ Antenna Base, W/O Auxiliary Input	-
-	-	1	Reservoir / Water Pump, Windshield Washer	-
-	-	1	Reservoir / Water Pump, Windshield Washer	-
-	-	1	Rear-View Mirror, Telescopic, Wide Angle Extension, RH, Attachment	-
-	-	1	Rear-View Mirror, Telescopic, Wide Angle Extension, LH, Attachment	-
-	-	1	Rear-View Mirror, Telescopic, RH	-
-	-	1	Rear-View Mirror, LH	-
-	-	1	Rear View Mirror, Telescopic, LH	-
-	-	1	Rear View Mirror, RH	-
-	-	1	Rear View Mirror, Rear Installation	-
-	-	1	Radio W/ CD Drive	-
-	-	1	Radio W/ CD Drive	-
-	-	1	Reservoir / Water Pump, Windshield Washer, Rear Window Washer	-
-	-	1	Radio Console, W/ Antenna Base, W/ Auxiliary Input	-
-	-	1	Radio Aerial	-
-	-	1	Power Outlet Socket / Storage	-
-	-	1	Potentiometer, Cruise Control	-
-	-	1	Plugs, W/O Windshield Wiper, Rear	-
-	-	1	Plug, W/O Switch, Remote Control, PTO	-
-	-	1	Plug, W/O Switch, PTO	-
-	-	1	Plug, W/O MFWD Switch	-
-	-	1	Plug, W/O HMS Switch	-
-	-	1	Plug, W/O Corner Lights, Roof	-
-	-	1	Mounting Parts, W/O Inner Mirror, W/ Sun-Blind	-
-	-	1	Sun Visor	-
-	-	1	Wiper, Rear Windshield	-
-	-	1	Wiper, Front Windshield	-
-	-	1	Windshield Washer, Rear	-
-	-	1	Windshield washer, Front	-
-	-	1	Toggle / Rocker Switch, Differential Lock	-
-	-	1	Symbol Insert, Starter Key, W/O Immobilizer	-
-	-	1	Switch, Remote Control, PTO	-
-	-	1	Switch, MFWD, W/O HMS	-
-	-	1	Switch, Corner Lights, Roof	-
-	-	1	Switch Control, PTO	-
-	-	1	Switch / Remote Control, Hitch, Rear Fender Extension	-
-	-	1	Mounting Parts, W/O Inner Mirror	-
-	-	1	Sun Shade Curtain	-
-	-	1	Storage Compartment, W/O Automatic Trailer Hitch	-
-	-	1	Starter Switch	-
-	-	1	Starter Key, W/ Immobilizer, Kit	-
-	-	1	Starter Key W/ Immobilizer	-
-	-	1	Starter Key	-
-	-	1	Speakers	-
-	-	1	Side Console, Low, RH	-
-	-	1	Rotary Switch / Immobilizer	-
-	-	1	Retainer, Bowden Cables, Range Shifting	-
-	-	1	Attachment, Rear-View Mirror, Telescopic, RH	-
-	-	1	Console, Upper, LH	-
-	-	1	Clutch Actuation Components, Clutch Pedal, Electrical	-
-	-	1	Clothes Hook	-
-	-	1	Cigar Lighter / Ashtray	-
-	-	1	Bowden Cable Retainer Assembly	-
-	-	1	Bottle Holder / Display Unit Bracket, Attachment	-
-	-	1	Auxiliary Input, Radio	-
-	-	1	Attachment, Wiper, Rear Windshield	-
-	-	1	Attachment, Switch, PTO	-
-	-	1	Attachment, Switch / Remote Control, Hitch, Rear Fender Extension	-
-	-	1	Attachment, Rotary Switch, Immobilizer	-
-	-	1	Console, Upper, LH, W/ Field Office	-
-	-	1	Attachment, Rear-View Mirror, Telescopic, LH	-
-	-	1	Attachment, Rear View Mirror, Rear Installation	-
-	-	1	Attachment, Pressure Gauge	-
-	-	1	Attachment, Field Office / Power Outlet Socket	-
-	-	1	Attachment, Bowden Cable Retainer Assembly, W/ Additional Oil Reservoir	-
-	-	1	Attachment, Bowden Cable Retainer Assembly	-
-	-	1	Attachment, Bottle Holder	-
-	-	1	Attachment, Antenna	-
-	-	1	Attachment, Additional Rear View Mirror	-
-	-	1	Accelerator Pedal, W/ Electronic Speed Control, Standard Cab	-
-	-	1	Dual Sunshade, W/O Tiltable Windshield	-
-	-	1	Mounting Parts, W/O Inner Mirror	-
-	-	1	Mounting parts, Rear View Mirror, Rear Installation, Attachment	-
-	-	1	Mounting Parts, GreenStar™ Display	-
-	-	1	Mounting Parts, Additional Rear View Mirror, Attachment	-
-	-	1	Mounting Part, Pressure Gauge, Attachment	-
-	-	1	Instrument Unit	-
-	-	1	Instrument Panel	-
-	-	1	Inside View Mirror, Rear Installation	-
-	-	1	Inside View Mirror, Rear Installation	-
-	-	1	Gauge, Air Brakes	-
-	-	1	Field Office / Power Outlet Socket	-
-	-	1	Accelerator Pedal, W/ Electronic Speed Control, Low Profile Cab	-
-	-	1	Dual Sunshade, W/ Tiltable Windshield	-
-	-	1	Decal, Warning	-
-	-	1	Decal, Safety Information, Operator’s Manual	-
-	-	1	Decal, Remote Control, Fender	-
-	-	1	Decal, 40 km/h (25 mph)	-
-	-	1	Decal	-
-	-	1	Cowl, W/ Tiltable Windshield	-
-	-	1	Cowl, W/ Fixed Windshield	-
-	-	1	Cover, W/O Remote Control, Rear Fender	-
-	-	1	Console, Upper, RH	-

93 Operator's Station, Controls and Accessories
