Открытый узел

Transmission Cold Disconnect Control Linkage Kit

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

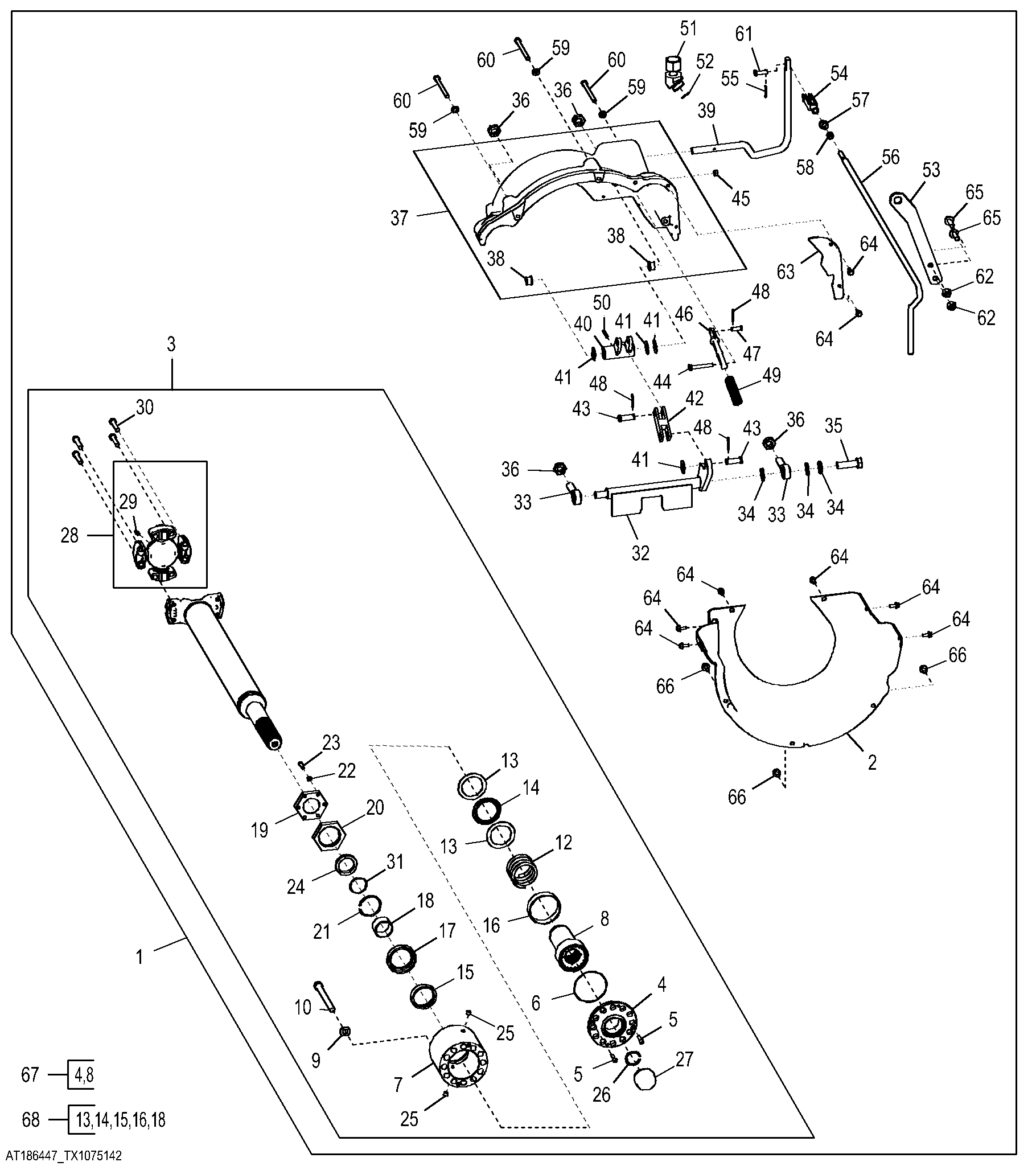

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT186447	1	Mounting Parts	Whole Goods
2	T165633	1	Cover	-
3	AT180584	1	Universal Driveshaft	-
4	T132401	1	Hub	-
5	19H2932	2	Screw	1/4" X 1"
6	E65288	1	O-Ring	-
7	T132402	1	Cover	-
8	T132403	1	Shaft	-
9	24M7240	12	Washer	13 X 25 X 3 mm
10	19H3599	12	Cap Screw	1/2" X 5-1/4"
12	T134073	1	Compression Spring	-
13	T132409	2	Thrust Bearing Race	-
14	AT144872	1	Bearing	-
15	JD10271	1	Needle Bearing	-
16	T132407	1	Bushing	-
17	AT144871	1	Seal	-
18	T138121	1	Bushing	-
19	T138122	1	Bushing	-
20	T152858	1	Bushing	-
21	R33232	1	Snap Ring	-
22	T139205	6	Washer	-
23	19H2924	6	Screw	1/4" X 3/4"
24	AT147162	1	Seal	-
25	15H558	2	Pipe Plug	1/8"
26	R26267	1	Ring	-
27	T325362	1	Cap	(SUB FOR C2213E THIS APPLICATION)
28	AT199701	1	Cross And Bearing Assembly	-
29	AT199750	1	Lubrication Fitting	-
30	19H2960	4	Cap Screw	3/8" X 1-3/4"
31	U15973	1	O-Ring	-
32	AT185495	1	Linkage	-
33	AT186292	2	Link End	-
34	24M7053	3	Washer	17 X 30 X 3 mm
35	19H2706	1	Cap Screw	5/8" X 2"
36	14H1041	4	Nut	5/8"
37	AT185031	1	Housing	-
38	F3293R	2	Bushing	-
39	T165886	1	Lever	-
40	AT169863	1	Bellcrank	-
41	24H1255	4	Washer	11/16" X 1-1/4" X 0.060"
42	T41484	1	Link	-
43	R72855	2	Pin Fastener	-
44	19M7981	1	Cap Screw	M8 X 55
45	14M7273	1	Nut	M8
46	T138076	1	Pin Fastener	-
47	P46404	1	Pin Fastener	-
48	11H236	3	Cotter Pin	1/8" X 1"
49	T51159	1	Spring	-
50	M82289	1	Spring Pin	-
51	38H1609	1	Adapter Fitting	-
52	T77858	1	O-Ring	-
53	T161126	1	Gusset	-
54	M81327	1	Yoke	-
55	11H234	1	Cotter Pin	3/32" X 1"
56	T190223	1	Rod	-
57	R42093	1	Grommet	-
58	14H846	1	NUT	3/8"
59	24M7238	3	Washer	8.700 X 17 X 2 mm
60	19M8456	3	Cap Screw	M8 X 100
61	R65563	1	Pin Fastener	-
62	14M7296	2	Flange Nut	M10
63	T165887	1	Cover	-
64	19M7775	8	Screw	M6 X 16
65	19M7786	2	Screw	M10 X 30
66	19M7865	3	Screw	M8 X 16
67	AT146944	1	Transmission Kit	-
68	AT146943	1	Bearing Kit	-

Transmission Cold Disconnect Control Linkage Kit

Нет текстового описания
