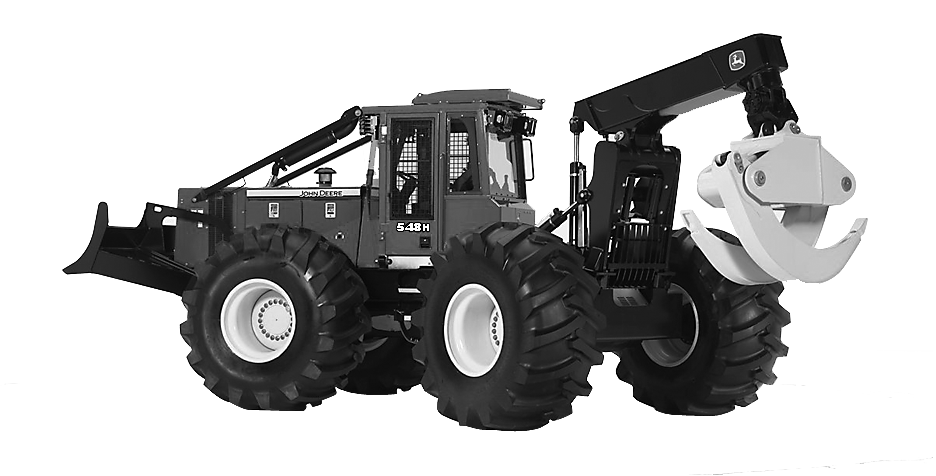

548H Grapple Skidder (PIN: 1DW548HX_ _D630436 - D666892)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание

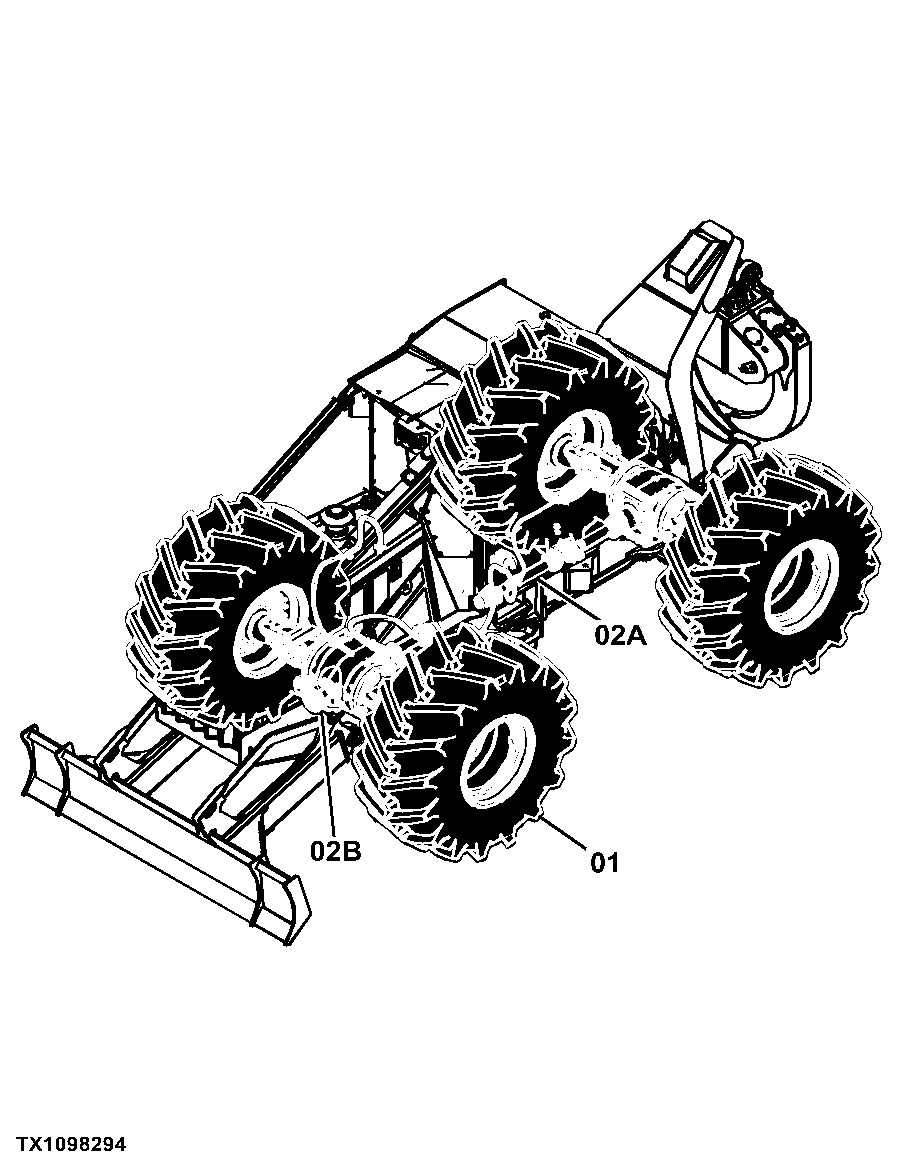

-	-	1	02A Axles, Differentials & Suspension Systems	-
-	-	1	02B Front Axle with Differential Lock - 1200 Series TeamMate™ IV YZ19628	-
-	-	1	02C Rear Axle with Differential Lock - 1200 Series TeamMate™ IV YZ19535	-

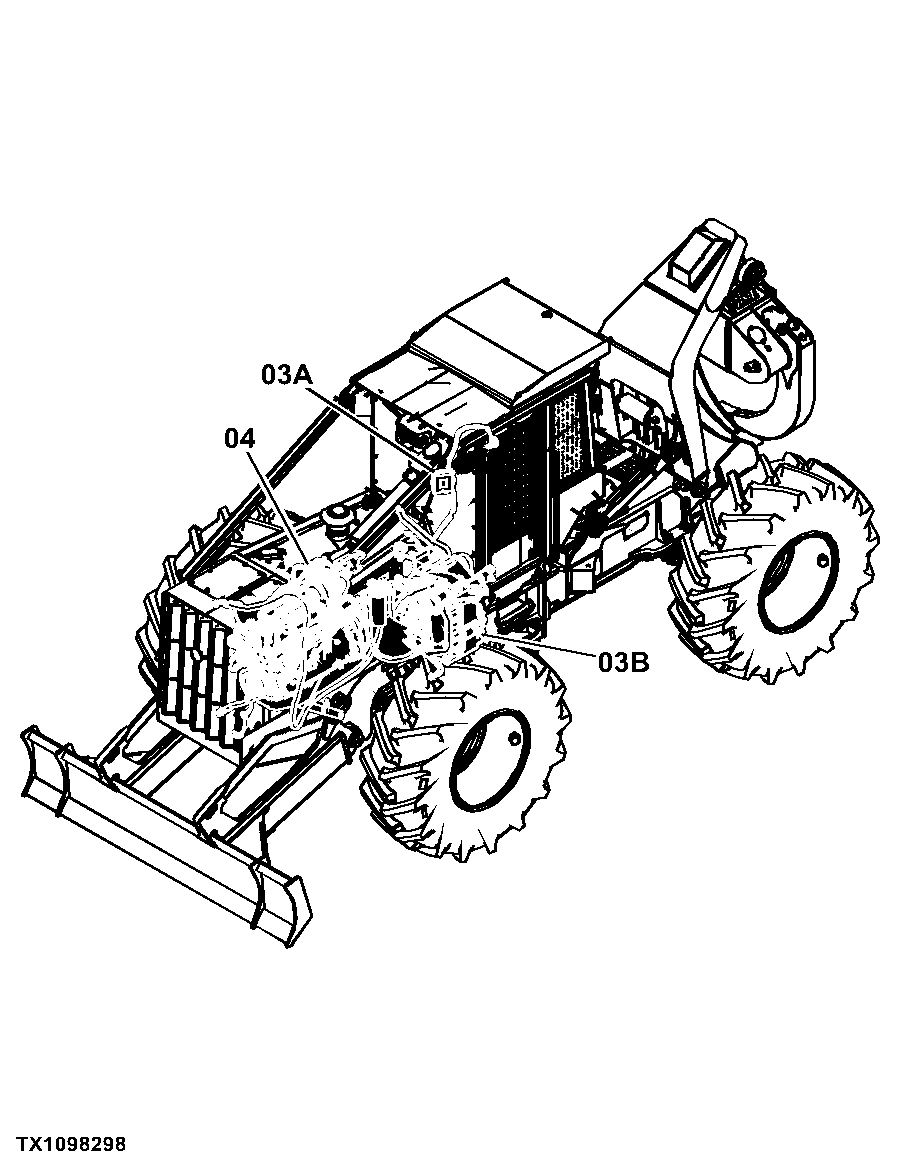

-	-	1	03A Transmission	-
-	-	1	03B Transmission DF180 yz19515	-

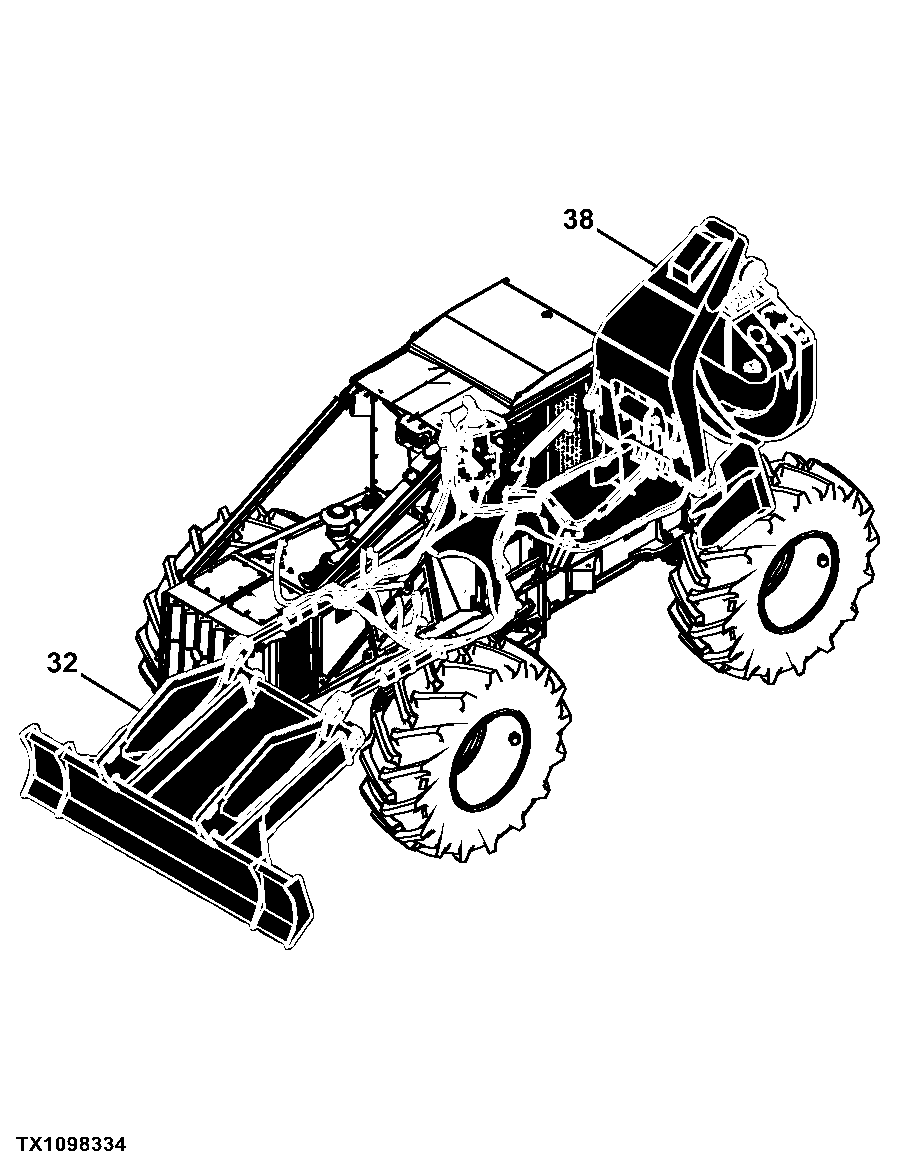

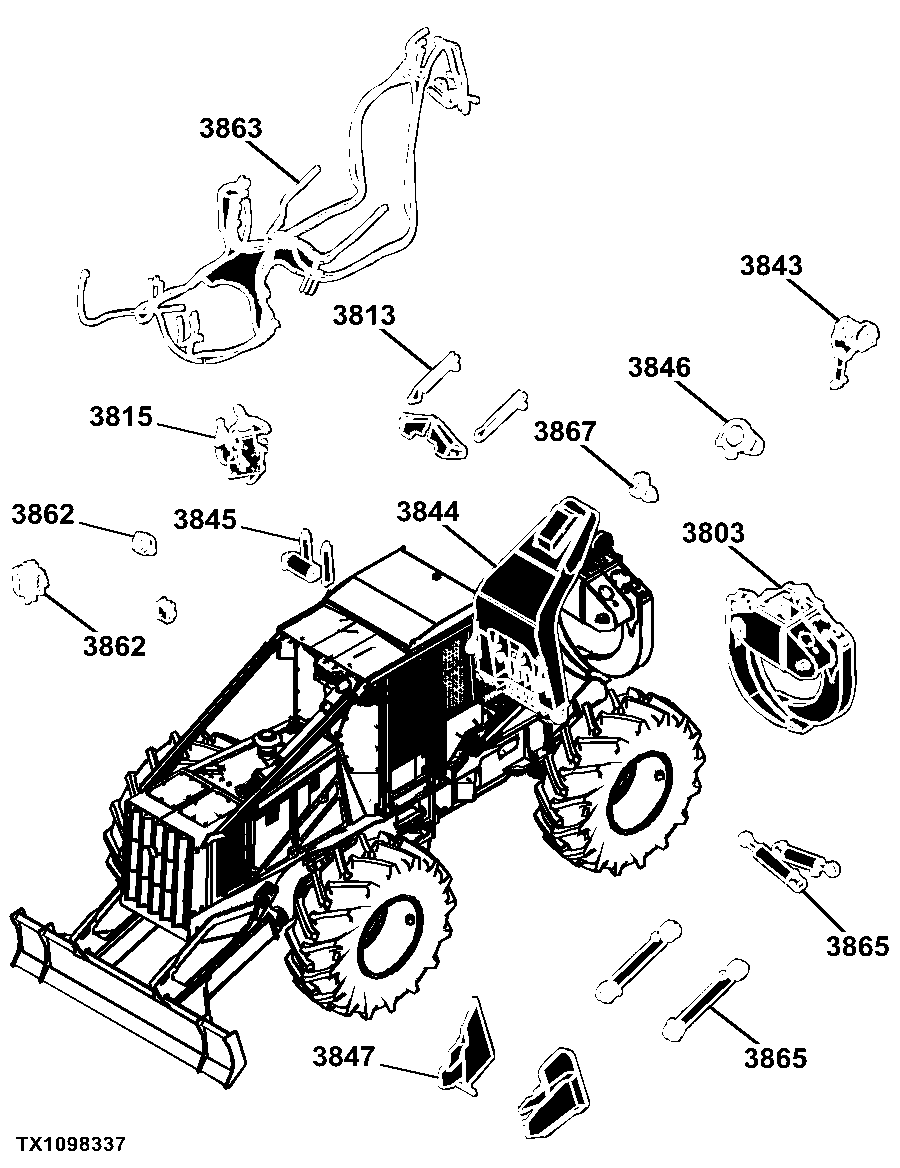

-	-	1	38 Grapple	-

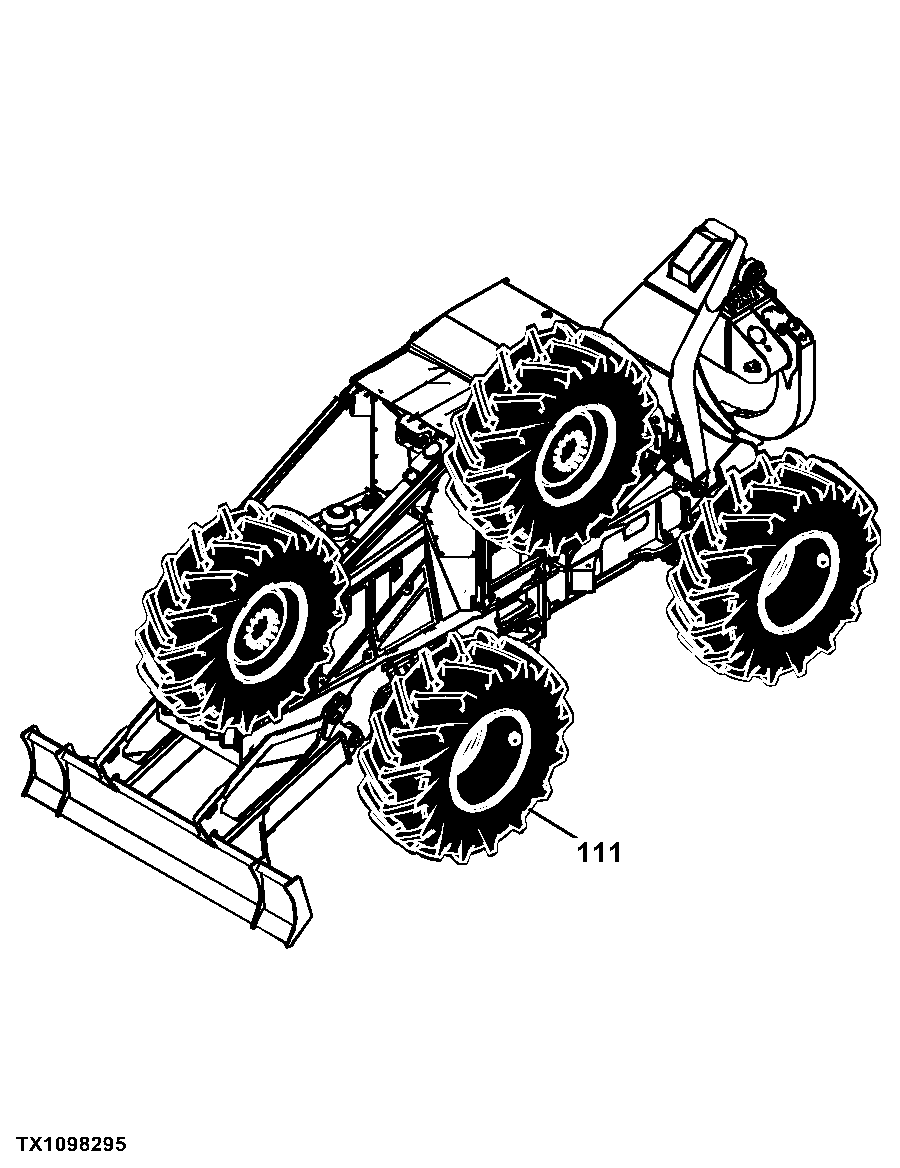

-	-	1	1 Wheels & Tires & Tracks	-

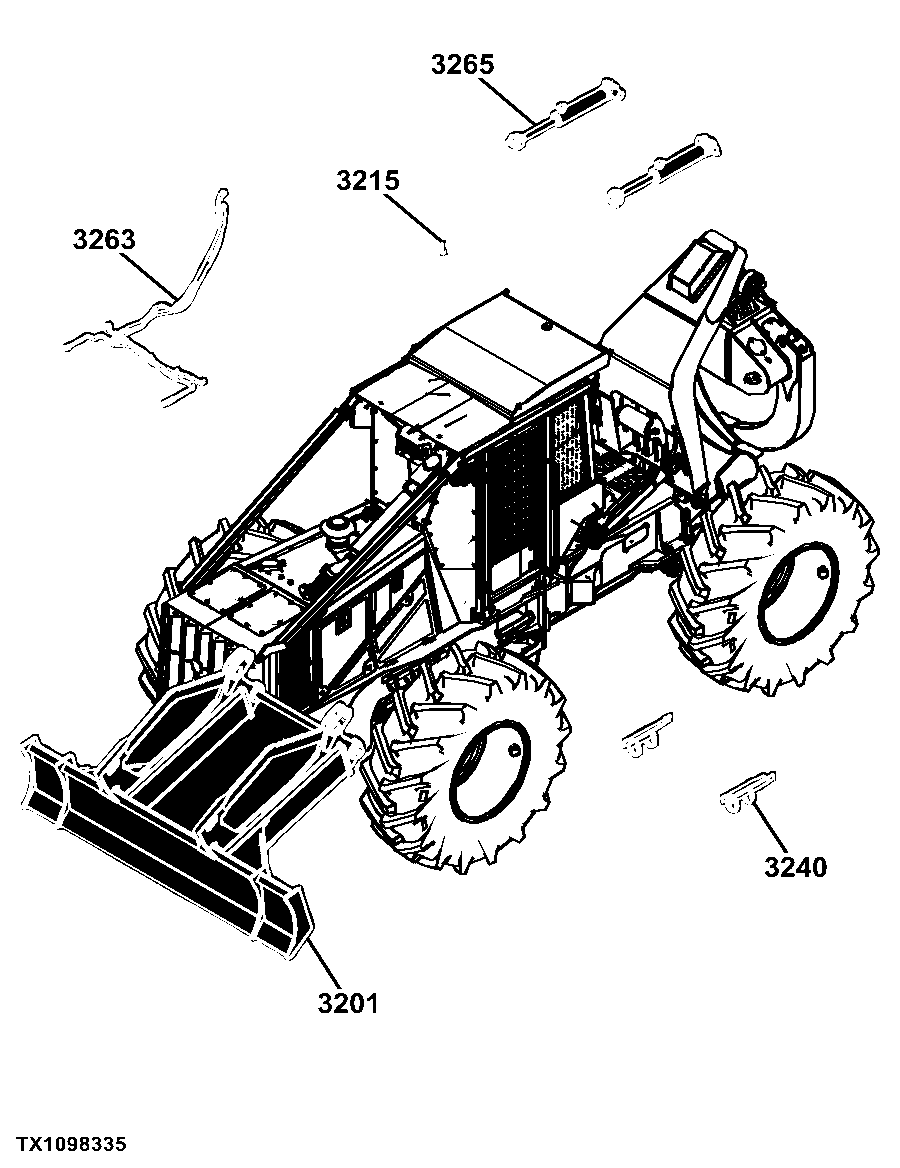

-	-	1	32 Dozers	-

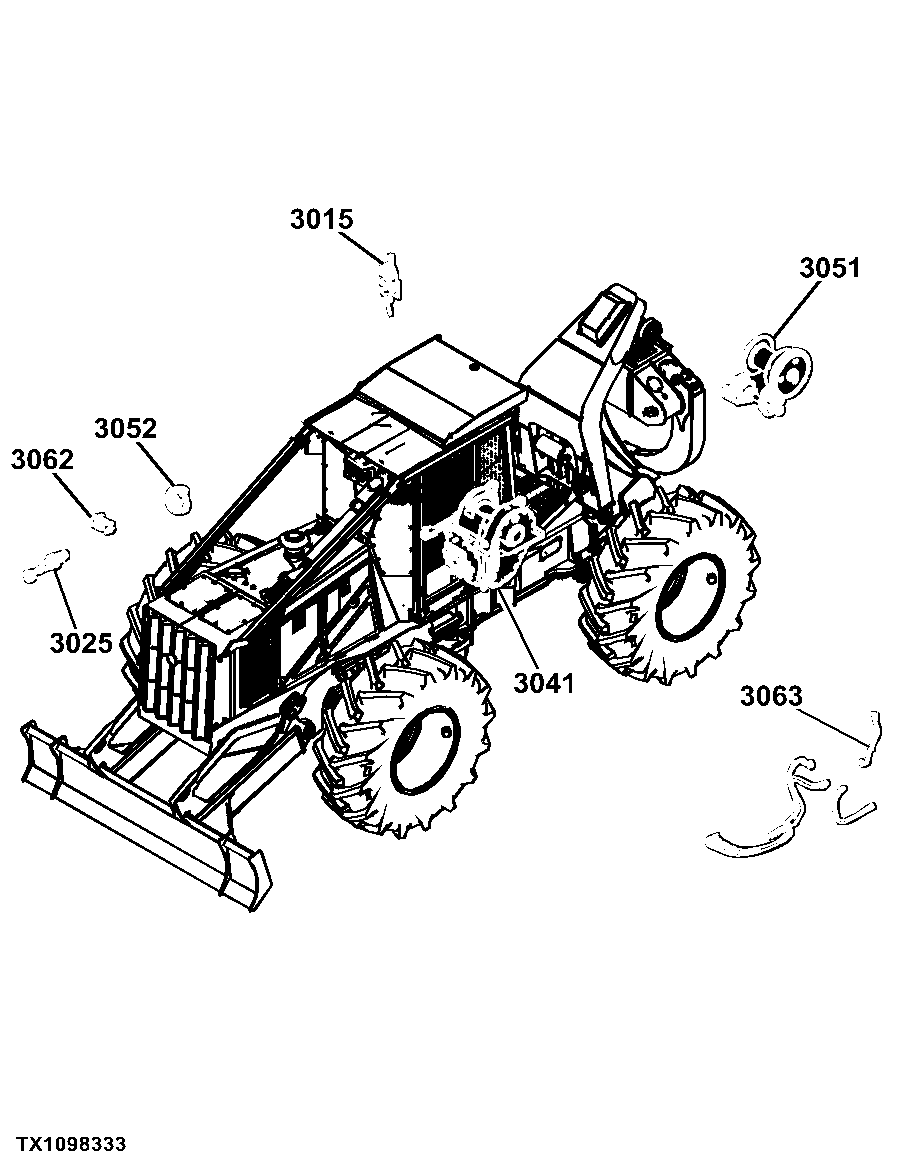

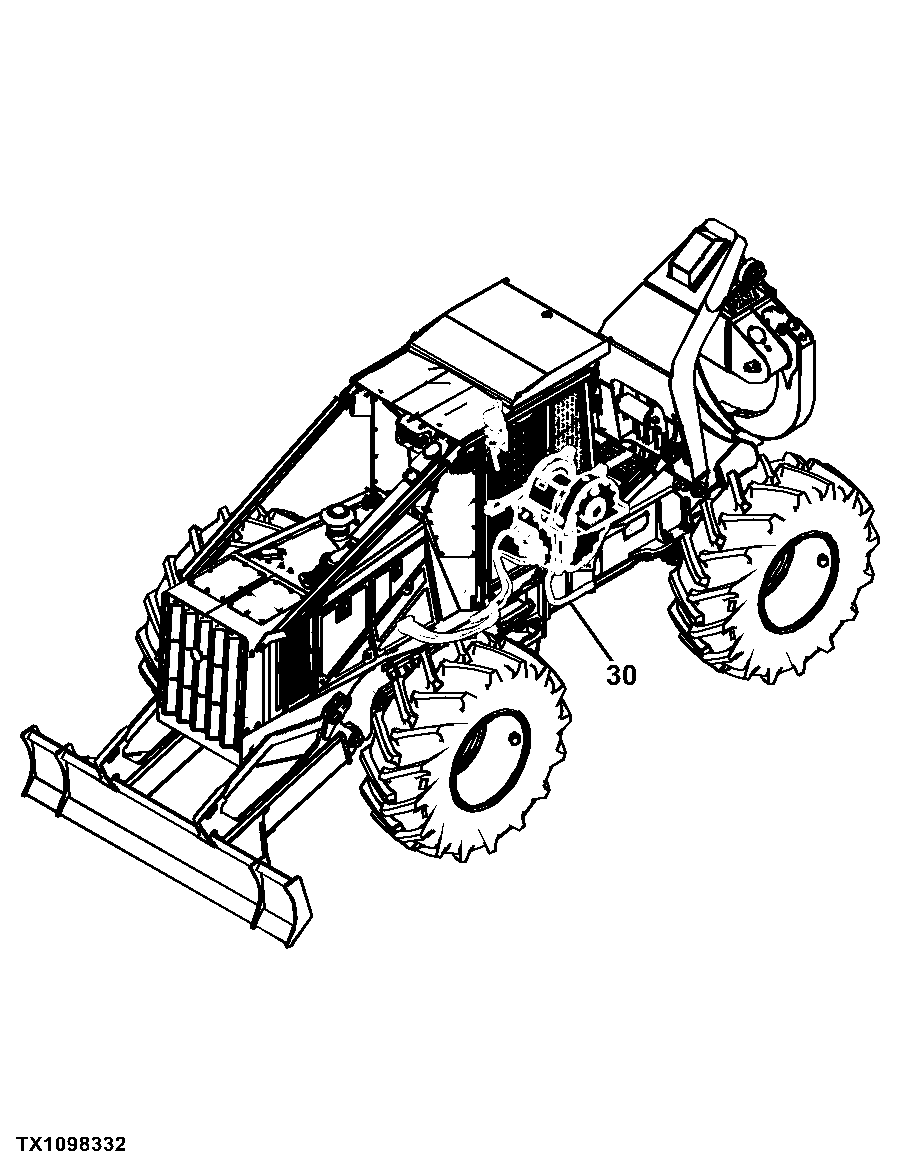

-	-	1	30 Winch	-
-	-	1	26 Global Vehicle Communication	-

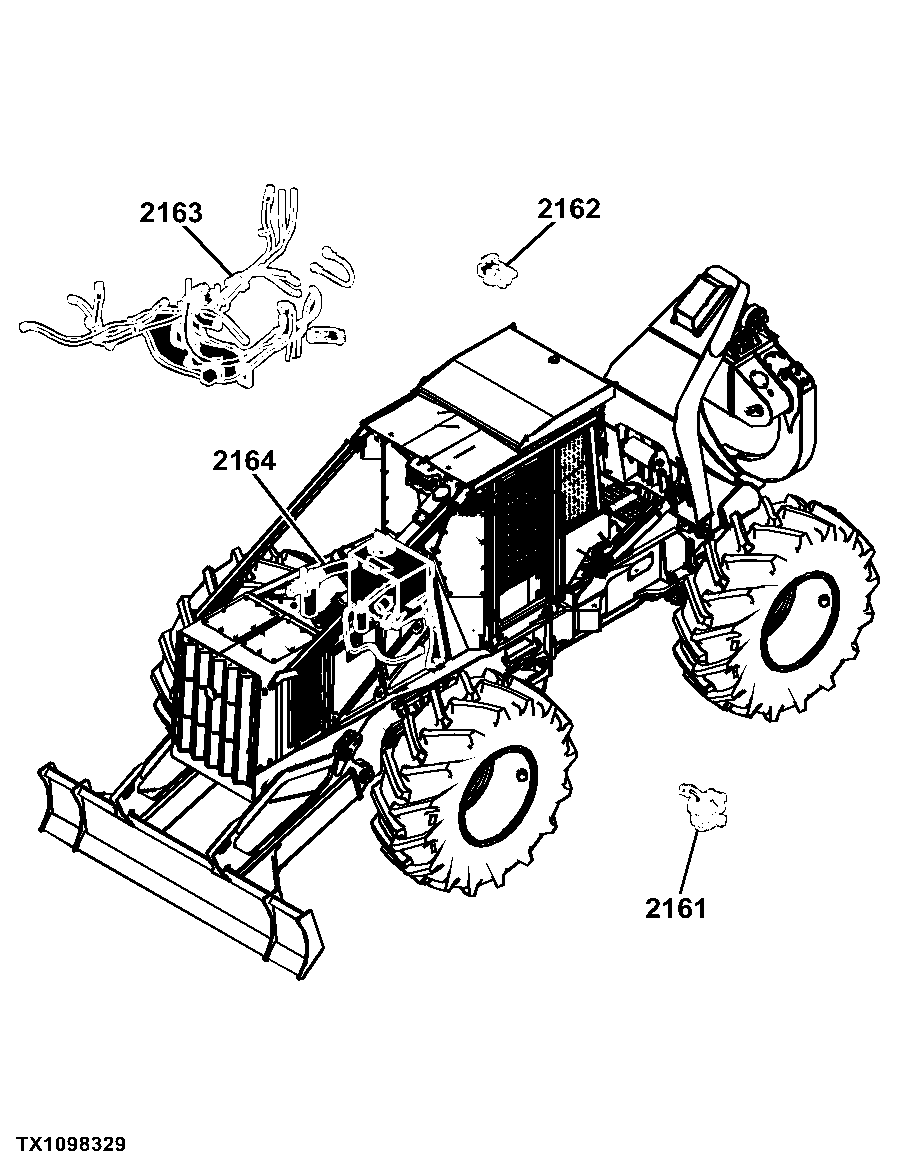

-	-	1	21 Vehicle Main Hydraulic System	-

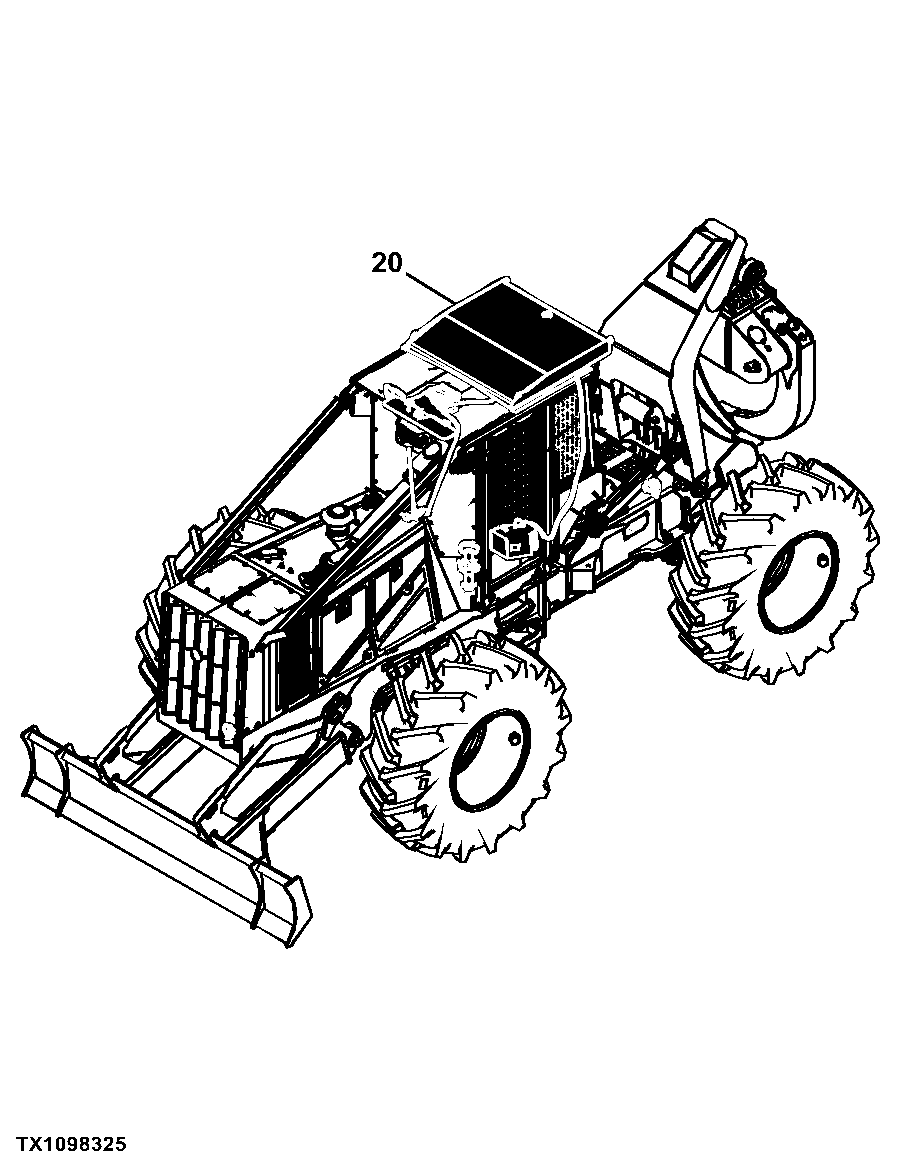

-	-	1	20 Safety, Convenience & Miscellaneous	-

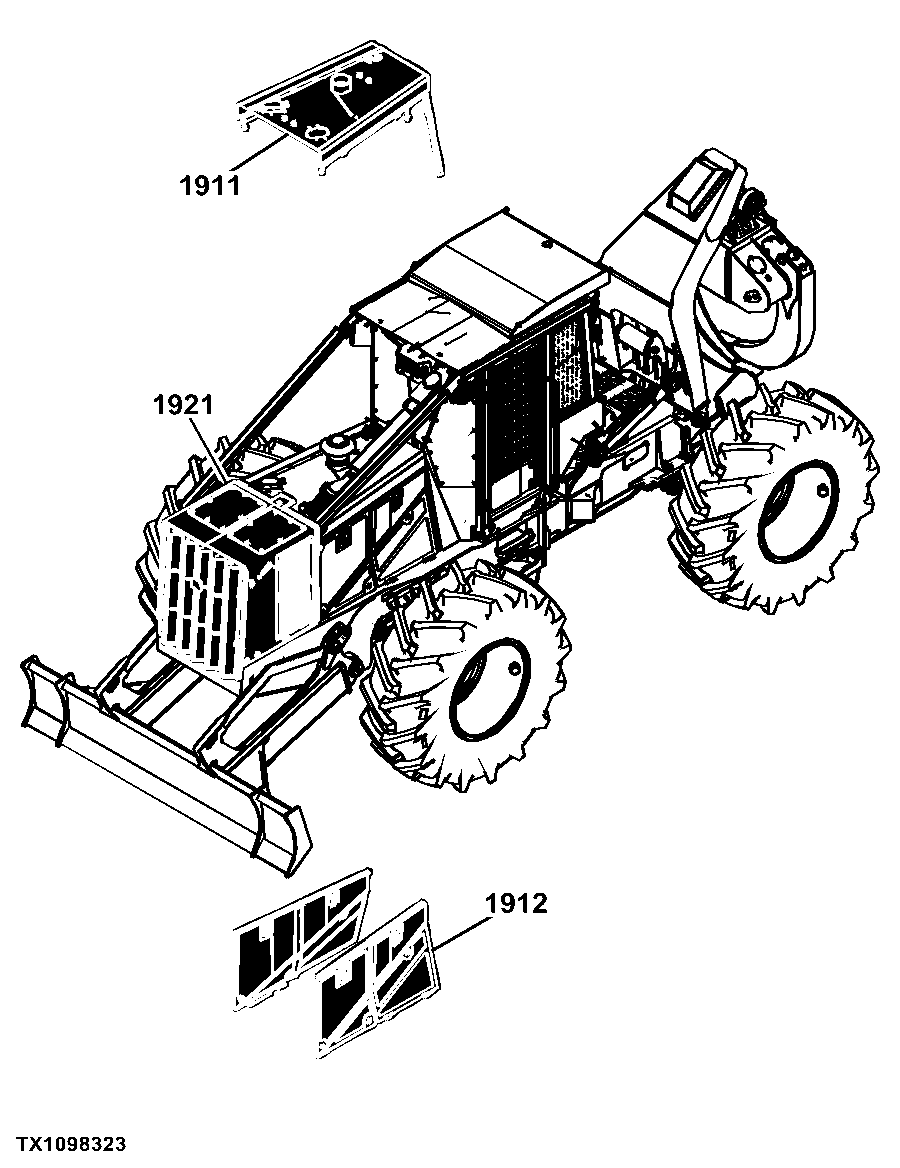

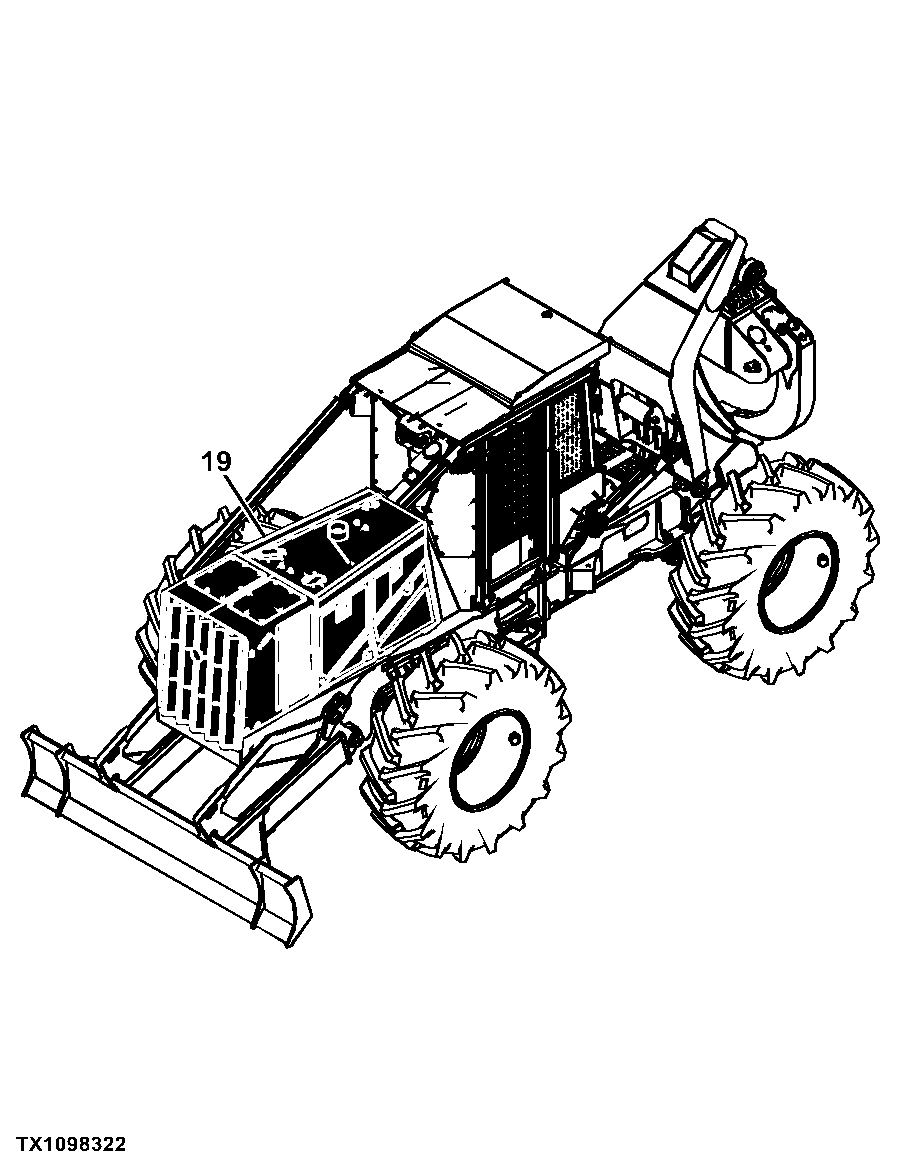

-	-	1	19 Sheet Metal & Styling	-

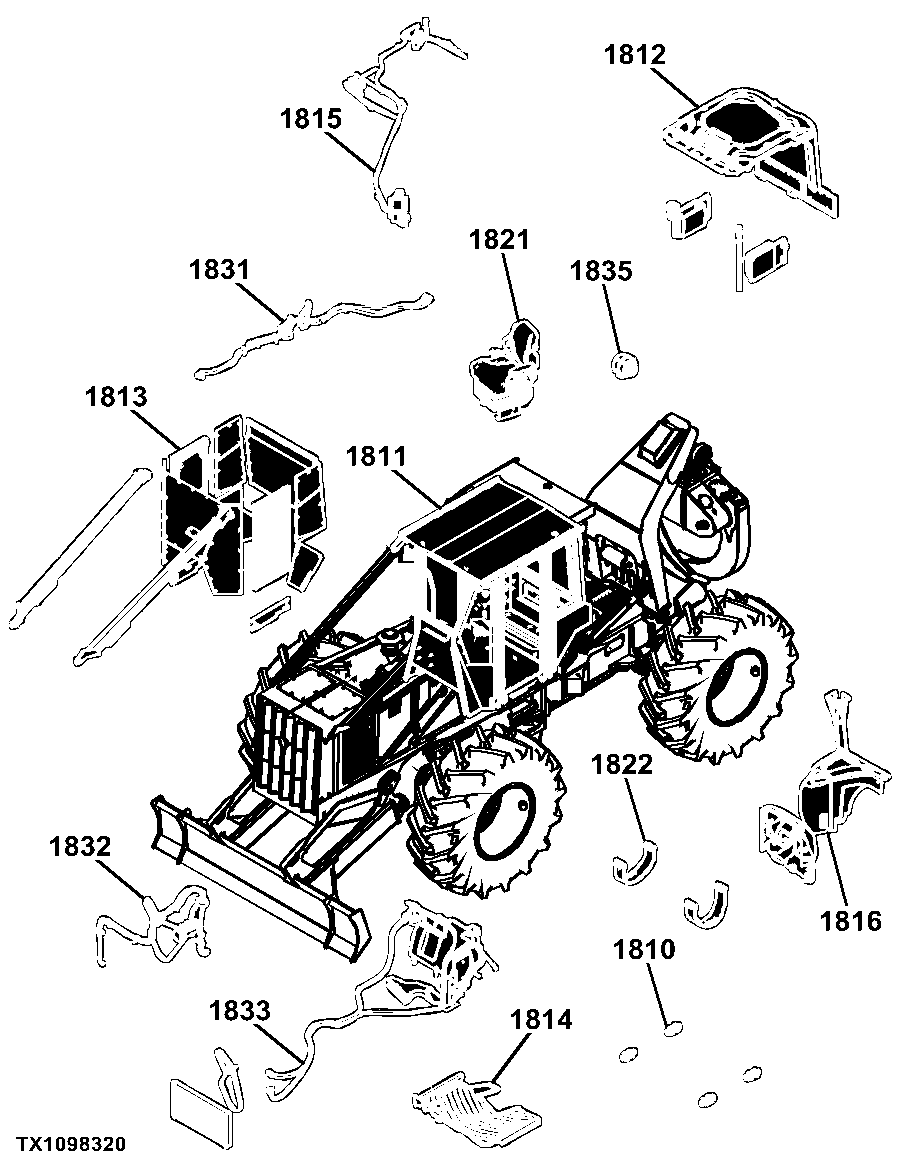

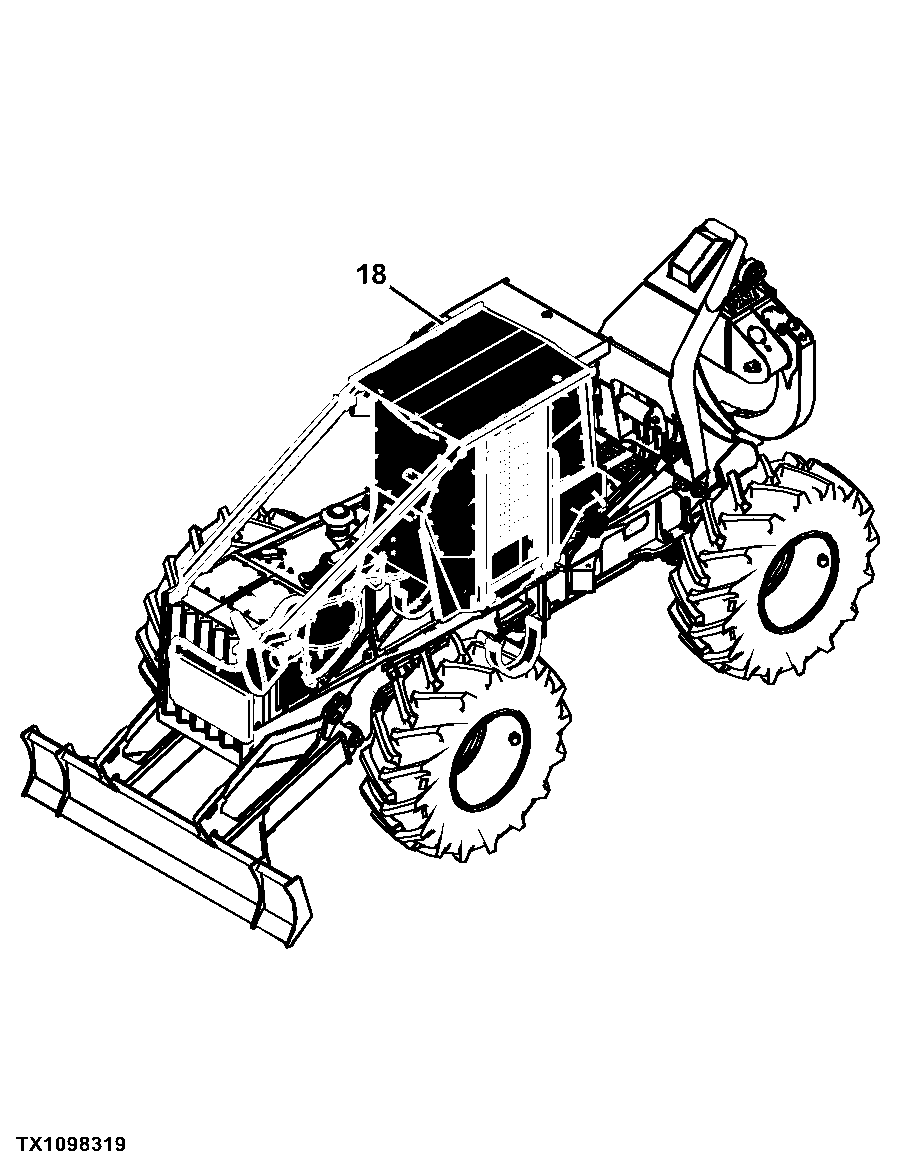

-	-	1	18 Operator's Station	-

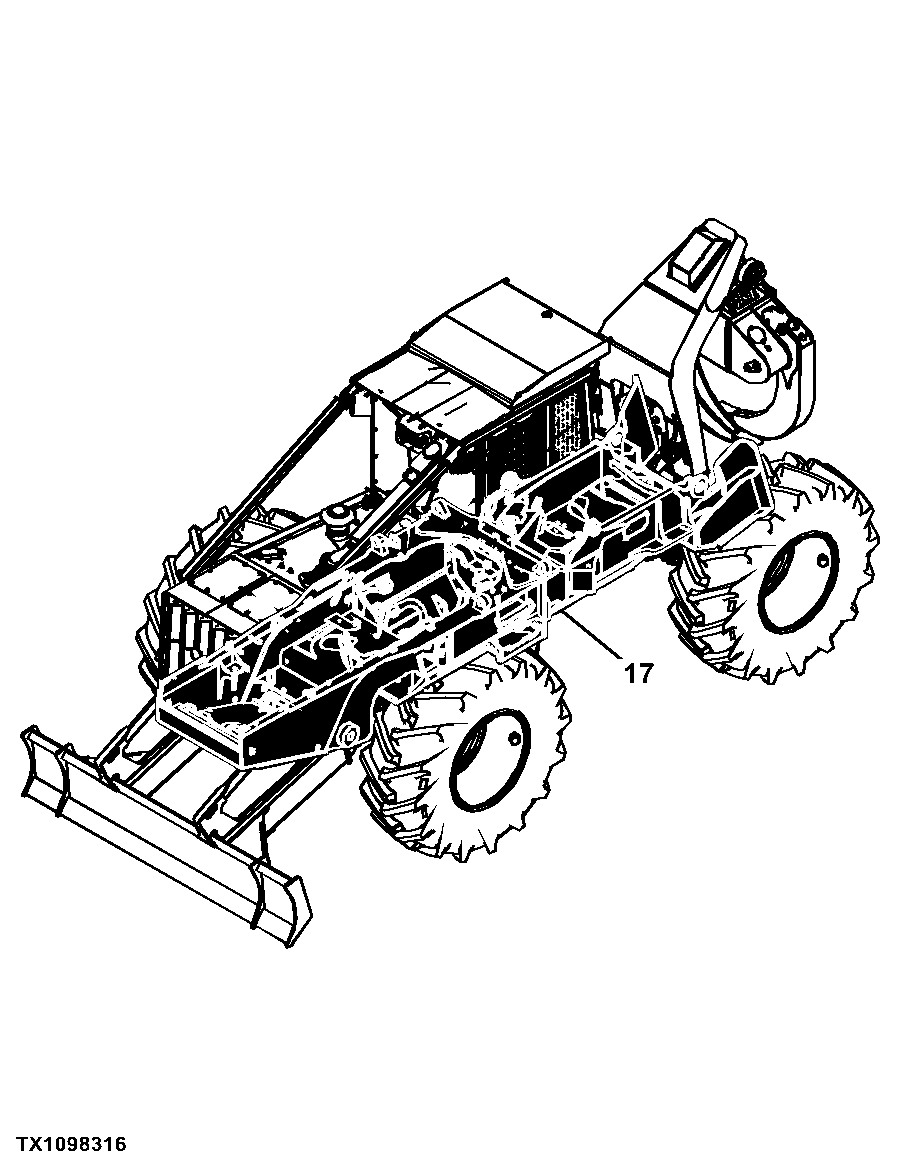

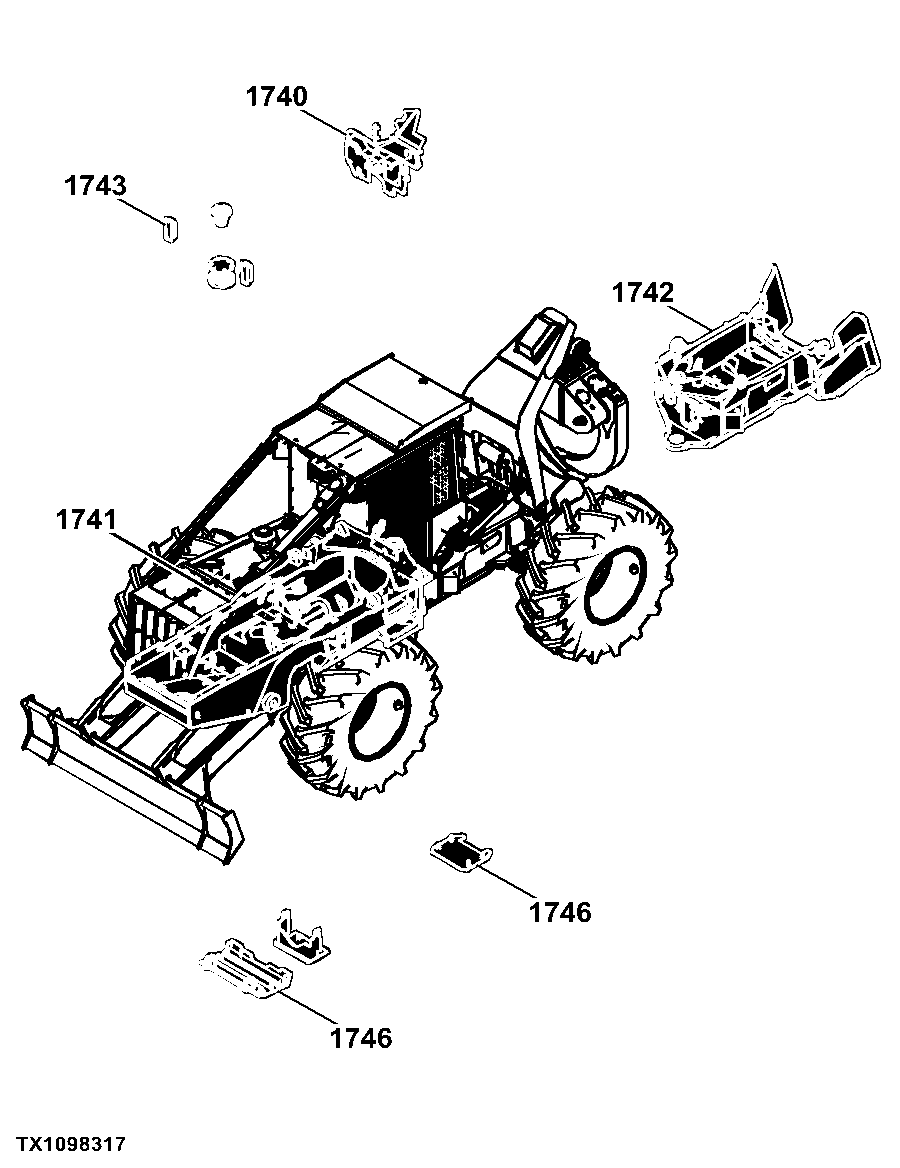

-	-	1	17 Frame Chassis Or Supporting Structure	-

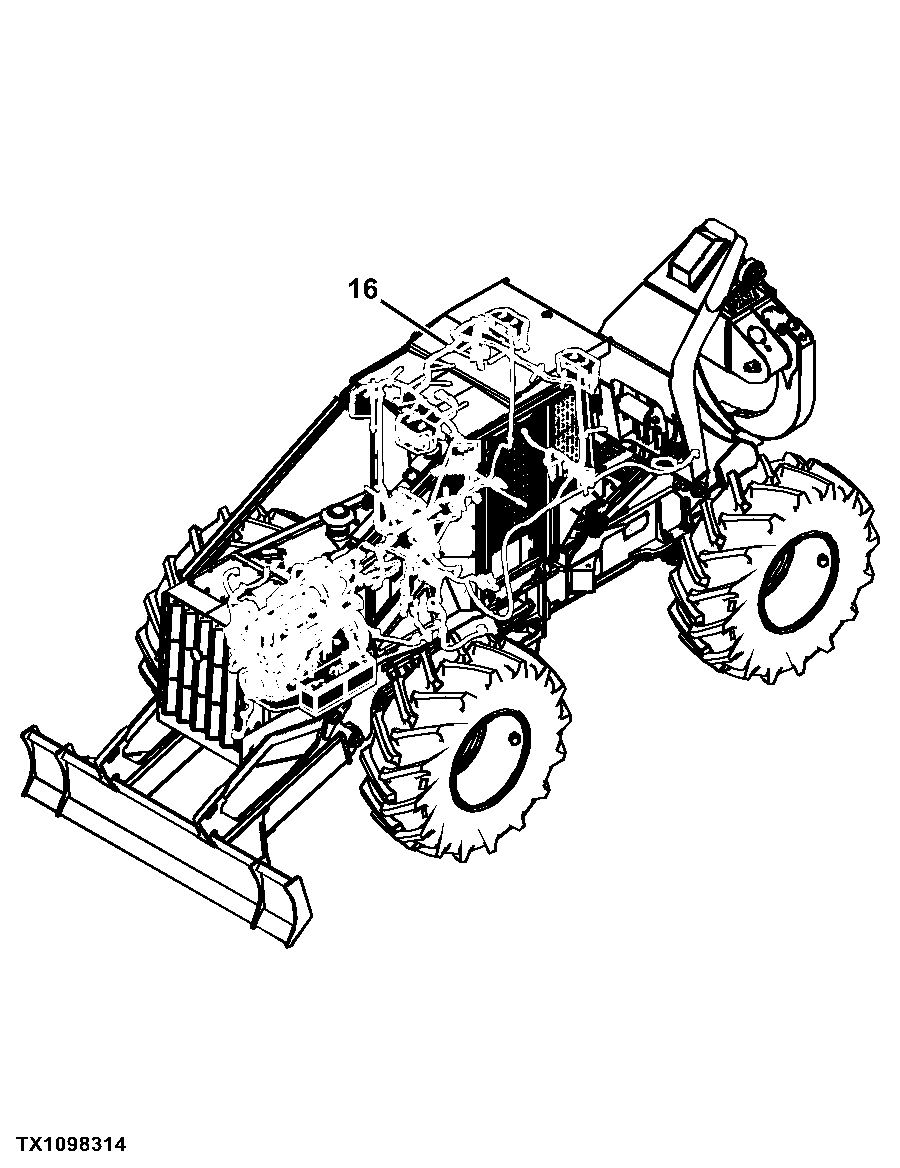

-	-	1	16 Vehicle Electrical Systems	-

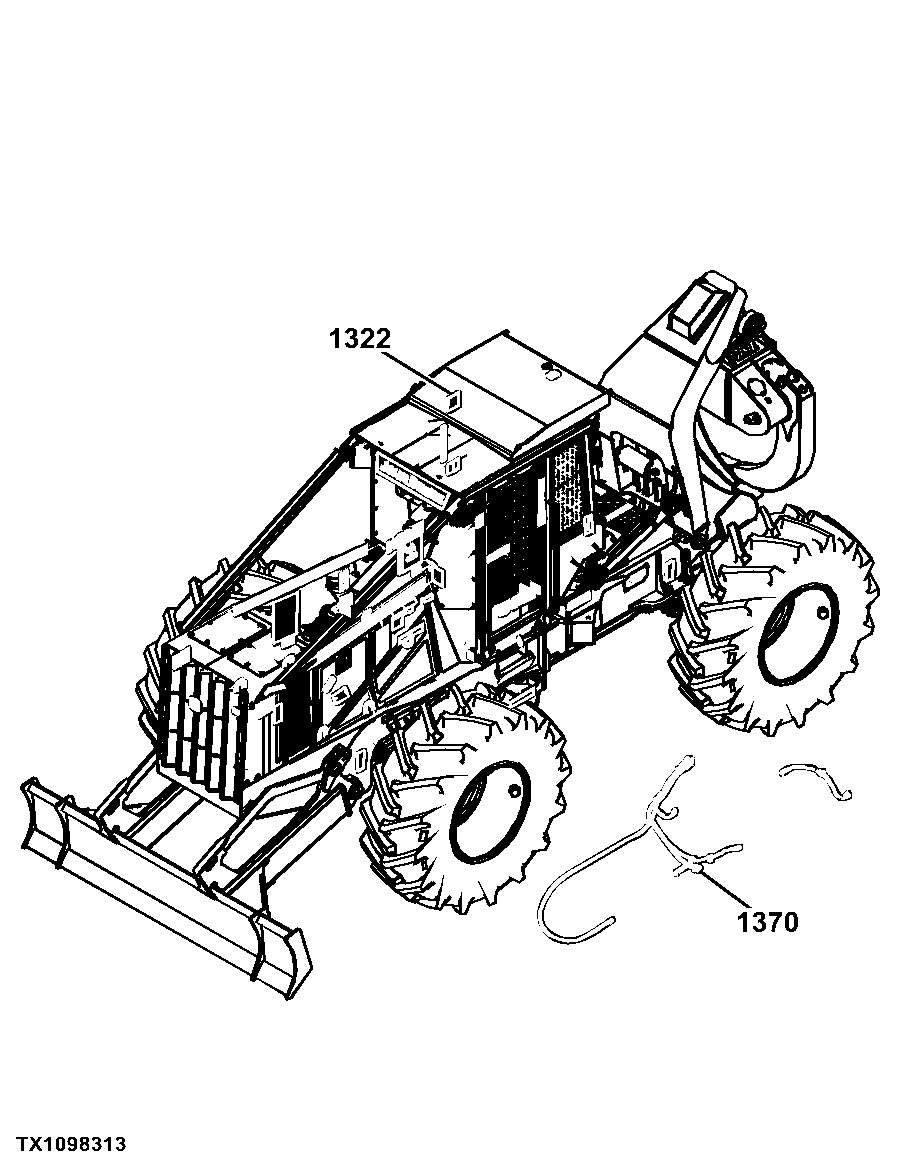

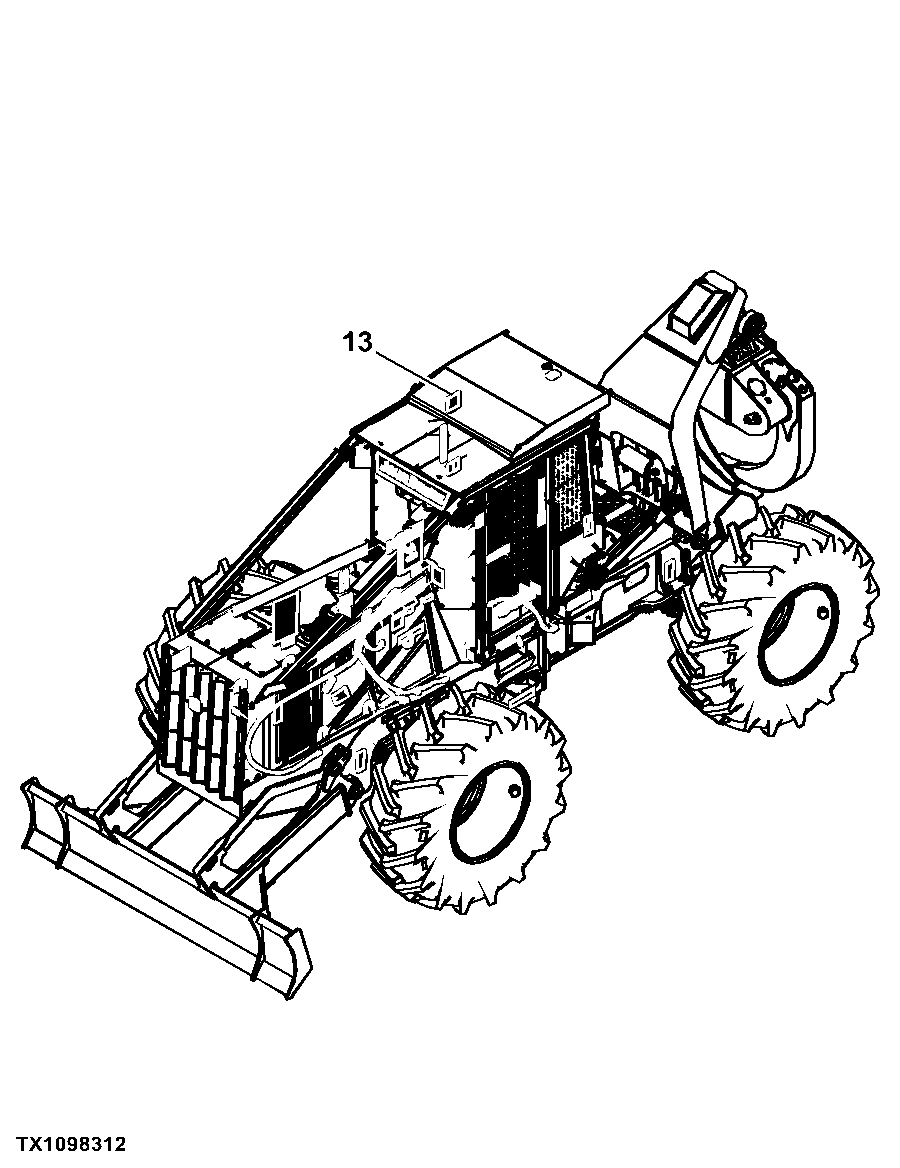

-	-	1	13 Miscellaneous Vehicle	-

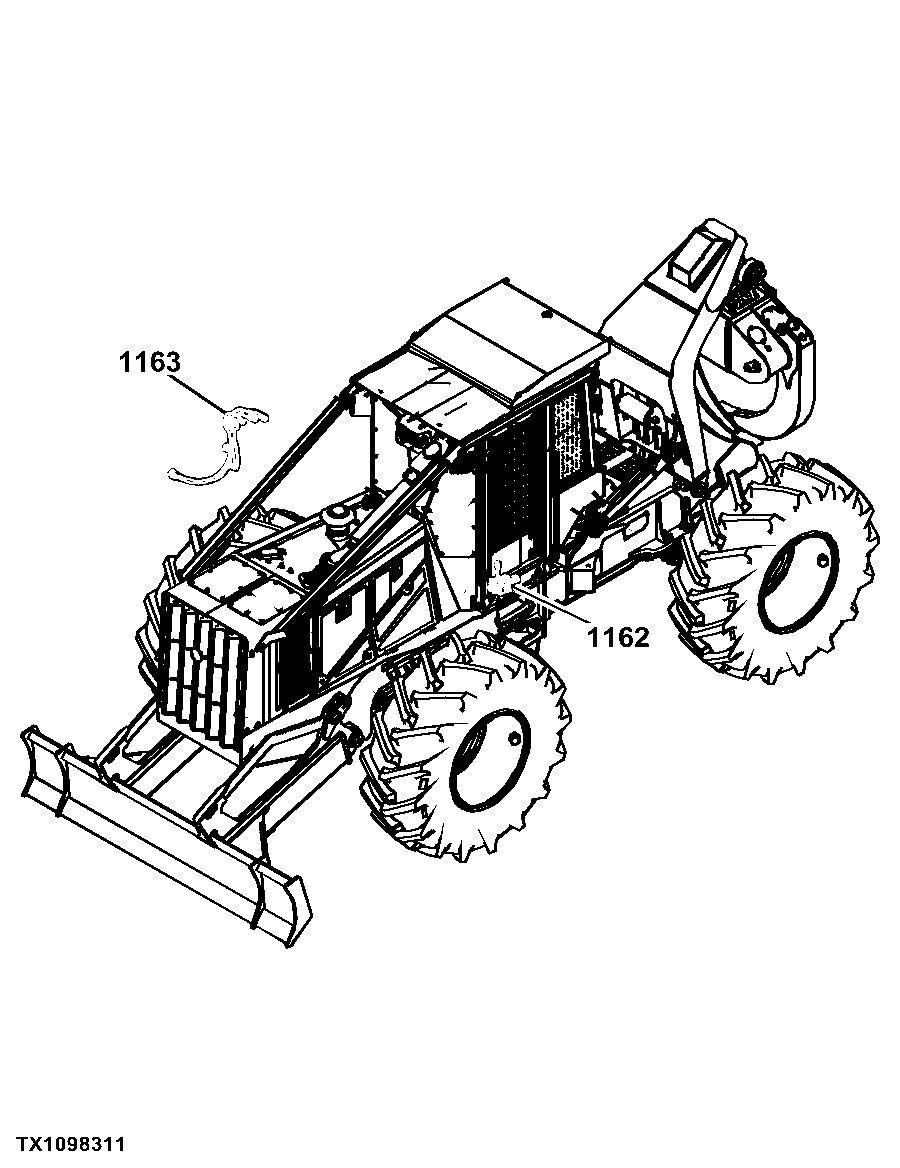

-	-	1	11 Parking Brakes	-

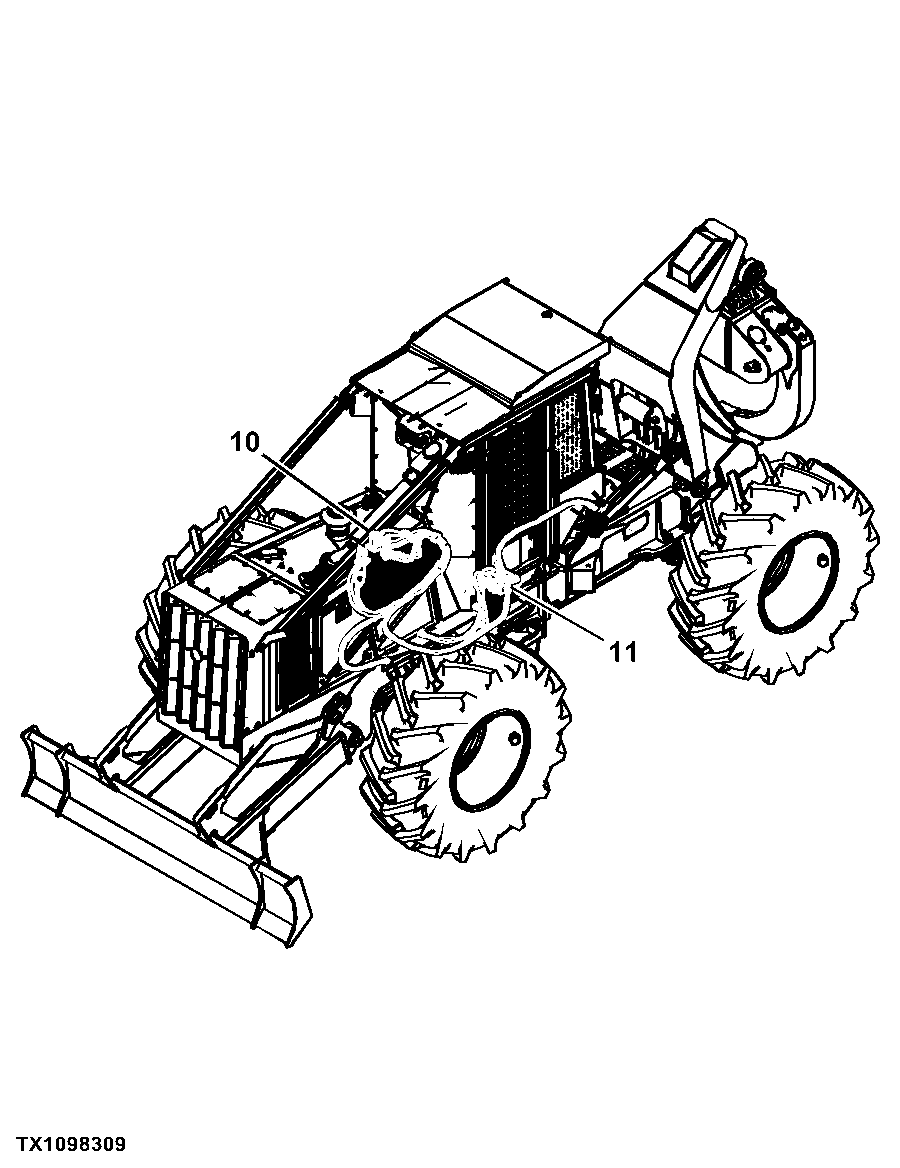

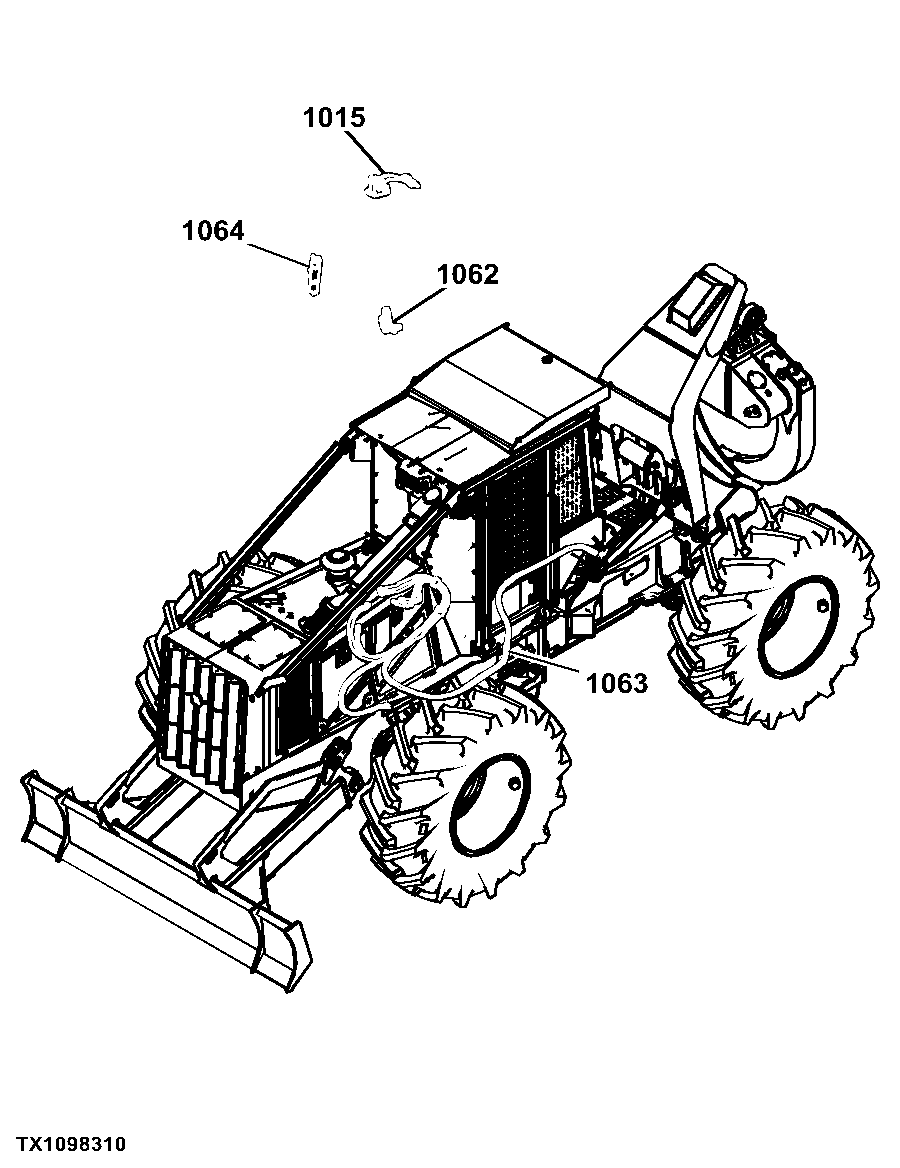

-	-	1	10 Service Brakes	-

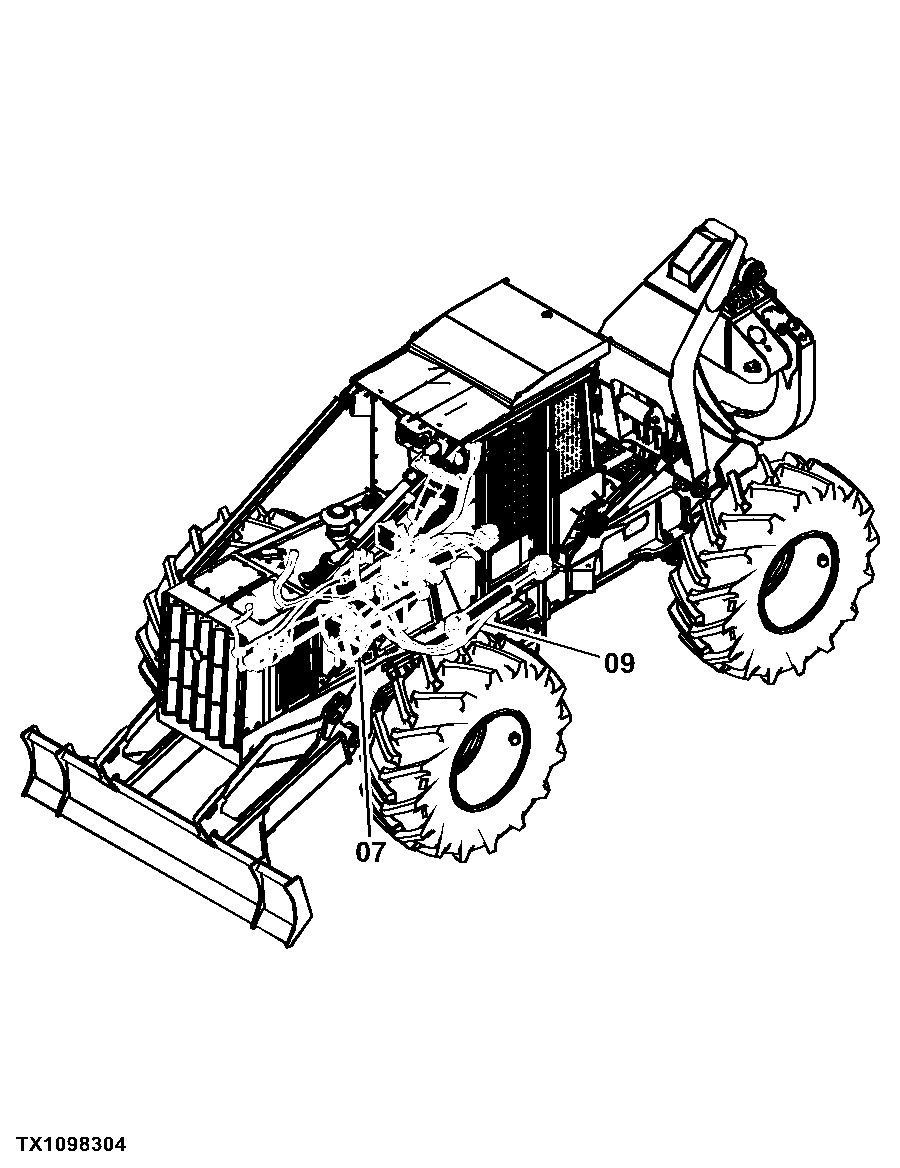

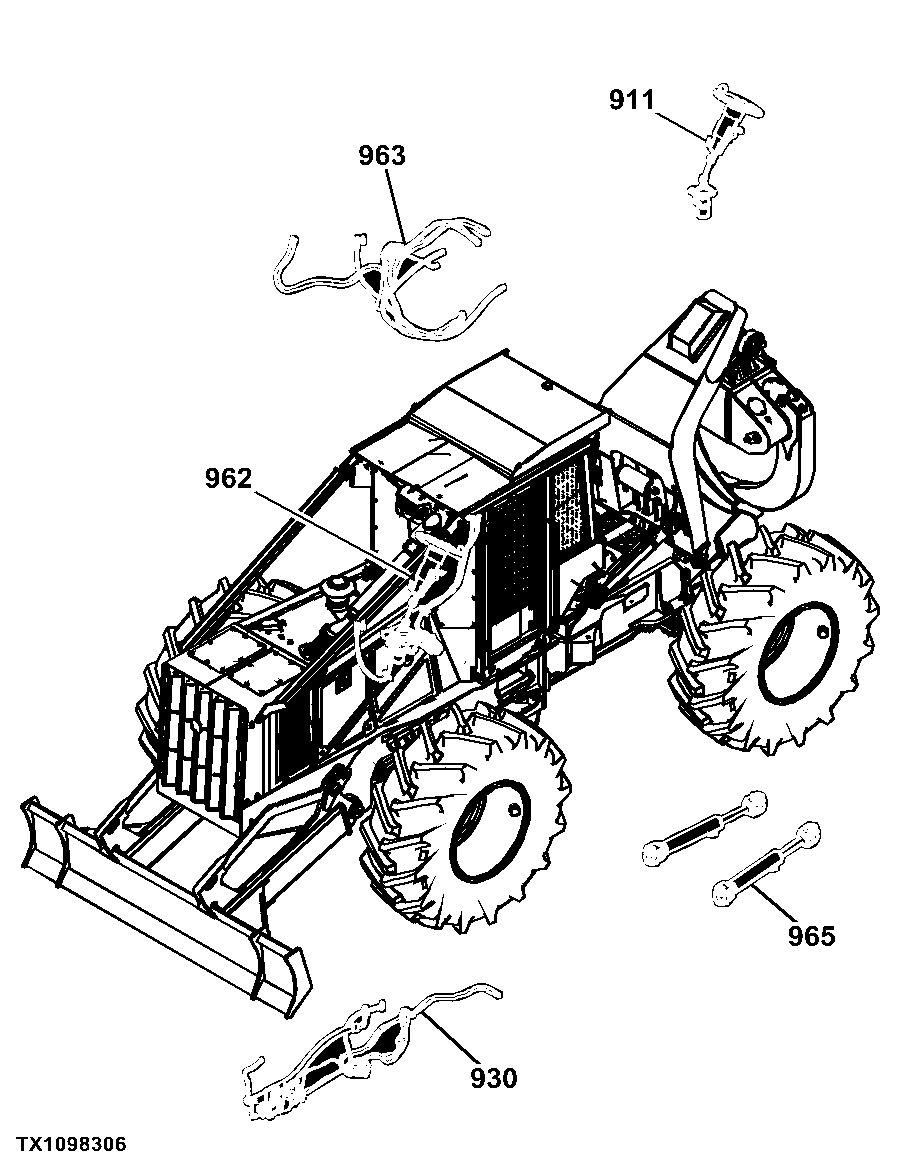

-	-	1	9 Steering System	-
-	-	1	7 Traction (Engine) And Disconnect Clutch	-

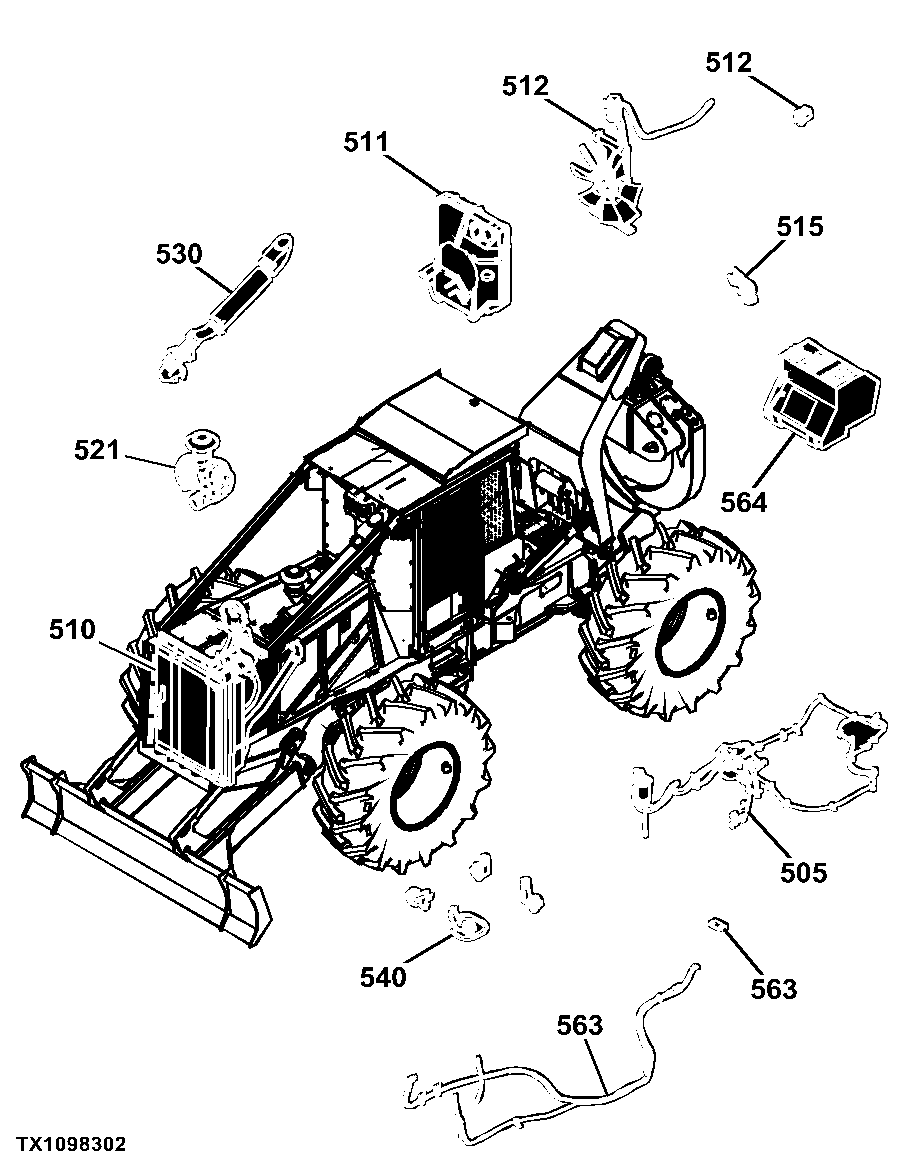

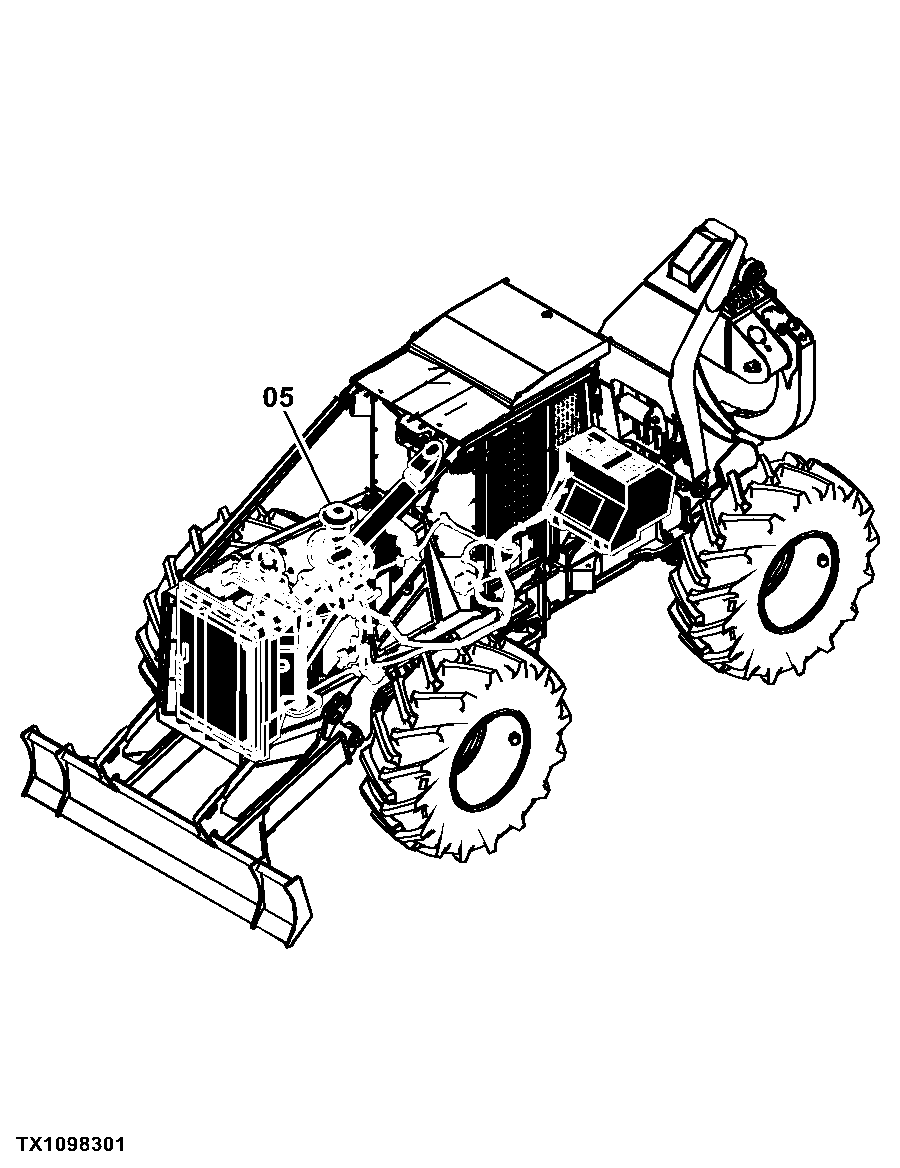

-	-	1	5 Engine Auxiliary System	-
-	-	1	4 Engine 6068HDW65-RE535515-RE542534	-
