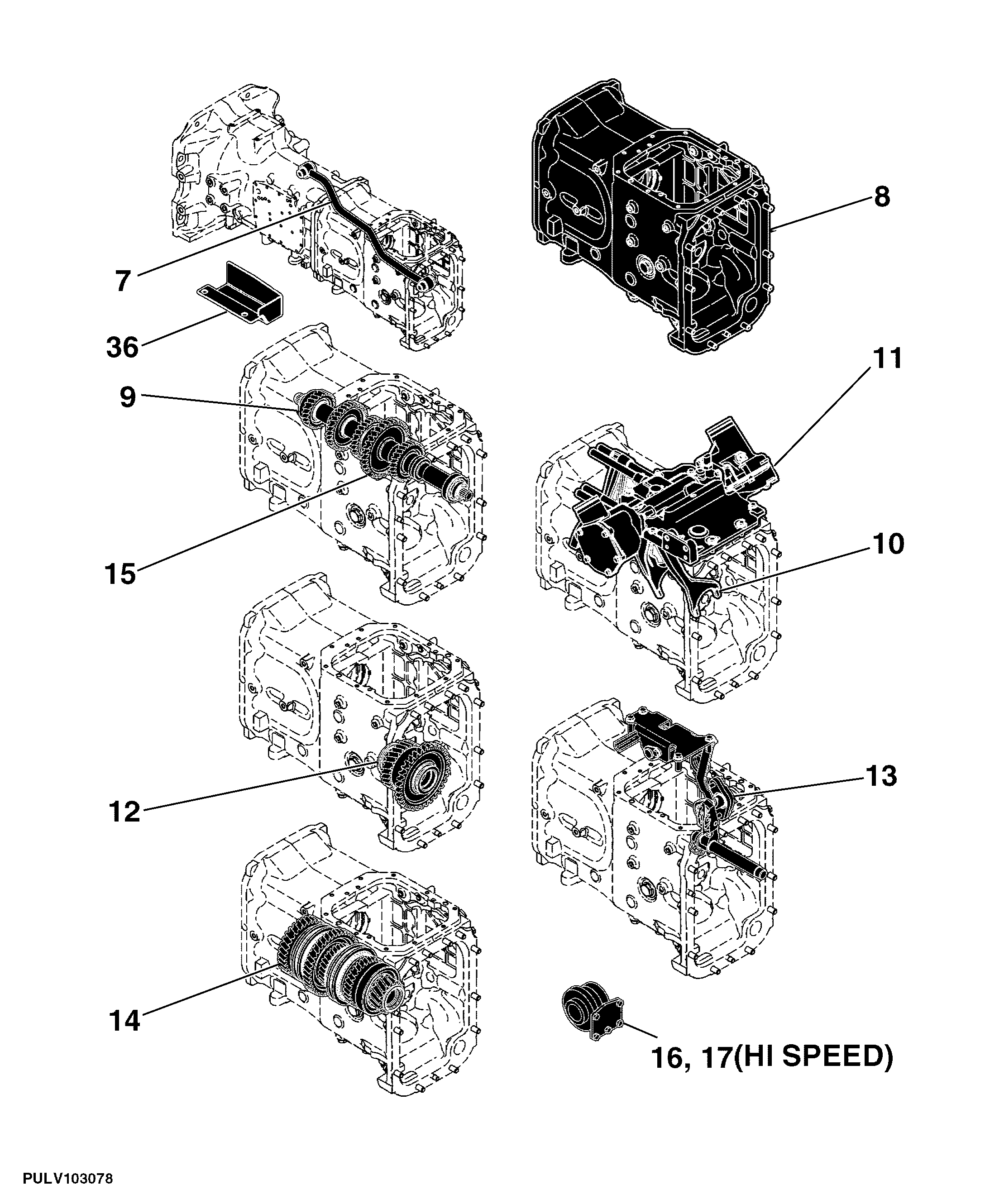

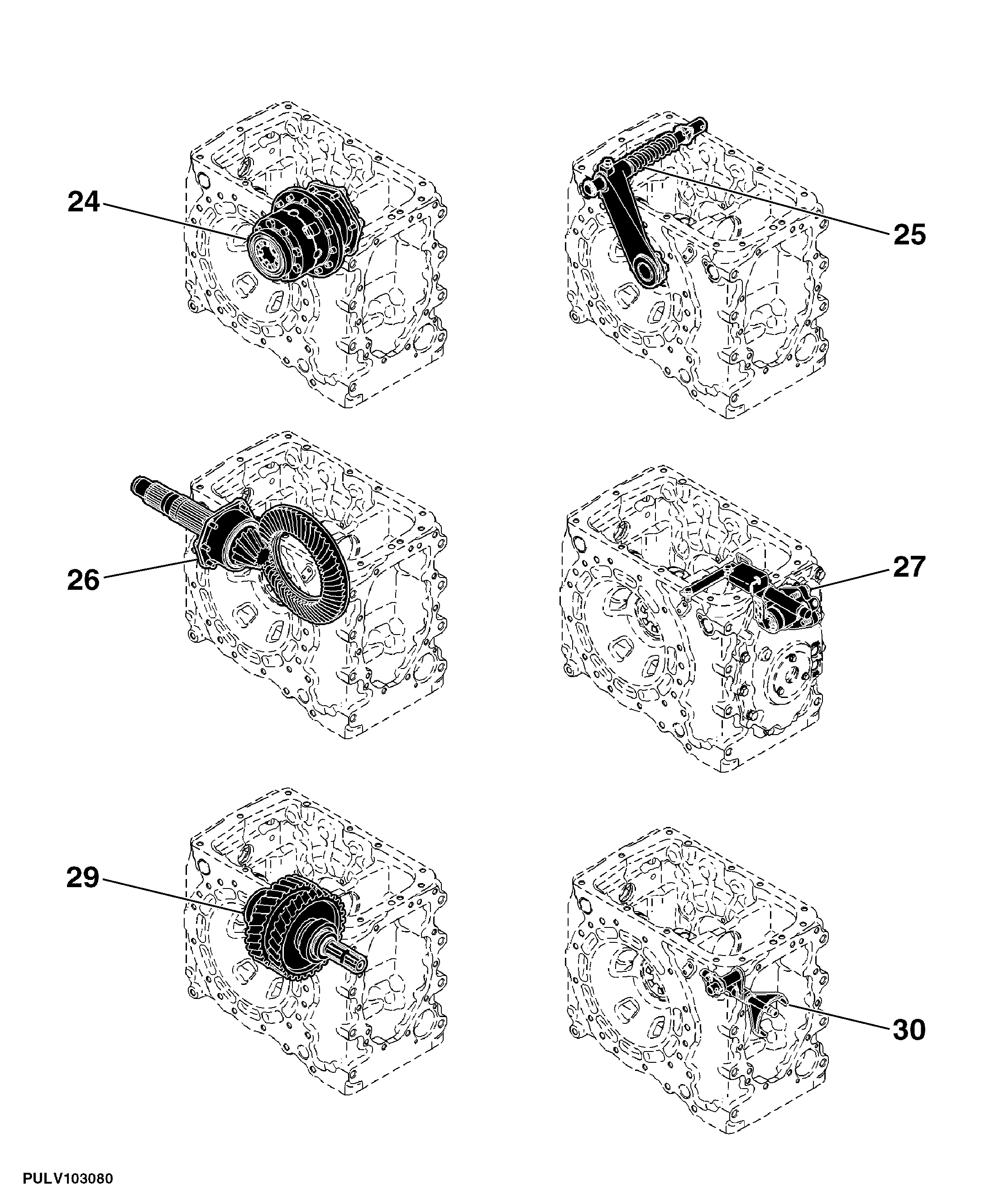

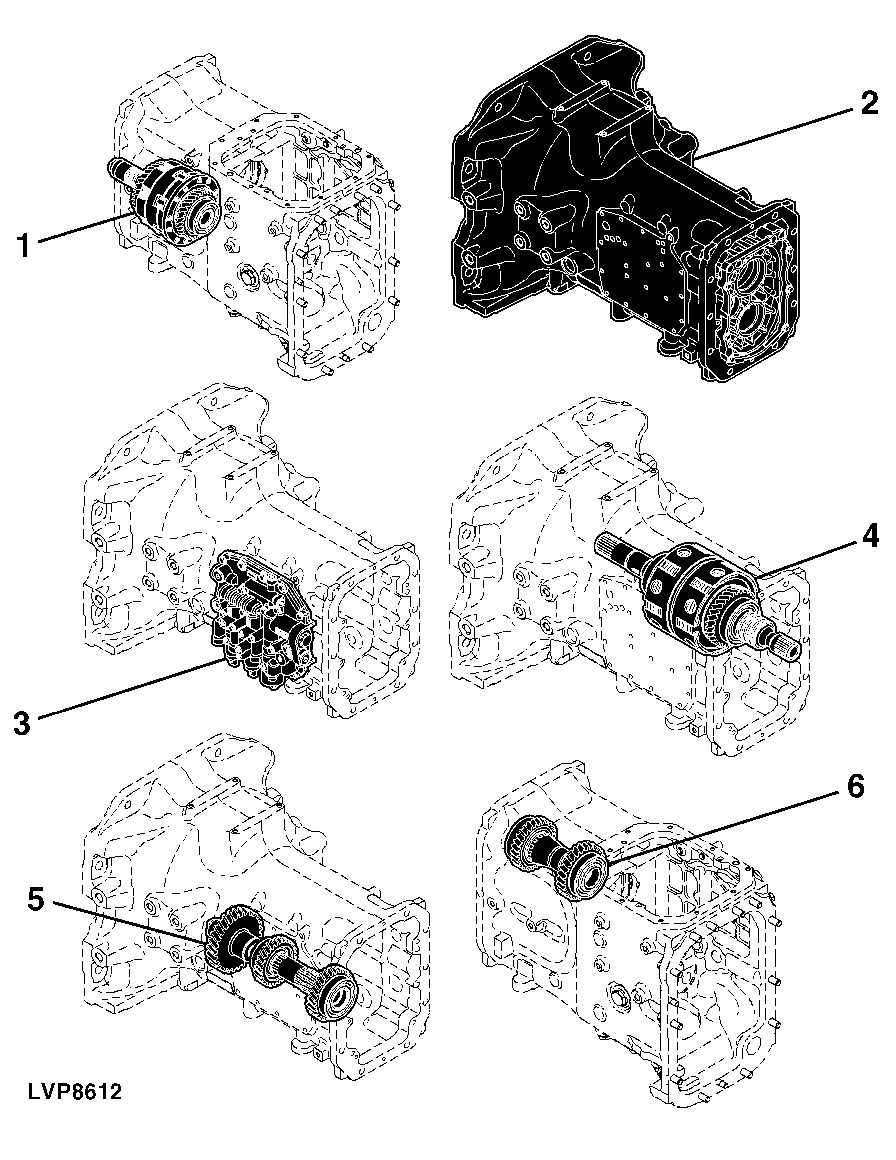

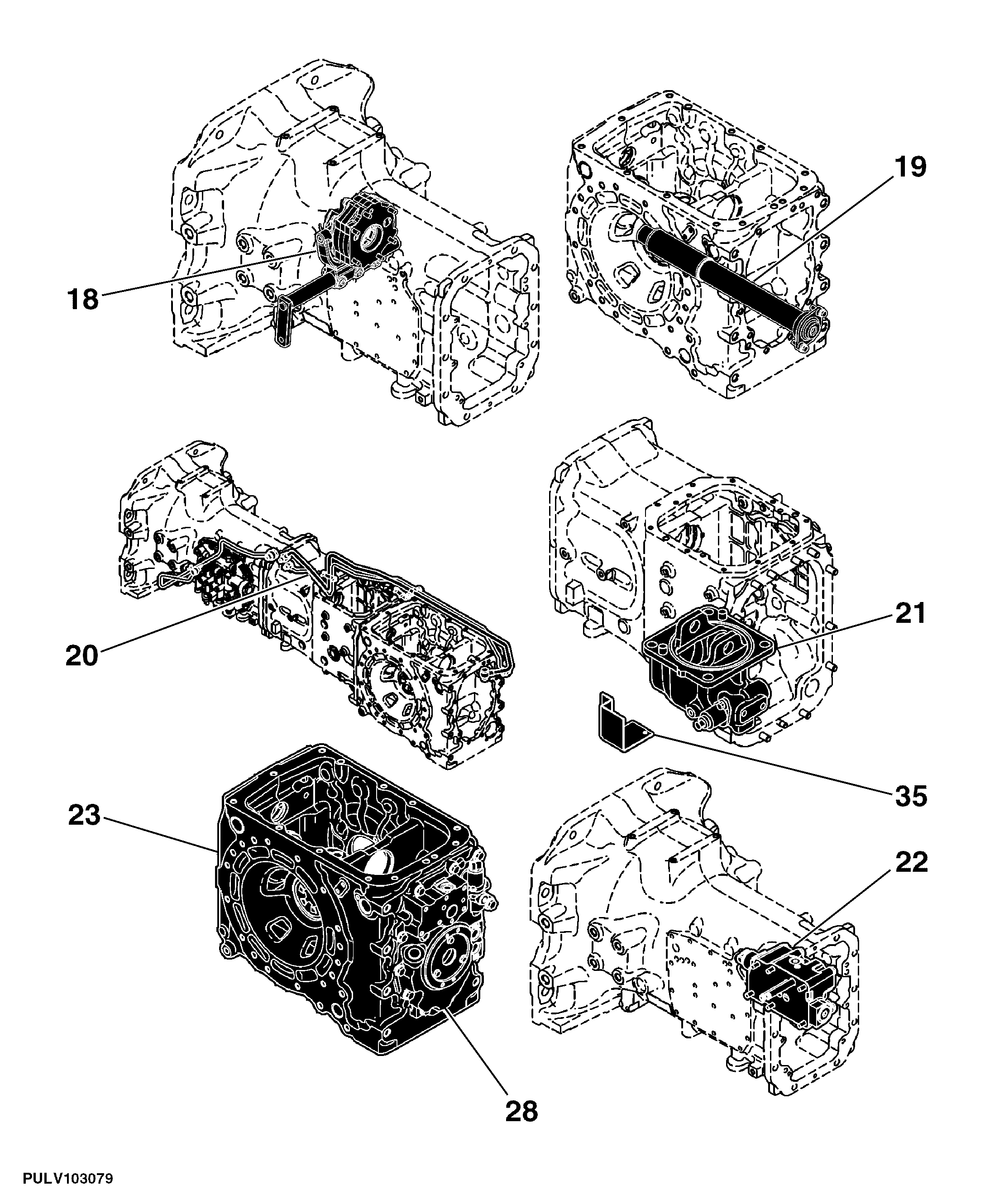

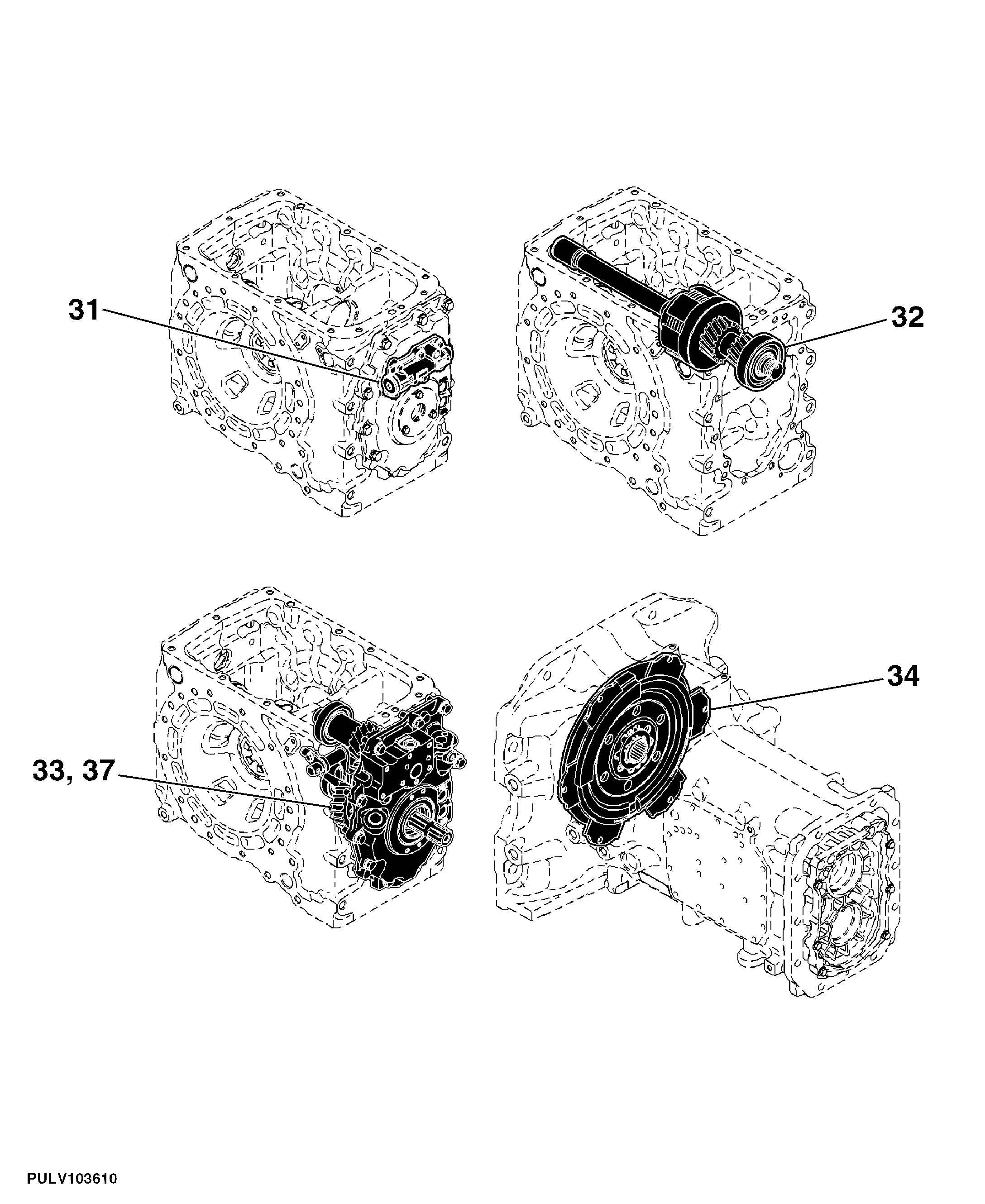

510 POWRREVERSER™ TRANSMISSION WITH ELECTRO-HYDRAULIC (EH) HI/LO

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	PTO Valve	-
-	-	1	Oil Pump, W/ Electro-Hydraulic (HI/LO), Yanmar	-
-	-	1	Oil Strainer,W/ Electro-Hydraulic (HI/LO), Yanmar	-
-	-	1	Park Pawl, W/ Electro-Hydraulic (HI/LO), Yanmar	-
-	-	1	PowrReverser™, W/ Electro-Hydraulic (HI/LO), Yanmar	-
-	-	1	PTO Brake, W/ Electro-Hydraulic (HI/LO), Yanmar	-
-	-	1	PTO Cover, W/ Electro-Hydraulic (HI/LO), Yanmar	-
-	-	1	PTO Output Shaft, W/ Electro-Hydraulic (HI/LO), Yanmar	-
-	-	1	PTO Pinion Shaft, W/ Electro-Hydraulic (Hi/Lo), Yanmar	-
-	-	1	PTO Shift, W/ Electro-Hydraulic (HI/LO), Yanmar	-
-	-	1	MFWD Solenoid Shield, W/ Electro-Hydraulic (HI/LO), Yanmar	-
-	-	1	Range Reduction Shaft, W/ Electro-Hydraulic (HI/LO), Yanmar	-
-	-	1	Reverser Control Valve, W/ Electro-Hydraulic (Hi/Lo), Yanmar	-
-	-	1	Ring Gear and Pinion Shaft, W/ Electro-Hydraulic (HI/LO), Yanmar	-
-	-	1	Transmission Bottom Shaft, W/ Electro-Hydraulic (HI/LO), Yanmar	-
-	-	1	Transmission Housing, W/ Electro-Hydraulic (HI/LO), Yanmar	-
-	-	1	Transmission Lines and Fittings, W/ Electro-Hydraulic (HI/LO), Yanmar	-
-	-	1	Transmission Top Shaft and Gears, W/ Electro-Hydraulic (HI/LO), Yanmar	-
-	-	1	Wiring Shield, W/ Electro-Hydraulic (HI/LO), Yanmar	-
-	-	1	Differential Gears and Carrier, W/ Electro-Hydraulic (HI/LO), Yanmar	-
-	-	1	Attachment, 540/1000 RPM PTO Unit, W/ Electro-Hydraulic (Hi/Lo), Yanmar	-
-	-	1	Clutch Housing, W/ Electro-Hydraulic (Hi/Lo), Yanmar	-
-	-	1	Clutch Shaft, W/ Electro-Hydraulic (HI/LO), Yanmar	-
-	-	1	Clutch, W/ Electro-Hydraulic (Hi/Lo), Yanmar	-
-	-	1	Connect Shaft, W/ Electro-Hydraulic (HI/LO), Yanmar	-
-	-	1	CounterShaft, W/ Electro-Hydraulic (HI/LO), Yanmar	-
-	-	1	Creeper Kit, W/ Electro-Hydraulic (HI/LO), Yanmar	-
-	-	1	Differential Drive Shaft, W/ Electro-Hydraulic (HI/LO), Yanmar	-
-	-	1	540/1000 RPM PTO Unit, W/ Electro-Hydraulic (Hi/Lo), Yanmar	-
-	-	1	Differential Housing, W/ Electro-Hydraulic (HI/LO), Yanmar	-
-	-	1	Differential Lock, W/ Electro-Hydraulic (HI/LO), Yanmar	-
-	-	1	Electro-Hydraulic HI/LO Valve, W/ Electro-Hydraulic (HI/LO), Yanmar	-
-	-	1	Gear and Range Shift Housings, W/ Electro-Hydraulic (HI/LO), Yanmar	-
-	-	1	Gear Shift, W/ Electro-Hydraulic (HI/LO), Yanmar	-
-	-	1	High Speed Creeper Kit, W/ Electro-Hydraulic (HI/LO), Yanmar	-
-	-	1	Hydraulic Pipe, W/ Electro-Hydraulic (HI/LO), Yanmar	-
-	-	1	MFWD Drop Gear Box, W/ Electro-Hydraulic (HI/LO), Yanmar	-

510 POWRREVERSER™ TRANSMISSION WITH ELECTRO-HYDRAULIC (EH) HI/LO

Нет текстового описания
