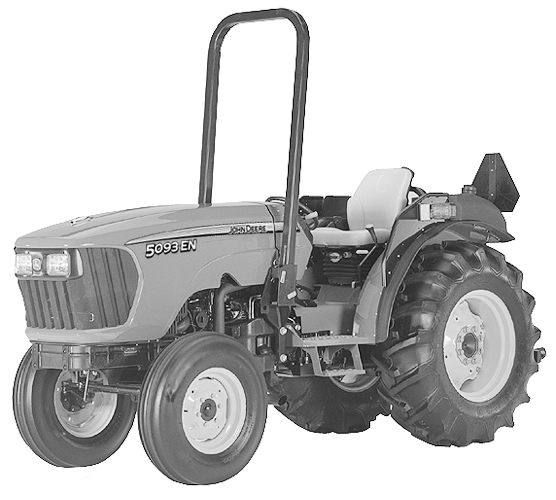

5093EN Tractor (North American Edition)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание

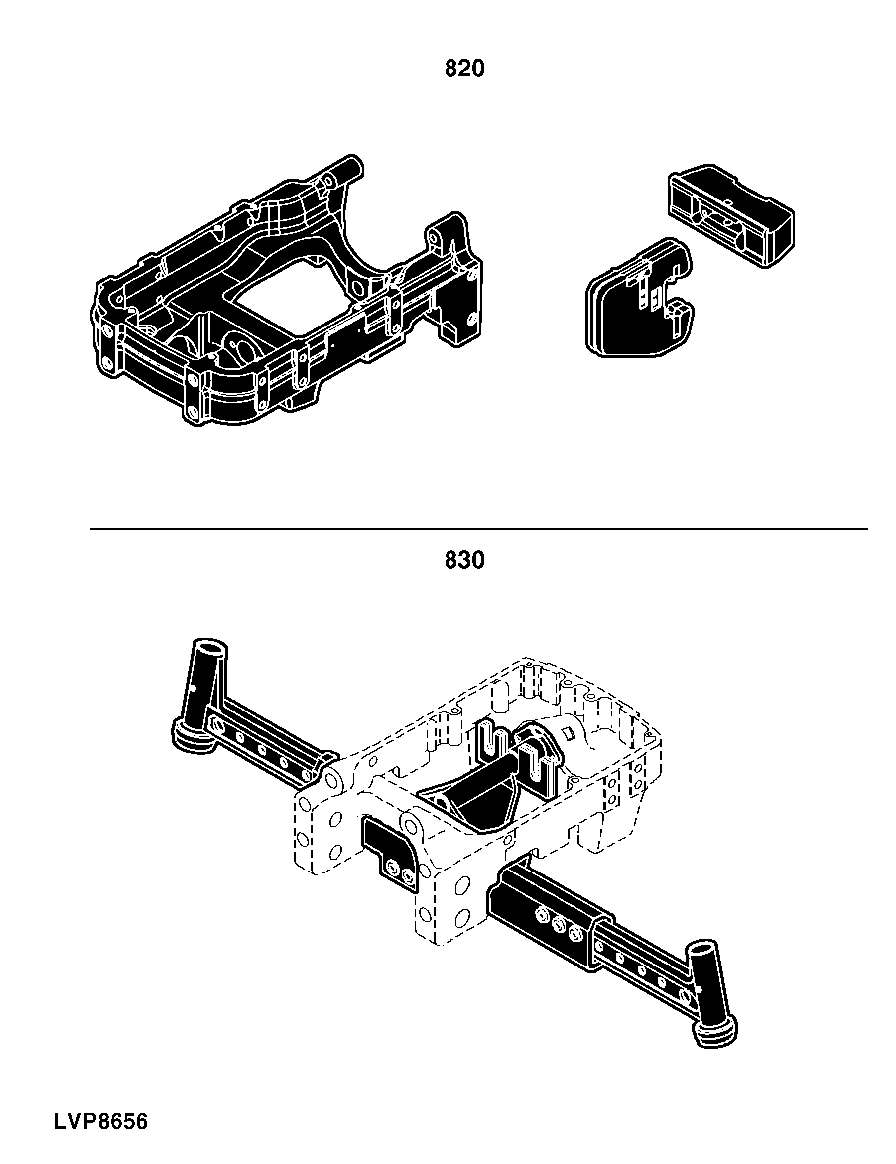

-	-	1	820 WEIGHTS	-

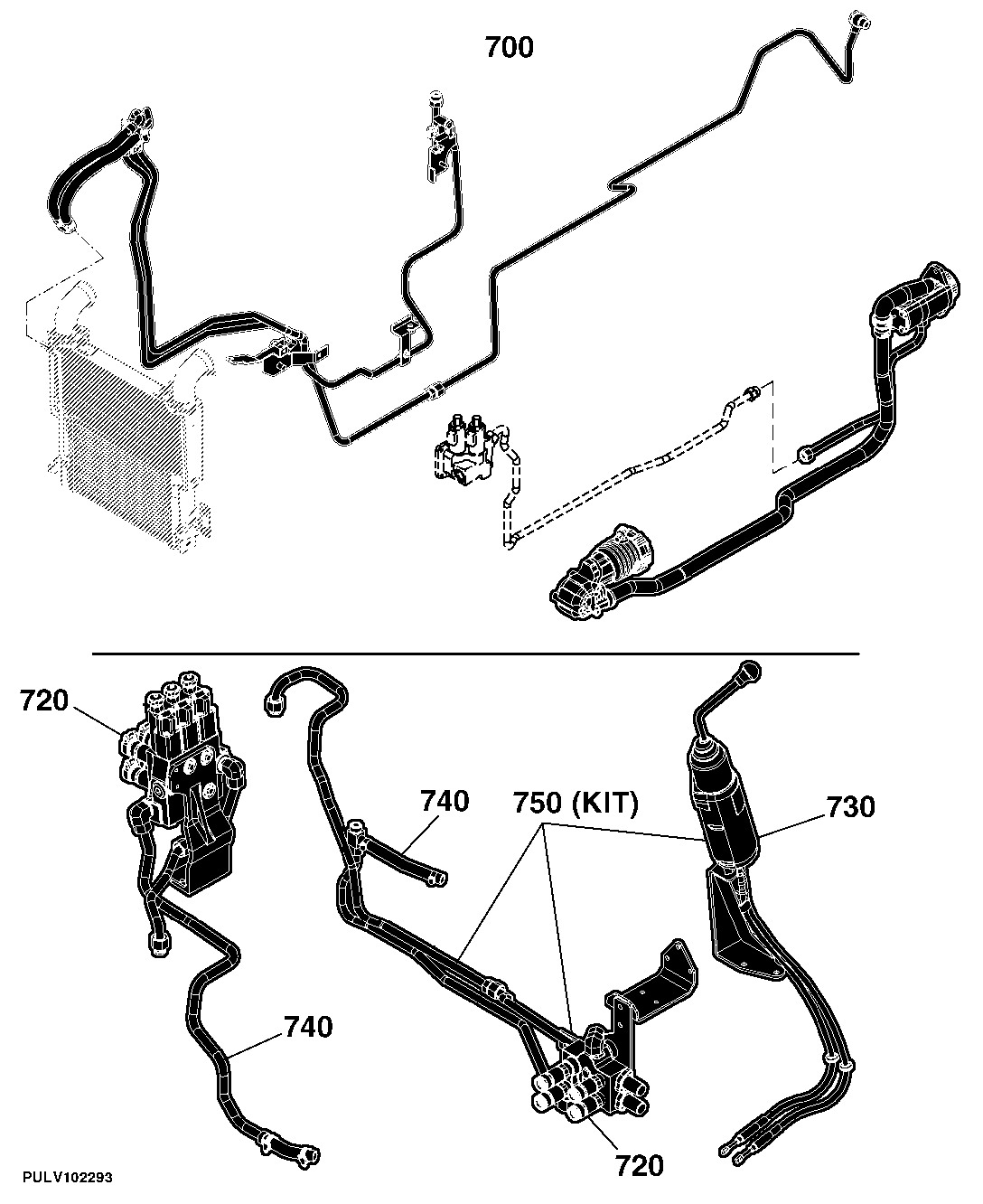

-	-	1	700 HYDRAULIC COMPONENTS AND LINES	-
-	-	1	720 SELECTIVE CONTROL VALVE (SCV)	-
-	-	1	730 SELECTIVE CONTROL VALVE CONTROLS	-
-	-	1	740 SELECTIVE CONTROL VALVE LINES	-
-	-	1	750 Selective Control Valve Field Installation Kits	-

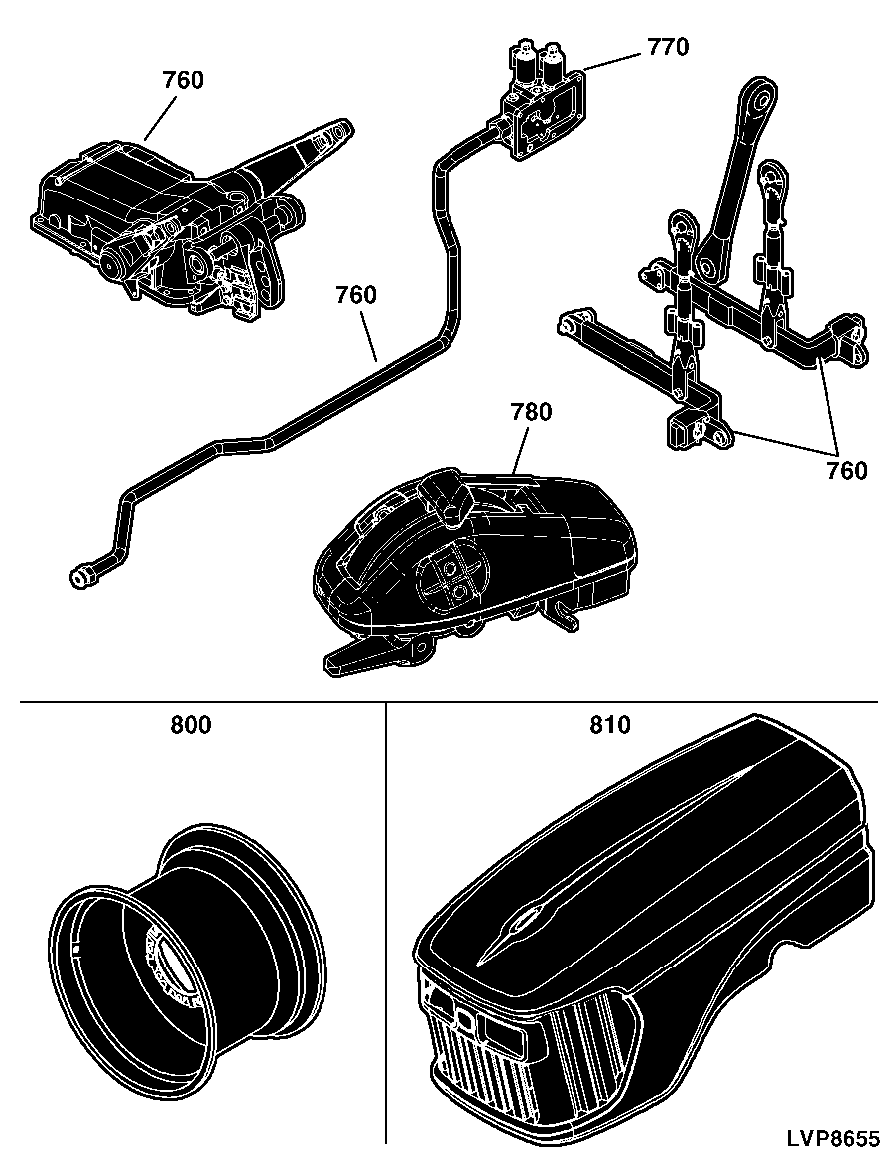

-	-	1	760 ROCKSHAFT AND REAR HITCH	-
-	-	1	770 ROCKSHAFT CONTROL VALVE (RCV)	-
-	-	1	780 ROCKSHAFT CONTROL VALVE CONTROLS	-
-	-	1	800 WHEELS	-
-	-	1	810 HOOD AND STYLED PARTS	-
-	-	1	660 BRAKE CONTROLS	-
-	-	1	830 NON-POWERED AXLES	-

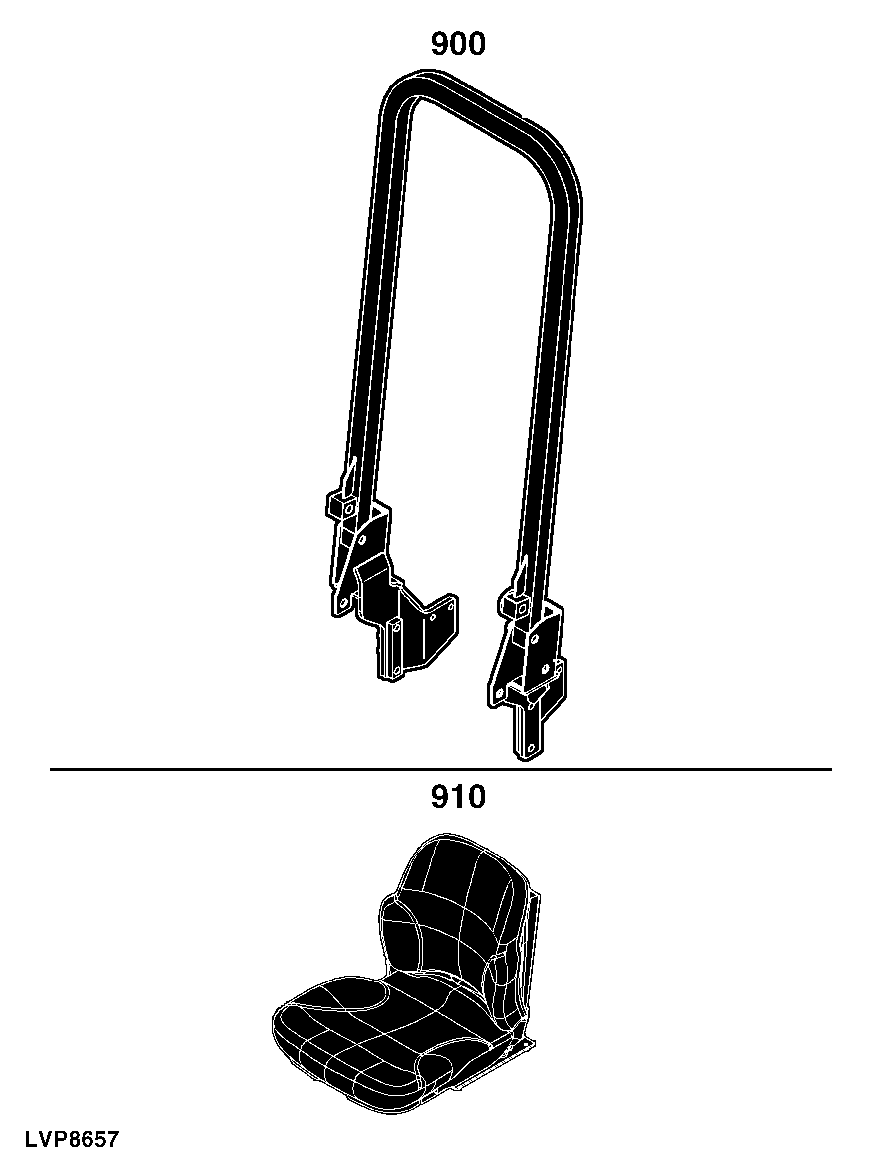

-	-	1	900 ROPS	-
-	-	1	910 SEATS	-

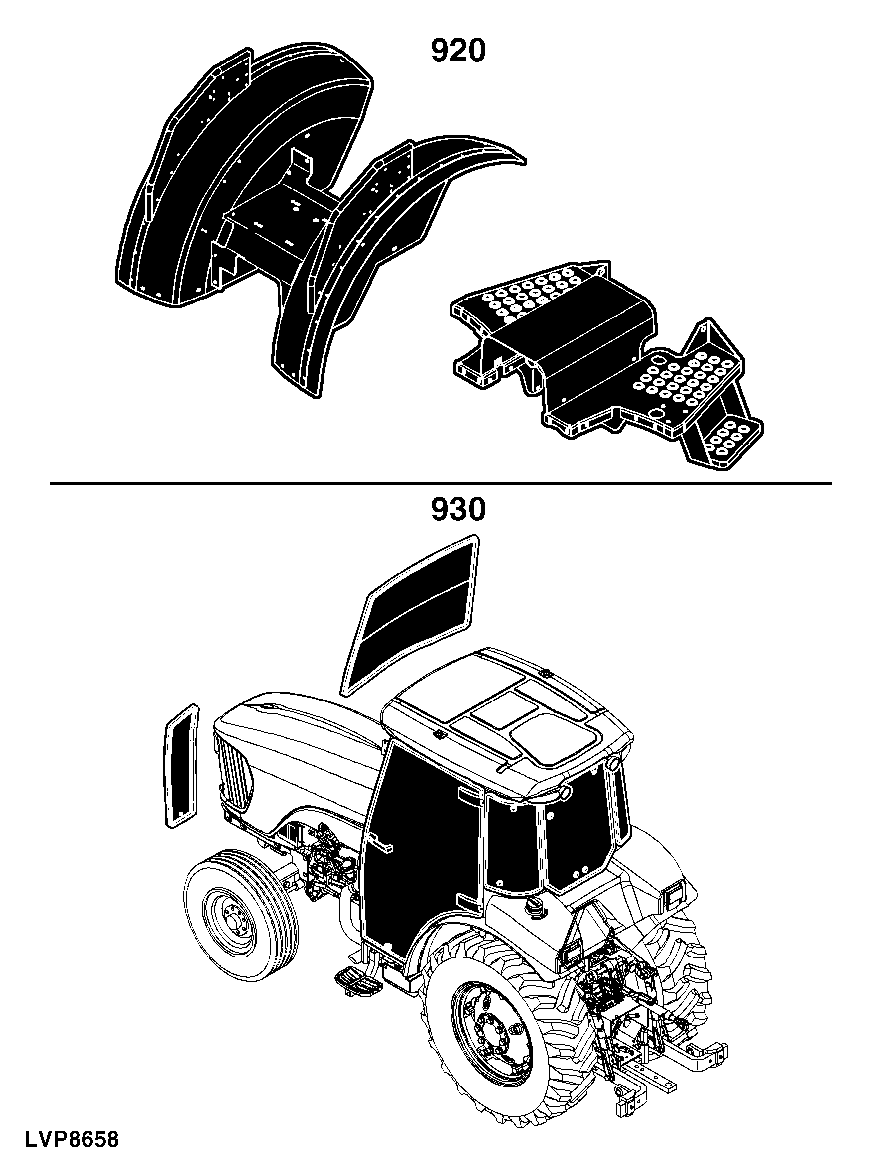

-	-	1	920 STRADDLE MOUNT	-
-	-	1	930 CAB	-

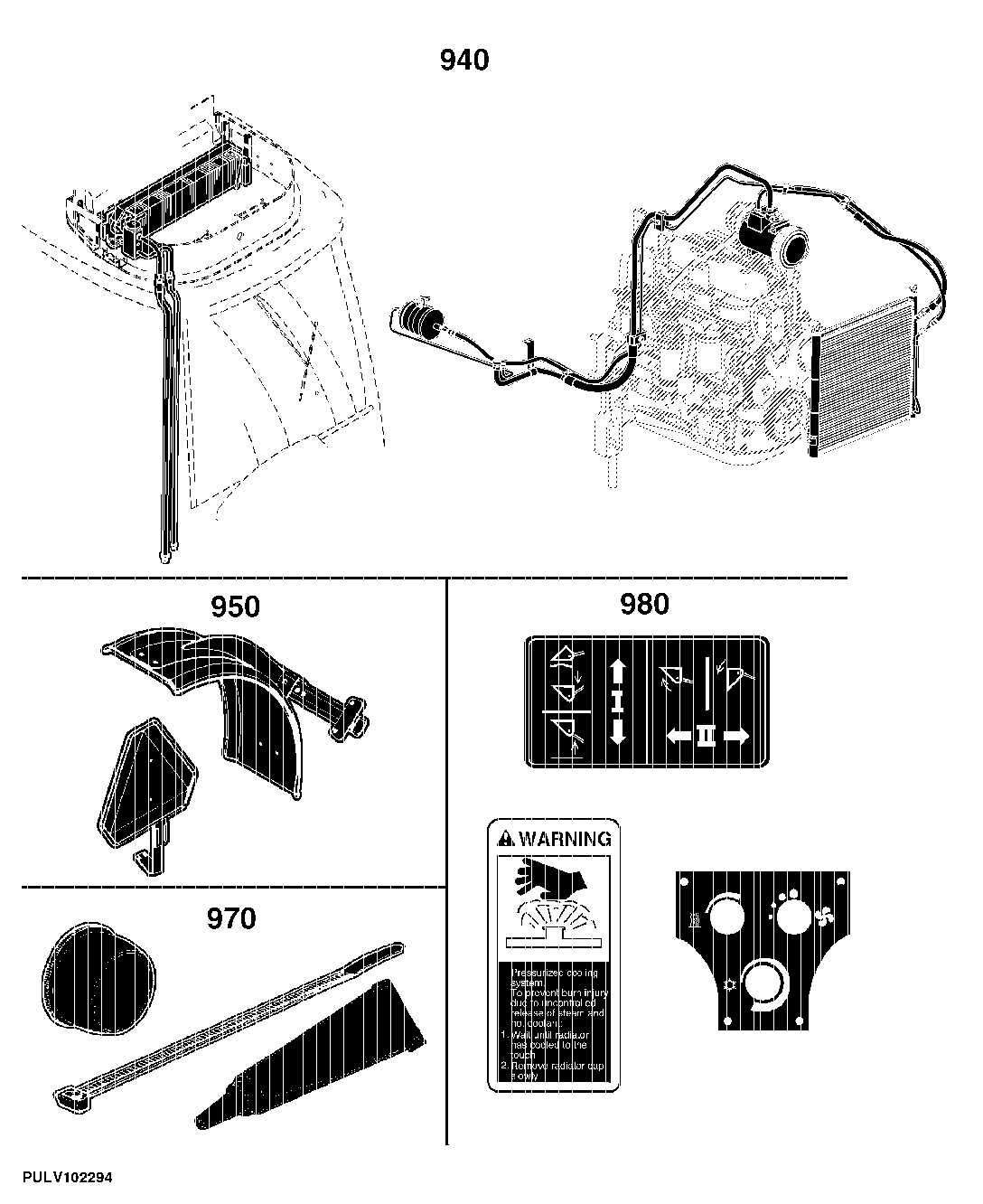

-	-	1	940 HEATING AND AIR CONDITIONING	-
-	-	1	950 OPERATOR'S STATION MISCELLANEOUS	-
-	-	1	970 MISCELLANEOUS	-
-	-	1	980 LABELS	-

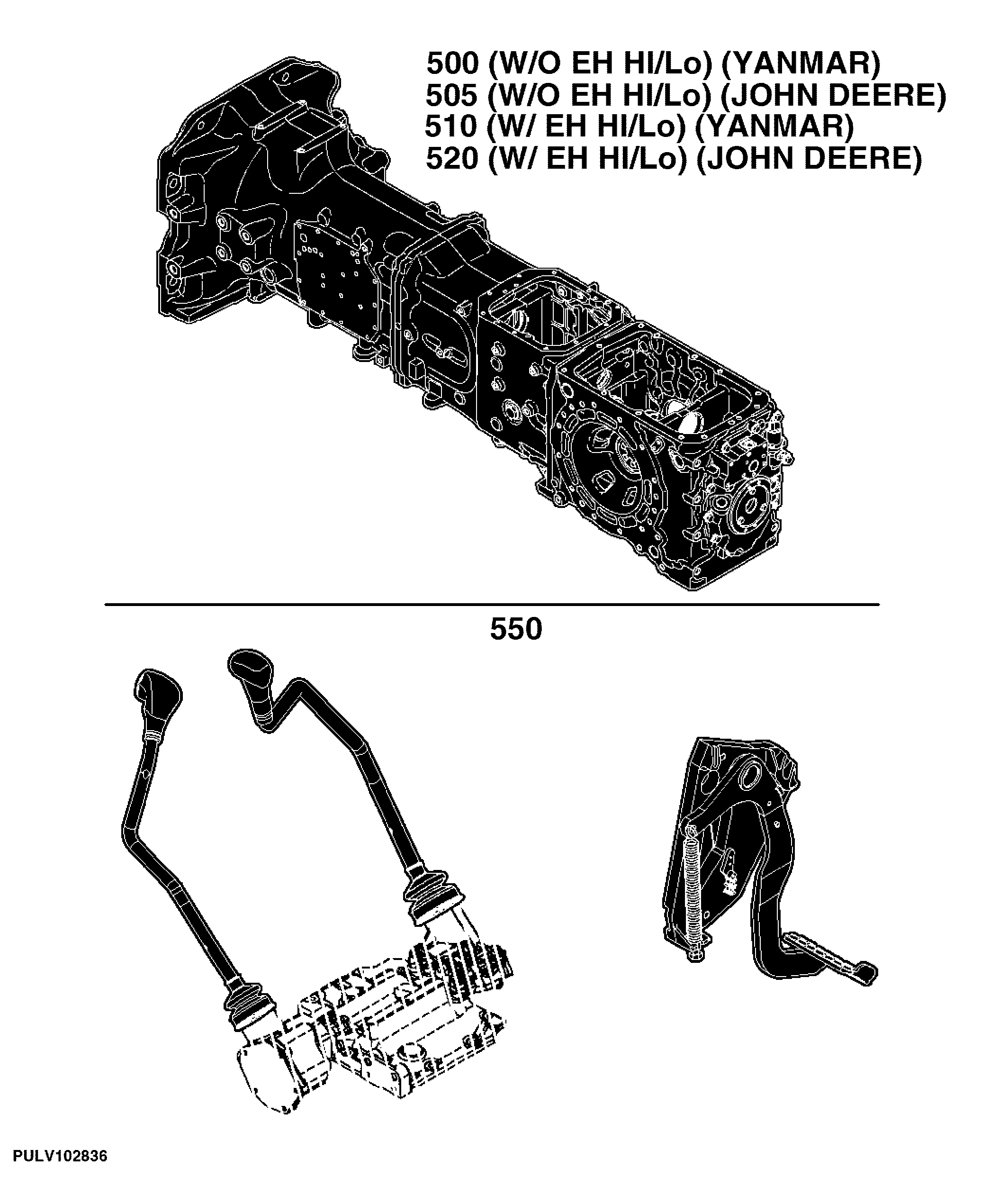

-	-	1	500 POWRREVERSER™ TRANSMISSION WITHOUT ELECTRO-HYDRAULIC (EH) HI/LO ( - 460999)	-

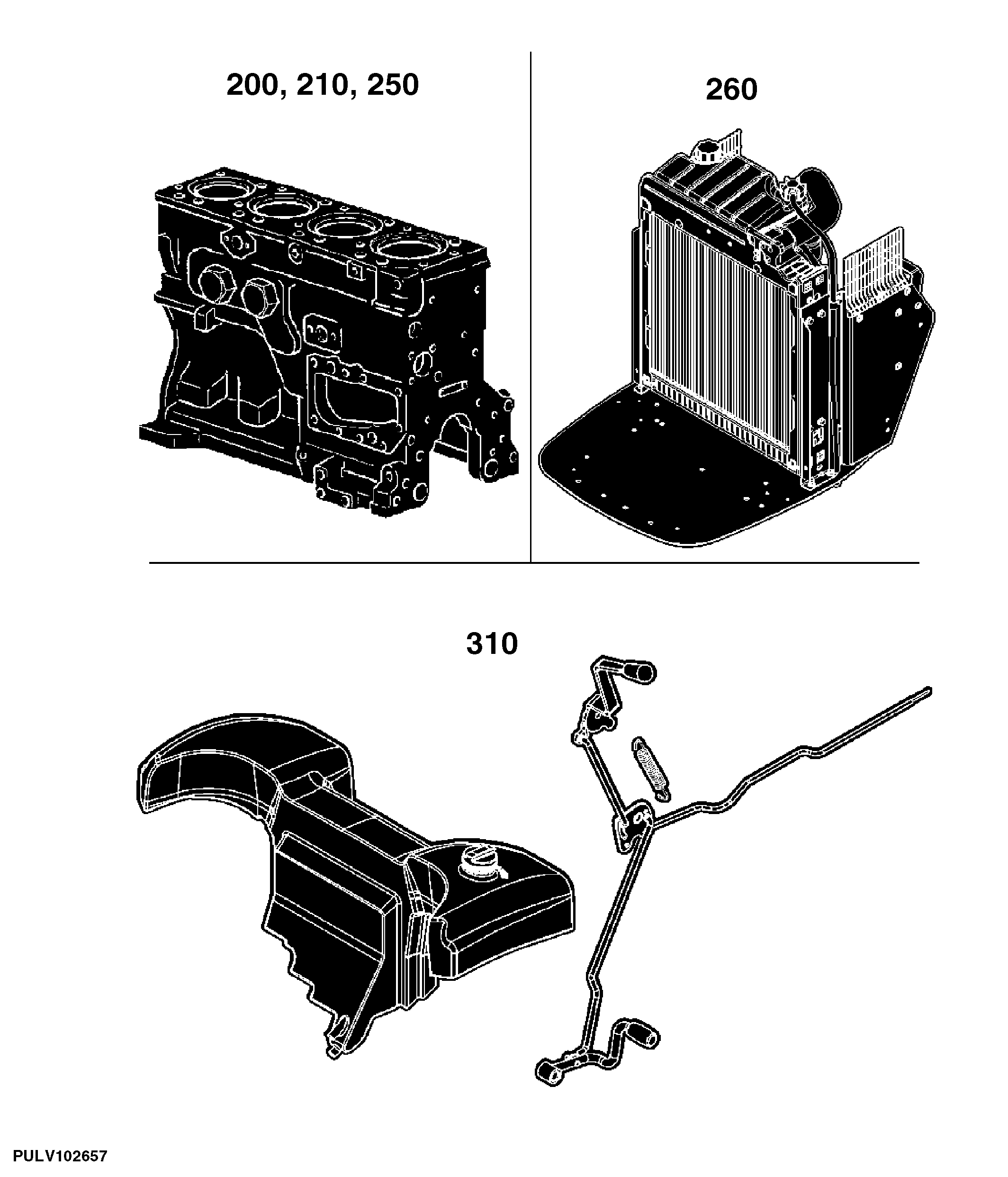

-	-	1	210 Engine 4045HLV60-RE541660	-
-	-	1	250 Engine 4045HLV62-RE541662	-
-	-	1	260 ENGINE - MISCELLANEOUS	-
-	-	1	310 FUEL	-

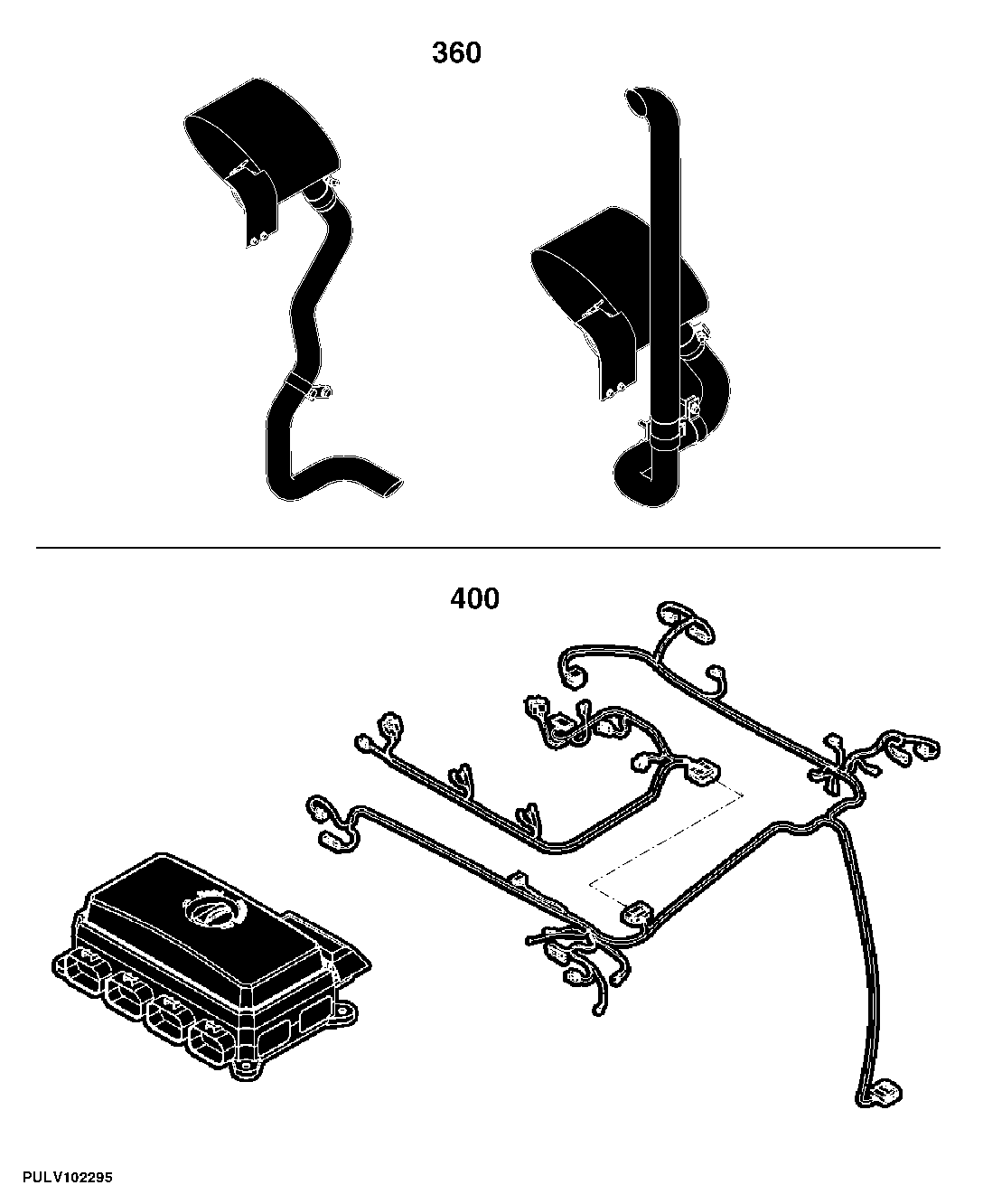

-	-	1	360 AIR	-
-	-	1	400 Electrical Wiring Harnesses	-

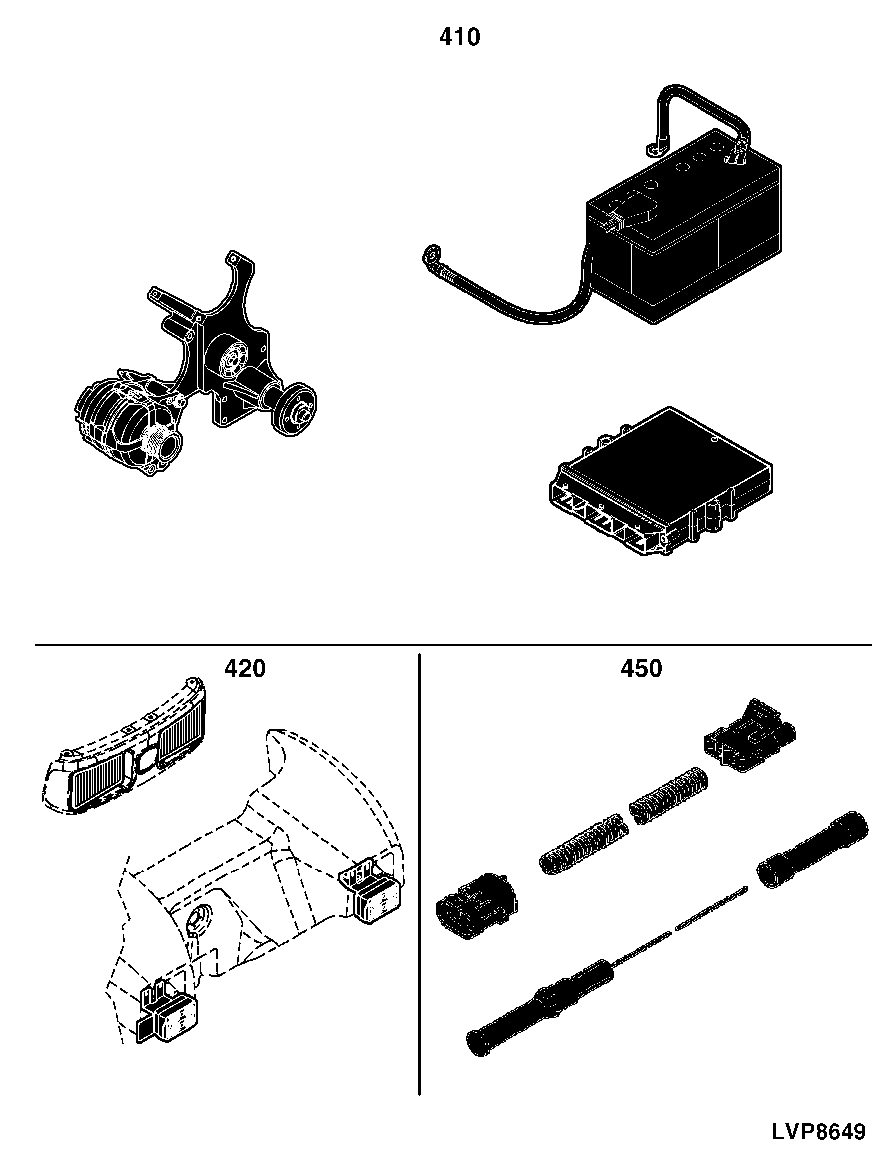

-	-	1	410 ELECTRICAL COMPONENTS	-
-	-	1	420 LIGHTS	-
-	-	1	450 ELECTRICAL-MISCELLANEOUS	-
-	-	1	200 Engine 4045TLV54-RE519998	-
-	-	1	505 Powrreverser Transmission W/O Electro-Hydraulic (BH) (John Deere) (461000 - )	-
-	-	1	510 POWRREVERSER™ TRANSMISSION WITH ELECTRO-HYDRAULIC (EH) HI/LO	-
-	-	1	520 Powrreverser Transmission W/ Electro-Hydraulic (EH) (Hi/Lo) (John Deere)	-
-	-	1	550 POWER TRAIN CONTROLS	-

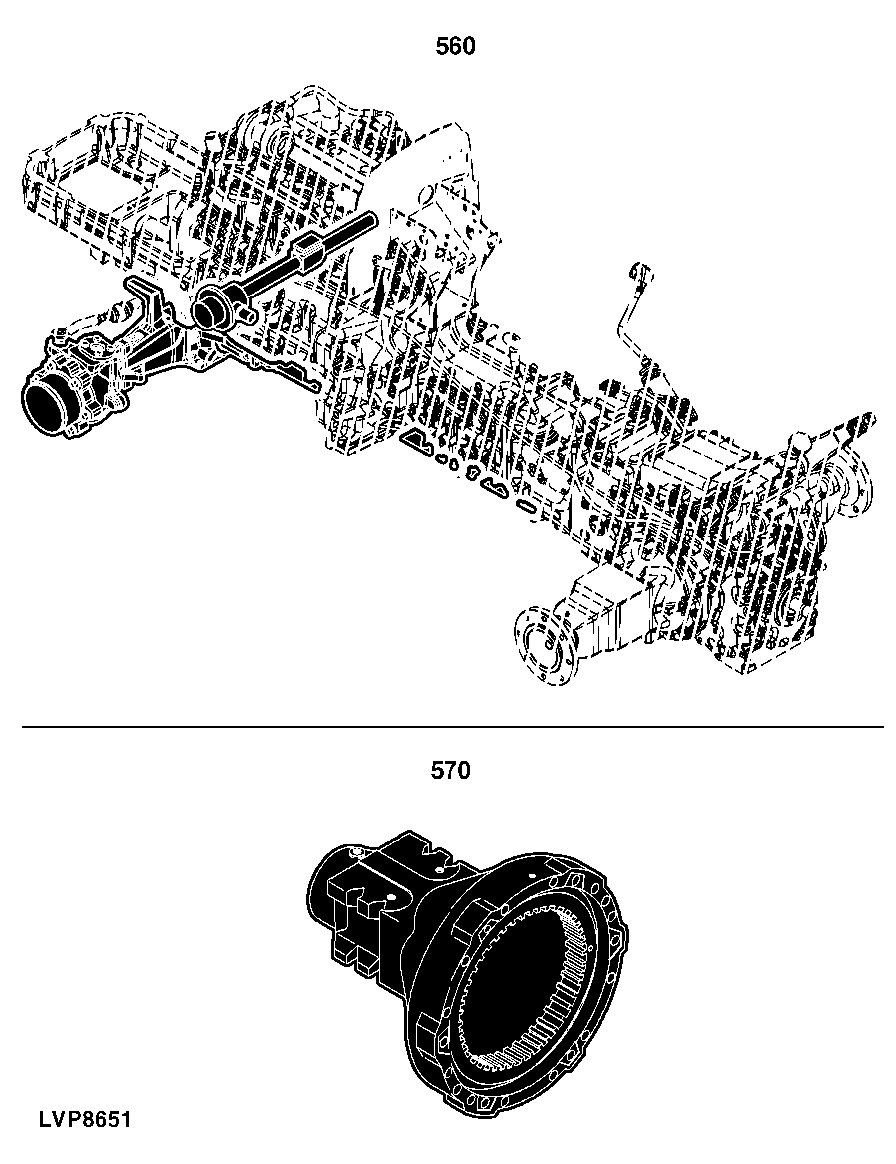

-	-	1	560 POWERED AXLES	-
-	-	1	570 FINAL DRIVE	-

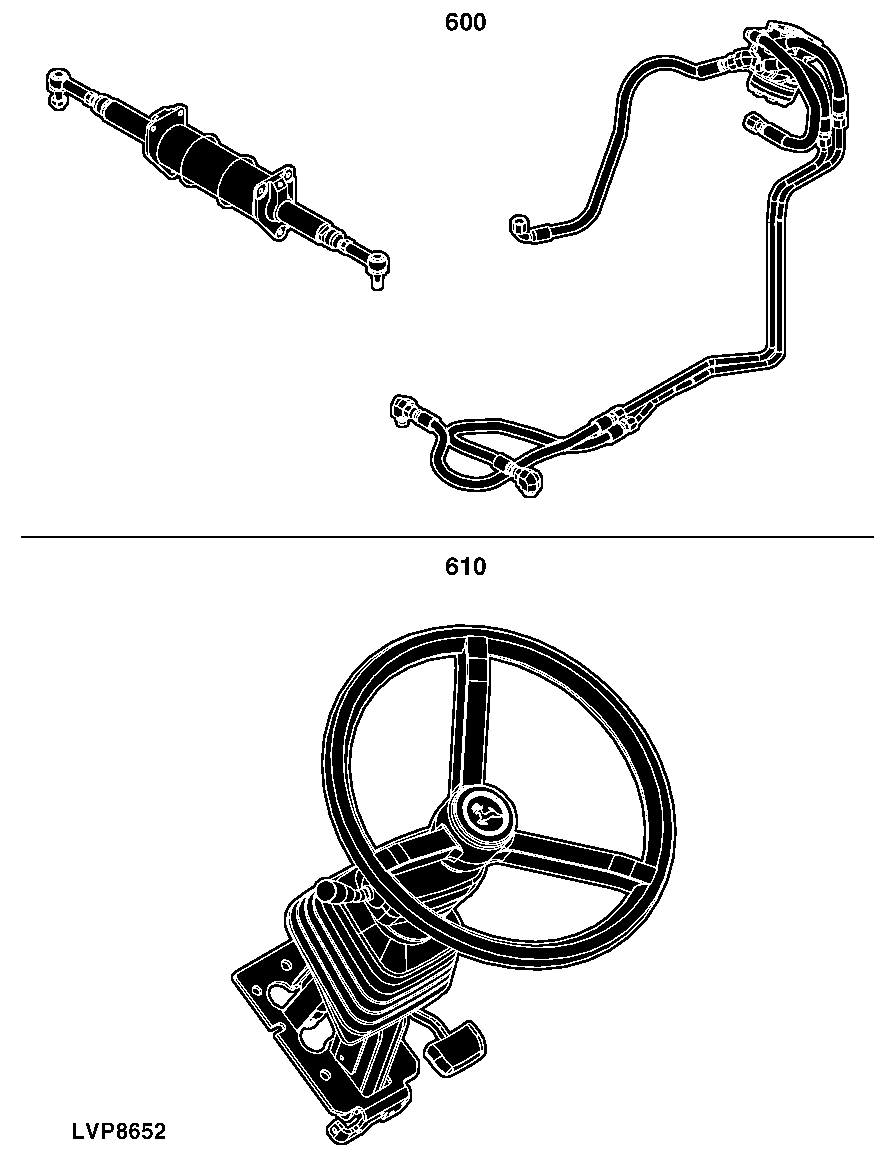

-	-	1	600 STEERING LINES	-
-	-	1	610 STEERING CONTROLS	-

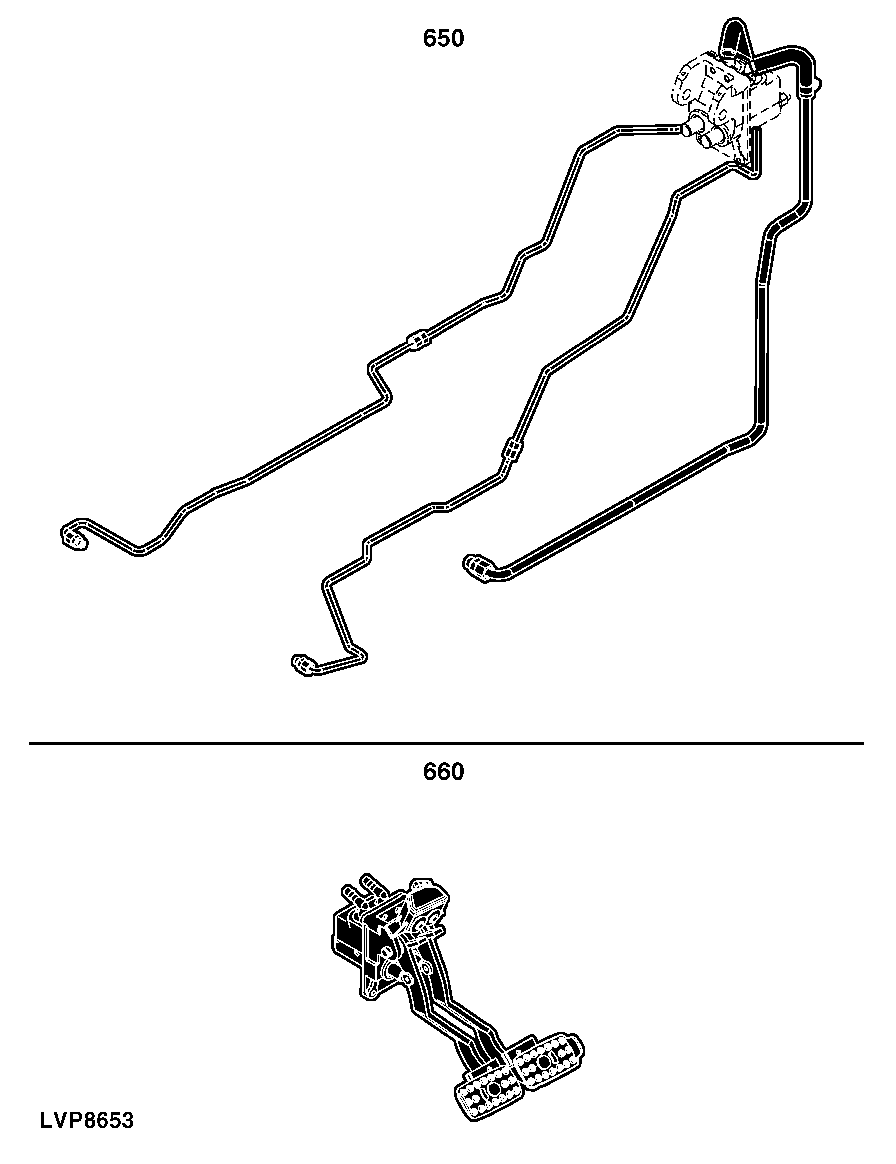

-	-	1	650 BRAKE LINES	-
