COVER/CONTROL LEVER (WITH INDEPENDENT PTO, COLLAR SHIFT TRANSMISSION)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE18923	1	Knob	(SUB FOR L57637)
2	AL63891	1	Lever	-
3	24M4810	1	Washer	20 X 28 X 1.400 mm
4	R27434	1	Snap Ring	-
5	24M7088	1	Washer	6.600 X 12 X 1.600 mm
6	R27507	2	Snap Ring	-
7	L61074	1	Extension Spring	-
8	L60571	1	Rod	-
9	24M7055	3	Washer	8.400 X 16 X 1.600 mm
10	L55660	1	Lever	-
11	L55362	1	Bushing	-
12	19H1948	1	Cap Screw	1/4" X 3/4"
13	AL61303	1	Rod	-
14	AL60448	1	Lever	(SUB FOR AL55425)
15	19H2636	2	Cap Screw	3/8" X 3-5/8"
16	24H1303	3	WASHER	13/32" X 11/16" X 0.065"
17	L59830	1	Cover	(SUB FOR L41351)
17	T30750	1	COVER	(WITH MID PTO)
18	R28782	1	O-Ring	-
19	R27218	1	Fitting Plug	-
20	R26448	1	O-Ring	-
21	L59305	2	Piston	(SUB FOR L34105)
22	R26552	4	Ball	5/16"
22	R26552	2	Ball	(WITH MID PTO)
23	R234266	1	Gasket	(SUB FOR L33342)
23	T30751	1	GASKET	(WITH MID PTO)
24	24M7229	1	Shim	-
24	24H1227	1	Washer	(WITH MID PTO) 17/32" X 13/16" X 0.060", 17/32"X13/16"X.060"
25	R26871	1	Snap Ring	-
25	R26871	1	Snap Ring	(WITH MID PTO) (SUB FOR P44982)
26	L33318	1	Lever	-
26	T30770	1	LEVER	(WITH MID PTO)
27	L36237	2	O-Ring	-
28	L34106	2	Spring	-
29	R26287	1	O-Ring	-
30	R31631	1	DRAIN PLUG	3/8"
31	M4224T	1	PLUG	(WITHOUT HI-LO SHIFT UNIT)
32	19H3065	1	Cap Screw	3/8" X 2"
33	22H1053	2	SET SCREW	(WITH MID PTO) 7/16" X 7/16"
34	R49547	2	SPRING	(WITH MID PTO)
35	L38589	1	Pin Fastener	-
36	L57470	1	Push Nut	(SUB FOR 40M7162 APPL)
37	L57637	1	Grip	(ORDER RE18923) (SUB FOR R52056 APPL)
38	AL55424	1	Lever	-
39	24M7098	1	Washer	19 X 30 X 3 mm
40	L57348	1	Extension Spring	-
41	L55654	1	Rod	-
42	40M7041	2	Snap Ring	(SUB FOR R27507 APPL)

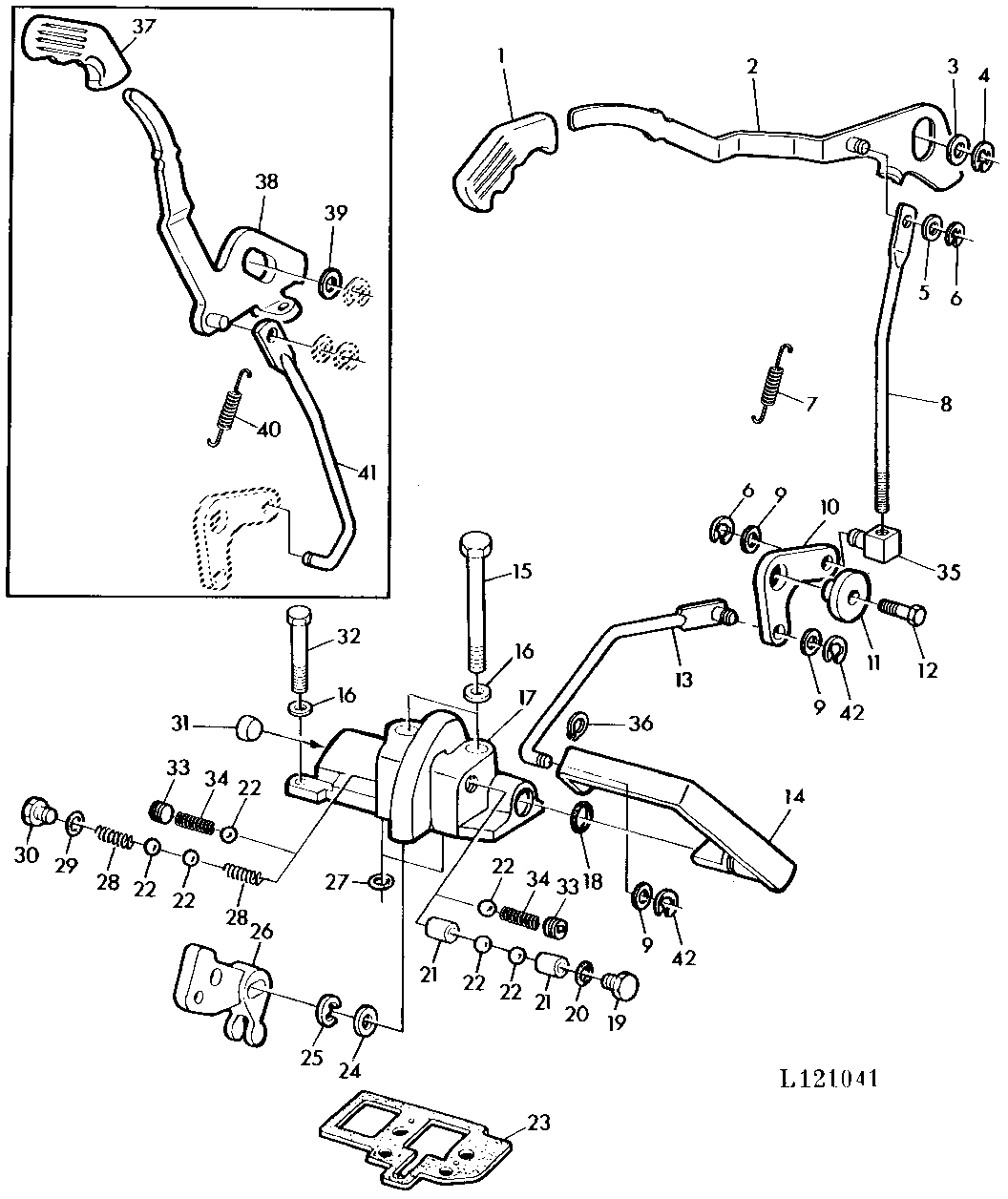

COVER/CONTROL LEVER (WITH INDEPENDENT PTO, COLLAR SHIFT TRANSMISSION)
