Открытый узел

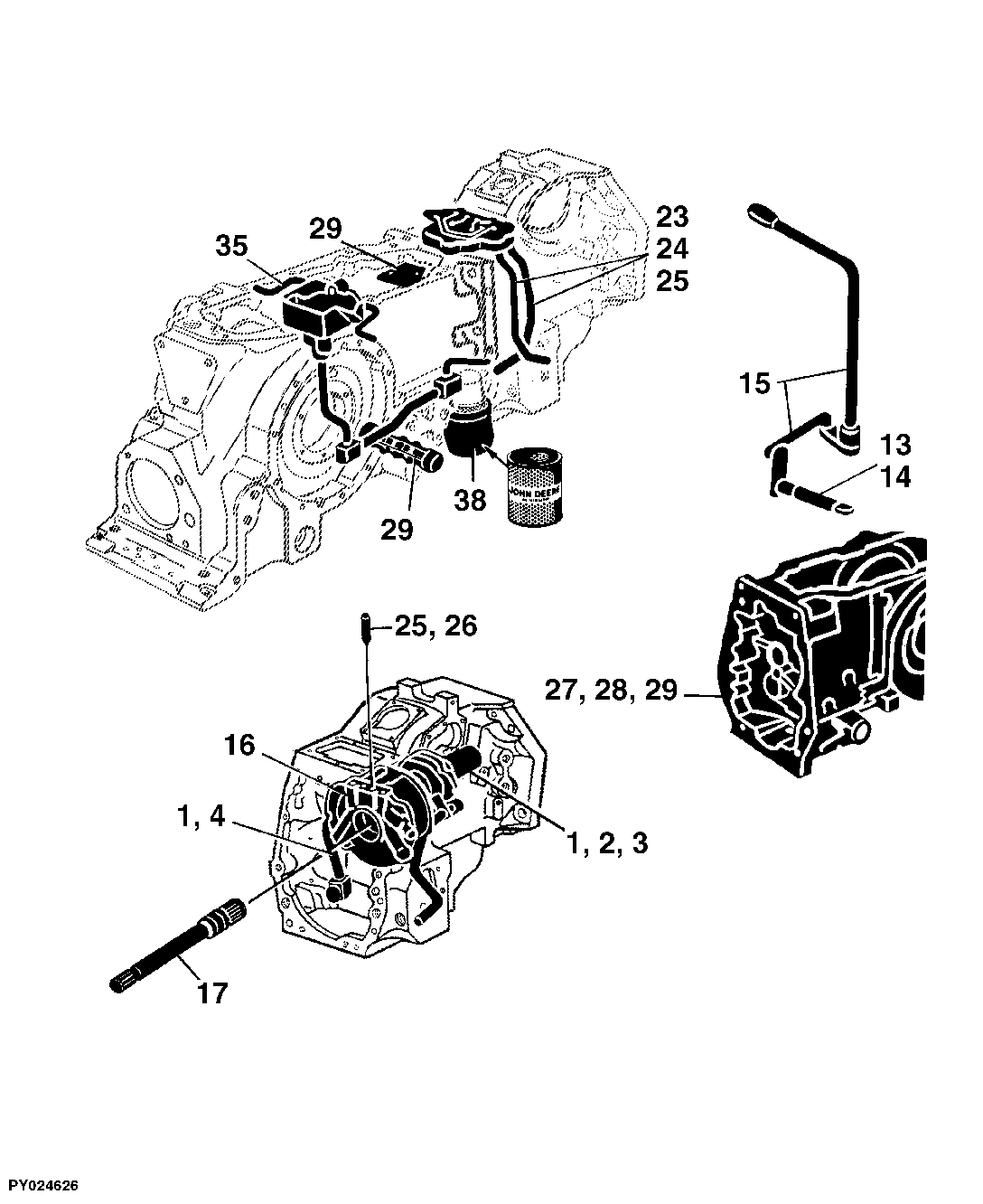

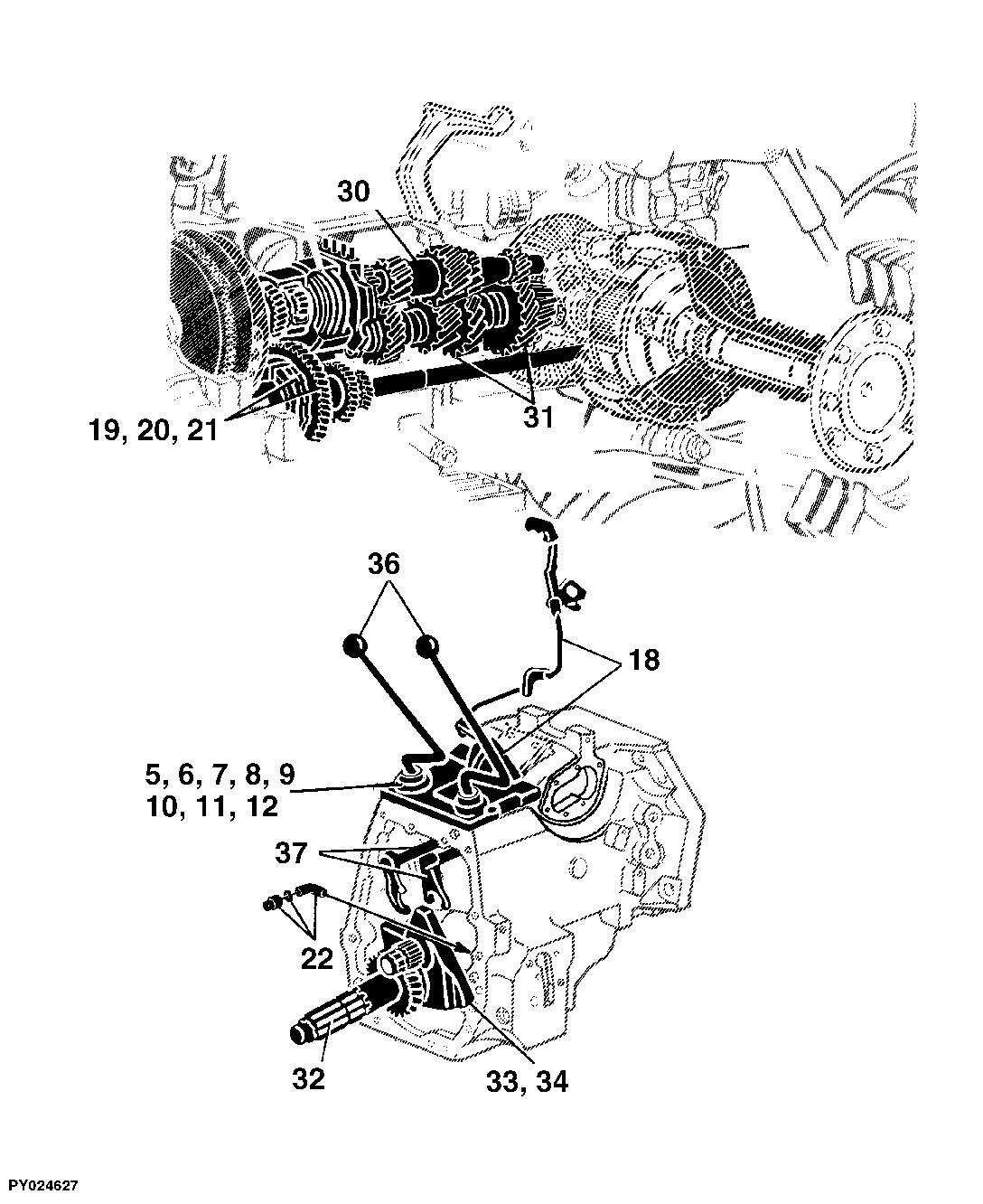

52 COLLAR SHIFT TRANSMISSION, HI-LO SHIFT

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	TRANSMISSION CASE (COLLAR-SHIFT TRANSMISSION)	-
-	-	1	PTO CLUTCH (COLLAR SHIFT TRANSMISSION)	-
-	-	1	PTO CLUTCH (IND. PTO AND MID PTO, COLLAR SHIFT TRANSMISSION)	-
-	-	1	SHIFT COVER (IND. PTO AND MID PTO, COLLAR SHIFT TRANSMISSION)	-
-	-	1	SHIFT COVER (WITH CONT. RUNNING PTO)	-
-	-	1	SHIFT COVER (WITH CONTINUOUS-RUNNING PTO AND HI-LO SHIFT)	-
-	-	1	SHIFT COVER (WITH IND. PTO AND HI-LO SHIFT UNIT)	-
-	-	1	SHIFT COVER (WITH IND. PTO)	-
-	-	1	SHIFT COVER (WITH IND. PTO)	-
-	-	1	SHIFT COVER WITH HI-LO TRANS. (FOR IND. OR CONT. RUNNING PTO)	-
-	-	1	PTO BRAKE BAND (IND. PTO WITH MID PTO/COLLAR SHIFT TRANSMISSION)	-
-	-	1	TRANSMISSION CASE (WITH COLLAR-SHIFT TRANSMISSION)	-
-	-	1	TRANSMISSION CASE CONVERSION KIT (WITH COLLAR-SHIFT TRANSMISSION)	-
-	-	1	TRANSMISSION DRIVE SHAFT (COLLAR-SHIFT TRANSM.)	-
-	-	1	TRANSMISSION INPUT SHAFT (WITH HI-LO SHIFT UNIT/COLLARS-SHIFT TRANSM.)	-
-	-	1	TRANSMISSION OIL FILTER	-
-	-	1	TRANSMISSION OIL PUMP-OIL LINES	-
-	-	1	TRANSMISSION OIL PUMP/LINES/CLUTCH SHAFTS (WITH MID PTO-COLLAR SHIFT TRANSM.)	-
-	-	1	TUBULAR SHIELD FOR SMOOTH PTO ENGAGEMENT	-
-	-	1	HI-LO SHIFT CONTROL LEVER	-
-	-	1	COUNTERSHAFT (COLLAR-SHIFT TRANSM.)	-
-	-	1	COVER/CONTROL LEVER (WITH INDEPENDENT PTO, COLLAR SHIFT TRANSMISSION)	-
-	-	1	FRONT BEARING SUPPORT (COLLAR-SHIFT TRANSM.)	-
-	-	1	FRONT BEARING SUPPORT (IND. PTO AND MID PTO, COLLAR SHIFT TRANSMISSION)	-
-	-	1	GEAR SHIFT LEVER (COLLAR SHIFT TRANSMISSION)	-
-	-	1	GEAR SHIFTING PARTS (COLLAR-SHIFT TRANSM.)	-
-	-	1	HI-LO CLUTCH (COLLAR SHIFT TRANSMISSION)	-
-	-	1	HI-LO SHIFT (WITH CONTINUOUS RUNNING PTO, COLLAR SHIFT TRANSMISSION)	-
-	-	1	HI-LO SHIFT (WITH IND. PTO, COLLAR SHIFT TRANSMISSION)	-
-	-	1	CONTROL VALVE/SENDING UNIT	-
-	-	1	LUBRICATING LINES/OIL CUP (COLLAR SHIFT TRANSMISSION)	-
-	-	1	OIL LINE (WITH CONT. RUNNING PTO)	-
-	-	1	OIL LINES (IND. PTO AND MID PTO, COLLAR SHIFT TRANSMISSION)	-
-	-	1	OIL MANIFOLD / OIL LINES (WITH IND. PTO)	-
-	-	1	OIL MANIFOLD/OIL LINES (WITH IND.PTO AND HI-LO AND COLLAR SHIFT TRANS.)	-
-	-	1	OIL PUMP/DRIVE SHAFT (CONTINUOS RUNNING PTO-540 RPM/COLLAR SHIFT TRANSMISSION)	-
-	-	1	OIL PUMP/PTO DRIVE SHAFT/CLUTCH SHAFT (COLLAR SHIFT TRANSMISSION)	-
-	-	1	PINION SHAFT (COLLAR-SHIFT TRANSM.)	-

52 COLLAR SHIFT TRANSMISSION, HI-LO SHIFT

Нет текстового описания
