100 CUTTING PLATFORM AND HARVESTING UNITS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание

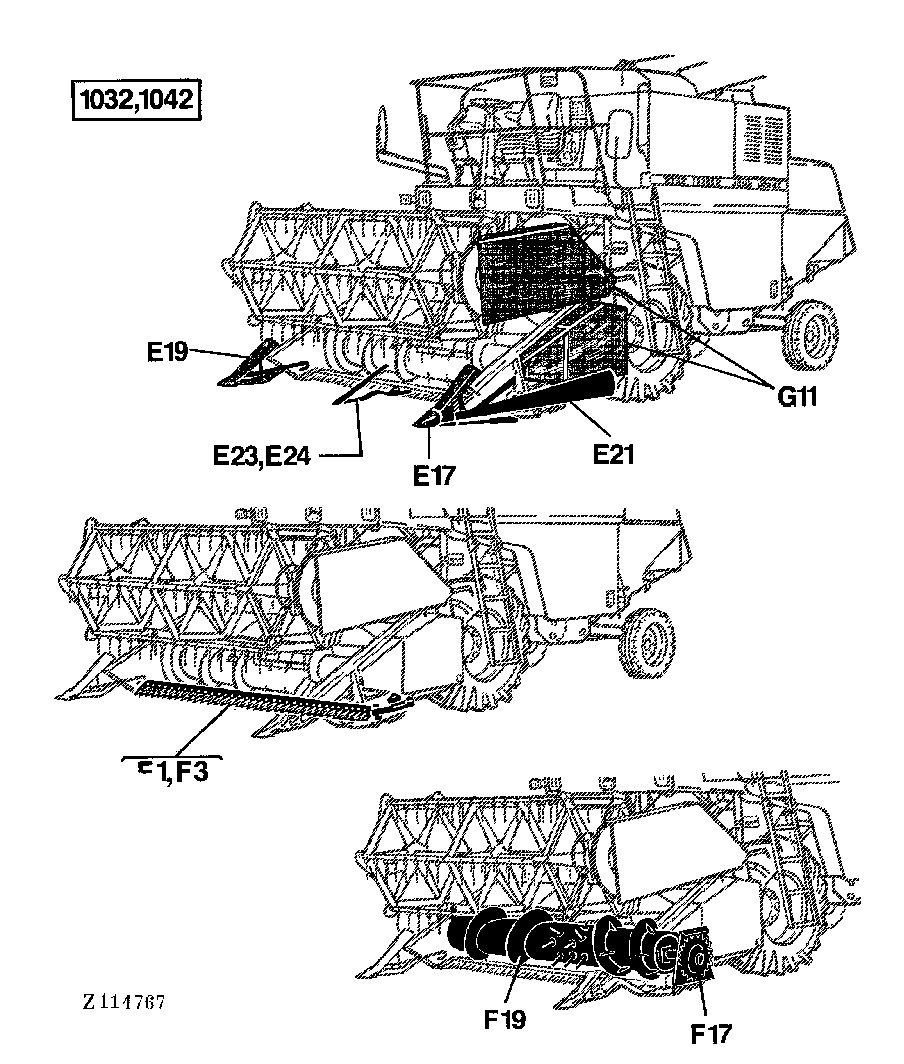

-	-	1	SHORT DIVIDER AND SIDE PANEL DIVIDER [03E17]	-

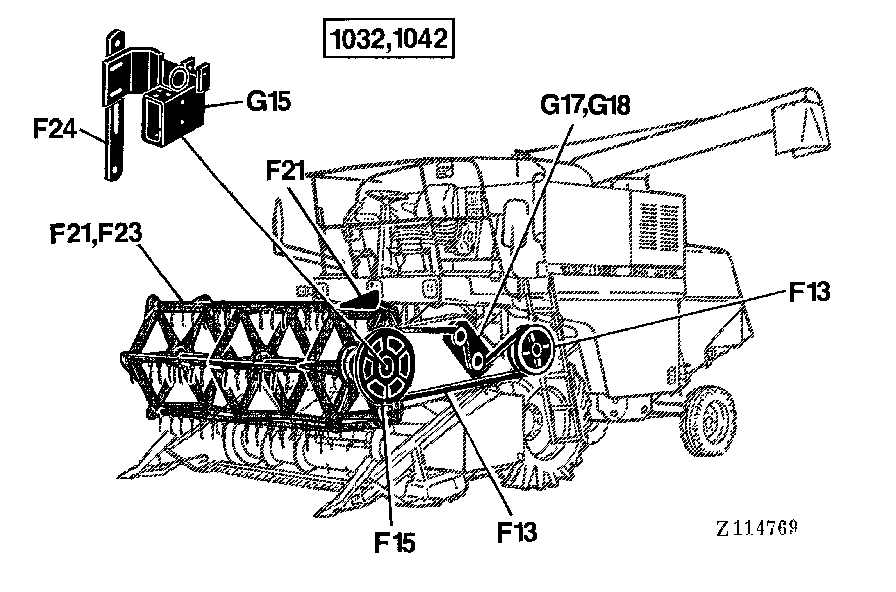

-	-	1	REEL [03F23]	-
-	-	1	REEL ADJUSTMENT(HYDRAULIC) [03G17]	-
-	-	1	REEL ADJUSTMENT(MECHANICAL) [03G18]	-

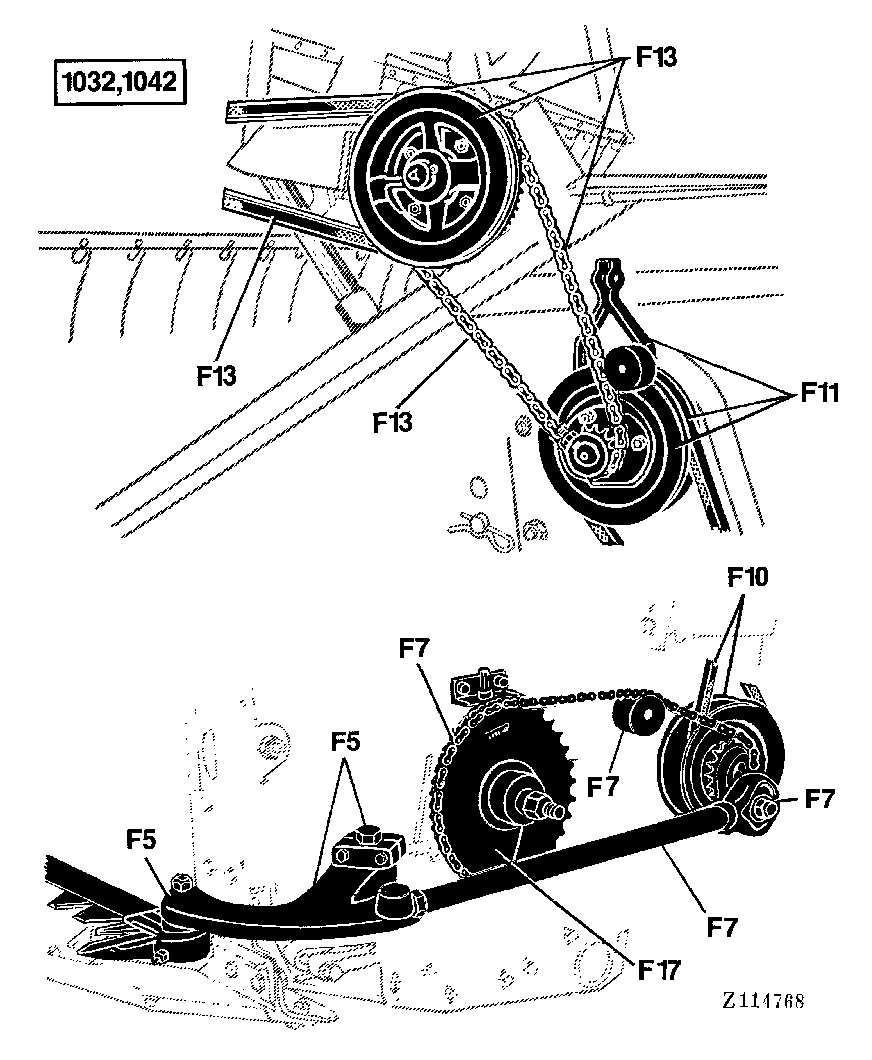

-	-	1	REEL DRIVE [03F15]	-
-	-	1	REEL DRIVE GEAR [03F13]	-
-	-	1	REEL LINKAGE [03F24]	-

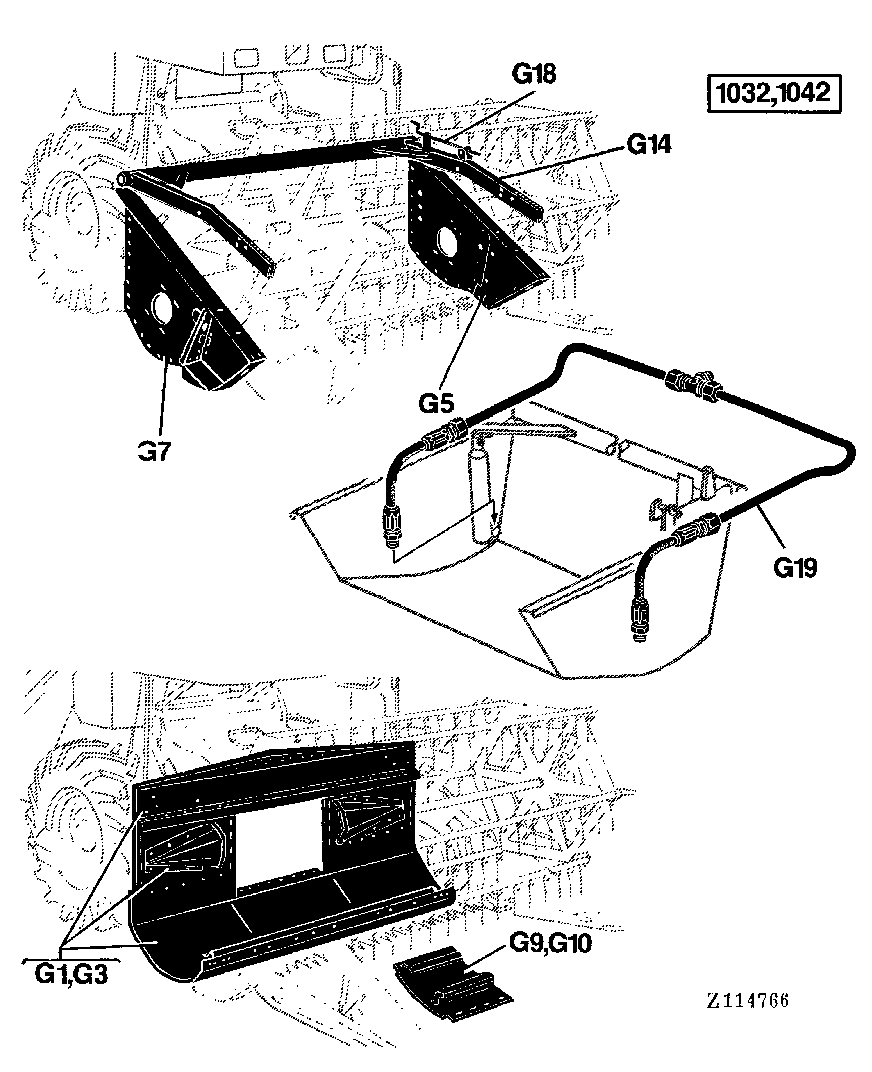

-	-	1	REEL SUPPORT ARMS [03G14]	-
-	-	1	REEL SUPPORTS [03G15]	-
-	-	1	REEL [03F21]	-
-	-	1	SIDE PANEL LEFT-HAND [03G05]	-
-	-	1	SIDE PANEL RIGHT-HAND [03G07]	-
-	-	1	SLIP CLUTCH(CUTTING PLATFORM AUGER) [03F17]	-
-	-	1	SPLIT BELL CRANK-KNIFE DRIVE [03F05]	-
-	-	1	VARIABLE REEL [03F11]	-
-	-	1	WEAR PLATES [03G09]	-
-	-	1	WEAR PLATES [03G10]	-
-	-	1	KNIFE DRIVE [03F07]	-
-	-	1	CROSSMEMBER [03G01]	-
-	-	1	DEFLECTOR,LONG AND SHORT [03E21]	-
-	-	1	DIVIDER WITH EXTENSION [03E19]	-
-	-	1	DRIVE,KNIVES AND REEL [03F10]	-
-	-	1	FINGER BAR(CUTTING PLATFORM) [03F01]	-
-	-	1	FLOOR PLATES [03G03]	-
-	-	1	GUARDS [03G11]	-
-	-	1	HYDRAULIC LINES,REEL ADJUSTMENT [03G19]	-
-	-	1	AUGER [03F19]	-
-	-	1	KNIFE WITH 6MM RIVETS [03F03]	-
-	-	1	LIFTING GUARDS [03E23]	-
-	-	1	LIFTING GUARDS [03E24]	-
-	-	1	M E M O R A N D A [03F09]	-
-	-	1	M E M O R A N D A [03F16]	-
-	-	1	M E M O R A N D A [03G13]	-
-	-	1	M E M O R A N D A [03G21]	-

100 CUTTING PLATFORM AND HARVESTING UNITS
