Открытый узел

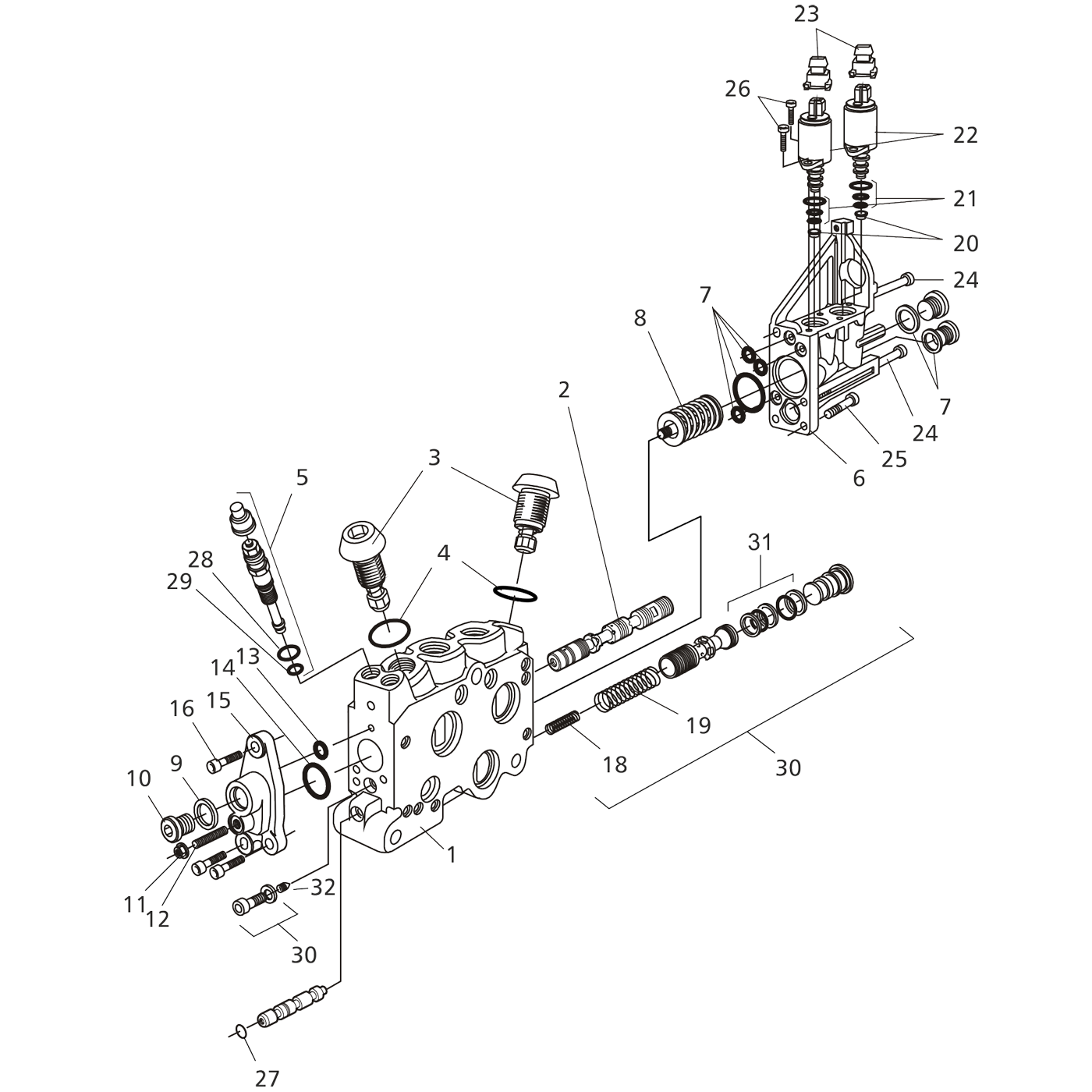

Valve section spare parts

Серийный номер

Бренд

Komatsu / Valmet

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	5060207	1	Valve section	Basic L90LS *Note :This one has KBX spool. Please check your application!;;
1	5060208	1	Valve section	Swing *only in harvesters;;
1	5083614	1	Valve section	Tilt pillar;;
2	5048925	1	Spool	RHX;;
2	5192574	1	Spool	UEB;;
2	5060205	1	Spool	RYX;;
2	5060200	1	Spool	UEX;;
2	5060198	1	Spool	ULX;;
2	5046874	1	Spool	UTX;;
2	5074815	1	Spool	UUX;;
2	5060196	1	Spool	UYX;;
2	5048928	1	Spool	YBA;;
2	5060199	1	Spool	YRD+A027;;
2	5060197	1	Spool	YRX;;
2	5060195	1	Spool	YSD+A027;;
2	5211142	1	Spool	YSX;;
2	5078646	1	Spool	YTD;;
2	5060191	1	Spool	YTX;;
2	5199054	1	Spool	ZPX;;
2	5060190	1	Spool	ZRX;;
2	5070904	1	Spool	ZZX;;
2	5060201	1	Spool	RDX;;
2	5067960	1	Spool	AAA;;
2	5245888	1	Spool	AGA+A027;;
2	5212413	1	Spool	AGX;;
2	5196594	1	Spool	BAX;;
2	5082039	1	Spool	KAX;;
2	5060193	1	Spool	KBX;;
2	5060203	1	Spool	LAX;;
2	5074816	1	Spool	LEX;;
2	5048927	1	Spool	LPX;;
2	5060189	1	Spool	LRA;;
2	5060204	1	Spool	MAX;;
2	5060192	1	Spool	MCX;;
2	5060202	1	Spool	MMX;;
2	5078645	1	Spool	MNA+A027;;
2	5060194	1	Spool	MOX;;
2	5060206	1	Spool	REX;;
3	4634446	2	Pressure insert	25.0 MPa;;
3	5048893	2	Pressure insert	30,0 MPa;;
3	5092719	1	Pressure insert	28.0 MPa;;
3	5048923	2	Pressure insert	26,0 MPa/U *Not damped!;;
3	5041581	2	Pressure insert	26.0 MPa;;
3	5048924	2	Pressure insert	23,0 MPa/U *Not damped!;;
3	5027758	2	Pressure insert	23.0 MPa;;
3	5027757	2	Pressure insert	21.0 MPa (Pos 11, 12, 13, 14, 18);;
3	5042204	2	Pressure insert	17.5 MPa;;
3	5031854	2	Pressure insert	16.0 MPa;;
3	5032284	2	Pressure insert	19.0 MPa;;
3	5030377	2	Pressure insert	12.5 MPa;;
3	5046992	2	Pressure insert	10,0 MPa;;
3	5032283	2	Pressure insert	8.0 MPa;;
3	5032282	2	Pressure insert	5.0 MPa;;
4	61440153	2	O-ring	;S;
5	5027756	1	Press. red. valve	-
6	5035904	1	Valve cover	-
7	5037757	1	Gasket kit	B-side;;
8	5030378	1	Spring	-
9	943907	1	Seal ring	-
10	944505	1	Plug	1/4 BSPP;;
11	4899891	1	Nut	M6;S;
12	5040721	1	Screw	P6SS 6x35;S;
13	962027014	1	O-ring	;S;
14	5040724	1	O-ring	;S;
15	5040723	1	Cap kit	Complete;;
16	5040722	3	Screw	MC6S 6x20 8.8;S;
18	5053437	1	Spring	X;;
19	5048922	1	Spring	K (white);;
19	5053436	1	Spring	KH (green);;
19	5060239	1	Spring	KL (red);;
20	5091038	1	Throttling	PVC25 0,60 *KIT including 5 Pcs;;
20	5091529	1	Throttling	PVC25 1,50 *KIT including 5 Pcs;;
20	5251757	1	Throttling	PVC25 2.00 *KIT including 5 Pcs;;
20	5251755	1	Throttling	PVC25 1.30 *KIT including 5 Pcs;;
20	5090742	1	Throttling	PVC25 1.20 *Kit including 5 Pcs;;
20	5091041	1	Throttling	PVC25 1,10 *KIT including 5 Pcs;;
20	5209490	1	Throttling	PVC25 0,90 *KIT including 5 Pcs;;
20	5091039	1	Throttling	PVC25 0,80 *KIT including 5 Pcs;;
20	5209954	1	Throttling	PVC25 0,45 *KIT including 5 Pcs;;
20	5091040	1	Throttling	PVC25 1,00 *KIT including 5 Pcs;;
21	5030372	2	Gasket kit	-
22	5028210	2	Valve	-
23	5007255	4	Terminal	-
23	5031853	2	Connector	-
23	5034879	1	Protective casing	(Rubber boot);;
24	4879816	2	Screw	MC6S 6x100 8.8;S;
25	5006245	2	Bolt	MC6S 6x20 12.9;S;
26	804702103	4	Screw	MC6S 4x10 8.8;S;
27	5068337	1	O-ring	7,65x1,78 90 NBR;;
28	5008099	1	O-ring	9,25x1,78 70 Shore NBR;S;
29	5048963	1	O-ring	4,10x1,60 70 NBR;;
30	5076358	1	Compensator kit	KX (Green);;
30	5197113	1	Compensator kit	Size G, K spring L90LS;;
30	5197121	1	Compensator kit	KL (Green);;
30	5197122	1	Compensator kit	KH (Green);;
31	5066447	1	Seal kit	-
32	5092882	1	Restriction Screw	0,8mm *KIT including 5 Pcs;;
-	5060216	1	Module	-

Valve section spare parts

Нет текстового описания
