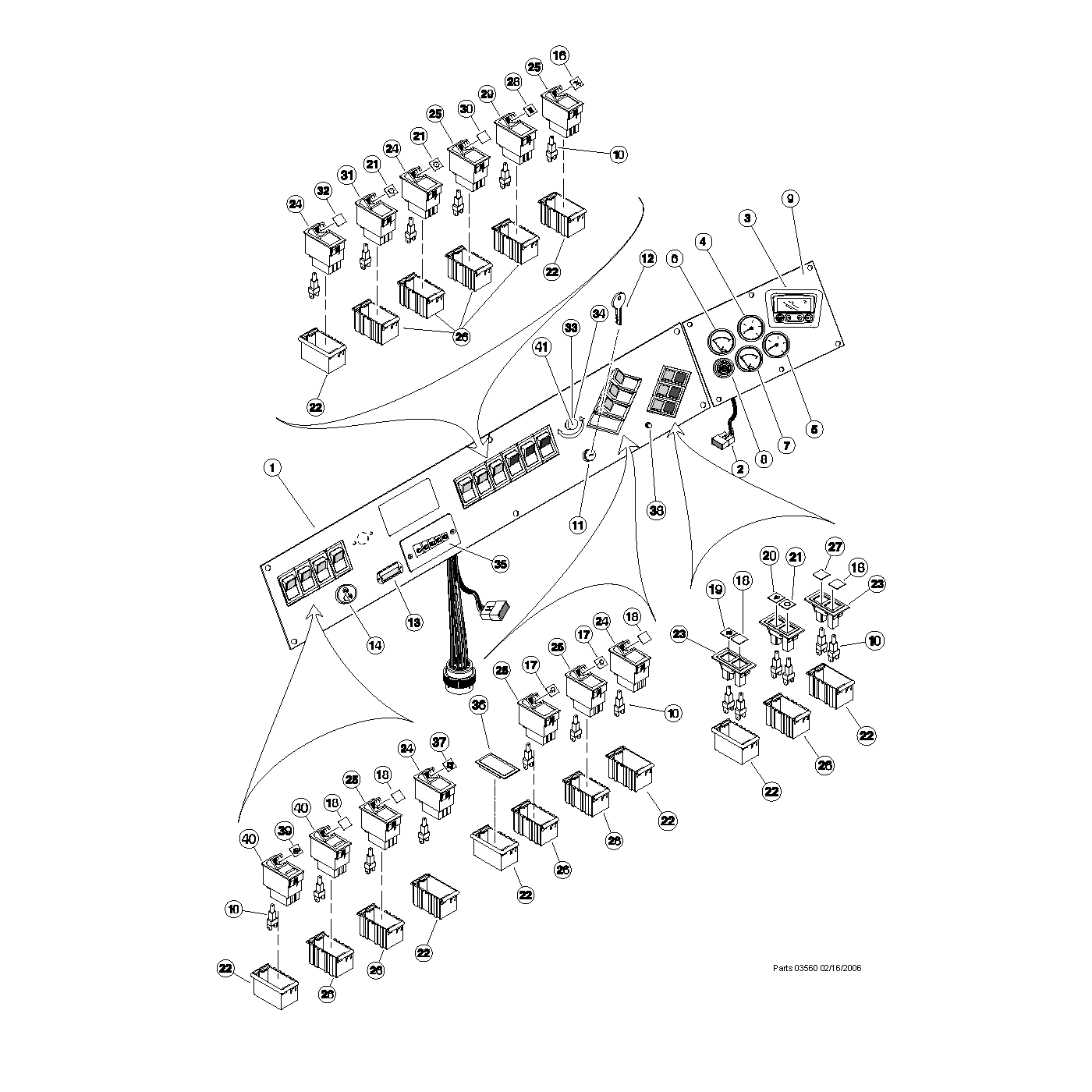

Dash Panel Components (sn. 2742) (sn. 2759 - )

Серийный номер

Бренд

Komatsu / Valmet

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	27966	1	Dash Panel	-
2	27044	1	Connector	12 Pin;;
3	26865	1	Display	Powerview;;
4	24828	1	Gauge	engine oil pressure;;
5	23539	1	Gauge	voltmeter;;
6	24831	1	Gauge	Filter pressure;;
7	24830	1	Gauge	hydraulic oil temperature, 425/445;;
7	26198	1	Gauge	hydraulic oil temperature, 475;;
8	15027	1	Siren	mini;;
9	27238	1	Panel	gauge - 475;;475
9	26541	1	Panel	dash (gauge) 24V Complete;;425/445
10	23538	19	Light	rocker switch 24V;;
11	15028	1	Switch	ignition;;
12	16936	1	Key	ignition (NG100);;
13	27026	1	Gauge	hourmeter;;
14	27025	1	Alarm	powerview - audible;;
16	18179	1	Lens	Green - fast/slow;;
17	18178	2	Lens	Green - Ex. lights;;
18	24821	5	Lens	Green - blank;;
19	18174	1	Lens	Yellow - Charge Oil;;
20	18173	1	Lens	Red - low oil;;
21	18177	3	Lens	Yellow - Disc Saw;;
22	18288	8	Frame	Rocker Switch Mounting - End;;
23	24837	3	Cluster	warning 24V;;
24	24835	4	Switch	Rocker - dash (momentary) 24 V;;
25	24834	5	Switch	Rocker - Dash (on/off) 24V;;
26	18289	9	Frame	rocker switch mounting - center;;
27	28436	1	Lens	orange - blank;;
28	22904	1	Lens	blue - cab heat;;
29	27019	1	Switch	rocker - (3 pos.) - 24V;;
30	27021	1	Lens	Red;;
31	27022	2	Switch	rocker - (on-(m)off) 24V;;
32	24705	1	Lens	yellow - blank;;
33	27918	2	Resistor	throttle;;
34	27024	1	Knob	throttle;;
35	27126	1	Panel	fuel level;;
36	18290	1	Insert	rocker switch plate;;
37	18778	1	Lens	green - fan;;
38	27393	1	Light	master disconnect;;
39	28435	1	Lens	yellow - hyd. vacuum;;
40	28434	2	Switch	rocker - locking;;
41	27023	1	Throttle	potentiometer;;
-	ESS-0001201	1	Dash Panel Components	-
-	28175	4	Replacement bulb	Green;;
-	28174	1	Replacement bulb	red;;

Dash Panel Components (sn. 2742) (sn. 2759 - )

425, 445, Ex-10
