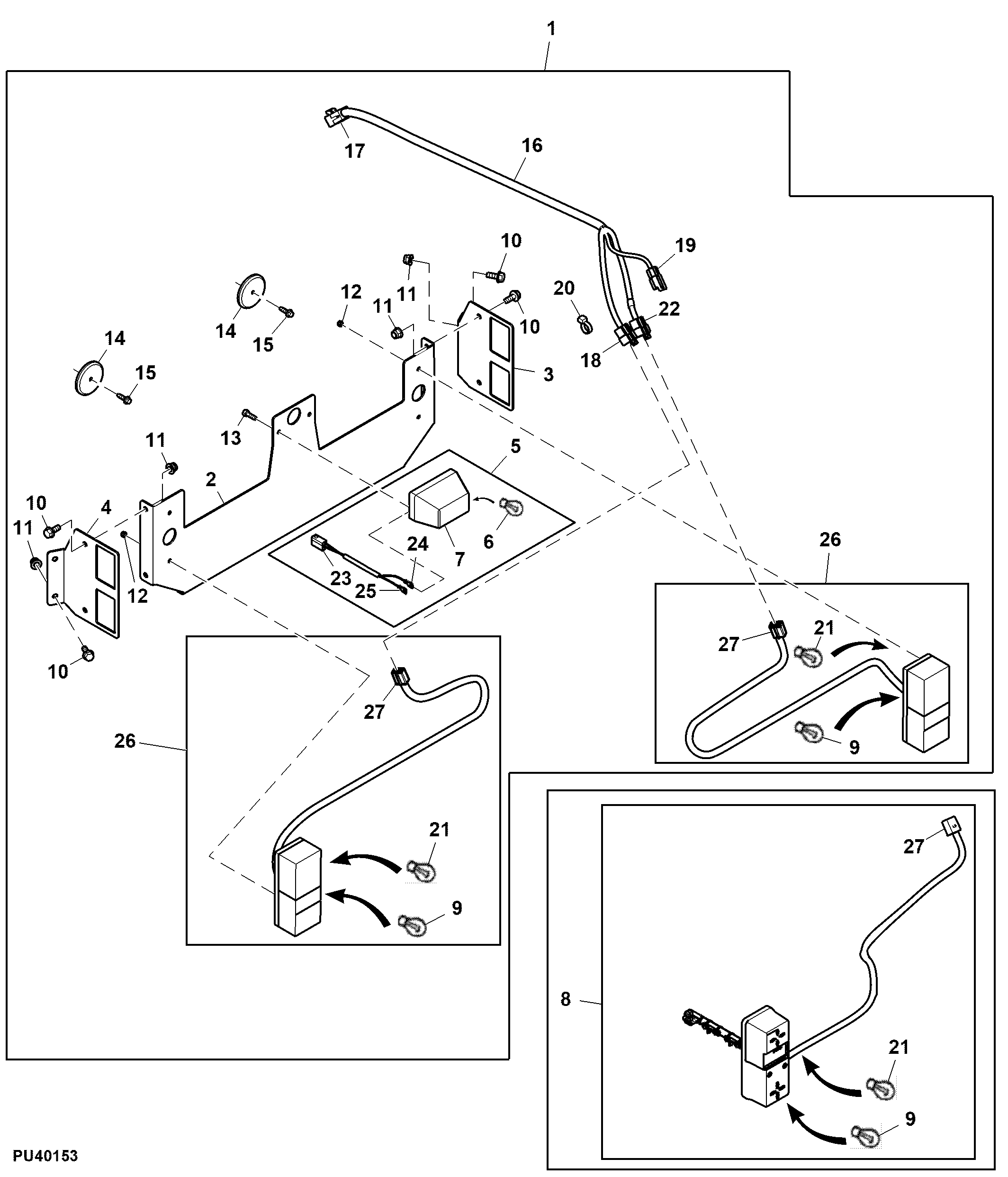

Light Kit, Low Dump Homologation (020001 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BUC10879	1	Light Kit	-
1	BM25438	1	Light Kit	ORDER BUC10879
2	M173643	1	Bracket	Tail Light / License Plate
3	M173644	1	Bracket	Mount, RH
4	M173645	1	Bracket	Mount, LH
5	AM118930	1	Lamp	License Plate
6	57M7013	1	Bulb	10 W, SUB FOR M118986
7	AL59724	1	Lamp	-
8	VGA12096	2	Lamp	Rear Brake / Turn / Reflector USE WITH BM25438
9	R133302	4	Bulb	21 W
10	19M7866	8	Screw	M8 X 20
11	14M7396	8	Lock Nut	M8
12	14M7265	4	Lock Nut	M5
13	M71190	2	Screw	-
14	AM140404	2	Reflector	Red
15	37M7459	2	Screw	M6 X 20
16	AM145490	1	Wiring Harness	-
17	57M8271	1	Electrical Connector Assy	Low Dump P44B
17	57M7592	6	Elec. Connector Terminal	Cavity A, C, E, F, G, H
17	57M8328	1	Electrical Connector Assy	-
18	T24166	1	Electrical Connector Assy	Right Hand Tail Light E51
18	57M11323	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
19	T28586	1	Electrical Connector Assy	License Plate E81
19	T34067	2	Elec. Connector Terminal	Cavity A, B
20	R44302	6	Tie Band	-
21	R133301	4	Bulb	25.11 W
22	T24166	1	Electrical Connector Assy	Left Hand Tail Light E52
22	57M11323	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
23	R77476	1	Electrical Connector Assy	Interconnector X01
23	57M9199	2	Elec. Connector Terminal	Cavity A, B
24	57M10780	1	Elec. Connector Terminal	Lamp C03
25	57M10780	1	Elec. Connector Terminal	Ground C02
26	AUC15739	2	Tail Lamp	Rear Brake / Turn / Reflector USE WITH BUC10879
27	T24167	4	Electrical Connector Assy	Tail Lamp

Light Kit, Low Dump Homologation (020001 - )
