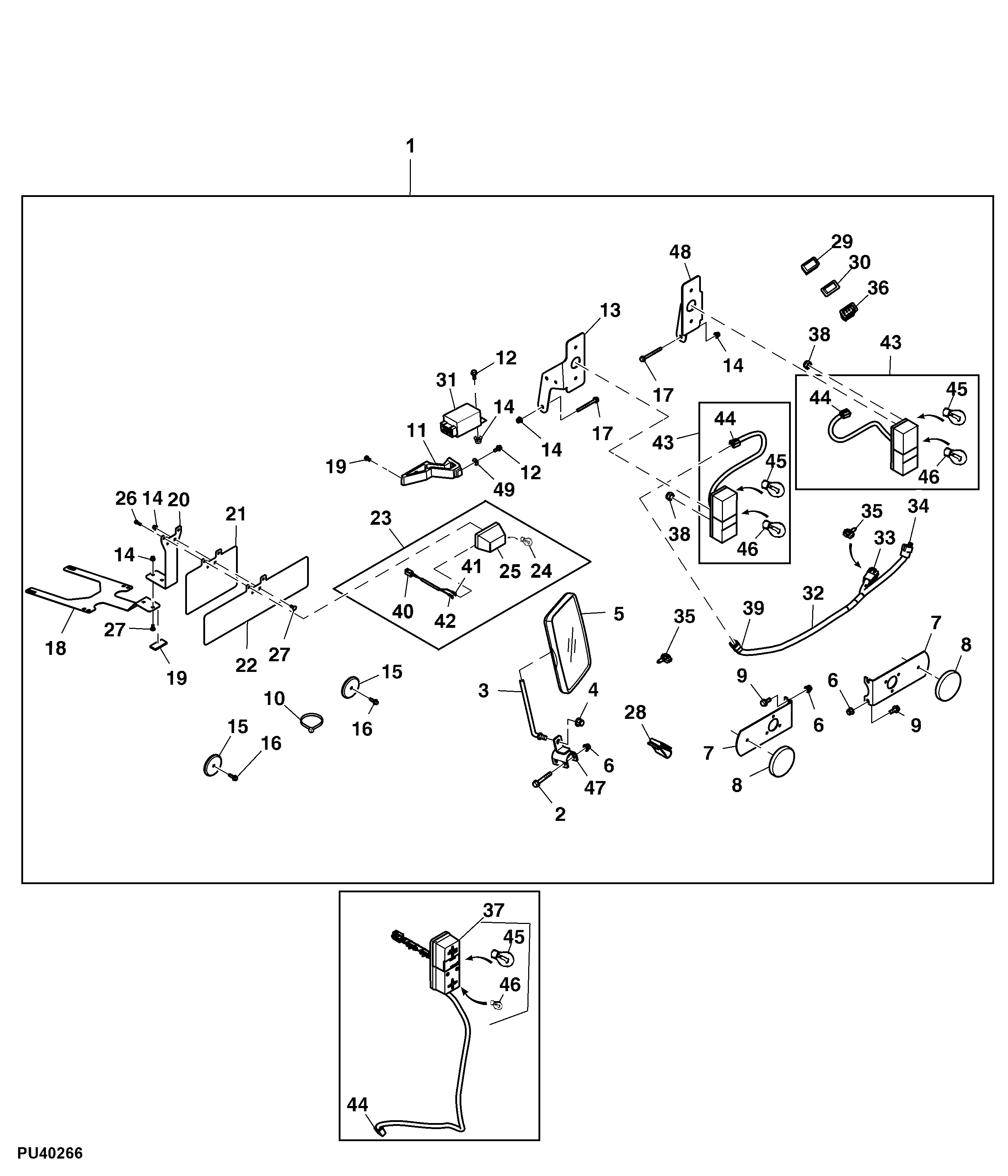

Homologation Light Kit (1/2) (020001 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BUC10880	1	Light Kit	-
1	BM25439	1	Light Kit	ORDER BUC10880
2	19M7979	2	Screw	M8 X 55
3	M118822	1	Support	Rear Mirror
4	14M7465	1	Lock Nut	M10
5	LVA17046	1	Rear View Mirror	-
6	14M7396	6	Lock Nut	M8
7	M115593	2	Bracket	Reflector
8	M115797	2	Reflector	-
9	19M7867	4	Screw	M8 X 25
10	R44302	3	Tie Band	-
11	M167677	1	Bracket	Turn Signal, LH
12	19M7775	3	Screw	M6 X 16
13	M174145	1	Bracket	Rear Brake / Turn Signal, LH
14	14M7397	9	Lock Nut	M6
15	AM140404	2	Reflector	Red
16	37M7459	2	Screw	M6 X 20
17	19M8483	4	Screw	M6 X 65
18	M169535	1	Bracket	License Plate, Base
19	M138850	1	Pad	-
20	M170005	1	Bracket	License Plate
21	M169537	1	Bracket	License Plate Square
22	M169538	1	Bracket	License Plate Rectangle
23	AM118930	1	Lamp	License Plate
24	57M7013	1	Bulb	10 W, SUB FOR M118986
25	AL59724	1	Lamp	-
26	M71190	2	Screw	-
27	03M7221	4	Bolt	M6 X 16
28	M75748	1	Clip	-
29	AM117254	1	Switch	Turn Signal
30	AM117259	1	Switch	Hazard
31	AM133061	1	Flasher	Turn Signal
32	AM142626	1	Turn Signal Wiring Harness	Tail Light
33	57M8271	1	Electrical Connector Assy	Tractor X3B
33	R104923	6	Elec. Connector Terminal	Cavity A, C, E, F, G, H
33	57M8328	1	Electrical Connector Assy	-
34	T24166	1	Electrical Connector Assy	Right Hand ROPS Light E51A
34	57M10785	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
35	57M8855	8	Elec. Connector Accessory	-
36	AM117253	1	Switch	Horn
37	VGA12096	2	Lamp	Rear Brake / Turn / Reflector USE WITH BM25439
38	14M7265	4	Lock Nut	M5
39	T24166	1	Electrical Connector Assy	Left Hand ROPS Light E52A
39	57M10785	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
40	R77476	1	Electrical Connector Assy	Interconnector X01
40	57M9199	2	Elec. Connector Terminal	Cavity A, B
41	57M10780	1	Elec. Connector Terminal	Lamp C03
42	57M10780	1	Elec. Connector Terminal	Ground C02
43	AUC15739	2	Tail Lamp	Rear Brake / Turn / Reflector USE WITH BUC10880
44	T24167	4	Electrical Connector Assy	Tail Lamp
45	R133302	4	Bulb	21 W
46	R133301	4	Bulb	25.11 W
47	LVA14610	1	Bracket	Rear View Mirror
48	M174144	1	Bracket	Rear Brake / Turn Signal, RH
49	24M7139	2	Washer	6.400 X 18 X 1.600 mm

Homologation Light Kit (1/2) (020001 - )
