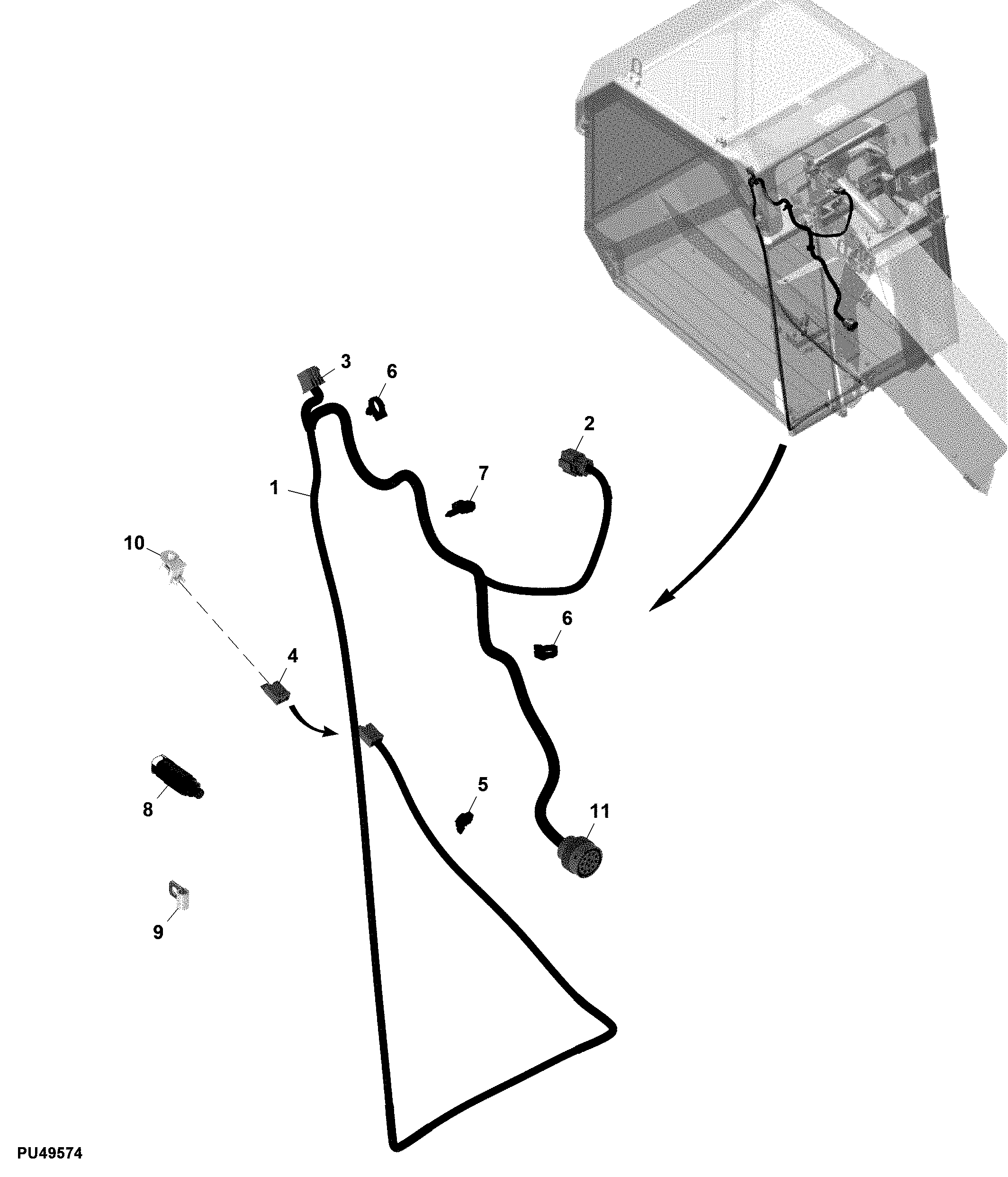

Harness, Low Dump System ( - 030000)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AM145489	1	Wiring Harness	-
2	57M14183	1	Elec. Connector Housing	Material Collection System, S16, Presence Switch, 8 Pin, SUB FOR 57M11447
2	57M11546	2	Elec. Connector Terminal	Material Collection System, Presence Switch, 8 Pin
2	57M10789	6	Elec. Connector Cable Seal	Cavity 1,5
2	57M11448	2	Elec. Connector Terminal	Cavity 2,3,4,6,7,8
3	M135518	1	Electrical Connector Assy	Material Collection System, P44A, Tail Lights, 8 Pin
3	57M8327	1	Electrical Connector Assy	-
3	R104921	5	Elec. Connector Terminal	Cavity A,E,F,G,H
3	57M7590	1	Elec. Connector Terminal	Cavity C
4	57M11731	2	Elec. Connector Terminal	Cavity A,B
4	57M9199	2	Elec. Connector Terminal	-
4	57M7974	1	Electrical Connector Assy	Material Collection System, S17, Full Switch, 2 Pin
5	57M9038	5	Elec. Connector Accessory	-
6	57M9363	2	Elec. Connector Accessory	-
7	57M8855	1	Elec. Connector Accessory	-
8	AM143287	1	Switch	-
9	AH76882	1	Clip	SUB FOR APPL M171212
10	AM131968	1	Switch	Seat
11	DK85988	1	Elec. Connector Housing	X2B, Tractor, 14 Pin
11	N282068	9	Elec. Connector Terminal	Cavity A,E,F,G,H,J,M,N,P
11	R78069	5	Elec. Connector Cavity Plug	Cavity B,C,D,K,L

Harness, Low Dump System ( - 030000)
