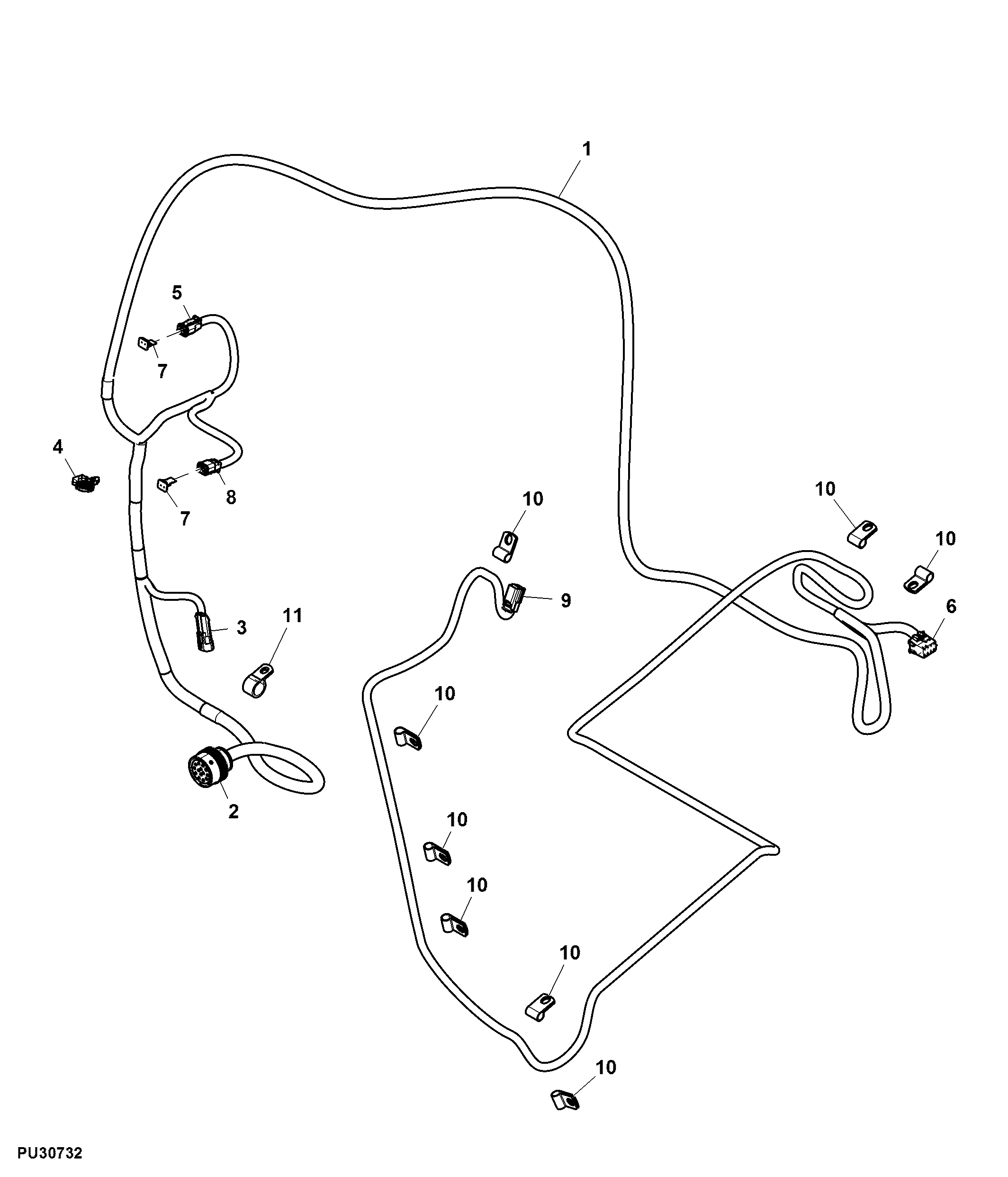

Harness, High Dump Hopper (070001 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AUC14717	1	Wiring Harness	-
2	DK85988	1	Elec. Connector Housing	Connect X2
2	N282069	10	Elec. Connector Terminal	Cavity A, B, C, E, F, G, H, J, N, P
2	N282068	2	Elec. Connector Terminal	Cavity K, L
2	R78069	2	Elec. Connector Cavity Plug	-
3	57M7256	1	Elec. Connector Housing	Presence Switch S16
3	R104919	2	Elec. Connector Terminal	Cavity A, B
3	57M7258	2	Elec. Connector Seal	-
3	57M9712	1	Elec. Connector Accessory	-
4	57M9363	1	Elec. Connector Accessory	-
5	N282068	1	Elec. Connector Terminal	Cavity 2
5	N282069	1	Elec. Connector Terminal	Cavity 1
5	57M7534	1	Elec. Connector Housing	Dump Valve Y6
6	M135518	1	Electrical Connector Assy	Rear Light X9
6	R104921	5	Elec. Connector Terminal	Cavity A, E, F, G, H
6	57M7590	1	Elec. Connector Terminal	Cavity C
6	57M8327	2	Electrical Connector Assy	-
7	57M8022	2	Elec.Connect Locking Device	-
8	57M7534	1	Elec. Connector Housing	Lift Valve Y7
8	N282069	1	Elec. Connector Terminal	Cavity 1
8	N282068	1	Elec. Connector Terminal	Cavity 2
9	57M13282	1	Elec. Connector Housing	Ultrasonic Sensor B7
10	AH76882	8	Clip	-
11	M171213	1	Half Clamp	-

Harness, High Dump Hopper (070001 - )
