Harness, High Dump Hopper (030001 - 070000)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AM146891	1	Wiring Harness	-
2	DK85988	1	Elec. Connector Housing	Connect X2
2	N282069	11	Elec. Connector Terminal	Cavity A, B, C, E, F, G, H, J, M, N, P
2	N282068	2	Elec. Connector Terminal	Cavity K, L
2	R78069	1	Elec. Connector Cavity Plug	-
3	57M7256	1	Elec. Connector Housing	Presence Switch S16
3	R104919	2	Elec. Connector Terminal	Cavity A, B
3	57M7258	2	Elec. Connector Seal	-
3	57M9712	1	Elec. Connector Accessory	-
4	57M9363	4	Elec. Connector Accessory	-
5	57M7534	1	Elec. Connector Housing	Dump Valve Y7
5	N282069	1	Elec. Connector Terminal	Cavity 1
5	N282068	1	Elec. Connector Terminal	Cavity 2
6	R104921	5	Elec. Connector Terminal	Cavity A, E, F, G, H
6	57M8327	2	Electrical Connector Assy	-
6	57M7590	1	Elec. Connector Terminal	Cavity C
6	M135518	1	Electrical Connector Assy	X9
7	57M7974	1	Electrical Connector Assy	Full Switch S17
7	57M11731	2	Elec. Connector Terminal	Cavity A, B
8	57M7534	1	Elec. Connector Housing	Lift Valve Y6
8	N282069	1	Elec. Connector Terminal	Cavity 1
8	N282068	1	Elec. Connector Terminal	Cavity 2
9	57M13282	1	Elec. Connector Housing	Ultrasonic Sensor B7
10	AM131968	1	Switch	Seat
11	57M9038	3	Elec. Connector Accessory	-
12	57M8022	2	Elec.Connect Locking Device	-
13	AH76882	2	Clip	-
14	M171213	1	Half Clamp	-

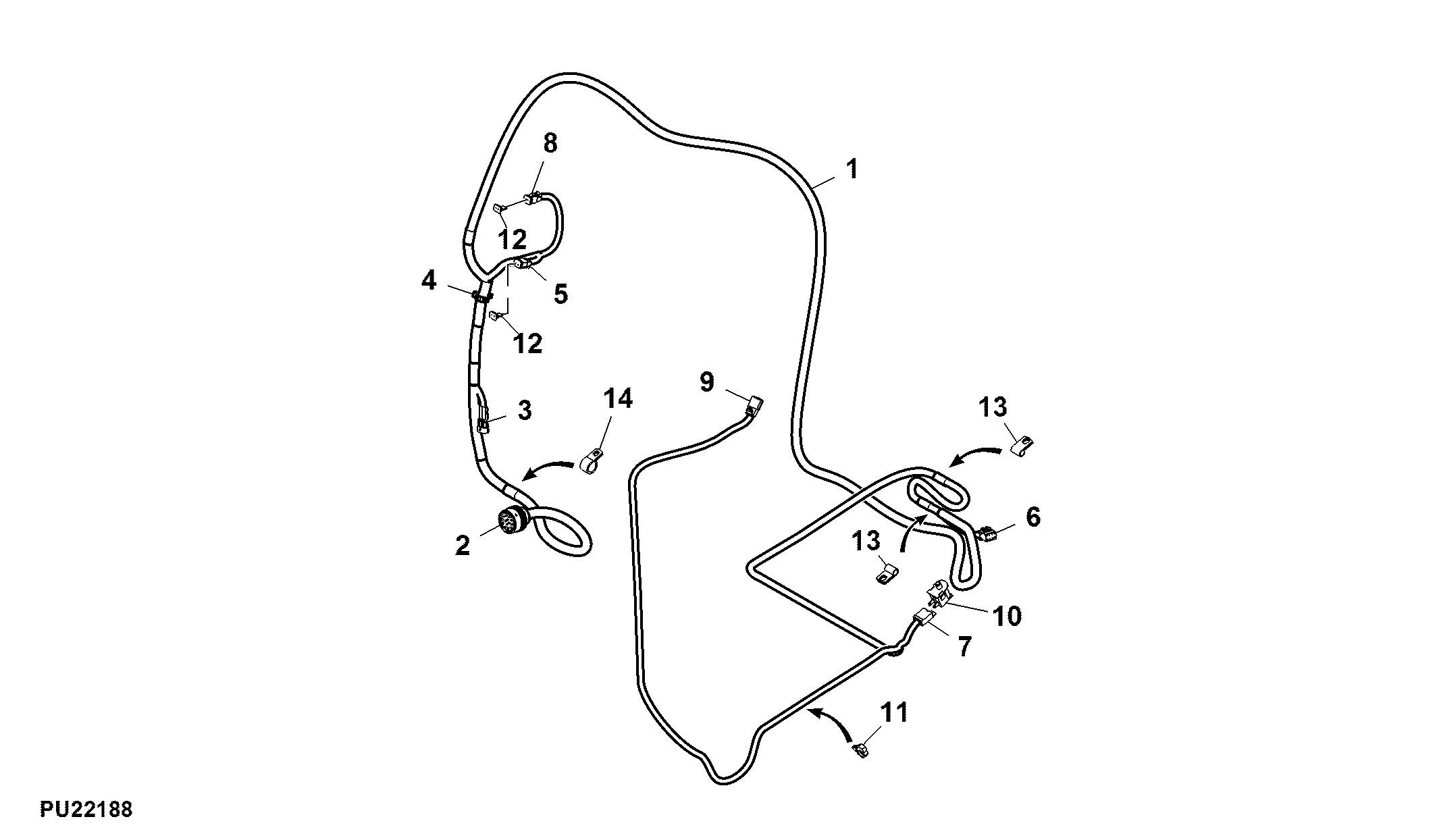

Harness, High Dump Hopper (030001 - 070000)

Нет текстового описания
