Открытый узел

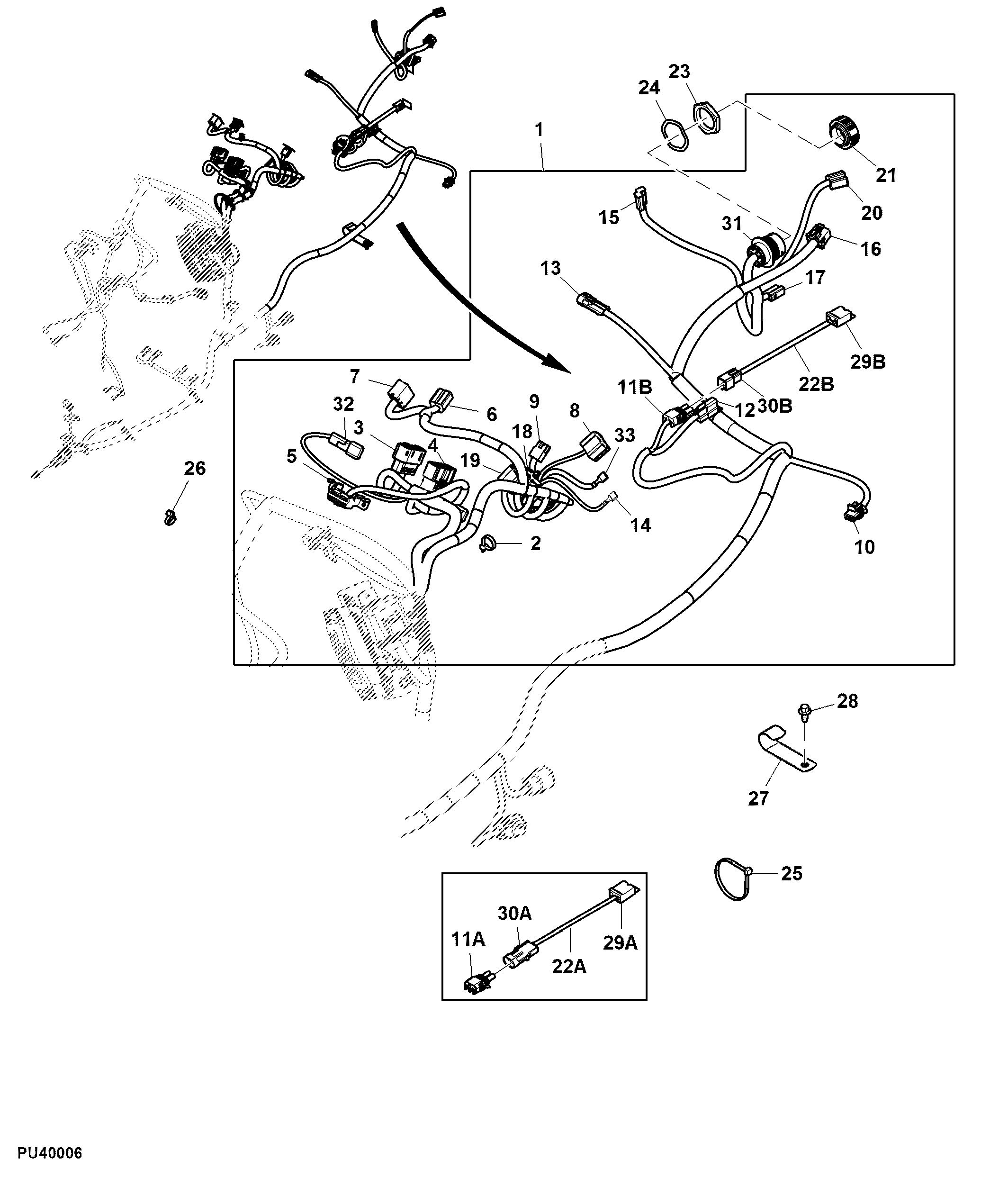

Chassis Wiring Harness (3/3) (030001 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AUC13464	1	Wiring Harness	-
1	AM148622	1	Wiring Harness	ORDER AUC13464; SUB FOR AM145879
2	H77698	8	Tie Band	SUB FOR M78480
3	57M12666	1	Elec. Connector Housing	Instrument Cluster J1
3	57M10789	4	Elec. Connector Cable Seal	Cavity 2, 9, 12, 14
3	57M11448	13	Elec. Connector Terminal	Cavity 1, 3, 4, 5, 7, 8, 11, 13, 15, 16, 17, 18, 19
3	57M11546	3	Elec. Connector Terminal	Cavity 6, 10, 20
4	57M12920	1	Elec. Connector Housing	Instrument Cluster J2
4	57M10789	5	Elec. Connector Cable Seal	Cavity 7, 8, 12, 19, 20
4	57M11448	15	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 9, 10, 11, 13, 14, 15, 16, 17, 18
5	57M11267	5	Elec. Connector Terminal	Cavity 4, 5, 6, 14, 16
5	57M11266	1	Elec. Connector Housing	Diagnostic B5
6	M90206	1	Elec. Connector Terminal	Ignition Switch S1
6	57M8809	1	Elec. Connector Terminal	Cavity A
6	57M9200	2	Elec. Connector Terminal	Cavity B, E
7	M133149	1	Electrical Connector Assy	PTO / RIP Switch S3
7	57M8810	6	Elec. Connector Terminal	Cavity 1 – 6
8	57M9361	1	Elec. Connector Housing	Light Switch S9
8	57M8310	1	Elec. Connector Terminal	Cavity D
9	57M11587	1	Elec. Connector Housing	Rio Switch S15
9	57M8692	2	Elec. Connector Terminal	Cavity 1, 2
10	57M7309	1	Elec. Connector Housing	Fuel Sender B4
10	57M7306	1	Elec.Connect Locking Device	-
10	57M9218	2	Elec. Connector Seal	Cavity A, B
10	57M7297	2	Elec. Connector Terminal	Cavity A, B
12	57M10785	2	Elec. Connector Terminal	Cavity A, B
12	T28586	1	Electrical Connector Assy	License Plate Lamp E10
13	57M7258	2	Elec. Connector Seal	Cavity A, B
13	57M7252	2	Elec. Connector Terminal	Cavity A, B
13	57M7289	1	Elec.Connect Locking Device	-
13	57M7256	1	Elec. Connector Housing	Material Collection System, Dump Switch S14
14	57M11035	1	Elec. Connector Terminal	Horn S12-A
15	57M8812	1	Elec. Connector Housing	Power Port X7
15	U46662	2	Elec. Connector Terminal	Cavity A, B
16	M135518	1	Electrical Connector Assy	Taillight X1
16	R104921	5	Elec. Connector Terminal	Cavity A, E, F, G, H
16	57M9203	2	Elec. Connector Terminal	Cavity C, D
16	57M8327	2	Electrical Connector Assy	-
17	R77476	1	Electrical Connector Assy	Material Collection System, Full Alarm H3
17	57M8809	2	Elec. Connector Terminal	Cavity A, B
18	57M9361	1	Elec. Connector Housing	Hazard Light Switch S11
18	57M8809	4	Elec. Connector Terminal	Cavity A - D
19	57M9361	1	Elec. Connector Housing	Turn Signal S10
19	57M8809	3	Elec. Connector Terminal	Cavity C, D, E
20	57M8812	1	Elec. Connector Housing	Backup Alarm H2
20	57M8809	2	Elec. Connector Terminal	Cavity A, B
21	57M11733	1	Elec. Connector Accessory	-
23	57M8428	1	Electrical Connector Assy	-
24	57M9062	1	Elec.Connect Locking Device	-
25	R76477	1	Tie Band	SUB FOR M73027
26	R44302	4	Tie Band	-
27	R42045	1	Clamp	-
28	37M7463	1	Screw	M8 X 16
31	-	1	Part 73	Material Collection System X2
31	R78065	12	Elec. Connector Terminal	Cavity A, B, C, E, F, G, H, J, L, M, N, P
31	R78069	1	Elec. Connector Cavity Plug	SUB FOR M73027
31	57M7546	1	Elec. Connector Terminal	Cavity K
31	57M11733	1	Elec. Connector Accessory	-
32	TCA19086	1	Resistor	Control Area Network Terminal R3
32	57M10963	1	Elec. Connector Terminal	Cavity A
32	57M10962	1	Elec. Connector Terminal	Cavity B
33	57M11035	1	Elec. Connector Terminal	Horn S12-B
11A	57M10924	2	Elec. Connector Terminal	Cavity A, B
11A	RE12363	1	Electrical Connector Assy	Seat Switch USE WITH AM148622 OR AM145879; S4
11B	57M7618	1	Electrical Connector Assy	-
11B	R78065	2	Elec. Connector Terminal	Cavity 2, 4
11B	57M7546	2	Elec. Connector Terminal	Cavity 1, 3
11B	57M7535	1	Elec. Connector Terminal	Seat Switch USE WITH AUC13464; S4
22A	AM144675	1	Wiring Harness	Seat Adapter USE WITH AM148622 AND AM145879
22B	AUC13462	1	Jumper	Seat Adapter USE WITH AUC13464
29A	L36677	2	Electrical Conductor	Cavity A, B
29A	57M7974	1	Electrical Connector Assy	Seat Switch USE WITH AM144675; X2
29B	57M8810	2	Elec. Connector Terminal	Cavity A, B
29B	57M7974	1	Electrical Connector Assy	Seat Switch USE WITH AUC13462; XX2
30A	R78059	2	Elec. Connector Seal	Cavity A, B
30A	R78058	2	Elec. Connector Terminal	Cavity A, B
30A	R78053	1	Electrical Connector Assy	Harness Connect USE WITH AM144675; X1
30B	57M7619	1	Elec.Connect Locking Device	-
30B	R78069	2	Elec. Connector Cavity Plug	Cavity 1, 3
30B	57M8164	2	Elec. Connector Terminal	Cavity 2, 4
30B	57M7628	1	Electrical Connector Assy	Harness Connect USE WITH AUC13462; C1

Chassis Wiring Harness (3/3) (030001 - )
