Chassis Wiring Harness (2/2) ( - 030000)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

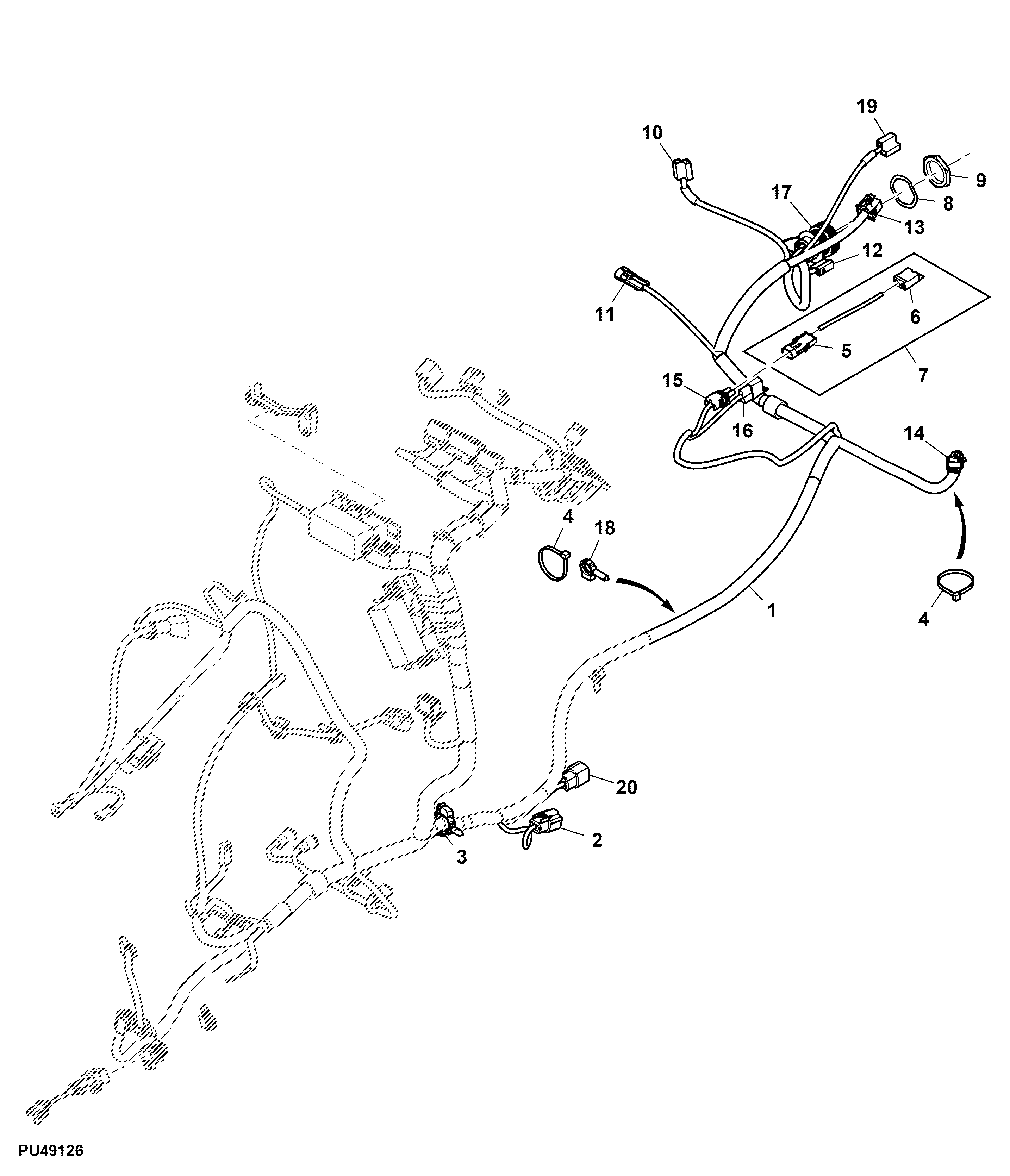

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AM143260	1	Wiring Harness	-
2	57M14183	1	Elec. Connector Housing	S8 Brake Switch, 8 Pin
2	57M10789	6	Elec. Connector Cable Seal	Cavity 2, 3, 4, 6, 7, 8
2	57M11448	2	Elec. Connector Terminal	Cavity 1, 5
3	57M9206	1	Clip	-
4	R44302	2	Tie Band	-
5	R78053	1	Electrical Connector Assy	Female; 2 Pin X1
6	57M7974	1	Electrical Connector Assy	Female; 2 Pin X2
7	AM144675	4	Wiring Harness	Seat Adapter
8	57M9062	1	Elec.Connect Locking Device	-
8	57M9454	2	Elec. Connector Terminal	-
9	57M8428	1	Electrical Connector Assy	-
10	57M8812	1	Elec. Connector Housing	X7 Power Port; 2 Pin
10	M71442	2	Elec. Connector Terminal	Cavity A, B
11	57M7256	1	Elec. Connector Housing	S4 MCS Dump Switch; 2 Pin
11	57M7289	1	Elec.Connect Locking Device	-
11	R104919	2	Elec. Connector Terminal	Cavity A, B
11	57M7258	2	Elec. Connector Seal	Cavity A, B
12	R77476	1	Electrical Connector Assy	H3, MCS Full Alarm; 2 Pin
12	U46662	3	Elec. Connector Terminal	Cavity A, B, C
13	57M7589	2	Elec. Connector Terminal	Cavity C,D
13	R104921	5	Elec. Connector Terminal	Cavity A,E,F,G,H
13	M135518	1	Electrical Connector Assy	X1, Tail Light; 8 Pin
14	57M7309	1	Elec. Connector Housing	B4 Fuel Sender; 2 Pin
14	57M7306	1	Elec.Connect Locking Device	-
14	R78057	2	Elec. Connector Terminal	Cavity A, B
14	R78059	2	Elec. Connector Seal	Cavity A, B
15	RE12363	1	Electrical Connector Assy	S4 Seat Switch; 2 Pin
15	R78057	2	Elec. Connector Terminal	Cavity A, B
16	T28586	1	Electrical Connector Assy	E10, License Light; 2 Pin
16	L36677	2	Electrical Conductor	Cavity A, B
17	57M11733	1	Elec. Connector Accessory	-
17	R78067	2	Elec. Connector Terminal	Cavity J, K
17	Z78008	3	Elec. Connector Seal	Cavity B, C, D
17	R78065	9	Elec. Connector Terminal	Cavity A, E, F, G, H, L, M, N, P
17	-	1	Part 32	X2 MCS, 14 Pin
18	57M8855	1	Elec. Connector Accessory	-
19	57M8812	1	Elec. Connector Housing	H2 Backup Alarm; 2 Pin
19	U46662	2	Elec. Connector Terminal	Cavity A, B
20	57M14183	1	Elec. Connector Housing	S18 Differntial Lock Switch
20	57M11448	2	Elec. Connector Terminal	Cavity 1, 5
20	57M10789	6	Elec. Connector Cable Seal	Cavity 2, 3, 4, 6, 7, 8
