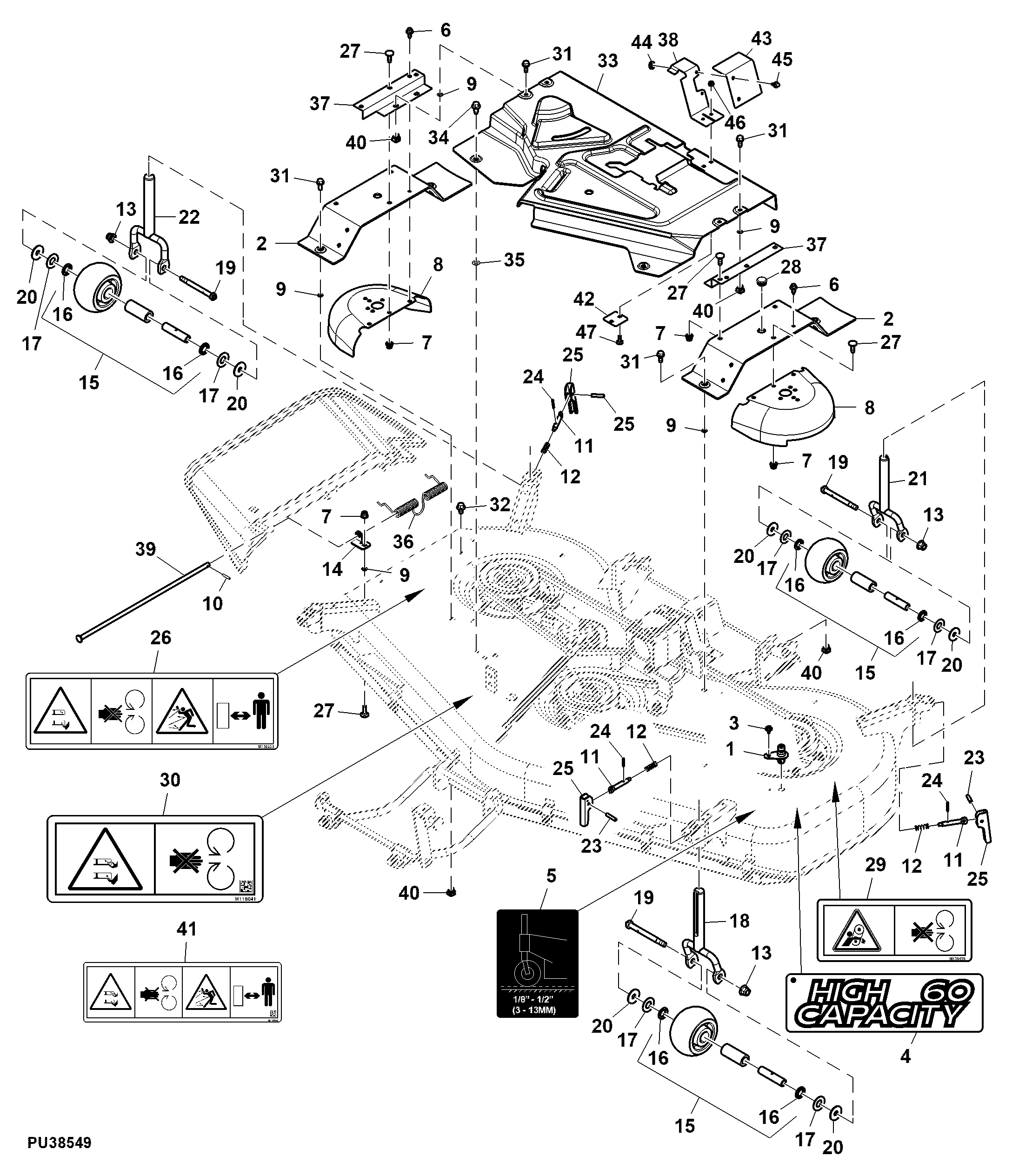

Gage Wheels and Shield Covers, 60 inch Edge™ High-Capacity ( - 070000)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	GX22426	1	Port Plate	-
2	M165884	2	Bracket	-
3	AM146246	1	Screw With Washer	-
4	UC20016	1	Label	High Capacity SUB FOR M163916
5	M177592	1	Label	Gage Wheel Adjustment
6	GX22456	2	Screw	-
7	14M7396	6	Lock Nut	M8
8	M158481	2	Shield	Spindle
9	M84309	10	Nut	-
10	34M7130	1	Spring Pin	4 X 20 mm
11	M177536	4	Pin	-
12	M112219	4	Spring	-
13	14M7401	4	Lock Nut	M12
14	M165145	2	Hinge	-
15	AM148120	4	Wheel	-
16	M88384	8	Seal	-
17	M88385	8	Washer	-
18	AM148121	2	Post	Front
19	M178255	4	Bolt	-
20	M178070	8	Washer	-
21	AM148123	1	Post	Rear, LH
22	AM148365	1	Post	Rear, RH
23	34M7125	4	Spring Pin	7 X 32 mm
24	34H251	4	Spring Pin	1/8" X 1"
25	M177537	4	Handle	-
26	M138631	1	Label	Danger, Chute Guard, Not for Canada and USA
27	03M7093	4	Bolt	M8 X 25
28	M147146	1	Plug	-
29	M136436	1	Label	Warning, Belt Entanglement, Not for Canada and USA
30	M118041	1	Label	Danger, Blade Contact, Not for Canada and USA
31	19M7866	8	Screw	M8 X 20
32	37M7475	1	Screw	M10 X 16
33	AM147039	1	Shield	INCLUDES (2) H141123, (2) 37M7464, (4) M84309 AND (4) 19M7866
34	37M7464	2	Screw	M10 X 20
35	H141123	2	Push Nut	-
36	M172580	1	Torsion Spring	-
37	M167880	2	Support	-
38	M173736	1	Bracket	-
39	M133359	1	Pin	-
40	AM140563	8	Nut	-
41	M118040	1	Label	Danger, Thrown Objects, Not for canada and USA
42	M170896	1	Bracket	-
43	M167888	1	Shield	-
44	TCU22067	2	Push Nut	-
45	37M7458	2	Screw	M6 X 12
46	14M7165	2	Lock Nut	M6
47	03M7221	2	Bolt	M6 X 16

Gage Wheels and Shield Covers, 60 inch Edge™ High-Capacity ( - 070000)
