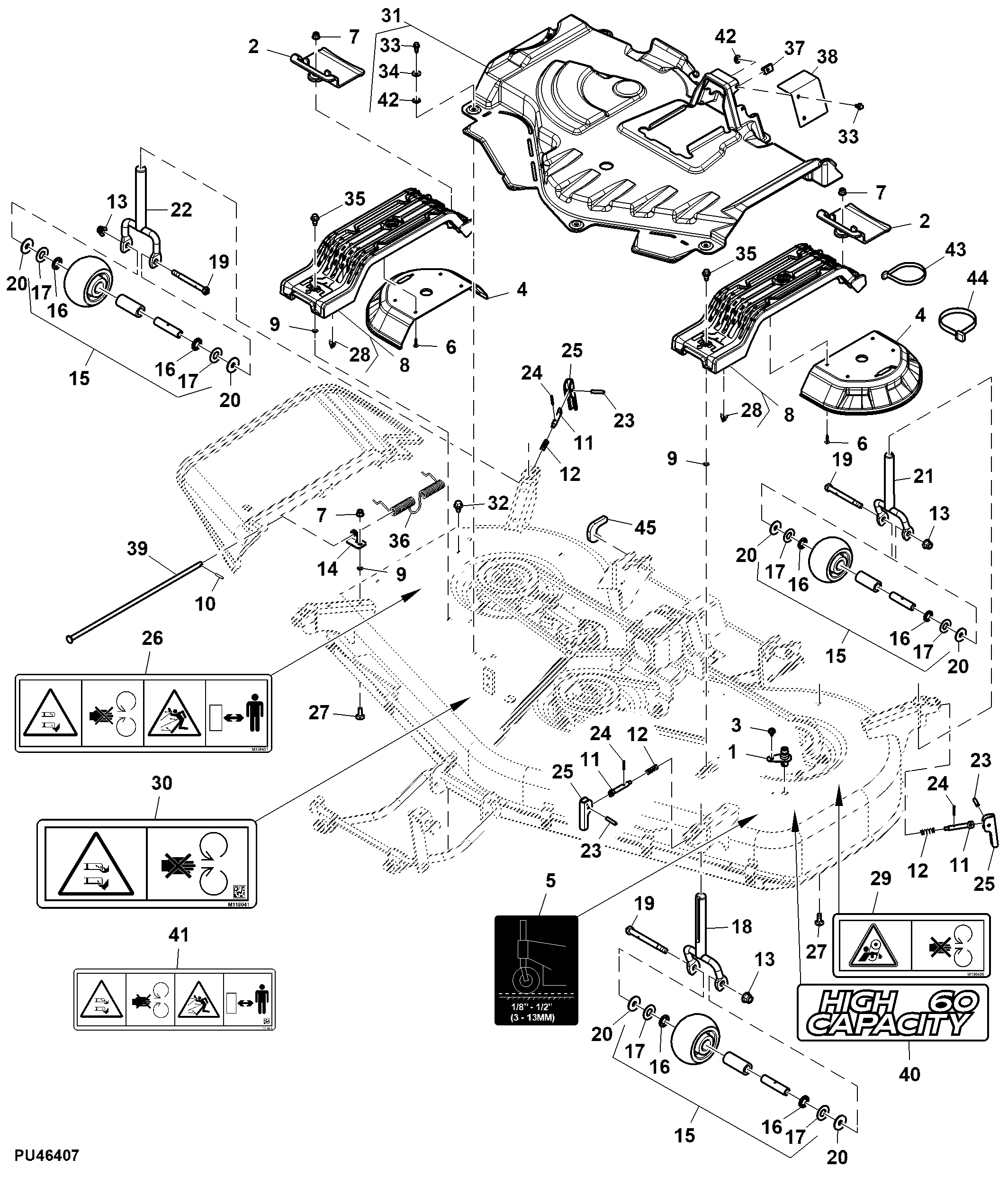

Gage Wheels and Shield Covers, 60HC inch (070001 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	GX22426	1	Port Plate	-
2	UC13049	2	Cleat	Rear Drive Over
3	AM146246	1	Screw With Washer	-
4	UC13549	2	Cover	Spindle
5	M177592	1	Label	Gage Wheel Adjustment
6	GX23580	4	Screw	-
7	14M7396	4	Lock Nut	M8
8	AUC12375	2	Ramp	-
9	M84309	6	Nut	-
10	34M7130	1	Spring Pin	4 X 20 mm
11	M177536	4	Pin	-
12	M112219	4	Spring	-
13	14M7401	4	Lock Nut	M12
14	M174008	2	Hinge	-
15	AM148120	4	Wheel	-
16	M88384	8	Seal	-
17	M88385	8	Washer	-
18	AM148121	2	Post	Front
19	M178255	4	Bolt	-
20	M178070	8	Washer	-
21	AM148123	1	Post	Rear, LH
22	AM148365	1	Post	Rear, RH
23	34M7125	4	Spring Pin	7 X 32 mm
24	34H251	4	Spring Pin	1/8" X 1"
25	M177537	4	Handle	-
26	M138631	1	Label	Danger, Chute Guard, Not for Canada and USA
27	03M7093	4	Bolt	M8 X 25
28	R120160	4	Clip	-
29	M136436	1	Label	Warning, Belt Entanglement, Not for Canada and USA
30	M118041	1	Label	Danger, Blade Contact, Not for Canada and USA
31	AUC11613	1	Shield	-
32	37M7475	1	Screw	M10 X 16
33	37M7457	7	Screw	M6 X 16
34	24M7139	5	Washer	6.400 X 18 X 1.600 mm
35	37M7463	2	Screw	M8 X 16
36	M172580	1	Torsion Spring	-
37	M84972	2	Nut	-
38	M167888	1	Shield	PTO
39	M133359	1	Pin	-
40	UC20016	1	Label	-
41	M118040	1	Label	Danger, Thrown Objects, Not for canada and USA
42	TCU22067	7	Push Nut	-
43	R76477	6	Tie Band	-
44	H77698	1	Tie Band	-
45	M175592	2	Plate	-

Gage Wheels and Shield Covers, 60HC inch (070001 - )
