Homologation Light Kit

Нет текстового описания

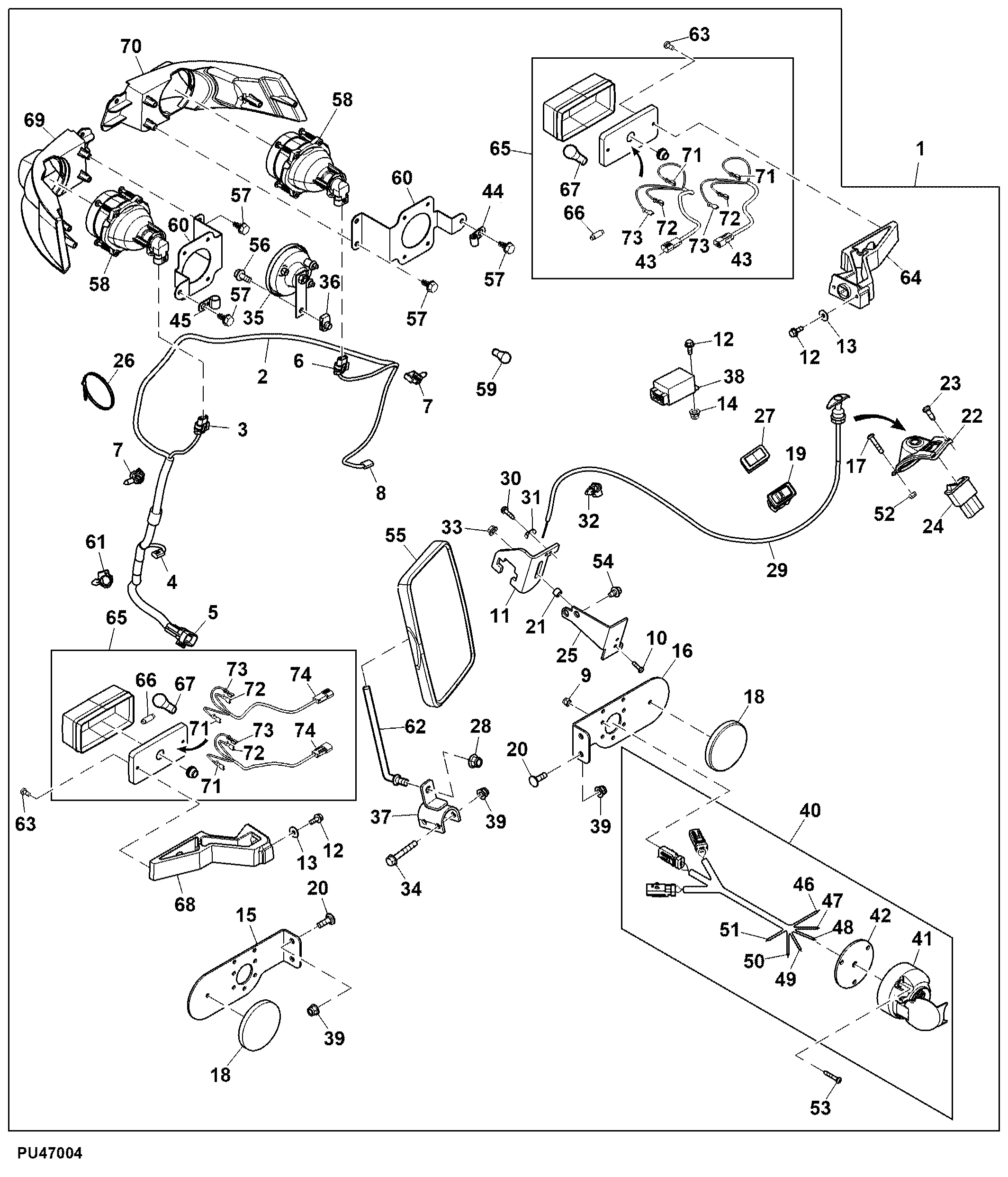

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BUC10190	1	Light Kit	-
2	AUC15135	1	Headlamp Wiring Harness	SUB FOR AM144669
3	57M8129	1	Elec. Connector Terminal	-
3	57M8839	1	Elec. Connector Housing	E2, Headlight, LH
3	57M7297	2	Elec. Connector Terminal	Cavity A, B
4	57M7787	1	Elec. Connector Housing	E16, Turn / Marker Light, LH Front
4	57M7501	3	Elec. Connector Terminal	Cavity A, B, C
5	57M7264	1	Elec. Connector Housing	X8, Main
5	57M7283	1	Elec.Connect Locking Device	-
5	R104919	8	Elec. Connector Terminal	Cavity A, B, C, D, E, F, G, H
6	57M8839	1	Elec. Connector Housing	E1, Headlight, RH
6	57M8129	1	Elec. Connector Terminal	-
6	57M7297	2	Elec. Connector Terminal	Cavity A, B
7	H141394	2	Clip	-
8	57M7787	1	Elec. Connector Housing	E15, Turn / Marker Light, RH Front
8	57M7501	3	Elec. Connector Terminal	Cavity A, B, C
9	14M7360	3	Lock Nut	M5
10	19M7372	2	Cap Screw	M5 X 16
11	M166660	1	Lock	-
12	19M7775	5	Screw	M6 X 16
13	24M7139	4	Washer	6.400 X 18 X 1.600 mm
14	14M7397	1	Lock Nut	M6
15	UC12838	1	Bracket	Rear Reflector, LH
16	UC12839	1	Bracket	Rear Reflector, RH
17	21M7485	1	Screw	M5 X 25
18	M115797	2	Reflector	-
19	AM117253	1	Switch	Horn
20	03M7185	4	Bolt	M8 X 25
21	M138832	2	Bushing	-
22	M168183	1	Panel	Lockout
23	R250192	3	Screw	SUB FOR APPL 37M7355
24	AM117259	1	Switch	Warning Hazard
25	M174411	1	Bracket	Slide Lock
26	R44302	3	Tie Band	-
27	AM117254	1	Switch	Turn Signal
28	14M7465	1	Lock Nut	M10
29	AM143578	1	Push Pull Cable	-
30	37M7073	1	Screw	-
31	M76109	1	Clamp	-
32	57M9038	1	Elec. Connector Accessory	-
33	14M7375	2	Flange Nut	M5
34	19M7979	2	Screw	M8 X 55
35	AL203265	1	Horn	-
36	M84971	1	Nut	-
37	LVA14610	1	Bracket	Mirror
38	AM133061	1	Flasher	Turn Signal
39	14M7396	6	Lock Nut	M8
40	AM117401	1	Harness Kit	Trailer
41	AZ13378	1	Socket Outlet	-
42	M93671	1	Gasket	-
43	57M7786	4	Electrical Connector Assy	-
43	57M7725	1	Electrical Connector Assy	-
43	57M7500	6	Elec. Connector Terminal	Cavity A, B, C
44	57M10316	1	Half Clamp	-
45	57M9860	3	Clamp	-
46	-	1	Part 56	Turn, RH
47	-	1	Part 57	Turn, RH
48	-	1	Part 58	Stop
49	-	1	Part 59	Tail, LH
50	-	1	Part 60	Tail, LH
51	-	1	Part 61	Ground
52	14M7265	1	Lock Nut	M5
53	21M7325	3	Screw	M5 X 30
54	37M7460	2	Screw	M8 X 12
55	LVA17046	1	Rear View Mirror	-
56	19M7866	1	Screw	M8 X 20
57	GX24489	6	Screw	-
58	AM141451	2	Headlight	INCLUDES AM144881
59	AM144881	2	Bulb	60 W
60	M167778	2	Bracket	Headlight
61	57M9363	1	Elec. Connector Accessory	Rosebud
62	M118822	1	Support	Mirror
63	21M7268	4	Screw	M3 X 6
64	M167676	1	Bracket	Turn Signal, RH
65	AM143572	2	Turn Signal Lamp	-
66	57M7492	2	Bulb	5 W
67	57M7014	2	Bulb	21 W
68	M167677	1	Bracket	Turn Signal, LH
69	M174468	1	Housing	LH
70	M174469	1	Housing	RH
71	57M9451	4	Elec. Connector Terminal	Warning
72	57M9451	4	Elec. Connector Terminal	Ground
73	57M9451	4	Elec. Connector Terminal	Turn
