Wiring Harness, Unloading Auger, Folding, 9.4 m (31 ft)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE87343	1	Wiring Harness	SUB FOR APPL AXE79578
2	57M10299	1	Elec. Connector Housing	A57 Unloading Auger Boot Actuator Assembly
2	57M8543	2	Elec. Connector Terminal	Cavity 1, 6
2	57M8572	4	Elec. Connector Cavity Plug	Cavity 2, 3, 7, 10
2	57M9176	2	Elec. Connector Terminal	Cavity 4, 5
2	57M8565	2	Elec. Connector Terminal	Cavity 8, 9
2	57M15072	1	Elec. Connector Accessory	-
2	57M10300	1	Elec. Connector Housing	-
3	57M9776	1	Elec. Connector Housing	A216 Harvesting Domain Can 2 Terminator 2
3	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
3	57M14956	1	Elec. Connector Accessory	-
3	57M11134	1	Elec. Connector Housing	-
4	57M9219	2	Elec. Connector Seal	Cavity A, B
4	57M10477	1	Elec. Connector Accessory	-
4	57M7297	2	Elec. Connector Terminal	Cavity A, B
4	57M8839	1	Elec. Connector Housing	E26 Unloading Auger Work Light
5	57M14731	1	Elec. Connector Housing	A162 Unloading Auger Camera
5	57M15252	2	Elec. Connector Terminal	Cavity 1, 2
6	57M7255	1	Elec. Connector Housing	E20 Unloading Auger Marker / Brake Light
6	57M10770	3	Elec. Connector Terminal	Cavity A, B, C
6	57M9215	3	Elec. Connector Seal	Cavity A, B, C
6	57M7290	2	Elec. Connector Accessory	-
6	57M7257	1	Elec. Connector Housing	-
6	57M7259	3	Elec. Connector Seal	-
7	57M8543	2	Elec. Connector Terminal	Cavity 1, 6
7	57M11374	1	Elec. Connector Accessory	-
7	57M15072	1	Elec. Connector Accessory	-
7	57M8565	1	Elec. Connector Terminal	Cavity 10
7	57M8572	5	Elec. Connector Cavity Plug	Cavity 2, 3, 7, 8, 9
7	57M10299	1	Elec. Connector Housing	A113 Folding Unloading Auger Actuator Assembly
7	57M9176	2	Elec. Connector Terminal	Cavity 4, 5
8	57M14728	1	Elec. Connector Housing	Grain Tank / Unloading Auger
8	57M15261	2	Elec. Connector Terminal	Cavity 1, 2
8	57M12379	1	Elec. Connector Accessory	-
9	57M8866	1	Elec. Connector Terminal	Unloading Auger Chassis Ground
10	57M7252	1	Elec. Connector Terminal	Cavity F
10	H224545	1	Elec.Connect Locking Device	-
10	57M7699	1	Elec. Connector Terminal	-
10	57M7258	1	Elec. Connector Seal	Cavity D
10	57M9564	2	Elec. Connector Cable Seal	Cavity E, G
10	57M7582	2	Elec. Connector Terminal	Cavity E, G
10	57M9215	2	Elec. Connector Seal	Cavity C, D
10	57M9546	2	Elec. Connector Terminal	Cavity C, D
10	57M9214	2	Elec. Connector Seal	Cavity A, B
10	57M10407	2	Elec. Connector Terminal	Cavity A, B
10	57M7697	1	Electrical Connector Assy	Mani Harness / Unloading Auger Harness
11	57M10233	4	Tie Band	-
12	57M10362	1	Clamp	-
13	19M7865	1	Screw	M8 X 16
14	24M7055	1	Washer	8.400 X 16 X 1.600 mm

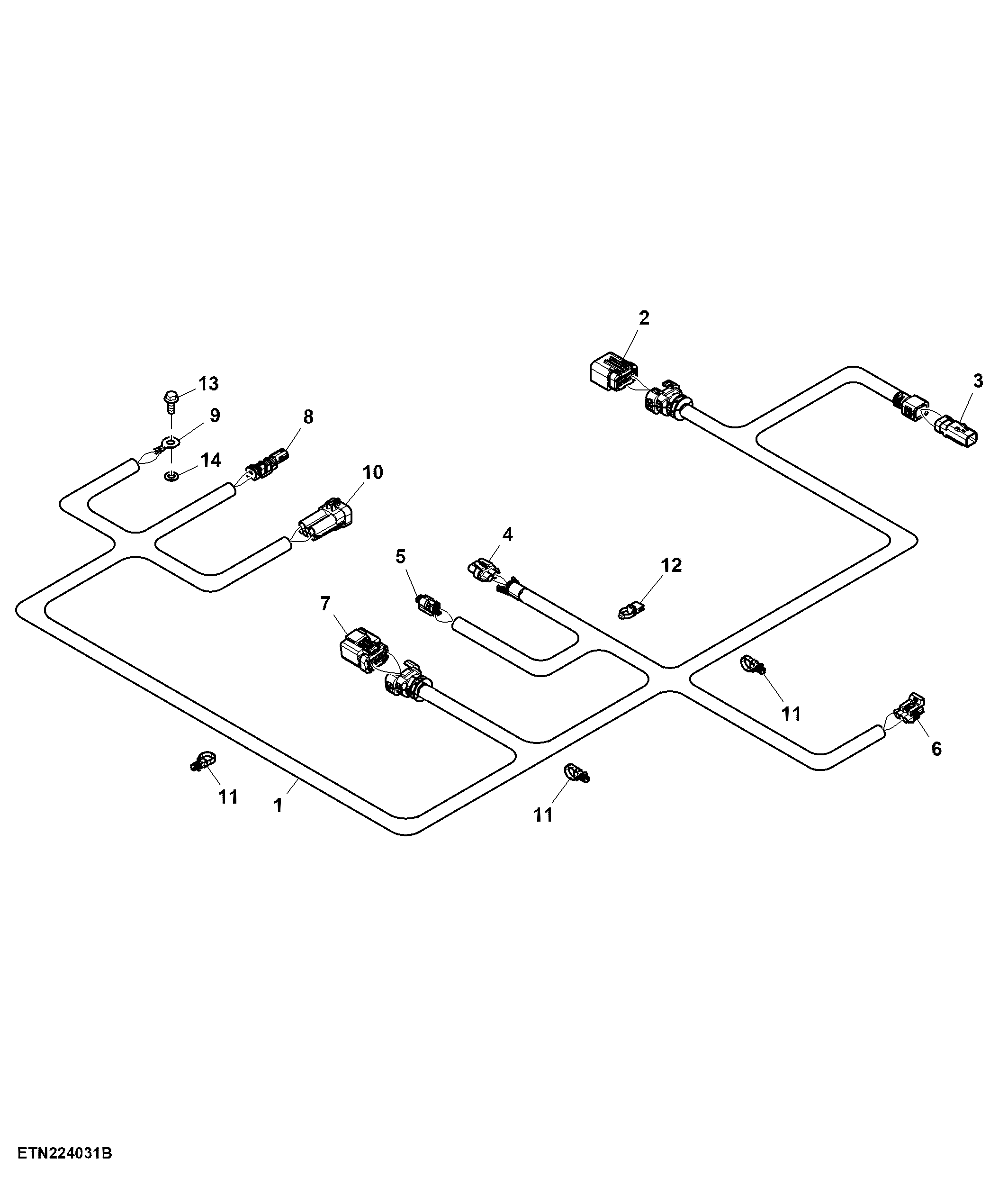

Wiring Harness, Unloading Auger, Folding, 9.4 m (31 ft)
