Открытый узел

Wiring Harness, Tailboard Grain Loss

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE87338	1	Wiring Harness	SUB FOR AXE79580
2	T70659	8	Clamp	-
3	R44302	8	Tie Band	-
4	H75541	4	Clamp	-
5	R46414	1	Clamp	-
6	AH80916	6	Clip	-
7	57M9792	1	Elec. Connector Housing	Right Main Harness / GLM Sensor Harness
7	57M9808	7	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7
7	57M9814	1	Elec. Connector Cavity Plug	Cavity 8
7	57M14600	1	Elec. Connector Accessory	-
8	57M12857	6	Elec. Connector Accessory	-
9	57M8869	1	Elec. Connector Terminal	Tailboard Ground
10	57M9786	1	Elec. Connector Housing	Left Chassis / Grain Loss Sensor Harness
10	57M14980	1	Elec. Connector Accessory	-
10	57M9808	6	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6
11	24M7055	1	Washer	8.400 X 16 X 1.600 mm
12	19M7865	20	Screw	M8 X 16
13	14M7298	4	Flange Nut	M8
14	57M7309	1	Elec. Connector Housing	B399 Left Shoe Loss sensor A
14	57M9547	2	Elec. Connector Terminal	Cavity A, B
14	57M9218	2	Elec. Connector Seal	Cavity A, B
14	57M10737	1	Elec. Connector Accessory	-
15	57M7309	1	Elec. Connector Housing	B400 Left Shoe Loss sensor B
15	57M10737	1	Elec. Connector Accessory	-
15	57M9547	2	Elec. Connector Terminal	Cavity A, B
15	57M9218	2	Elec. Connector Seal	Cavity A, B
16	57M7309	1	Elec. Connector Housing	B406 Left Shoe Loss sensor C
16	57M9547	2	Elec. Connector Terminal	Cavity A, B
16	57M9218	2	Elec. Connector Seal	Cavity A, B
16	57M10737	1	Elec. Connector Accessory	-
17	57M7309	1	Elec. Connector Housing	B401 Right Shoe Loss sensor A
17	57M9547	2	Elec. Connector Terminal	Cavity A, B
17	57M9218	2	Elec. Connector Seal	Cavity A, B
17	57M10737	1	Elec. Connector Accessory	-
18	57M7309	1	Elec. Connector Housing	B402 Right Shoe Loss sensor B
18	57M10737	1	Elec. Connector Accessory	-
18	57M9218	2	Elec. Connector Seal	Cavity A, B
18	57M9547	2	Elec. Connector Terminal	Cavity A, B
19	57M7309	1	Elec. Connector Housing	B405 Right Shoe Loss sensor C
19	57M9547	2	Elec. Connector Terminal	Cavity A, B
19	57M9218	2	Elec. Connector Seal	Cavity A, B
19	57M10737	1	Elec. Connector Accessory	-
20	19M7867	2	Screw	M8 X 25
21	HXE172503	1	Bracket	-
22	HXE171497	1	Bracket	-

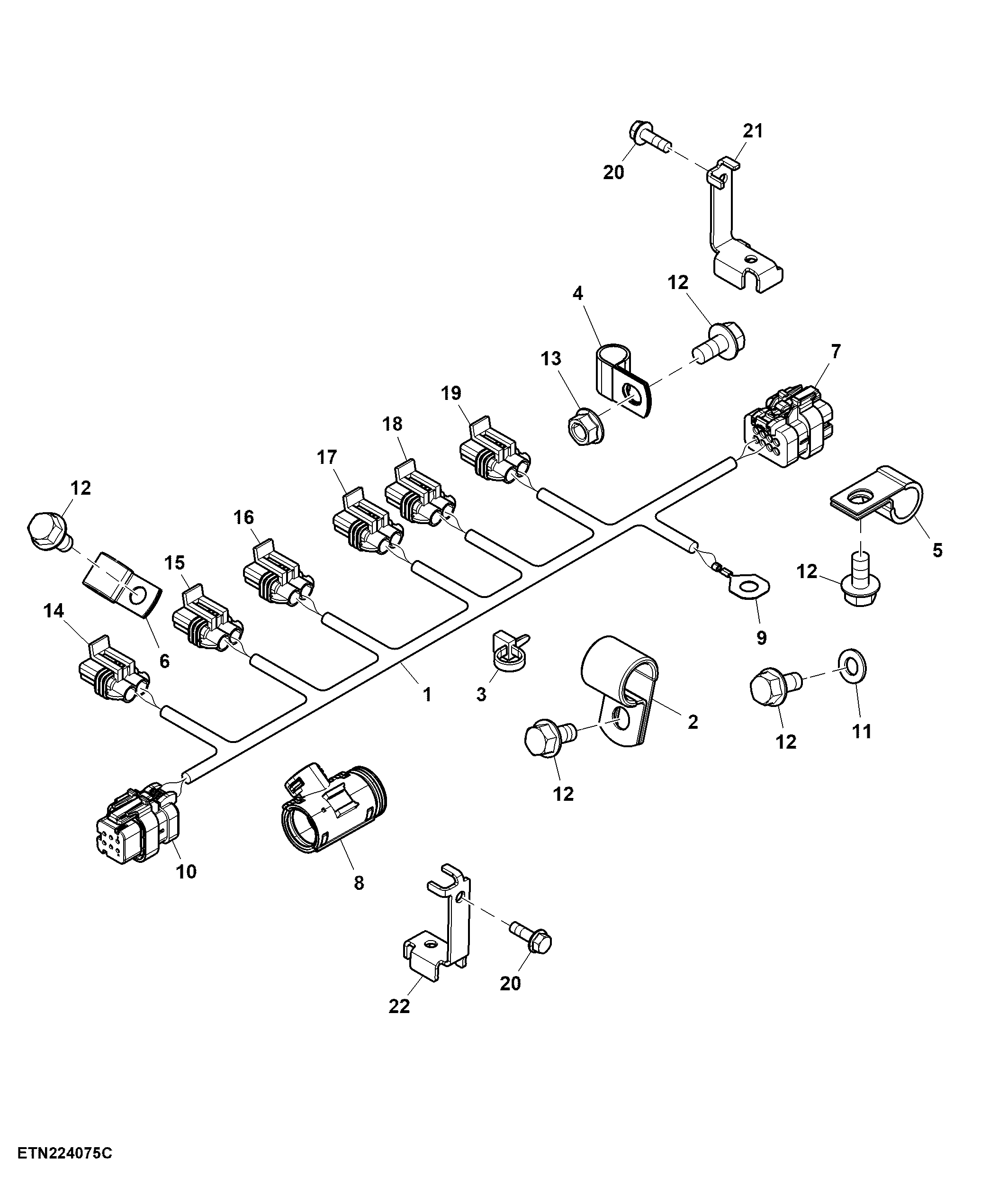

Wiring Harness, Tailboard Grain Loss
