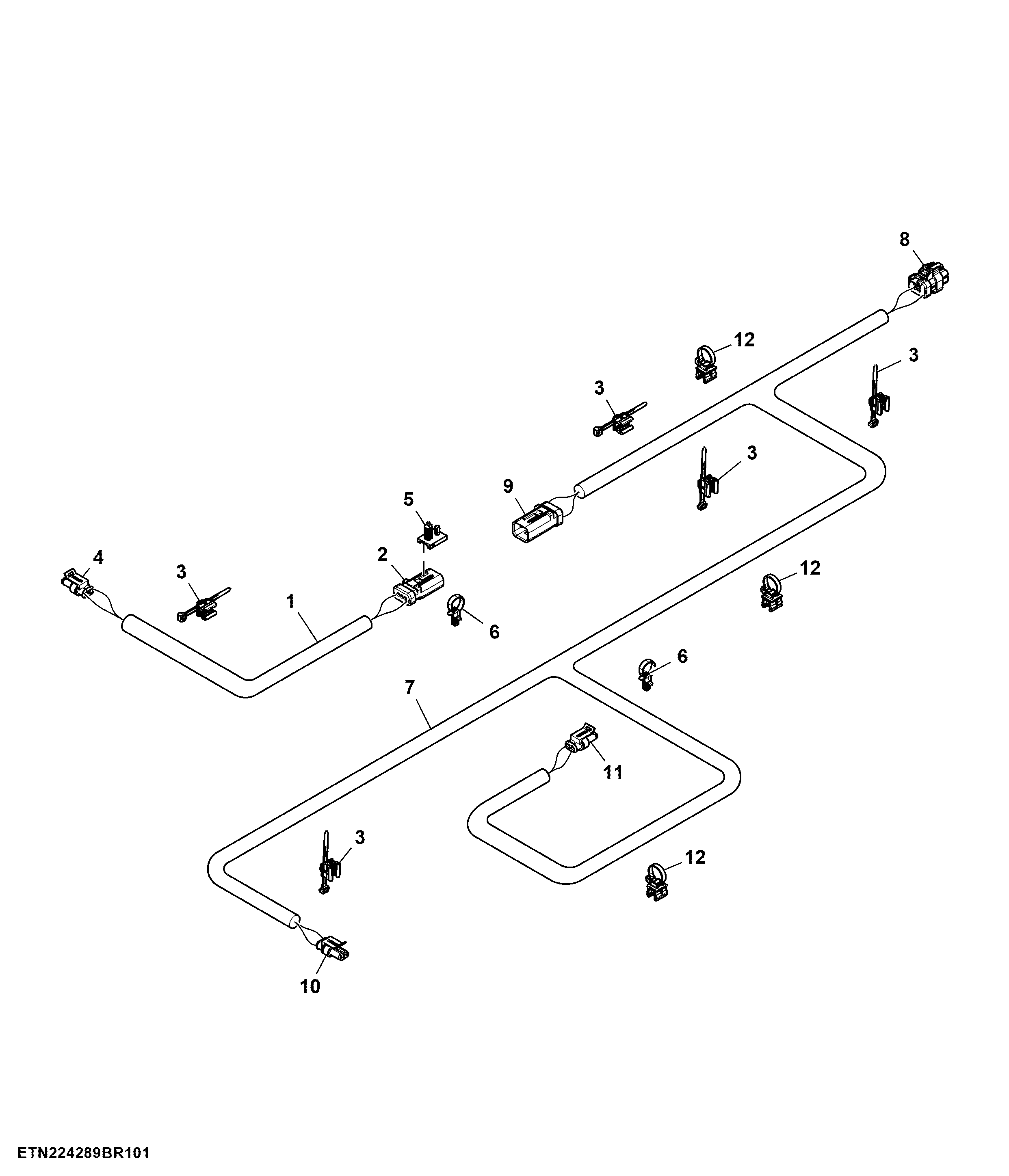

Wiring Harness, Gullwing Light, Rear

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE91896	1	Wiring Harness	Gullwing Light RH, Rear, SUB FOR AXE79589 OR AXE87346
2	57M9784	1	Elec. Connector Housing	Grain Tank Main / RH Gullwing Light Rear
2	57M9813	2	Elec. Connector Terminal	Cavity 1, 2
2	57M9814	1	Elec. Connector Cavity Plug	Cavity 3
2	57M14958	1	Elec. Connector Accessory	-
2	57M9939	1	Elec. Connector Accessory	-
3	AH225363	10	Clip	-
4	57M10497	2	Elec. Connector Housing	E15 Right Signature Light 2
4	57M8564	2	Elec. Connector Terminal	Cavity 1, 2
4	57M8567	2	Elec. Connector Seal	Cavity 1, 2
5	57M9940	1	Elec. Connector Accessory	-
6	57M10233	12	Tie Band	-
7	AXE87344	1	Wiring Harness	Gullwing Light LH, Rear, SUB FOR APPL AXE81068
8	57M9809	3	Elec. Connector Terminal	Cavity 1, 2, 4
8	57M14978	1	Elec. Connector Accessory	-
8	57M9814	1	Elec. Connector Cavity Plug	Cavity 3
8	57M9817	1	Elec. Connector Housing	Left Hand Gullwing Lights Front / Rear
9	57M9821	1	Elec. Connector Housing	Tailings / Left Hand Gullwing Lights Harness
9	57M9813	3	Elec. Connector Terminal	Cavity 1, 2, 3
9	57M9814	1	Elec. Connector Cavity Plug	Cavity 4
9	57M14960	1	Elec. Connector Accessory	-
9	57M9939	1	Elec. Connector Accessory	-
10	57M10497	1	Elec. Connector Housing	E45 Left Rear Gullwing Light
10	57M8564	2	Elec. Connector Terminal	Cavity 1, 2
10	57M8567	2	Elec. Connector Seal	Cavity 1, 2
11	57M10497	1	Elec. Connector Housing	E14 Left Signature Light 2
11	57M8564	2	Elec. Connector Terminal	Cavity 1, 2
11	57M8567	2	Elec. Connector Seal	Cavity 1, 2
12	AH225364	13	Clip	-

Wiring Harness, Gullwing Light, Rear

Нет текстового описания
