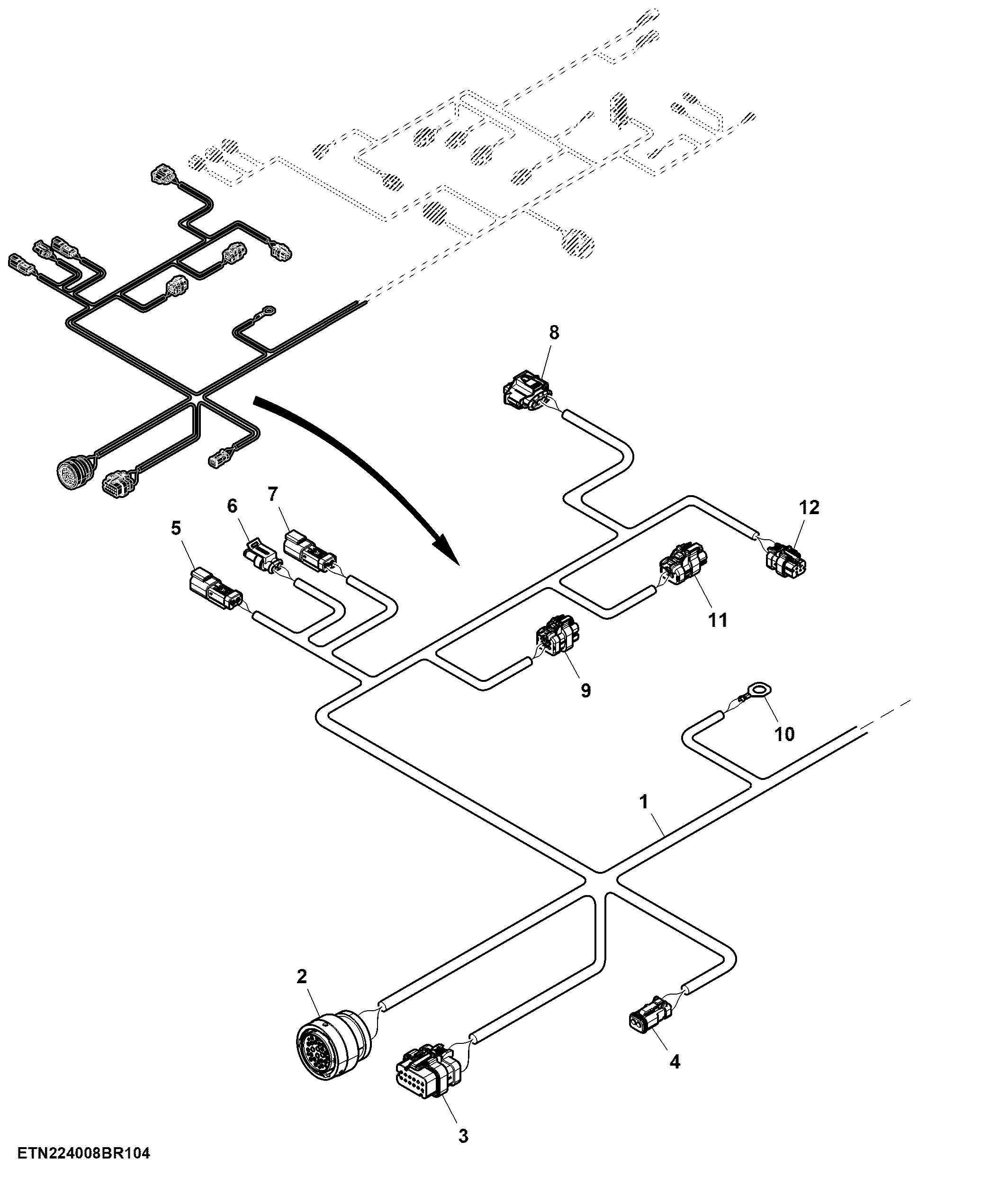

Wiring Harness, Front Engine Deck (1 of 3)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE86928	1	Wiring Harness	-
2	57M8795	1	Elec. Connector Housing	Engine Platform / Powertrain Domain Controller Harness
2	57M8569	2	Elec. Connector Terminal	Cavity 1, 2
2	R78069	1	Elec. Connector Cavity Plug	Cavity 3
2	57M8165	19	Elec. Connector Terminal	Cavity 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 19, 21, 22, 25, 26, 28
2	57M8593	1	Elec. Connector Terminal	Cavity 4
2	57M9225	5	Elec. Connector Terminal	Cavity 18, 20, 23, 24, 29
2	57M7771	1	Elec. Connector Terminal	Cavity 27
2	57M11694	1	Elec. Connector Accessory	-
3	57M10336	6	Elec. Connector Cavity Plug	Cavity 7, 8, 9, 10, 11, 12
3	57M14982	1	Elec. Connector Accessory	-
3	57M9809	1	Elec. Connector Terminal	Cavity 6
3	57M10631	5	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5
3	57M9800	1	Elec. Connector Housing	Engine Platform / Powertrain Domain Controller Harness 2
4	57M8639	1	Elec. Connector Housing	Y405 Variable Reel Drive Pump
4	57M8165	2	Elec. Connector Terminal	Cavity 1, 2
4	57M12218	1	Elec. Connector Accessory	-
4	57M8022	1	Elec.Connect Locking Device	-
5	57M8662	1	Elec. Connector Housing	E100 Engine Service Light 4
5	57M8164	2	Elec. Connector Terminal	Cavity 1, 2
5	57M9940	1	Elec. Connector Accessory	-
5	57M7621	1	Elec.Connect Locking Device	-
6	57M10497	1	Elec. Connector Housing	B5009 Coolant Level Loss Switch
6	57M7938	2	Elec. Connector Terminal	Cavity 1, 2
6	57M8571	2	Elec. Connector Terminal	Cavity 1, 2
7	57M8662	1	Elec. Connector Housing	E102 Engine Service Light 6
7	57M8164	2	Elec. Connector Terminal	Cavity 1, 2
7	57M7621	1	Elec.Connect Locking Device	-
7	57M9940	1	Elec. Connector Accessory	-
8	57M9144	1	Elec. Connector Housing	B5500 Intake Air Humidity / Pressure / Temperature Sensor
8	57M9831	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
8	57M9149	4	Elec. Connector Seal	Cavity 1, 2, 3, 4
8	57M16179	1	Elec. Connector Accessory	-
9	57M9808	5	Elec. Connector Terminal	Cavity 1, 2, 4, 5, 6
9	57M15000	1	Elec. Connector Accessory	-
9	57M9814	1	Elec. Connector Cavity Plug	Cavity 3
9	57M9787	1	Elec. Connector Housing	Y5501 Fuel Transfer Pump
10	57M8868	1	Elec. Connector Terminal	Engine Platform Ground, 0010H
11	57M9772	1	Elec. Connector Housing	B5600 Water In Fuel Sensor
11	57M9808	2	Elec. Connector Terminal	Cavity 1, 2
11	57M14984	1	Elec. Connector Accessory	-
12	57M9817	1	Elec. Connector Housing	B5510 Fuel Pressure / Temperature Sensor
12	57M9808	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
12	57M14987	1	Elec. Connector Accessory	-
