Support, Rear Extremity Light, Medium Length (For North America)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD5920	2	Reflector	-
2	21M7686	10	Screw	M5 X 20
3	JD5921	2	Reflector	-
4	JD5922	2	Reflector	-
5	RE592939	4	Lamp	-
6	R566417	24	Clip	-
7	R180671	4	Washer	-
8	03M7191	6	Bolt	M10 X 25
9	14M7296	6	Flange Nut	M10
10	RE590494	2	Arm	-
11	H141123	6	Push Nut	-
12	14M7396	12	Lock Nut	M8
13	HXE144431	2	Bracket	-
16	R263172	12	Screw	-
17	R569996	12	Bracket	-
18	TA19216	4	Sensor Kit	SUB FOR RE590506
19	37M7372	14	Screw	-
20	AXE87397	1	Panel	SUB FOR AXE83546
21	HXE159841	1	Bracket	-
22	LVU20042	2	Stud	-
23	AXE92349	2	Wiring Harness	Extremity Light Arm, SUB FOR AXE86931,AXE81583
24	57M9229	8	Clip	-
25	57M7255	1	Elec. Connector Housing	B464 Left Rear Hazard 1 Interface
25	57M7494	2	Elec. Connector Terminal	Cavity A, B
25	57M9214	2	Elec. Connector Seal	Cavity A, B
25	57M7259	1	Elec. Connector Seal	Cavity C
25	57M7290	1	Elec. Connector Accessory	-
26	57M7290	1	Elec. Connector Accessory	-
26	57M7259	1	Elec. Connector Seal	Cavity C
26	57M9214	2	Elec. Connector Seal	Cavity A, B
26	57M7255	1	Elec. Connector Housing	B466 Left Rear Hazard 2 Interface
26	57M7494	2	Elec. Connector Terminal	Cavity A, B
27	57M8637	1	Elec. Connector Housing	Pod Harness / LH Extremity Arm Lights
27	57M8165	3	Elec. Connector Terminal	Cavity A, B, C
27	57M8019	1	Elec. Connector Terminal	-
28	57M9940	1	Elec. Connector Accessory	-
29	HXE161983	1	Plate	-
14A	AXE83162	1	Arm	-
14B	AXE91565	1	Arm	SUB FOR AXE83162
15A	AXE83163	1	Arm	-
15B	AXE91712	1	Arm	SUB FOR AXE83163

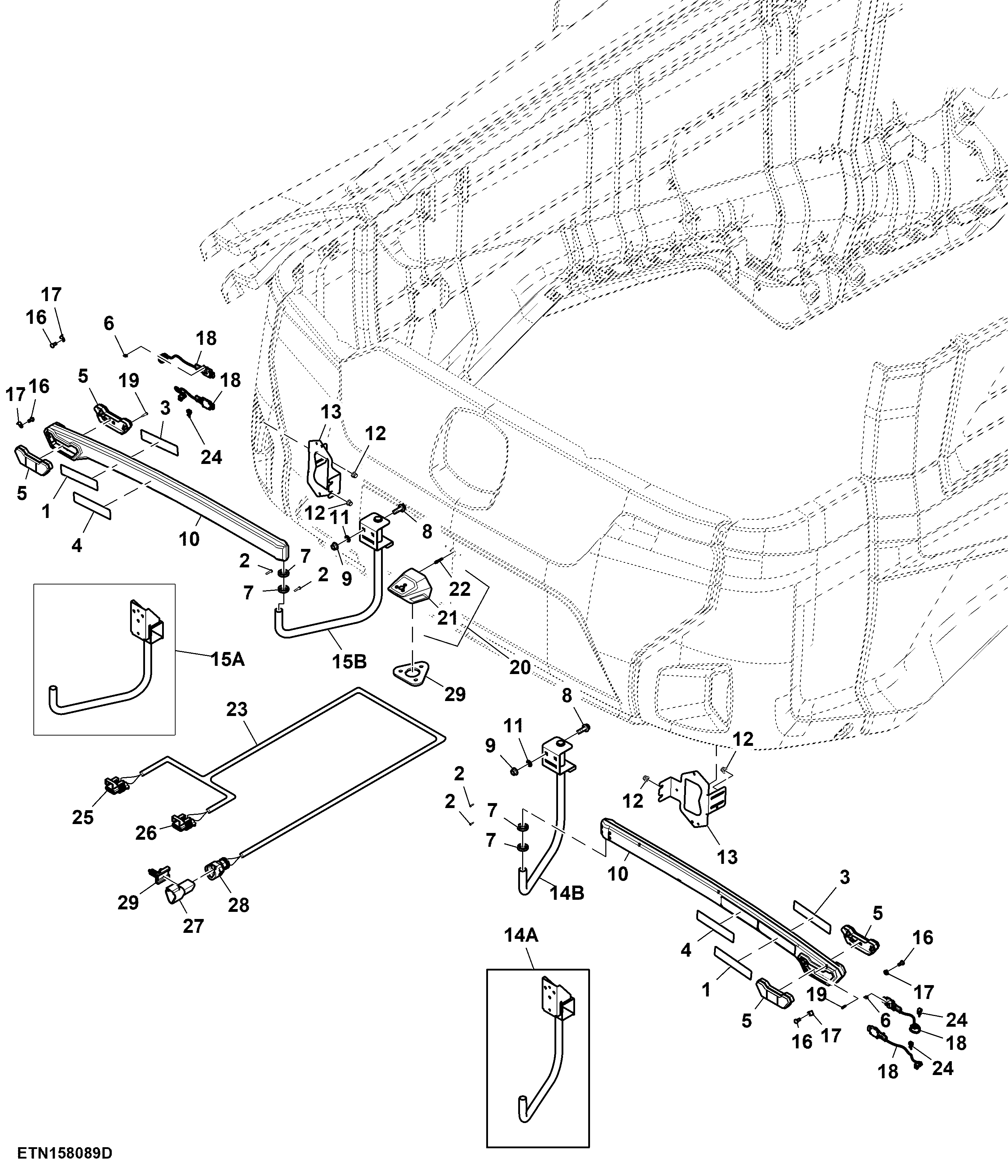

Support, Rear Extremity Light, Medium Length (For North America)

Нет текстового описания
