Steering Column, Dual Tilt W/ Dual Wiper Control

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7298	4	Flange Nut	M8
2	L203772	1	Seal	-
3	AXE80613	1	Steering Column	-
4	M177942	3	Screw	-
5	R561186	1	Boot	-
6	RE593667	1	Module	-
7	HXE144846	1	Cover	-
8	HXE144847	1	Cover	-
9	R565760	5	Screw	-
10	RE183935	1	Key	-
11	AXE71345	1	Steering Column	-
12	R224342	8	Screw	-
13	19M10826	4	Screw	M5 X 10
14	AXE71347	1	Wiring Harness	Steering Column Harness
15	57M8075	1	Elec. Connector Seal	-
15	57M8082	1	Elec. Connector Accessory	-
15	57M7401	5	Elec. Connector Cavity Plug	Cavity 8, 13, 14, 15, 16
15	57M9042	7	Elec. Connector Terminal	Cavity 5, 6, 7, 9, 10, 11, 12
15	57M11499	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
15	57M8069	1	Elec. Connector Housing	Cab Main Harness / Steering Column Harness
15	57M8515	11	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 6, 7, 9, 10, 11, 12
16	57M10464	1	Elec. Connector Housing	S1 Key Switch
16	R104921	4	Elec. Connector Terminal	Cavity A, B, C, D
16	57M11840	1	Elec. Connector Accessory	-
17	57M13380	8	Elec. Connector Accessory	-
18	57M11293	5	Elec. Connector Terminal	Cavity 6, 7, 12, 15, 16
18	57M11429	2	Elec. Connector Terminal	Cavity 13, 14
18	57M14504	1	Elec. Connector Housing	A175 Minipod
19	AXE80611	1	Control Support	-
20	R561107	4	Bushing	-
21	24M7055	4	Washer	8.400 X 16 X 1.600 mm
22	19M7407	4	Cap Screw	M8 X 25
23	19M10243	4	Screw	M8 X 25
24	14M7426	4	Lock Nut	M8
25	40M1819	1	SNAP RING	-
26	24M7522	6	Washer	8.400 X 16 X 1.600 mm
27	RE594150	1	Rotary Switch	-
28	34M3857	1	Spring Pin	5 X 24 mm
29	14M7350	1	Lock Nut	M6
30	-	1	Part 40	ORDER RE593848
31	-	2	Part 41	ORDER AXE80611
32	AXE80610	1	Steering Column Kit	-
33	M78252	1	Hook Bolt	-
34	R560551	1	Screw	-
35	L61335	1	Washer	-
36	-	1	Part 46	ORDER RE593848
37	R560388	1	Bolt	-
38	T359776	2	Screw	-
39	-	1	Part 49	ORDER RE593848
40	40M1828	2	Snap Ring	-
41	R561108	4	Boss	-
42	R564976	2	Spring	-
43	H137327	2	Lock Nut	-
44	R563430	1	Bushing	-
45	19M7139	6	Cap Screw	M8 X 20
46	19M8505	2	Screw	M6 X 25
47	-	2	Part 57	ORDER AXE80610
48	R564594	1	Bushing	-
49	-	1	Part 59	ORDER RE593848
50	AXE73162	1	Shock Absorber	-
51	40M1817	4	Snap Ring	-
52	AXE71532	1	Universal Joint With Shaft	-
53	40M1863	1	Snap Ring	-
54	24M6208	1	Washer	35 X 45 X 2 mm
55	14M7327	2	Lock Nut	M8
56	-	1	Part 66	ORDER RE593848
57	E83363	1	Extension Spring	-
58	40M7423	1	Snap Ring	-
59	-	1	Part 69	ORDER RE593848
60	-	1	Part 70	ORDER RE593848
61	-	1	Part 71	ORDER AXE80610

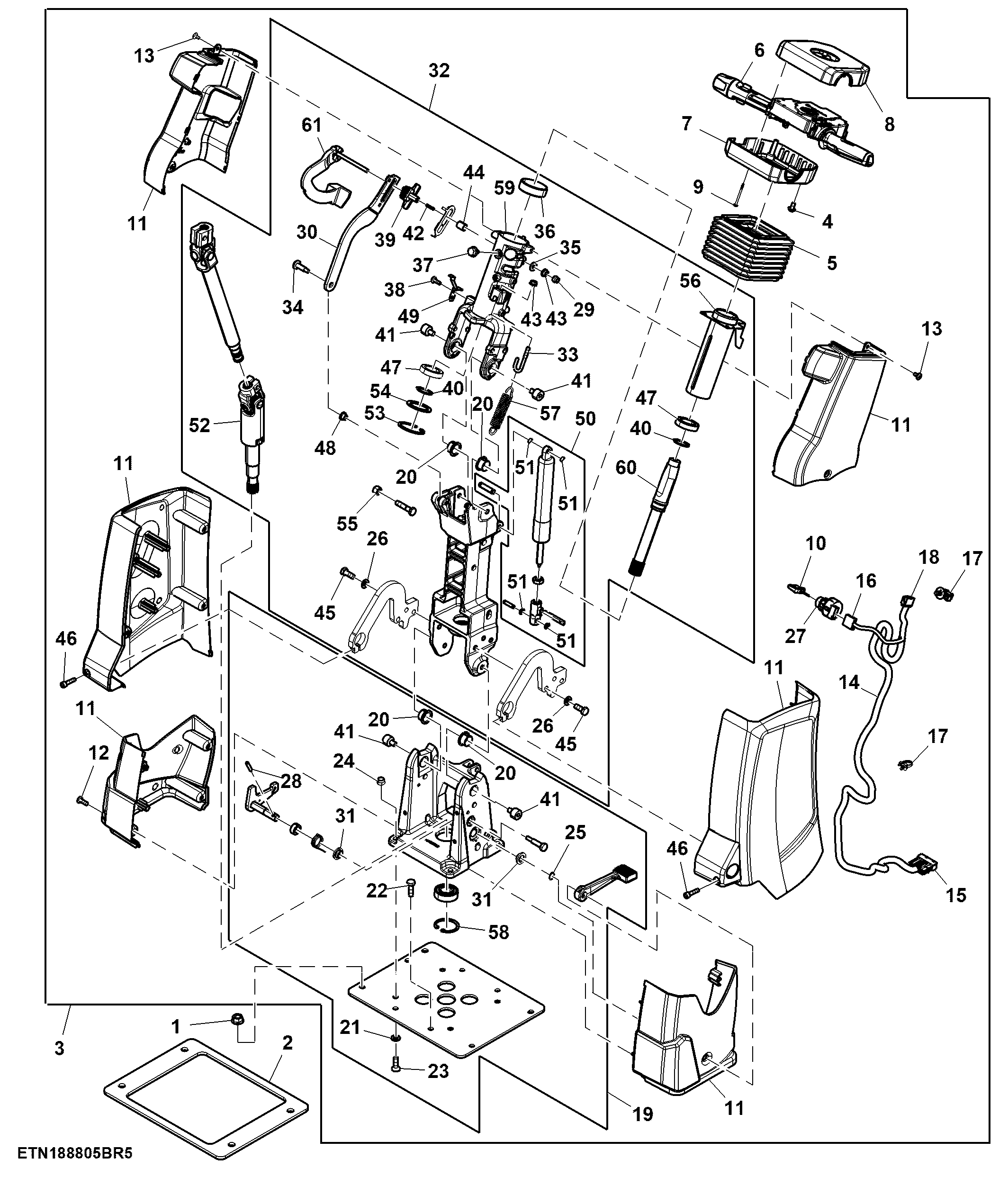

Steering Column, Dual Tilt W/ Dual Wiper Control
