Открытый узел

Primary Valve, Variable Speed Engine Fan W/ Variable Torque, W/ Power Fold Extension Cover

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H5001	2	Adapter Fitting	-
2	51M7040	4	O-Ring	9.300 X 2.200 mm
3	T77814	8	O-Ring	-
4	38H5002	2	Adapter Fitting	-
5	51M7041	7	O-Ring	11.300 X 2.200 mm
6	T77613	3	O-Ring	-
7	38H5008	1	Adapter Fitting	-
8	38H5011	2	Adapter Fitting	-
9	38H5170	1	Tee Fitting	-
10	51M7043	1	O-Ring	15.300 X 2.200 mm
11	T77932	2	O-Ring	-
12	38H5205	1	Tee Fitting	-
13	38H5254	1	Adapter Fitting	-
14	51M7045	2	O-Ring	19.300 X 2.200 mm
15	T77858	4	O-Ring	-
16	38H5426	1	Adapter Fitting	-
17	AXE73736	1	Check Valve	Unloading Auger Swing Check Valve, D86
17	AXE73736	1	Check Valve	Grain Tank Door Check Valve, D87
17	F433465	1	Seal Kit	-
18	AH228044	7	Solenoid Valve Coil	-
19	AH230746	4	Solenoid Valve Coil	-
20	AN206491	1	Check Valve	Single Line Function Check Valve, D93
20	AT224862	1	Seal Kit	-
21	R26906	1	O-Ring	-
22	R28776	1	O-Ring	-
23	YZ501921	1	Seal Kit	-
24	AN221523	1	Spool Valve	Auger Swing Extend Solenoid Valve, Y401
24	AN221523	1	Spool Valve	Auger Swing Retract Solenoid Valve, Y402
24	F433465	2	Seal Kit	-
25	N223292	2	Nut	-
26	AN372198	1	Valve	Variable Pitch Fan Direction Solenoid Valve, Y207
26	AN372198	1	Valve	Threshing Speed Direction Solenoid Valve, Y445
26	AN372198	1	Valve	Variable Speed Front End Direction Solenoid Valve, Y215
26	AH209121	1	Seal Kit	-
27	AT333814	1	Solenoid Valve Coil	-
28	AT444774	1	Pressure Relief Valve	Pressure Supply Solenoid Valve, Y1
28	AT195143	1	Seal Kit	-
29	AXE15632	1	Flow Control Hyd. Valve	Unloading Auger Swing Check Valve, D86
29	AH209116	1	Seal Kit	-
30	AXE33054	1	Pressure Relief Valve	Grain Tank Close Relief Valve, V335
30	AH209116	1	Seal Kit	-
31	AXE88038	1	Hydraulic Pressure Valve	Variable Pitch Fan Enable Solenoid Valve, Y208
31	AT224862	1	Seal Kit	-
32	T76938	2	O-Ring	-
33	AXE76472	1	Tee Fitting	-
34	AXE75035	2	Valve	Threshing Speed Enable Solenoid Valve, Y444
34	AXE75035	1	Valve	Variable Speed Front End Enable Solenoid Valve, Y216
34	AH209116	2	Seal Kit	-
35	AXE75037	1	Pressure Relief Valve	Separator Function Pressure Reducing Valve, V333
35	AN279605	1	Seal Kit	-
36	H170523	1	Washer	-
37	H170524	1	Washer	-
38	H170528	1	Washer	-
39	HXE140444	3	Orifice	-
40	HXE140445	3	Orifice	-
41	KK39739	1	Orifice	-
42	R77175	2	Cover	-
43	RE190805	2	Diagnostic Coupling	-
44	H229535	1	Orifice	-
45	RE315707	1	Fitting Plug	-
46	N304196	11	Plug	-
47	HXE53615	1	Orifice	-
48	AXE77404	1	Solenoid Valve	Variable Pitch Fan Control
48	F433465	1	Seal Kit	-
49	AXE88635	1	Valve Stack	SUB FOR AXE76863
50	HXE69922	1	Orifice	-
51	AXE42146	1	Pressure Relief Valve	Variable Fan Pressure Reducing Valve, V363
51	AN279605	1	Seal Kit	-
52	RE584417	1	Pressure Sensor	SUB FOR TA13485
53	AXE46053	1	Pressure Relief Valve	-
53	AT224862	1	Seal Kit	-

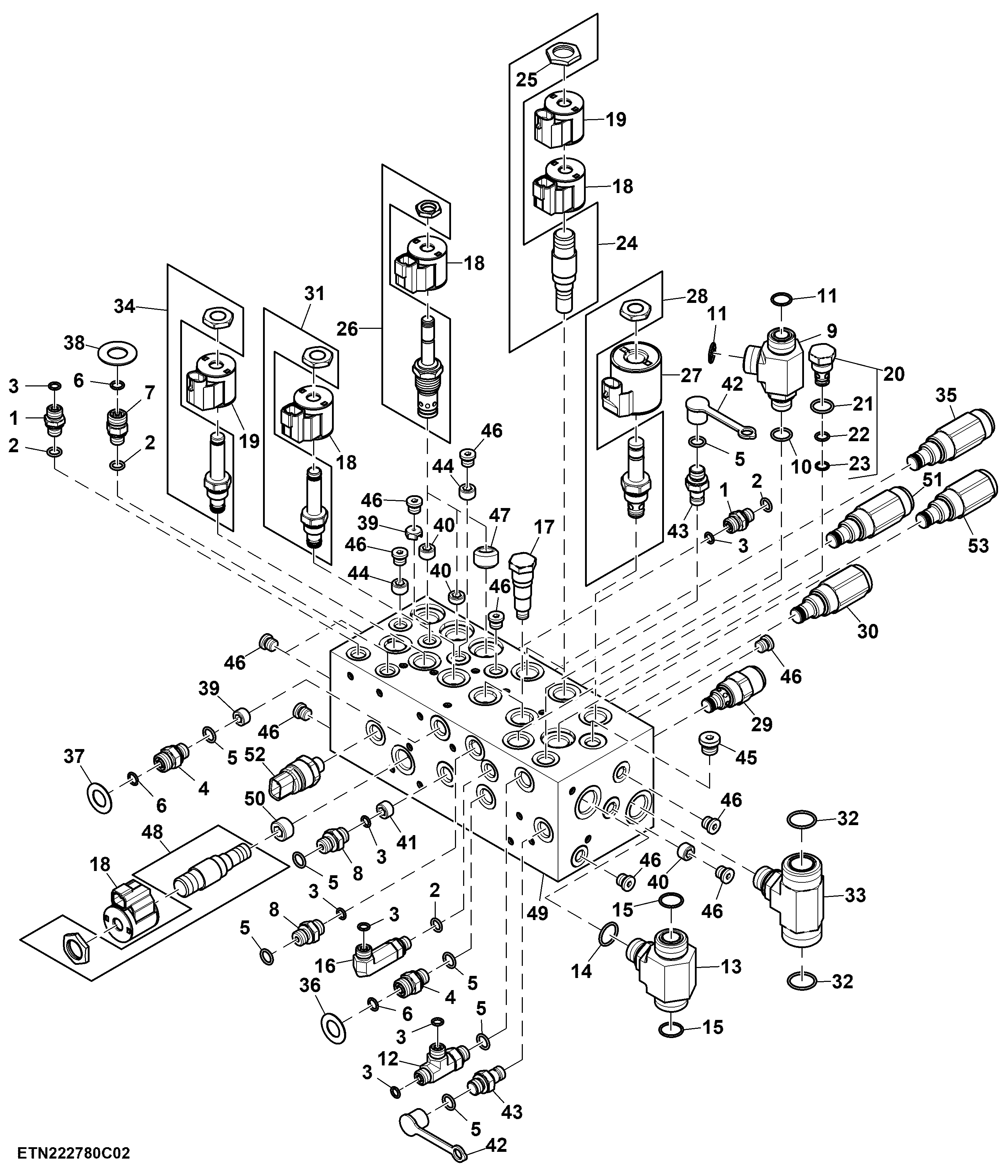

Primary Valve, Variable Speed Engine Fan W/ Variable Torque, W/ Power Fold Extension Cover
