Открытый узел

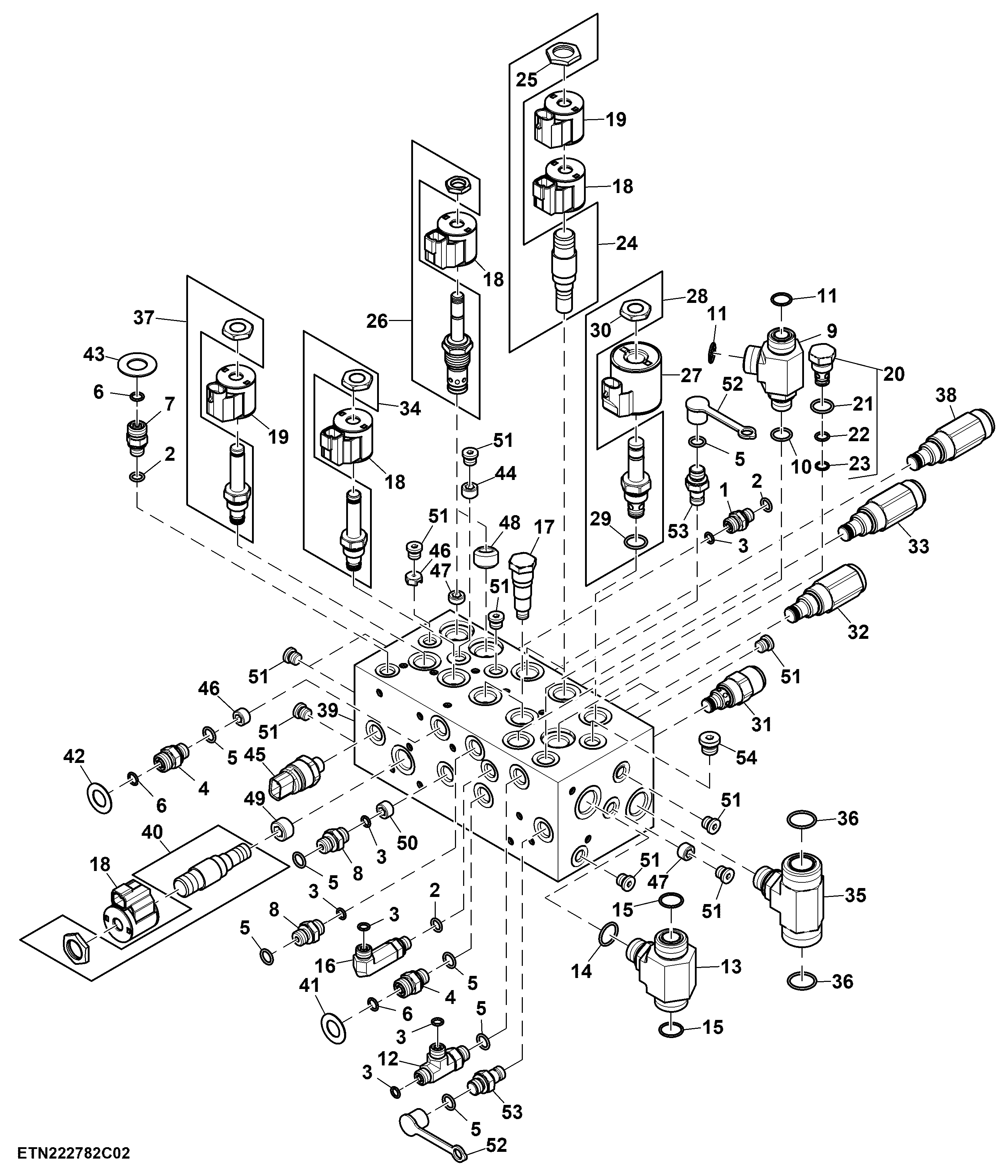

Primary Valve, Variable Speed Engine Fan W/ Fixed Torque, W/ Power Fold Extension Cover

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H5001	1	Adapter Fitting	-
2	51M7040	3	O-Ring	9.300 X 2.200 mm
3	T77814	5	O-Ring	-
4	38H5002	1	Adapter Fitting	-
5	51M7041	5	O-Ring	11.300 X 2.200 mm
6	T77613	2	O-Ring	-
7	38H5008	1	Adapter Fitting	-
8	38H5011	1	Adapter Fitting	-
9	38H5170	1	Tee Fitting	-
10	51M7043	1	O-Ring	15.300 X 2.200 mm
11	T77932	2	O-Ring	-
12	38H5205	1	Tee Fitting	-
13	38H5254	1	Adapter Fitting	-
14	51M7045	2	O-Ring	19.300 X 2.200 mm
15	T77858	2	O-Ring	-
16	38H5426	1	Adapter Fitting	-
17	AXE73736	2	Check Valve	Dual Pilot Operated
17	F433465	1	Seal Kit	-
18	AH228044	6	Solenoid Valve Coil	-
19	AH230746	3	Solenoid Valve Coil	-
20	AN206491	1	Check Valve	-
20	AT224862	1	Seal Kit	-
21	R26906	1	O-Ring	-
22	R28776	1	O-Ring	-
23	YZ501921	1	Seal Kit	-
24	AN221523	2	Spool Valve	Solenoid Operated
24	F433465	2	Seal Kit	-
25	N223292	1	Nut	-
26	AN372198	3	Valve	Solenoid Cartridge W/O Nut
26	AH209121	1	Seal Kit	-
27	AT333814	1	Solenoid Valve Coil	-
28	AT444774	1	Pressure Relief Valve	-
28	AT327149	1	Seal Kit	-
29	T187815	1	O-Ring	-
30	T225294	1	Nut	-
31	AXE15632	1	Flow Control Hyd. Valve	-
31	AH209116	1	Seal Kit	-
32	AXE33054	1	Pressure Relief Valve	Direct Acting Poppet type
32	AH209116	1	Seal Kit	-
33	AXE42146	1	Pressure Relief Valve	Pressure Reducing Valve
33	AN279605	1	Seal Kit	-
34	AXE88038	1	Hydraulic Pressure Valve	Solenoid ON/OFF
34	AT224862	1	Seal Kit	-
35	AXE76472	1	Tee Fitting	-
36	T76938	2	O-Ring	-
37	AXE75035	1	Valve	Variable Speed Drive
37	AH209116	1	Seal Kit	-
38	AXE75037	1	Pressure Relief Valve	Pressure Reducing Relief
38	AN279605	1	Seal Kit	-
39	AXE88636	1	Valve Stack	SUB FOR AXE77037
40	AXE77404	1	Solenoid Valve	Variable Pitch Fan Control
40	F433465	1	Seal Kit	-
41	H170523	1	Washer	-
42	H170524	1	Washer	-
43	H170528	1	Washer	-
44	H229535	1	Orifice	-
45	RE584417	1	Pressure Sensor	SUB FOR TA13485
46	HXE140444	2	Orifice	-
47	HXE140445	2	Orifice	-
48	HXE53615	1	Orifice	-
49	HXE69922	1	Orifice	-
50	KK39739	1	Orifice	-
51	N304196	10	Plug	-
52	R77175	2	Cover	-
53	RE190805	2	Diagnostic Coupling	-
54	RE315707	1	Fitting Plug	-

Primary Valve, Variable Speed Engine Fan W/ Fixed Torque, W/ Power Fold Extension Cover
