Hydraulic Hoses, Front End Equipment Clutch Engagement, Fixed

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H224073	5	Tie Band	-
2	14M7298	8	Flange Nut	M8
3	R35668	1	Clamp	-
4	19M7868	1	Screw	M8 X 30
5	AXE70637	1	Oil Tube	Clutch Drain to Transmission
6	T77932	2	O-Ring	-
7	AXE71480	1	Oil Tube	Clutch Pressure Line
8	T77857	2	O-Ring	-
9	19M7801	1	Screw	M8 X 60
10	28H3376	1	Spacer	0.364" X 0.540" X 9/16"
11	24M7396	1	Washer	21 X 34 X 3 mm
12	H75541	2	Clamp	-
13	38H5092	1	Nut	13/16"
14	19M7866	5	Screw	M8 X 20
15	H112567	1	Plate	-
16	38H5141	2	Fitting	-
17	38H5091	1	Nut	11/16"
18	24H1391	1	Washer	25/32" X 1-5/16" X 0.060"
19	38H5093	1	Nut	1"
20	24M7294	1	Washer	26 X 39 X 4 mm
21	HXE141474	1	Elbow Fitting	-
22	19M7865	2	Screw	M8 X 16
23	HXE143541	1	Bracket	-
24	H141706	2	Clamp	-
25	AH78125	1	Clip	-
26	AXE81302	1	Hydraulic Hose	LGTH = 1618 mm, Main Engine Gear Case Bulkhead to Engage Clutch
27	HXE155726	1	Bracket	-
28	AXE74919	1	Hydraulic Hose	LGTH = 2439 mm, Transmission Valve to Transmission Bulkhead
29	T77613	1	O-Ring	-
30	AXE82815	1	Hydraulic Hose	LGTH = 2485 mm, Engage Clutch Vent to Main Engine Gear Case Vent
31	HXE155414	1	Bracket	-
32	AXE82836	1	Oil Line	Lubrication Line to Driven Pulley
33	AH78237	2	Clamp	-
34	03M7184	2	Bolt	M8 X 20
35	28H3470	1	Spacer	0.364" X 0.540" X 2"
36	03M7224	1	Bolt	M8 X 65
37	AXE74920	1	Hydraulic Hose	LGTH = 3528 mm, Lubrication Line to Clutch
38	AXE84180	1	Oil Line	Drain line to Excess Oil
39	AXE69711	1	Hydraulic Hose	LGTH = 3379 mm, Drain line to Excess Oil
40	AN209168	2	Swivel	-

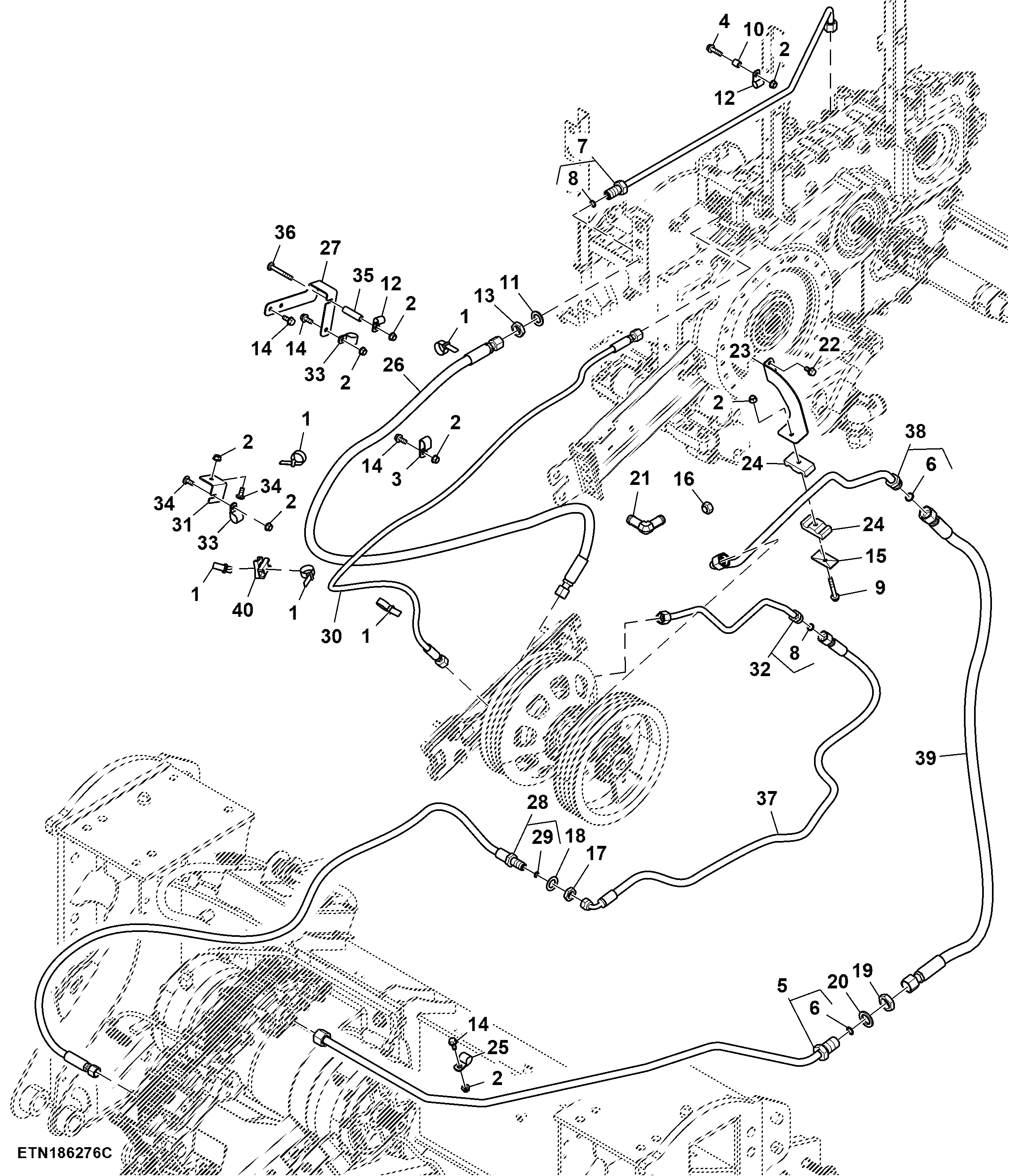

Hydraulic Hoses, Front End Equipment Clutch Engagement, Fixed
