№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE544763	1	Fitting	-
2	51M7039	1	O-Ring	8.100 X 1.600 mm
3	T77814	7	O-Ring	-
4	RE543191	2	Adapter Fitting	-
5	38H5121	1	Adapter Fitting	-
6	T77858	4	O-Ring	-
7	51M7045	3	O-Ring	19.300 X 2.200 mm
8	TY22462	1	Clamp	-
9	24M7456	1	Washer	15 X 28 X 2.500 mm
10	H224073	8	Tie Band	-
11	H238574	3	Adapter Fitting	-
12	W42411	3	Cap	-
13	R213663	2	Clamp	-
14	RE565668	1	Adapter Fitting	-
15	T78707	1	Nut	-
16	24H1496	1	Washer	1-9/32" X 2" X 0.060"
17	38H5091	1	Nut	11/16"
18	24H1391	1	Washer	25/32" X 1-5/16" X 0.060"
19	AH89557	2	Clip	-
20	38H1618	2	Adapter Fitting	-
21	38H5066	2	Elbow Fitting	-
22	HXE78447	1	Pneum.Quick-Connect Coupler	-
23	Z105554	1	Grommet	-
24	AXE45093	1	Air Gun	-
25	AXE42995	1	Air Gun	-
26	38H5075	1	Tee Fitting	-
27	38H5105	1	Tee Fitting	-
28	T77613	3	O-Ring	-
29	AH77869	2	Clip	-
30	AXE77591	1	Line	-
31	HXE143796	1	Bracket	-
32	19M7866	7	Screw	M8 X 20
33	L218576	1	Clamp	-
34	HXE133237	1	Bracket	-
35	H238573	4	Adapter Fitting	-
36	AXE48269	1	Pneum.Quick-Connect Coupler	-
37	AXE72489	1	Hydraulic Hose	LGTH = 1595 mm, Bulkhead to Coupler
38	57M13447	1	Elec. Connector Accessory	-
39	AXE74765	1	Hydraulic Hose	LGTH = 2585 mm, Compressed Air Hose, LH Coupler
40	H224072	1	Clamp	-
41	AH117301	3	Clamp	-
42	AXE48085	1	Compressed Air Hose	LGTH = 5650 mm, Self Coiling Type
43	AXE48270	1	Pneum.Quick-Connect Coupler	-
44	HXE143797	1	Bracket	-
45	AN209168	1	Swivel	-
46	AXE72887	1	Pneumatic Pressure Valve	-
47	14M7298	10	Flange Nut	M8
48	AXE61255	1	Compressed Air Hose	LGTH = 1985 mm, Tank Outlet to Coupler
49	AXE72840	1	Compressed Air Hose	LGTH = 670 mm, Compressor to Pneumatic Valve
50	AXE61259	1	Hydraulic Hose	LGTH = 6173 mm, Bulkhead to Tank Outlet
51	AXE61253	1	Hydraulic Hose	LGTH = 6203 mm, Tank Inlet to Bulkhead
52	N377907	1	Fitting Plug	6.350 mm (1/4")
53	AH89486	1	Clip	-
54	19M7867	1	Screw	M8 X 25
55	HXE108914	1	Hose	LGTH = 2219 mm, Compressor Bleedoff Line
56	H77698	6	Tie Band	-
57	14M7296	1	Flange Nut	M10

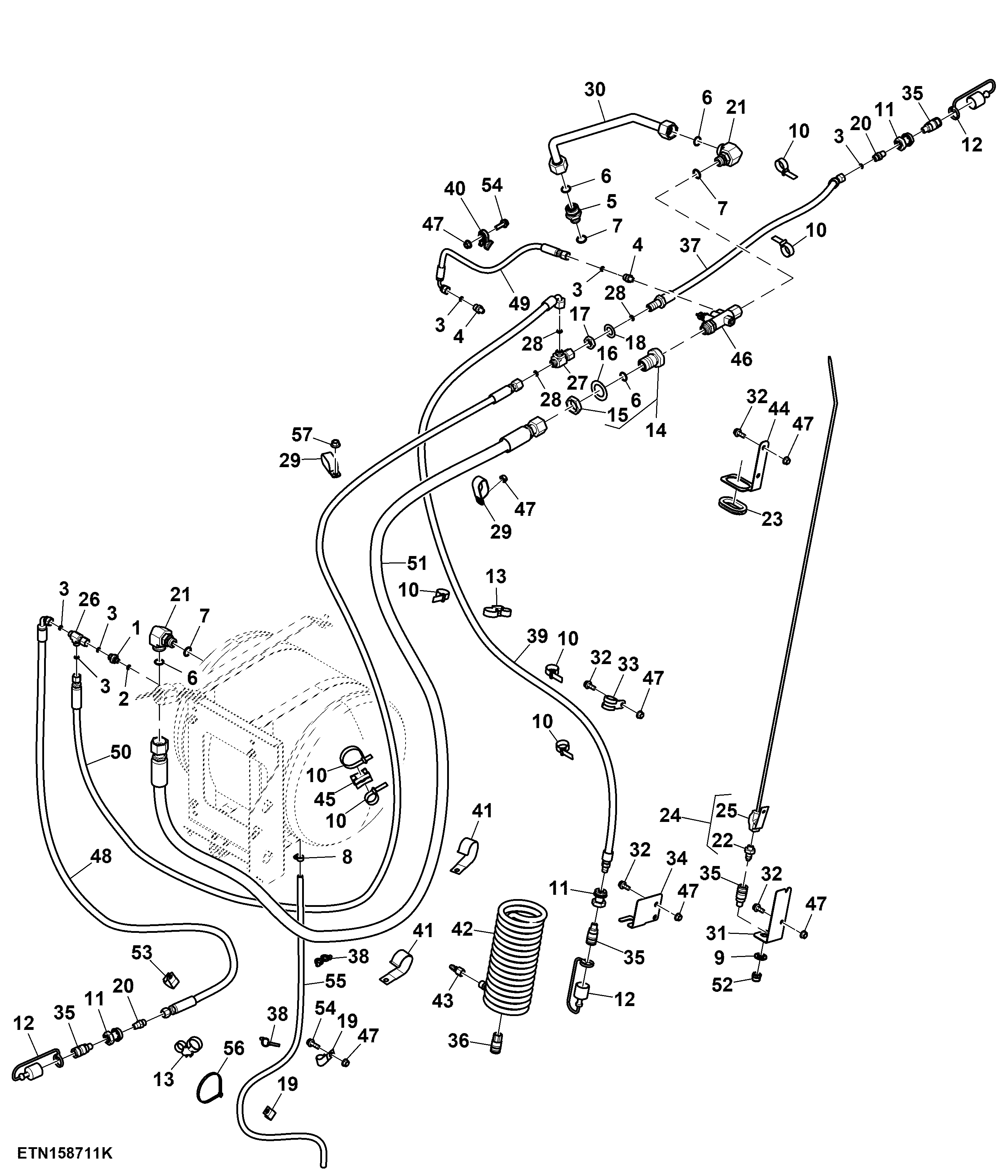

Air Compressor Hoses (North America Only)
