Air Compressor, Attachment (Europe Only) (1/2)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BXE11315	1	Compressor	-
2	RE544763	1	Fitting	-
3	51M7039	1	O-Ring	8.100 X 1.600 mm
4	T77814	4	O-Ring	-
5	19M7866	2	Screw	M8 X 20
6	H141321	1	Clip	-
7	AXE61255	1	Compressed Air Hose	LGTH = 1985 mm, Tank Outlet to Coupler
8	RE523253	1	Adapter Fitting	-
9	AXE48267	1	Pneum External Half Coupler	-
10	HXE94451	1	Label	Safety; Air Dryer
11	HXE108914	1	Hose	LGTH = 2219 mm, Compressor Bleedoff Line
12	WZW11038	1	Tank	-
13	38H1618	1	Adapter Fitting	-
14	WZW11039	2	Saddle	-
15	14M7303	4	Flange Nut	M6
16	38H5075	1	Tee Fitting	-
17	H141123	4	Push Nut	-
18	19M7784	10	Screw	M10 X 20
19	AXE61259	1	Hydraulic Hose	LGTH = 6173 mm, Bulkhead to Tank Outlet
20	AXE47967	1	Solenoid Valve	-
21	R311497	3	Sealing Ring	-
22	HXE158030	1	Support	-
23	AXE47972	1	Pressure Relief Valve	-
24	RE565668	1	Adapter Fitting	-
25	T77858	2	O-Ring	-
26	T78707	1	Nut	-
27	24H1496	1	Washer	1-9/32" X 2" X 0.060"
28	14M7298	4	Flange Nut	M8
29	HXE147362	1	Label	Warning; Accumulator
30	H224073	2	Tie Band	-
31	AXE54688	1	Drain Valve	-
32	AH89557	2	Clip	-
33	H238574	1	Adapter Fitting	-
34	57M13447	1	Elec. Connector Accessory	-
35	AH89486	1	Clip	-
36	R213663	1	Clamp	-
37	W42411	1	Cap	-
38	CC20572	2	U-Bolt	-
39	HXE140007	1	Support	-
40	AH77869	2	Clip	-
41	AH87142	1	Clip	-
42	14M7296	6	Flange Nut	M10
43	38H5066	1	Elbow Fitting	-
44	51M7045	1	O-Ring	19.300 X 2.200 mm
45	BP13227	2	Grommet	-
46	AN209168	1	Swivel	-
47	AXE61253	1	Hydraulic Hose	LGTH = 6203 mm, Tank Inlet to Bulkhead
48	AH117301	3	Clamp	-
49	TY22462	1	Clamp	-
50	HXE84118	1	Adapter Fitting	-
51	19M7867	1	Screw	M8 X 25
52	H77698	2	Tie Band	-
53	HXE176819	1	Bracket	-

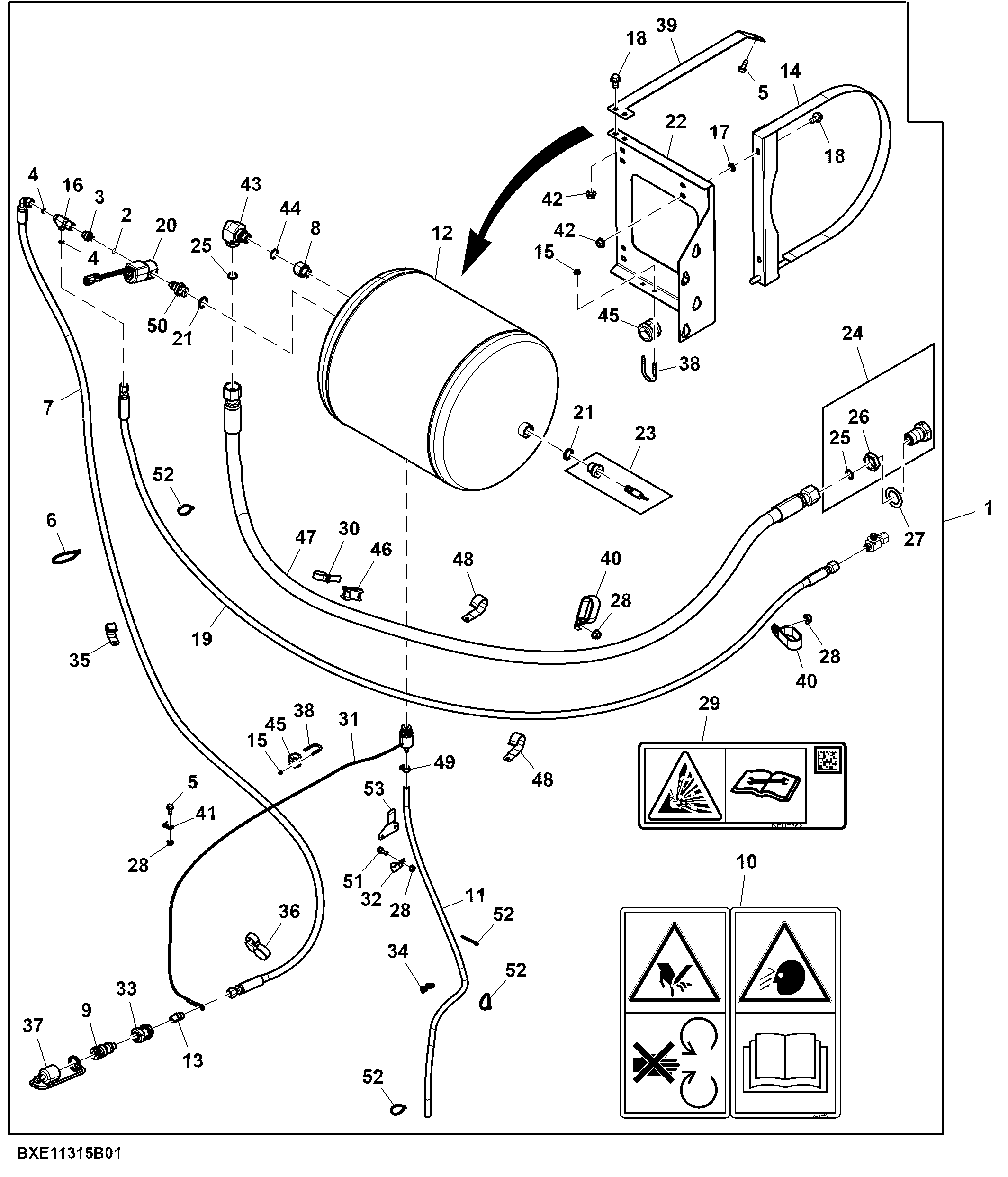

Air Compressor, Attachment (Europe Only) (1/2)
