Открытый узел

Wiring Harness, Gullwing Light W/ 6 LED Lights, Front, RH

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE87756	1	Wiring Harness	SUB FOR APPL AXE79588
2	57M10497	1	Elec. Connector Housing	E60 Right Center Gullwing Light
2	57M8564	2	Elec. Connector Terminal	Cavity 1, 2
2	57M8567	2	Elec. Connector Seal	Cavity 1, 2
3	57M10497	1	Elec. Connector Housing	E66 Right Rear Gullwing Light
3	57M8564	2	Elec. Connector Terminal	Cavity 1, 2
3	57M8567	2	Elec. Connector Seal	Cavity 1, 2
4	57M10497	1	Elec. Connector Housing	E53 Right Front Gullwing Light
4	57M8564	2	Elec. Connector Terminal	Cavity 1, 2
4	57M8567	2	Elec. Connector Seal	Cavity 1, 2
5	57M10497	1	Elec. Connector Housing	E13 Right Signature Light
5	57M8567	2	Elec. Connector Seal	Cavity 1, 2
5	57M8564	2	Elec. Connector Terminal	Cavity 1, 2
6	57M14958	1	Elec. Connector Accessory	-
7	AH225363	5	Clip	-
8	57M9821	1	Elec. Connector Housing	Right Main Harness / Right Gull Wing Harness
8	57M9813	3	Elec. Connector Terminal	Cavity 1, 2, 3
8	57M9814	1	Elec. Connector Cavity Plug	Cavity 4
8	57M14960	1	Elec. Connector Accessory	-
8	57M9939	1	Elec. Connector Accessory	-
9	AH225364	23	Clip	-

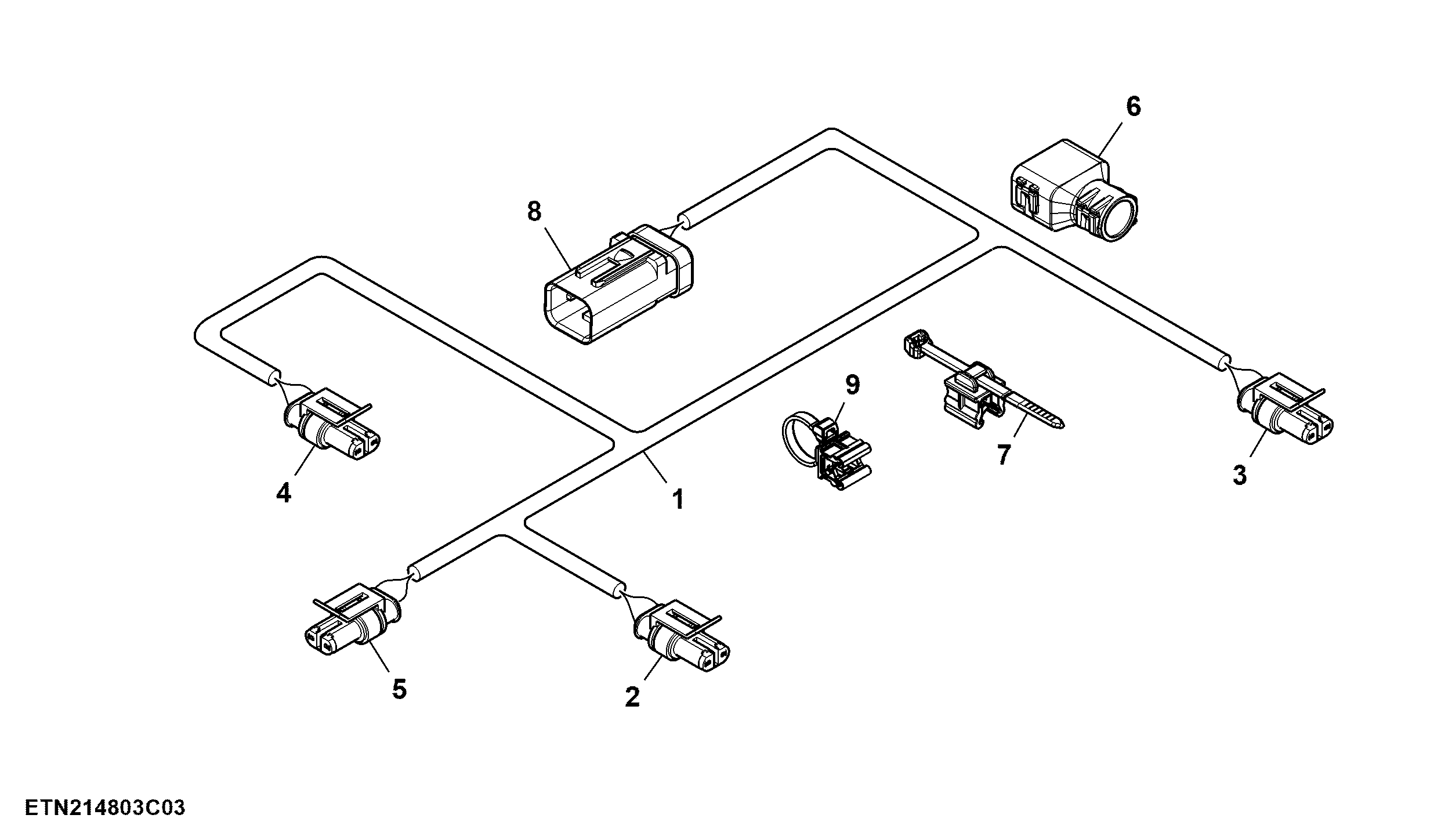

Wiring Harness, Gullwing Light W/ 6 LED Lights, Front, RH

Нет текстового описания
