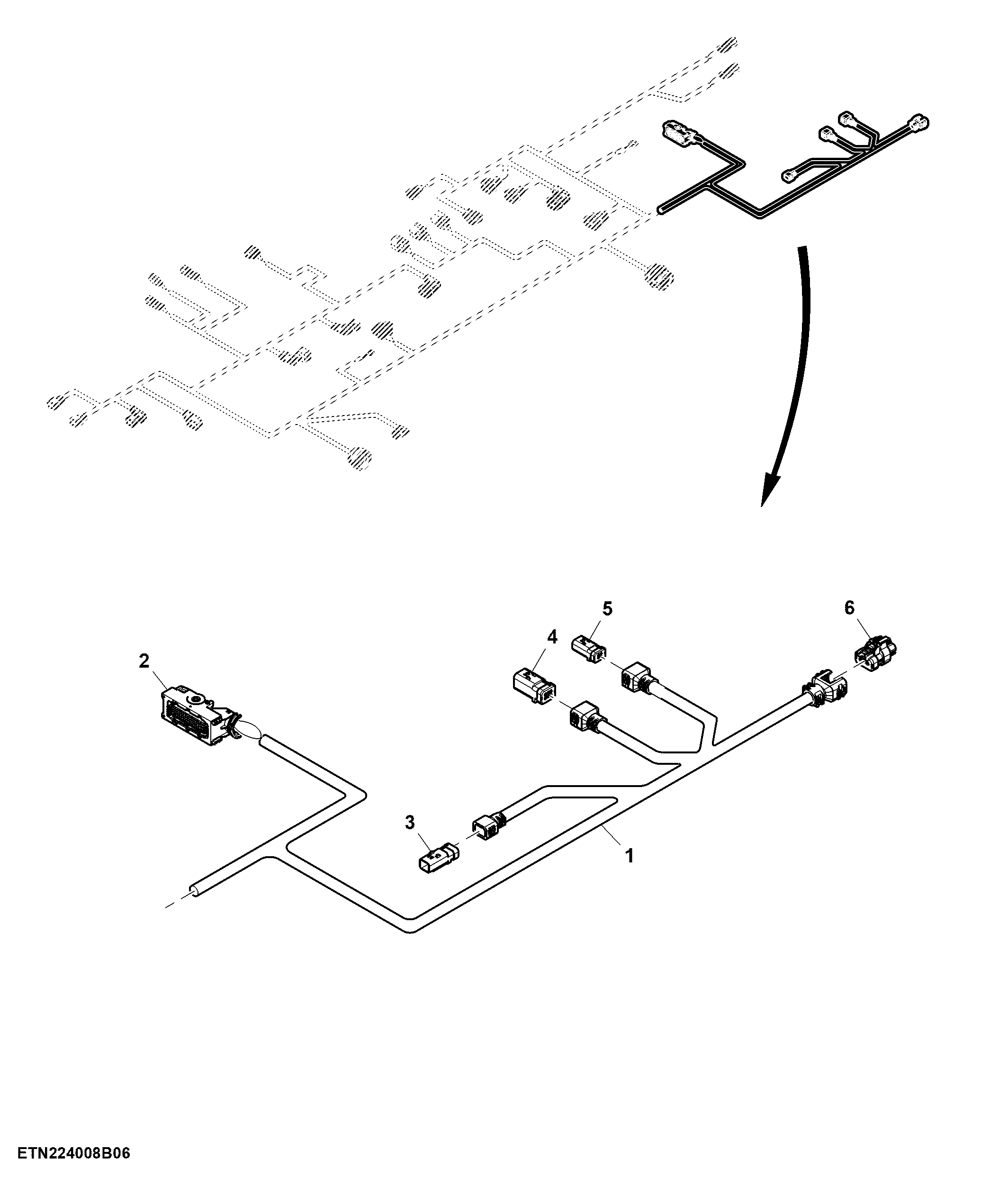

Wiring Harness, Front Engine Deck (3 of 3)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE79581	1	Wiring Harness	-
2	57M14399	1	Elec. Connector Housing	A5505 Control Unit, Engine Control Unit -L40
2	57M11248	29	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 7, 8, 11, 12, 13, 15, 16, 18, 19, 20, 23, 27, 28, 29, 31, 32, 37, 39, 43, 44, 46, 48, 51, 55
2	57M7402	16	Elec. Connector Cable Seal	Cavity 1, 2, 3, 5, 11, 13, 18, 19, 20, 32, 35, 37, 44, 48, 51, 55
2	57M9157	17	Elec. Connector Seal	Cavity 4, 7, 8, 12, 15, 16, 21, 23, 25, 27, 28, 29, 31, 39, 43, 46, 53
2	57M7403	21	Elec. Connector Cavity Plug	Cavity 6, 9, 10, 14, 22, 24, 26, 30, 33, 34, 38, 40, 41, 42, 45, 47, 49, 50, 52, 54, 56
2	57M11249	5	Elec. Connector Terminal	Cavity 17, 21, 25, 35, 53
2	57M8241	1	Elec. Connector Terminal	Cavity 17
2	57M8992	1	Elec. Connector Terminal	Cavity 57
2	57M7399	3	Elec. Connector Seal	Cavity 57, 60, 61
2	57M8991	3	Elec. Connector Terminal	Cavity 58, 59, 62
2	57M7400	3	Elec. Connector Seal	Cavity 58, 59, 62
2	57M8738	1	Elec. Connector Accessory	-
3	57M9776	1	Elec. Connector Housing	Water In Fuel Inline to JDPS Harness
3	57M14957	1	Elec. Connector Accessory	-
3	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
4	57M9790	1	Elec. Connector Housing	Fuel Transfer Pump Inline to JDPS Harness
4	57M10322	2	Elec. Connector Terminal	Cavity 1, 3
4	57M9812	3	Elec. Connector Terminal	Cavity 2, 4, 5
4	57M9814	1	Elec. Connector Cavity Plug	Cavity 6
4	57M14963	1	Elec. Connector Accessory	-
5	57M9821	1	Elec. Connector Housing	Fuel Temperature Sensor Inline to JDPS Harness
5	57M9812	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
5	57M14961	1	Elec. Connector Accessory	-
6	57M9780	1	Elec. Connector Housing	Engine Cold Start Inline
6	57M9808	3	Elec. Connector Terminal	Cavity 1, 2, 3
6	57M14977	1	Elec. Connector Accessory	-

Wiring Harness, Front Engine Deck (3 of 3)
