Wiring Harness, Cab support ( - 815140)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE86910	2	Wiring Harness	-
2	57M7257	1	Elec. Connector Housing	Cab Support / R2 Front Lights RH Harness
2	57M7252	3	Elec. Connector Terminal	Cavity A, B, C
2	57M9214	3	Elec. Connector Seal	Cavity A, B, C
2	57M7290	1	Elec. Connector Accessory	-
2	57M8910	1	Clip	-
3	57M14930	1	Elec. Connector Housing	E59 RH Side Marker Light
3	57M14931	2	Elec. Connector Terminal	Cavity 1, 2
4	57M7255	1	Elec. Connector Housing	RH Front LED Interface
4	57M10770	3	Elec. Connector Terminal	Cavity A, B, C
4	57M9215	1	Elec. Connector Seal	Cavity A
4	57M9214	2	Elec. Connector Seal	Cavity B, C
4	57M9713	1	Elec. Connector Accessory	-
5	57M9214	3	Elec. Connector Seal	Cavity A, B, C
5	57M8910	1	Clip	-
5	57M7290	1	Elec. Connector Accessory	-
5	57M7252	3	Elec. Connector Terminal	Cavity A, B, C
5	57M7257	1	Elec. Connector Housing	Cab Support / R2 Front Lights LH Harness
6	57M14930	1	Elec. Connector Housing	E57 LH Side Marker Light
6	57M14931	2	Elec. Connector Terminal	Cavity 1, 2
7	57M7255	1	Elec. Connector Housing	LH Front LED Interface
7	57M10770	3	Elec. Connector Terminal	Cavity A, B, C
7	57M9215	1	Elec. Connector Seal	Cavity A
7	57M9214	2	Elec. Connector Seal	Cavity B, C
7	57M9713	1	Elec. Connector Accessory	-
8	H224073	2	Tie Band	-
9	R44302	2	Tie Band	-
10	L206646	2	Tie Band	-
11	L206645	2	Tie Band	-
12	AH225363	2	Clip	-

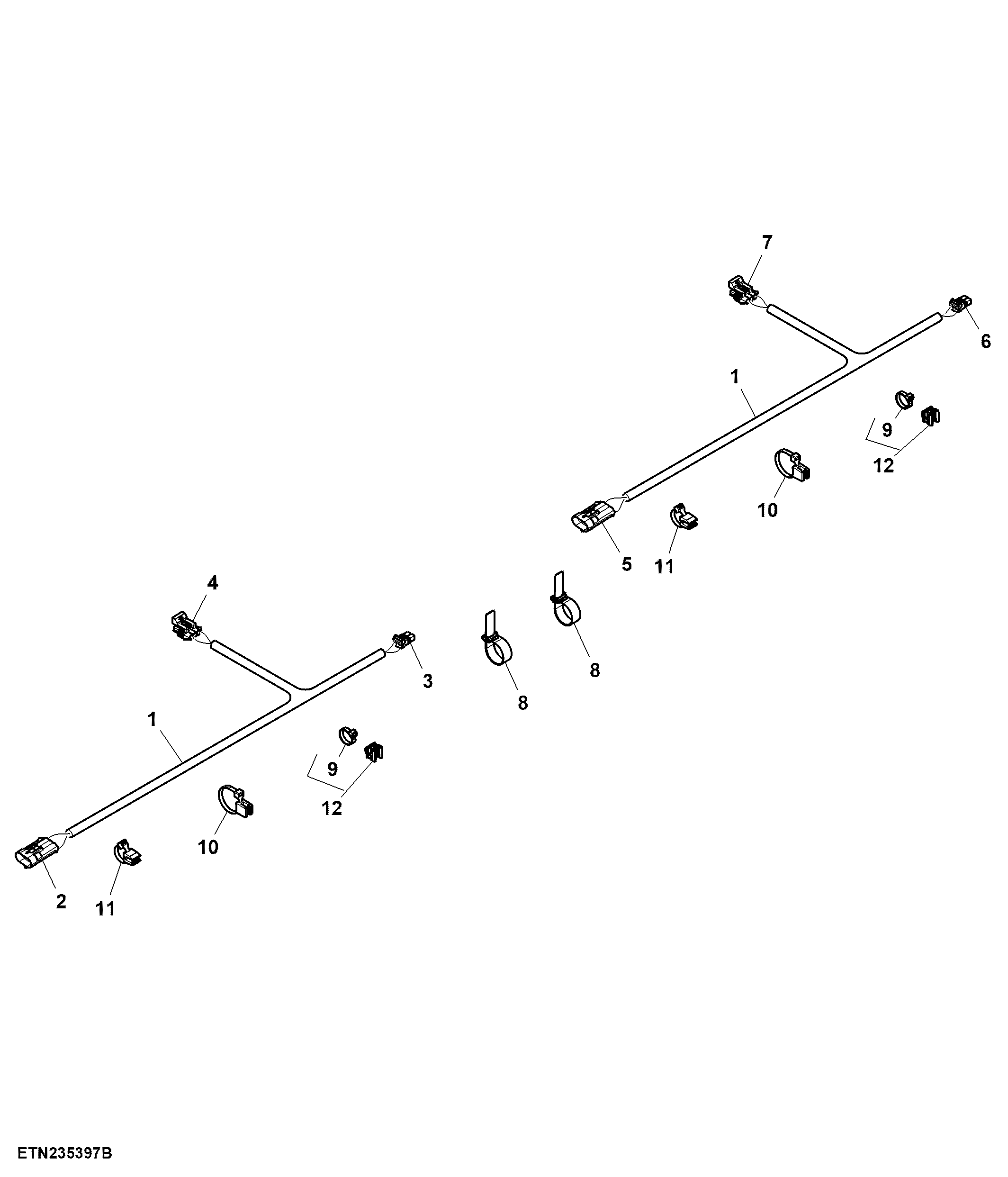

Wiring Harness, Cab support ( - 815140)

Нет текстового описания
