Открытый узел

Transmission Plumbing and Fitting

Transmission Plumbing and Fitting

Transmission Plumbing and Fitting

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

Transmission Plumbing and Fitting

Нет текстового описания

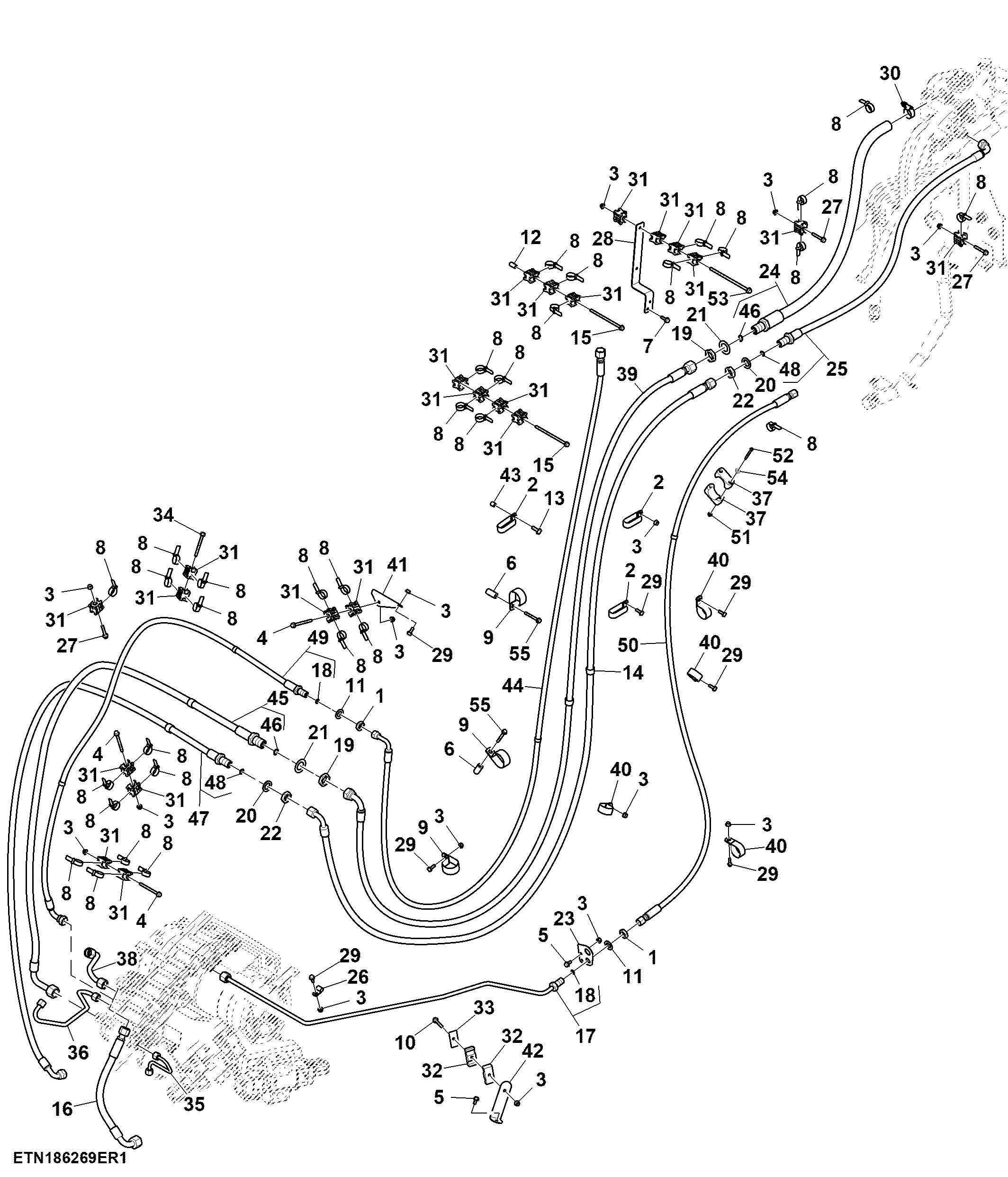

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H5092	2	Nut	13/16"
2	AH77884	3	Clip	-
3	14M7298	19	Flange Nut	M8
4	19M7913	3	Screw	M8 X 90
5	19M7865	3	Screw	M8 X 16
6	R111654	5	Spacer	-
7	19M7867	2	Screw	M8 X 25
8	H224073	33	Tie Band	-
9	N198631	7	Clamp	-
10	19M7801	1	Screw	M8 X 60
11	24M7396	2	Washer	21 X 34 X 3 mm
12	28H102	1	Spacer	0.364" X 0.540" X 1"
13	19M7868	1	Screw	M8 X 30
14	AXE69508	1	Hydraulic Hose	LGTH = 5910 mm, Supply, Lube Pump Hose to Sump Motor
15	19M10469	2	Screw	M8 X 160
16	AXE70550	1	Hydraulic Hose	LGTH = 460 mm, Trans Lube Supply, Filter
17	AXE70636	1	Oil Tube	-
18	T77857	2	O-Ring	-
19	38H5094	2	Nut	1-3/16"
20	24M7294	2	Washer	26 X 39 X 4 mm
21	24H1263	2	Washer	1-1/4" X 2" X 0.060"
22	38H5093	2	Nut	1"
23	HXE130804	1	Bracket	-
24	AXE71021	1	Hydraulic Hose	LGTH = 1600 mm, Filter to Transmission Hose
25	AXE71020	1	Hydraulic Hose	LGTH = 1520 mm, Relief Valve to Bulkhead
26	H75541	1	Clamp	-
27	19M8319	3	Screw	M8 X 50
28	HXE134877	1	Bracket	-
29	19M7866	13	Screw	M8 X 20
30	RE224072	1	Hose Clamp	-
31	HXE127195	22	Clamp	-
32	H141706	2	Clamp	-
33	H112567	1	Plate	-
34	19M8039	1	Screw	M8 X 80
35	AXE74883	1	Oil Tube	-
36	AXE74884	1	Oil Tube	-
37	N306540	1	Half Clamp	-
38	AXE74885	1	Oil Tube	-
39	AXE69528	2	Hydraulic Hose	LGTH = mm, Transmission to Filter Hose
40	N205415	7	Clamp	-
41	HXE143319	1	Bracket	-
42	HXE143318	1	Bracket	-
43	28H3376	1	Spacer	0.364" X 0.540" X 9/16"
44	AXE81045	1	Hydraulic Hose	LGTH =5182 mm, Transmission Regulated Pressure Supply
45	AXE82568	1	Hydraulic Hose	LGTH = 2412 mm, Transmission Pump Return
46	T77858	2	O-Ring	-
47	AXE82567	1	Hydraulic Hose	LGTH = 2634 mm, Supply, Lube Pump Hose to Sump Motor
48	T77932	2	O-Ring	-
49	AXE69512	1	Hydraulic Hose	LGTH = 2354 mm, Transmission Regulated Pressure Supply
50	AXE69641	1	Hydraulic Hose	LGTH = 1600 mm, Trans Lube Supply, Filter
51	14M7824	2	Flange Nut	M6
52	19M8145	2	Screw	M6 X 80
53	M162098	1	Bolt	-
54	24M7100	2	Washer	6.600 X 22 X 2 mm
55	19M7802	5	Screw	M8 X 65
