Открытый узел

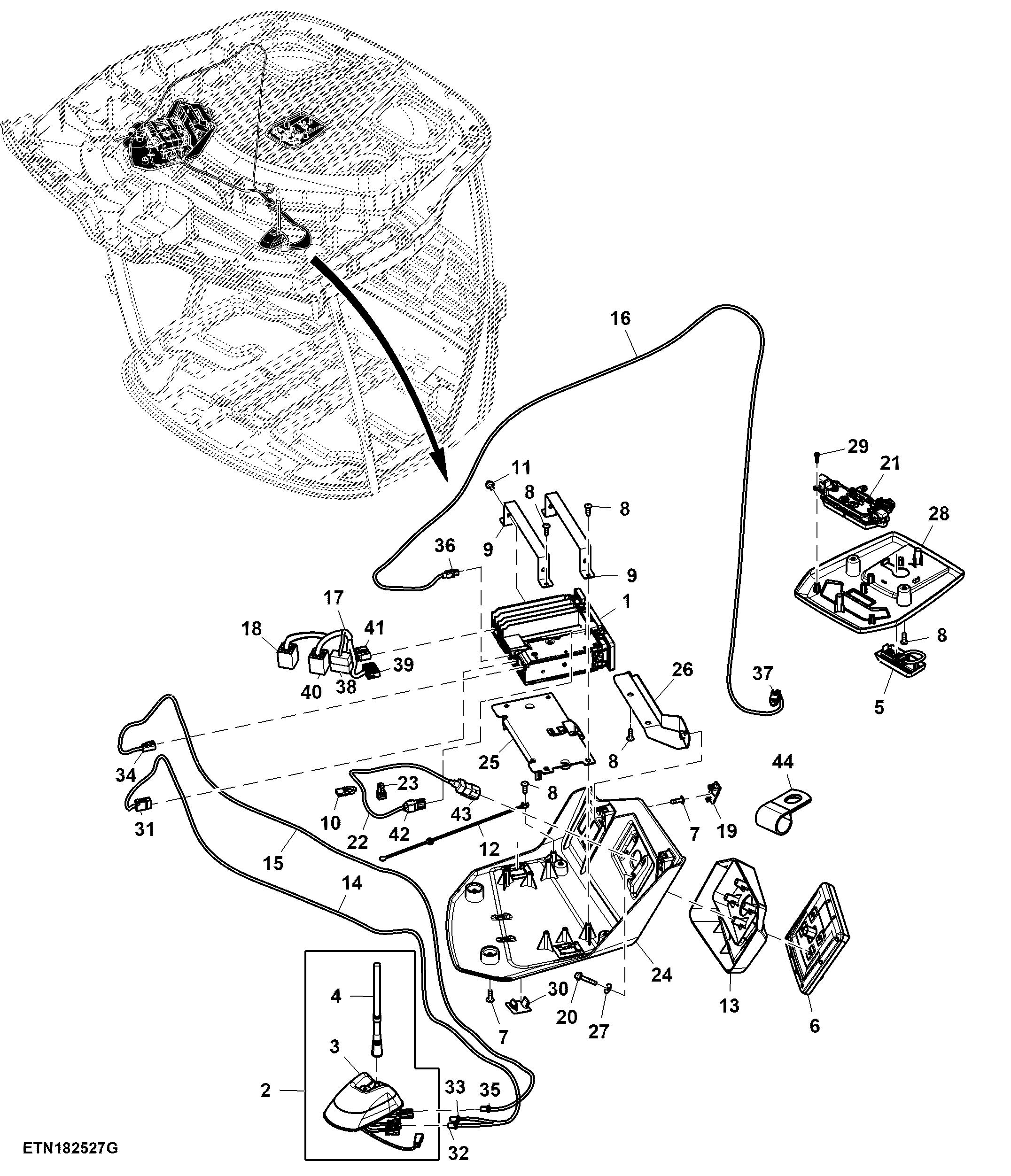

Radio W/ Bluetooth and Digital Audio Broadcasting

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TA23061	1	Radio	SUB FOR RE586127
2	AL225637	1	Antenna	-
3	AL228838	1	Antenna	-
4	L221052	1	Antenna	-
5	RE585319	1	Radio Accessory	-
6	RE584662	1	Radio	-
7	19M8649	6	Screw	M6 X 20
8	R224342	12	Screw	-
9	HXE130645	2	Bracket	-
10	57M10362	2	Clamp	-
11	19M7774	2	Screw	M6 X 12
12	H167815	1	Strap	-
13	HXE143399	1	Bezel	-
14	AXE65290	1	Wiring Harness	Antenna Cable
15	AXE65359	1	Wiring Harness	Silverbox Antenna Cable
16	AXE70828	1	Wiring Harness	Silverbox to Car Play USB Cable
17	AXE74465	1	Wiring Harness	App Radio Jumper
18	57M14410	1	Elec. Connector Housing	-
19	HXE146765	2	Bezel	-
20	19M7833	4	Screw	M6 X 35
21	RE593789	1	Lamp	-
22	AXE65356	1	Wiring Harness	-
23	57M14544	1	Elec. Connector Accessory	-
24	HXE156931	1	Bezel	-
25	HXE156933	1	Bezel	-
26	AXE82144	1	Bracket	-
27	24M7251	4	Washer	6.400 X 18 X 1.600 mm
28	R569715	1	Bezel	-
29	R564042	3	Screw	-
30	HXE170373	1	Plug	-
31	57M14111	1	Elec. Connector Housing	-
31	57M14163	1	Elec. Connector Terminal	Cavity 2
31	57M14160	1	Elec. Connector Terminal	Cavity 3
31	57M14164	1	Elec. Connector Terminal	Cavity 4
31	57M14158	1	Elec. Connector Terminal	Cavity 5
32	57M14222	1	Elec. Connector Housing	AM/FM/WB
33	57M14221	1	Elec. Connector Housing	Antenna Power
34	57M14217	1	Elec. Connector Housing	Radio Digital Audio Broadcast Connection
35	57M14219	1	Elec. Connector Housing	Antenna Digital Audio Broadcast Connection
36	57M14150	1	Elec. Connector Housing	Silverbox USB Connection
37	57M14151	1	Elec. Connector Housing	Car Play USB Connection
38	57M14174	1	Elec. Connector Housing	App Radio A1, A217-A1
38	57M14176	8	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 10
39	-	1	Part 44	APTIV Radio C Port, A86-234B
40	57M14410	1	Elec. Connector Housing	APTIV Radio AB Port/ App Radio, A86-1B
41	57M14119	1	Elec. Connector Housing	App Radio B, A217-B
41	57M14120	2	Elec. Connector Terminal	Cavity 4, 23
41	57M14121	10	Elec. Connector Terminal	Cavity 5, 9, 10, 13, 14, 19, 25, 26, 27, 28
42	57M13993	10	Elec. Connector Housing	-
43	57M14171	10	Elec. Connector Housing	-
44	H75541	1	Clamp	-

Radio W/ Bluetooth and Digital Audio Broadcasting
