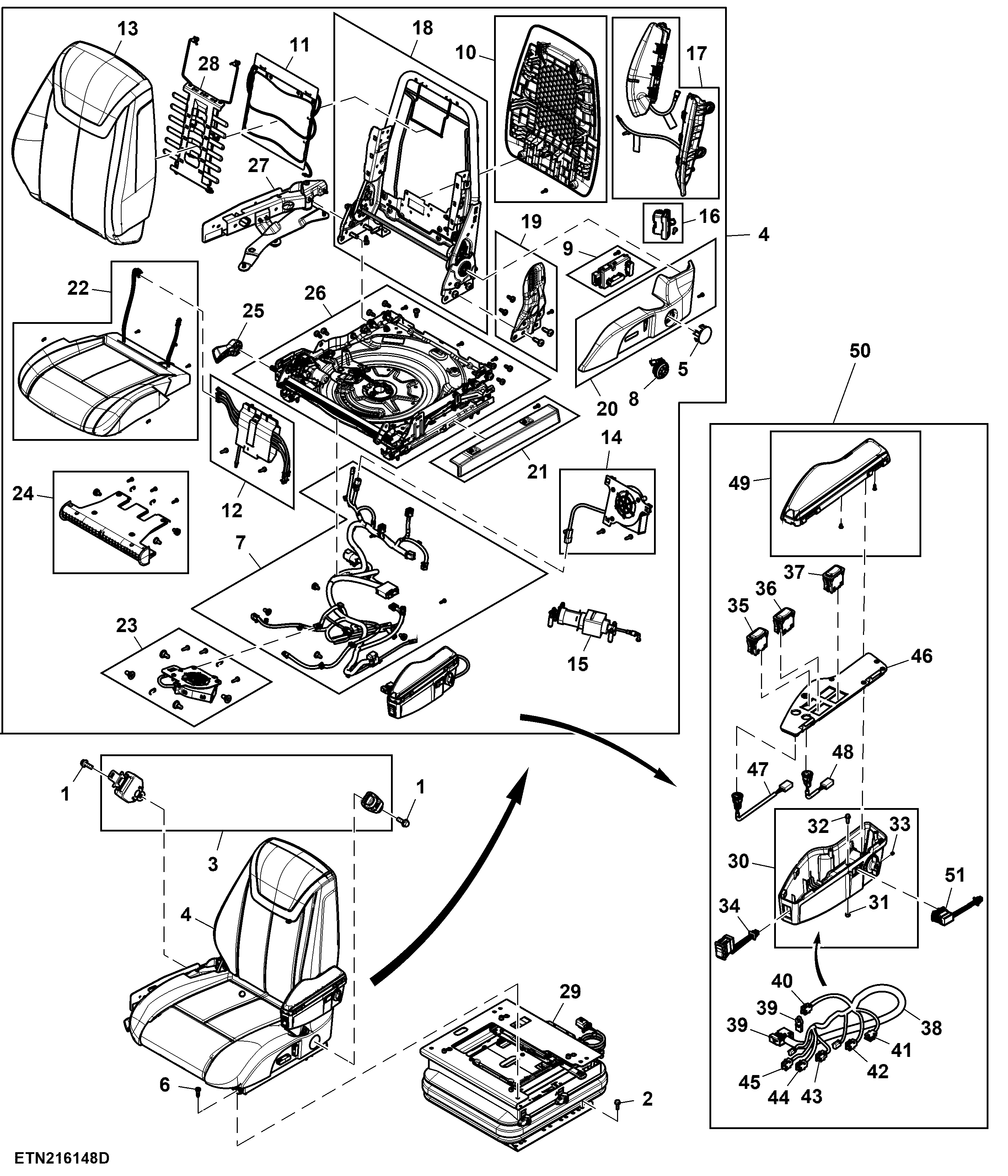

Operator Seat, Ultimate Passive

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R543772	2	Cap Screw	-
2	19M8327	4	Screw	M8 X 25
3	RE590504	1	Seat Belt	-
4	TA23195	1	Seat Assembly	SUB FOR TA19498
5	R566458	1	Cover	-
6	R569386	4	Screw	-
7	RE590638	1	Seat Kit	-
8	RE590644	1	Toggle/Rocker Switch	-
9	RE590645	1	Toggle/Rocker Switch	-
10	RE590669	1	Panel Kit	-
11	RE590671	1	Seat Kit	Pneumatic Lumbar System
12	RE590672	1	Seat Kit	Seat Valve Block
13	RE590675	1	Seat Kit	Seat Back Cushion
14	RE590676	1	Seat Kit	Seat Back Vent System
15	RE590679	1	Seat Kit	8 Liter Pneumatic Pump
16	RE590680	1	Seat Kit	Seat Lin Communication Box
17	RE590682	1	Seat Kit	Seat Back Bolster
18	RE590684	1	Seat Kit	Seat Back Frame
19	RE590686	1	Seat Kit	Armrest Bracket, LH
20	RE590689	1	Seat Kit	Seatside Shield
21	TA20044	1	Seat Kit	Rail Cover, LH, SUB FOR RE590690
22	-	1	Part 22	Seat Cushion, ORDER TA25305
23	RE590694	1	Seat Kit	Seat Vent System
24	TA19189	1	Seat Kit	Cushion Length Adjustment, SUB FOR RE590695
25	RE590700	1	Seat Kit	Swivel Handle
26	TA19488	1	Seat Kit	Premium / Ultimate Seat Swivel, SUB FOR RE590702
27	RE590704	1	Seat Kit	Pivoting Command Arm Bracket
28	RE594003	1	Seat Kit	Lumbar Service
29	TA19562	1	Seat Suspension	SUB FOR RE595210
30	TA20817	1	Armrest Kit	SUB FOR RE594008 AND RE596784
31	14M7297	6	Nut	M5
32	37M7392	6	Screw	M5 X 16
33	22M7095	1	Set Screw	M5 X 6
34	RE228095	1	Toggle/Rocker Switch	Seat Height Control
35	RE594010	1	Toggle/Rocker Switch	Cushion Length Adjustment Control
36	RE593853	1	Toggle/Rocker Switch	Seat Back Bolster Adjustment Control
37	TR119130	1	Toggle/Rocker Switch	Massage Mode Select, SUB FOR RE590642
38	TA19188	1	Wiring Harness	SUB FOR RE590668
39	57M10362	1	Clamp	-
40	57M7718	1	Electrical Connector Assy	-
40	57M9580	2	Elec. Connector Terminal	Cavity 1 and 2
40	57M7713	1	Electrical Connector Assy	Massage Intensity Switch, S196, USE WITH RE590668
41	57M7713	1	Electrical Connector Assy	Suspension Firmness Adjuster Switch, S194
41	57M9580	4	Elec. Connector Terminal	Cavity 1, 2, 3 and 4
41	57M7718	1	Electrical Connector Assy	-
42	57M7713	1	Electrical Connector Assy	Massage Select Switch, S197
42	57M9580	2	Elec. Connector Terminal	Cavity 1 and 2
42	57M7718	1	Electrical Connector Assy	-
43	57M7713	1	Electrical Connector Assy	Back Bolster Switch, S198
43	57M7718	1	Electrical Connector Assy	-
43	57M9580	2	Elec. Connector Terminal	Cavity 1 and 2
44	57M7713	1	Electrical Connector Assy	Cushion Length Adjuster Switch, S200
44	57M9580	4	Elec. Connector Terminal	Cavity 1, 2, 3 and 4
44	57M7718	1	Electrical Connector Assy	-
45	57M7713	1	Electrical Connector Assy	Suspension Height Adjuster Switch, S201
45	57M9580	4	Elec. Connector Terminal	Cavity 1, 2, 3 and 4
45	57M7718	1	Electrical Connector Assy	-
46	TA18673	1	Armrest Kit	Massage Mode Select, SUB FOR RE590649
47	RE591772	1	Toggle/Rocker Switch	HVS Level Select
48	RE591771	1	Toggle/Rocker Switch	HVS Mode Select
49	RE590663	1	Armrest Kit	-
50	TA20953	1	Armrest	SUB FOR TA18674
51	RE165589	1	Toggle/Rocker Switch	Not for Passive Seats, SUB FOR RE189796
52	M115279	1	Plug	For Passive Seats
