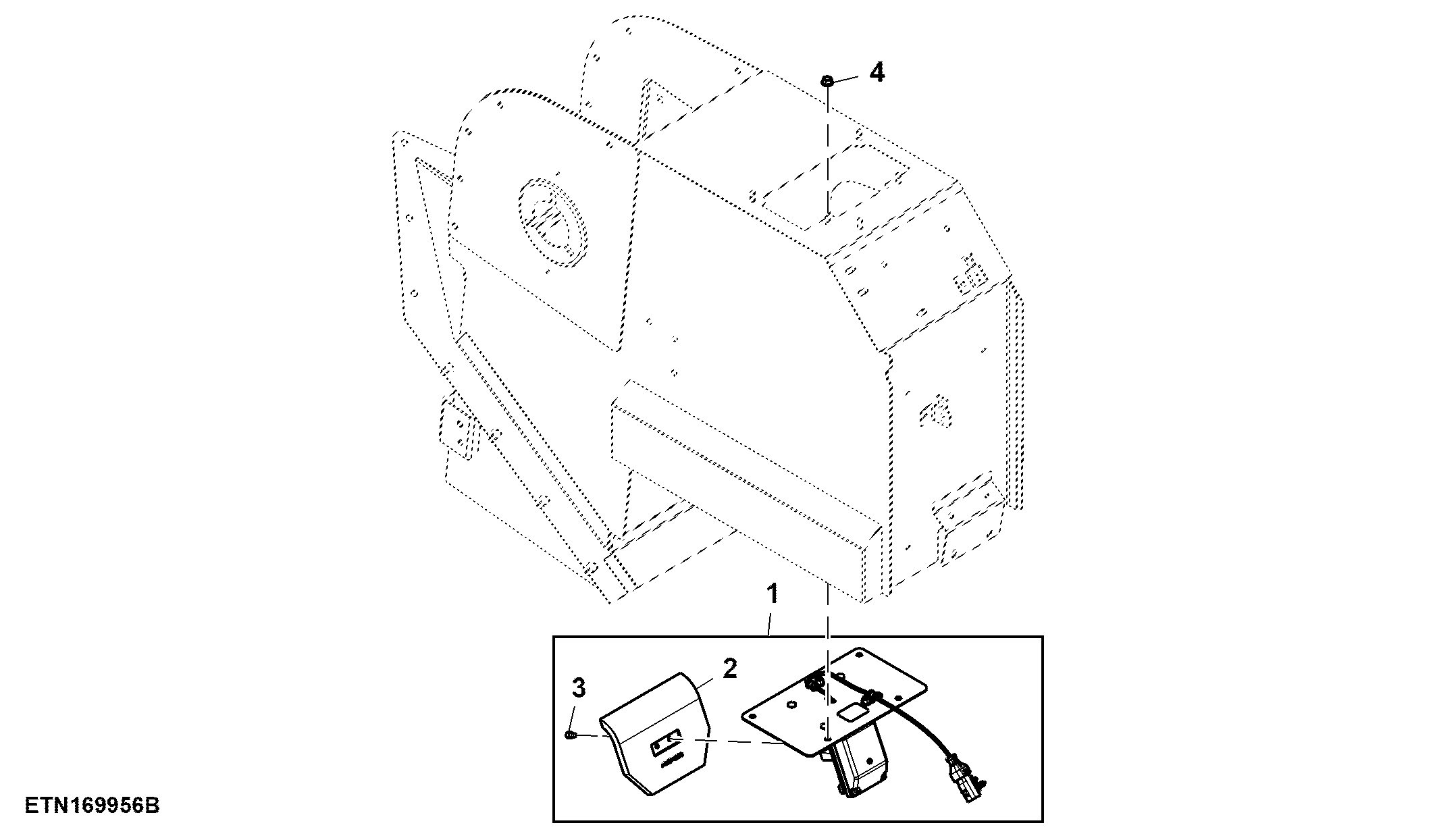

Mass Flow Sensor Assembly and Mounting

Mass Flow Sensor Assembly and Mounting
Mass Flow Sensor Assembly and Mounting
Нет текстового описания
Открытый узел
Mass Flow Sensor Assembly and Mounting

Нет текстового описания
| № на схеме | Серийный номер | Кол-во | Название | Описание | |
|---|---|---|---|---|---|
| 1 | AXE76523 | 1 | Mass Flow Sensor Module | Flow Sensor | |
| 2 | AXE64829 | 1 | Mass Flow Sensor Module | - | |
| 3 | 19M10417 | 2 | Socket Head Screw | M6 X 10 | |
| 4 | 14M7298 | 4 | Flange Nut | M8 |
