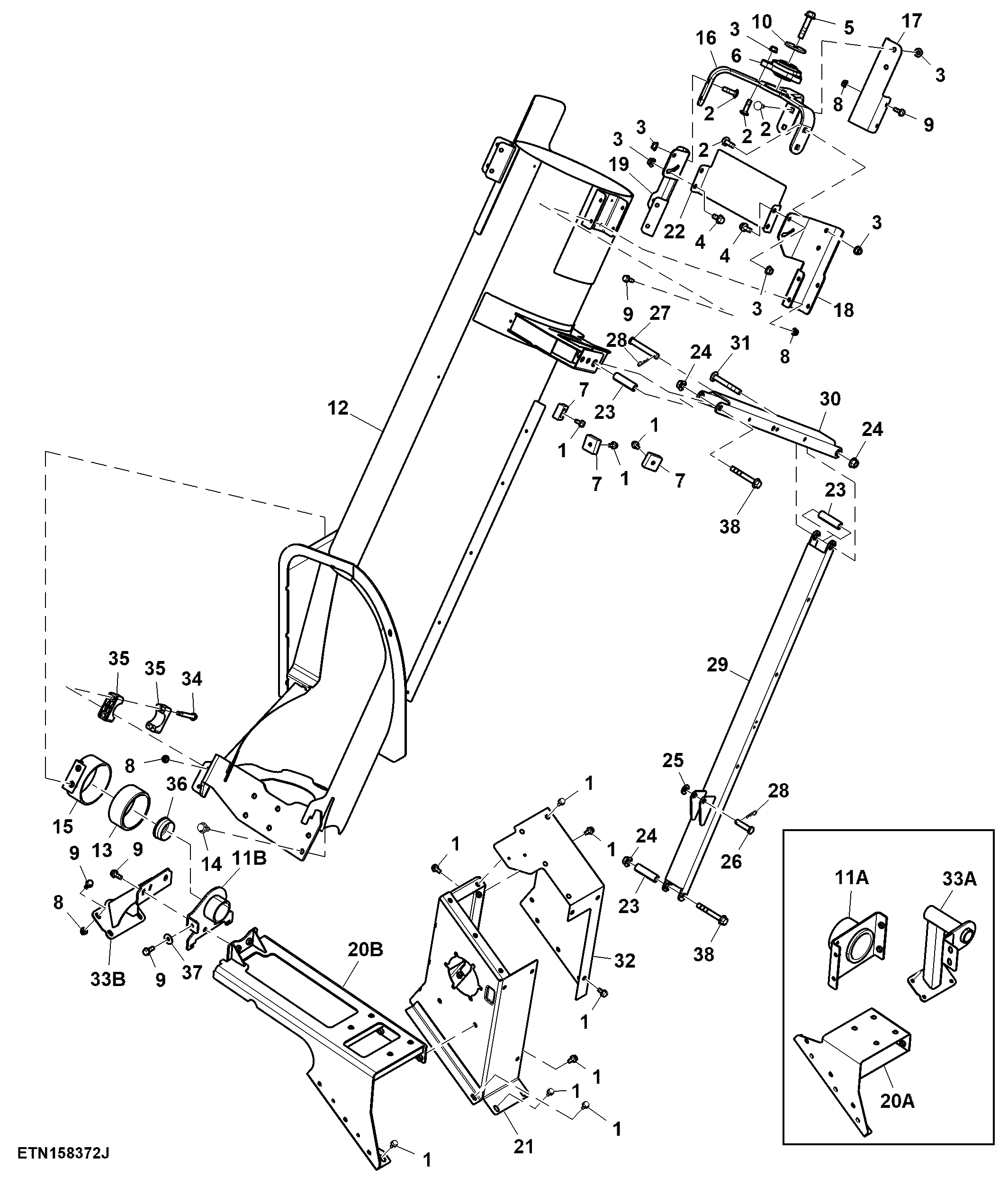

Loading Auger Housing, Regular / Standard Wear

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7865	26	Screw	M8 X 16
2	03M7193	9	Bolt	M10 X 35
3	14M7296	13	Flange Nut	M10
4	19M7784	4	Screw	M10 X 20
5	19M7815	1	Screw	M12 X 60
6	AXE85993	1	Bearing With Housing	SUB FOR AXE65438
7	HXE133143	3	Bumper	-
8	14M7298	15	Flange Nut	M8
9	19M7866	20	Screw	M8 X 20
10	24M7613	1	Washer	13.500 X 57 X 5 mm
12	AXE89006	1	Housing	SUB FOR AXE81090
13	HXE142351	1	Bushing	USE WITH AXE81090
14	19M7788	4	Screw	M12 X 25, USE WITH AXE81090
15	AXE82706	1	Support	USE WITH AXE81090
16	HXE174433	1	Support	SUB FOR HXE166773 OR HXE157257
17	HXE167893	1	Support	SUB FOR HXE157258
18	HXE171796	1	Support	SUB FOR HXE167892 OR HXE157259
19	HXE171794	1	Support	SUB FOR HXE167891 OR HXE157260
21	AXE88966	1	Shield	SUB FOR AXE86525 OR AXE80891
22	HXE171795	1	Deflector	SUB FOR HXE164013 OR HXE157256
23	HXE174371	3	Bushing	SUB FOR HXE132182
24	14M7299	3	Flange Nut	M12
25	24M7240	1	Washer	13 X 25 X 3 mm
26	45M7042	1	Pin Fastener	12 X 50 mm
27	M137028	1	Pin Fastener	12 X 80 mm (0.472" X 3.150")
28	J16931	2	Pin	-
29	AXE89029	1	Bracket	SUB FOR AXE81092
30	AXE89028	1	Channel	SUB FOR AXE81093
31	H154928	1	Bolt	-
32	HXE176600	1	Shield	SUB FOR HXE166745 OR HXE110712
34	HXE105249	2	Bolt	USE WITH AXE81090
35	HXE109490	2	Clamp	USE WITH AXE81090
36	HXE168048	1	Plug	-
37	24M7207	1	Washer	8.400 X 24 X 2 mm
38	19M7819	2	Screw	M12 X 90
11A	AXE75914	1	Support	-
11B	AXE92091	1	Support	SUB FOR AXE86520 OR AXE75914
20A	AXE82680	1	Bracket	-
20B	AXE91947	1	Bracket	SUB FOR AXE86526 OR AXE82680
33A	AXE75915	1	Support	-
33B	AXE86522	1	Support	SUB FOR AXE75915

Loading Auger Housing, Regular / Standard Wear
