Left Chassis Main Wiring Harness (3 of 5)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M10663	1	Elec. Connector Terminal	Cavity 1
1	57M9800	1	Elec. Connector Housing	LC2 Main Harness / Flex Residue Harness
1	57M14982	1	Elec. Connector Accessory	-
1	57M10336	3	Elec. Connector Cavity Plug	Cavity 7, 9, 10
1	57M9809	8	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 6, 8, 11, 12
2	57M8639	1	Elec. Connector Housing	Y37 Four Wheel Drive Engage solenoid
2	57M8165	2	Elec. Connector Terminal	Cavity 1, 2
2	57M13929	1	Elec. Connector Accessory	-
2	57M8022	1	Elec.Connect Locking Device	-
3	57M8639	1	Elec. Connector Housing	Y407 4WD High Speed Select Solenoid
3	57M8165	2	Elec. Connector Terminal	Cavity 1, 2
3	57M13929	1	Elec. Connector Accessory	-
3	57M8022	1	Elec.Connect Locking Device	-
4	57M9512	1	Elec. Connector Housing	Left Chassis / Pod Controller Harness
4	57M8164	26	Elec. Connector Terminal	Cavity 1, 2, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 23, 24, 26, 27, 28, 29, 30
4	R78069	5	Elec. Connector Cavity Plug	Cavity 3, 4, 20, 25, 31
4	57M11694	1	Elec. Connector Accessory	-
5	57M14728	1	Elec. Connector Housing	Left Chassis Harness / Pod Harness (Rear Camera)
5	57M12379	1	Elec. Connector Accessory	-
6	57M9512	1	Elec. Connector Housing	Left Chassis / Pod Controller Harness
6	57M8164	18	Elec. Connector Terminal	Cavity 1, 2, 3, 6, 7, 9, 11, 12, 13, 15, 20, 21, 22, 23, 26, 28, 29, 30
6	R78069	13	Elec. Connector Cavity Plug	Cavity 4, 5, 8, 10, 14, 16, 17, 18, 19, 24, 25, 27, 31
6	57M11694	1	Elec. Connector Accessory	-
7	57M9223	12	Elec. Connector Seal	Cavity A, B, C, D, E, F, L, M, N, P, R, S
7	57M8704	1	Elec. Connector Accessory	-
7	57M9446	4	Elec. Connector Seal	Cavity G, H, J, K
7	57M8561	8	Elec. Connector Terminal	Cavity E, F, L, M, N, P, R, S
7	57M8299	4	Elec. Connector Terminal	Cavity A, B, C, D
7	57M8484	1	Elec. Connector Housing	A140 Control Unit GLM2
8	57M9789	1	Elec. Connector Housing	Left Chassis / Grain Loss Sensor Harness
8	57M9812	6	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6
8	57M14962	1	Elec. Connector Accessory	-
8	57M9940	1	Elec. Connector Accessory	-
9	AXE86906	1	Wiring Harness	SUB FOR AXE79572; ALSO ORDER 57M10421
9	AXE86906	1	Wiring Harness	SUB FOR AXE79572

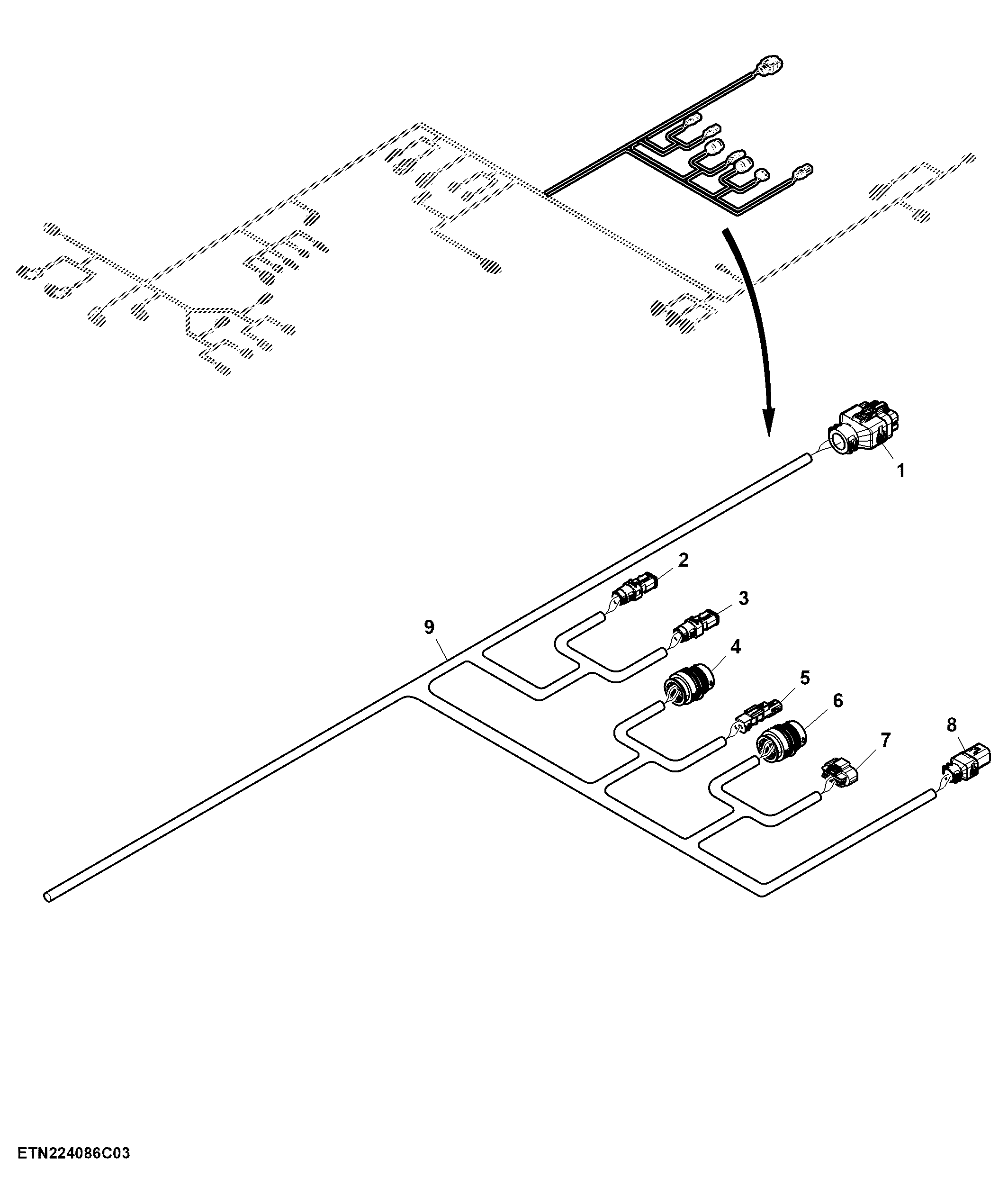

Left Chassis Main Wiring Harness (3 of 5)
