Открытый узел

Hydralics, Feederhouse Dust Fan, Attachment

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BXE11434	1	Attachment/Bundle Catalog	-
2	AXE86113	1	Hydraulic Hose	LGTH=2121 mm, Feeder House Fan
3	24H1263	2	Washer	1-1/4" X 2" X 0.060"
4	19M7913	1	Screw	M8 X 90
5	38H5094	2	Nut	1-3/16"
6	AXE86110	1	Hydraulic Hose	LGTH=3055 mm, Motor To Steel Line
7	AH77869	2	Clip	-
8	AH78237	2	Clamp	-
9	AH77884	2	Clip	-
10	AXE84580	1	Hydraulic Hose	LGTH=2350 mm, Bulkhead To Steel Line
11	38H5093	2	Nut	1"
12	57M9939	1	Elec. Connector Accessory	-
13	T116413	1	O-Ring	-
14	T77932	6	O-Ring	-
15	38H5005	3	Adapter Fitting	-
16	T77858	11	O-Ring	-
17	51M7047	3	O-Ring	23.600 X 2.900 mm
18	AXE88105	1	Hydraulic Motor	-
19	H80821	1	O-Ring	-
20	Z36140	4	Washer	-
21	AXE92512	1	Pressure Relief Valve	Pressure Relief Valve
22	AXE92513	1	Valve Kit	Valve Kit
23	19M9017	4	Screw	M10 X 165
24	19M8774	1	Screw	M5 X 15
25	AH77724	4	Clip	-
26	19M7866	3	Screw	M8 X 20
27	AXE85731	1	Line	LGTH=945 mm, Feeder House Fan,Tube Return Line
28	38H1156	2	Adapter Fitting	-
29	H224073	22	Tie Band	-
30	HXE163232	1	Bracket	-
31	AXE84579	1	Hydraulic Hose	LGTH=2469 mm, Steel Line To Bulkhead
32	AN209168	6	Swivel	-
33	19M7784	3	Screw	M10 X 20
34	R213663	3	Clamp	-
35	AXE86111	1	Hydraulic Hose	LGTH=2175 mm, Bulkhead To Valve
36	AXE86114	1	Hydraulic Hose	LGTH=1494 mm, Valve To Filter Tee
37	AXE86112	1	Hydraulic Hose	LGTH=1452 mm, Valve To Pump
38	AXE84203	1	Hydraulic Hose	LGTH=3178 mm, Front Bulkhead To Rear Bulkhead
39	19M7800	1	Screw	M8 X 50
40	AXE84201	1	Hydraulic Hose	LGTH=3263 mm, Front Bulkhead To Rear Bulkhead
41	T397502	2	Clamp	-
42	HXE127195	4	Clamp	-
43	AXE84578	1	Line	LGTH=969 mm, Tube, Pressure Line
44	38H1155	2	Adapter Fitting	-
45	24M7294	2	Washer	26 X 39 X 4 mm
46	HXE172689	1	Bracket	-
47	24H1391	1	Washer	25/32" X 1-5/16" X 0.060"
48	38H5012	1	Adapter Fitting	-
49	T77613	3	O-Ring	-
50	51M7043	1	O-Ring	15.300 X 2.200 mm
51	38H5035	1	Elbow Fitting	-
52	51M7042	1	O-Ring	13.300 X 2.200 mm
53	AXE85514	1	Hydraulic Hose	LGTH=1828 mm, BulkHead To Transmission
54	19M7785	2	Screw	M10 X 25
55	HXE12956	1	Bolt	-
56	38H5091	1	Nut	11/16"
57	57M12014	1	Elec. Connector Accessory	-
58	HXE173727	1	Bracket	-
59	19M7835	1	Screw	M10 X 35
60	H165237	1	Spacer	-
61	AXE90510	1	Hydraulic Motor	Feeder House Fan Motor With Sensor
62	AXE83512	1	Sensor	Inductive Sensor
63	57M9784	1	Elec. Connector Housing	-
64	38H5004	2	Adapter Fitting	-
65	51M7045	2	O-Ring	19.300 X 2.200 mm
66	AXE88105	1	Hydraulic Motor	-
67	AXE75096	1	Seal Kit	-
68	AT333814	1	Solenoid Valve Coil	-
69	AXE74850	1	Flow Control Hyd. Valve	-
70	AXE89300	1	Pressure Relief Valve	Pressure Relief Valve
71	AT224864	1	Seal Kit	-
72	AXE89299	1	Flow Control Hyd. Valve	Combinatation Valve
74	AXE87282	1	Hydraulic Hose	-
75	AXE86109	1	Hydraulic Hose	-
76	14M7298	7	Flange Nut	M8
77	38H5166	1	Elbow Fitting	-
78	38H5385	1	Adapter Fitting	-

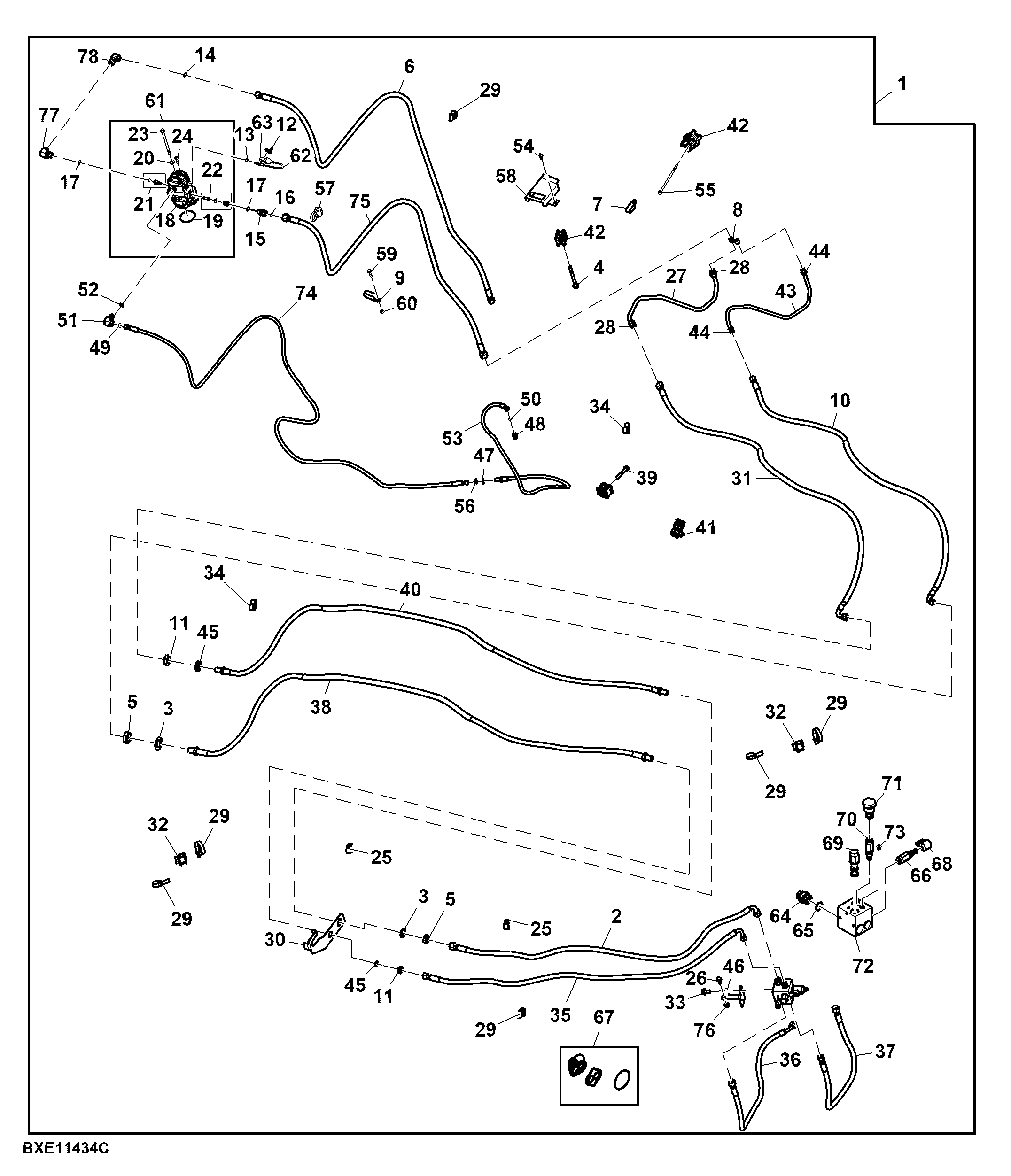

Hydralics, Feederhouse Dust Fan, Attachment
