Открытый узел

Belt Drives, Elevator Jackshaft, Fast

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7827	1	Screw	M16 X 80
2	AXE62464	1	Arm	-
3	H171061	4	Bushing	-
4	AA5607R	4	Seal	-
5	24M7617	8	Washer	17 X 30 X 3 mm
6	AXE82530	1	Idler	-
7	40M7103	2	Snap Ring	-
8	AXE64492	2	Bearing	-
9	24M7429	1	Washer	13 X 24 X 2.500 mm
10	19M7825	1	Screw	M16 X 65
11	AXE63807	1	Arm	-
12	AXE83325	1	Idler	-
13	14M7275	2	Nut	M12
14	AXE88364	1	Rod	SUB FOR AXE62630
15	HXE109428	1	Splined Coupling	-
16	HXE111400	1	Gauge	-
17	HXE115233	1	Bracket	-
18	HXE90187	1	Compression Spring	-
19	H170141	1	Pivot	-
20	14M7276	2	Nut	M16
21	AXE90104	1	Rod	SUB FOR AXE62468
22	AXE61910	1	Pulley	-
23	E81296	1	Compression Spring	-
24	H173900	1	Pivot	-
25	HXE120418	2	Washer	-
26	HXE172815	1	Gauge	SUB FOR HXE124919
27	HXE57005	1	Bracket	-
28	AXE61872	1	Support	-
29	14M7299	4	Flange Nut	M12
30	19M7813	4	Screw	M12 X 45
31	24M7091	2	Washer	26 X 44 X 4 mm
32	45M7094	1	Pin Fastener	12 X 40 mm
33	19M7866	4	Screw	M8 X 20
34	24M7462	1	Washer	37 X 66 X 5 mm
35	14M7280	1	Nut	M36
36	11M7021	1	Cotter Pin	4 X 25 mm
37	AXE66441	1	Pulley	-
38	AXE64493	2	Bearing	-
39	40M7118	1	Snap Ring	-
40	HXE116769	1	Spacer	-
41	HXE176241	1	V-Belt	LGTH = 3530 mm, WIDTH = 74 mm, SUB FOR HXE124377
42	HXE124204	1	V-Belt	LGTH = 5420 mm, WIDTH = 51 mm
43	P46402	2	Snap Ring	-
44	HXE160334	1	Spring Locking Pin	-
45	19M7786	5	Screw	M10 X 30
46	AXE61607	2	Pin	-
47	H22383	1	Shaft Key	-
48	19M7835	3	Screw	M10 X 35
49	AXE63463	1	Bracket	-
50	24M7685	1	Washer	17 X 50 X 3 mm
51	14M7296	1	Flange Nut	M10
52	19M8292	1	Screw	M10 X 50
53	-	1	Part 53	CTL 70 mm, MF TY22326
54	R185966	1	Yoke	-
55	H162860	2	Nut	-

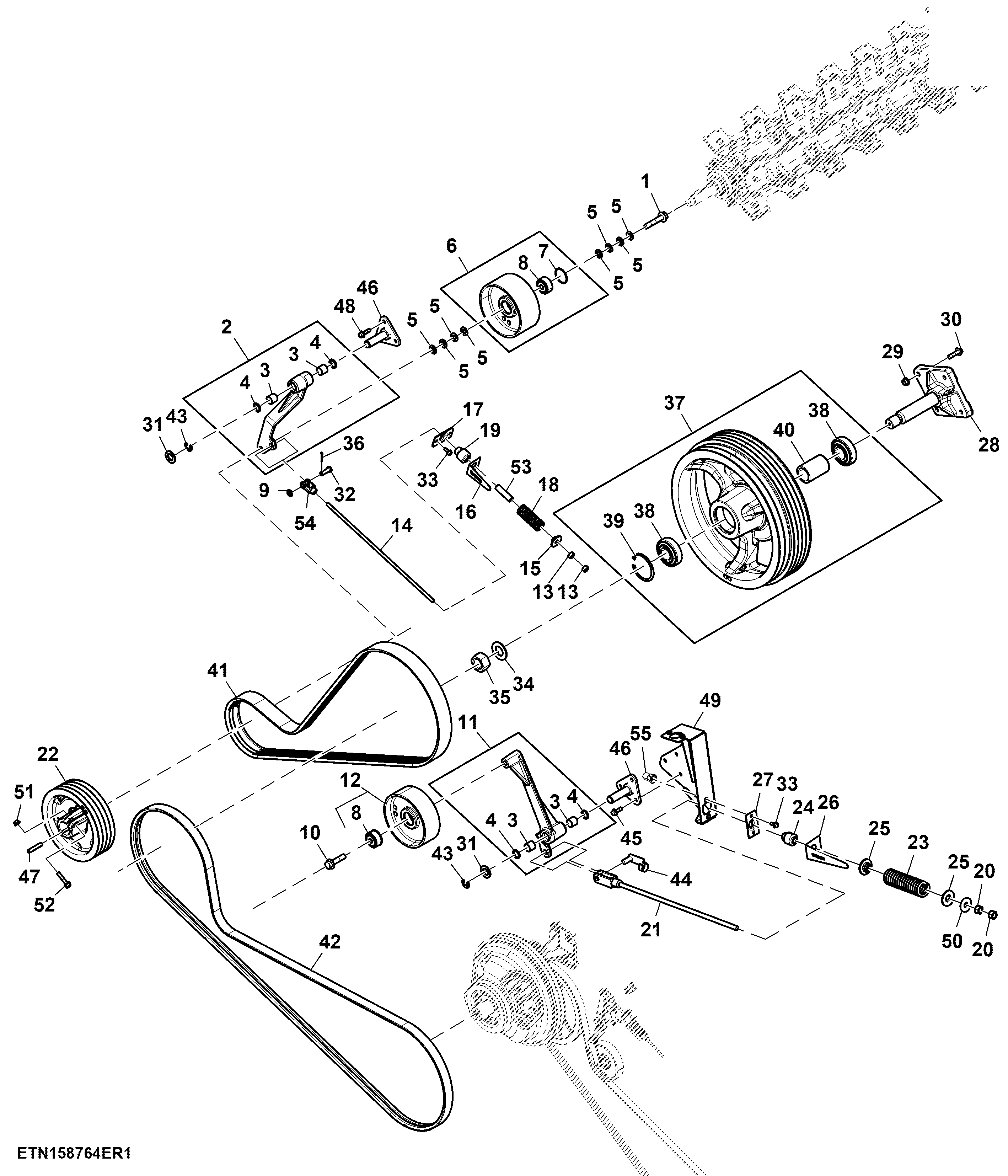

Belt Drives, Elevator Jackshaft, Fast
