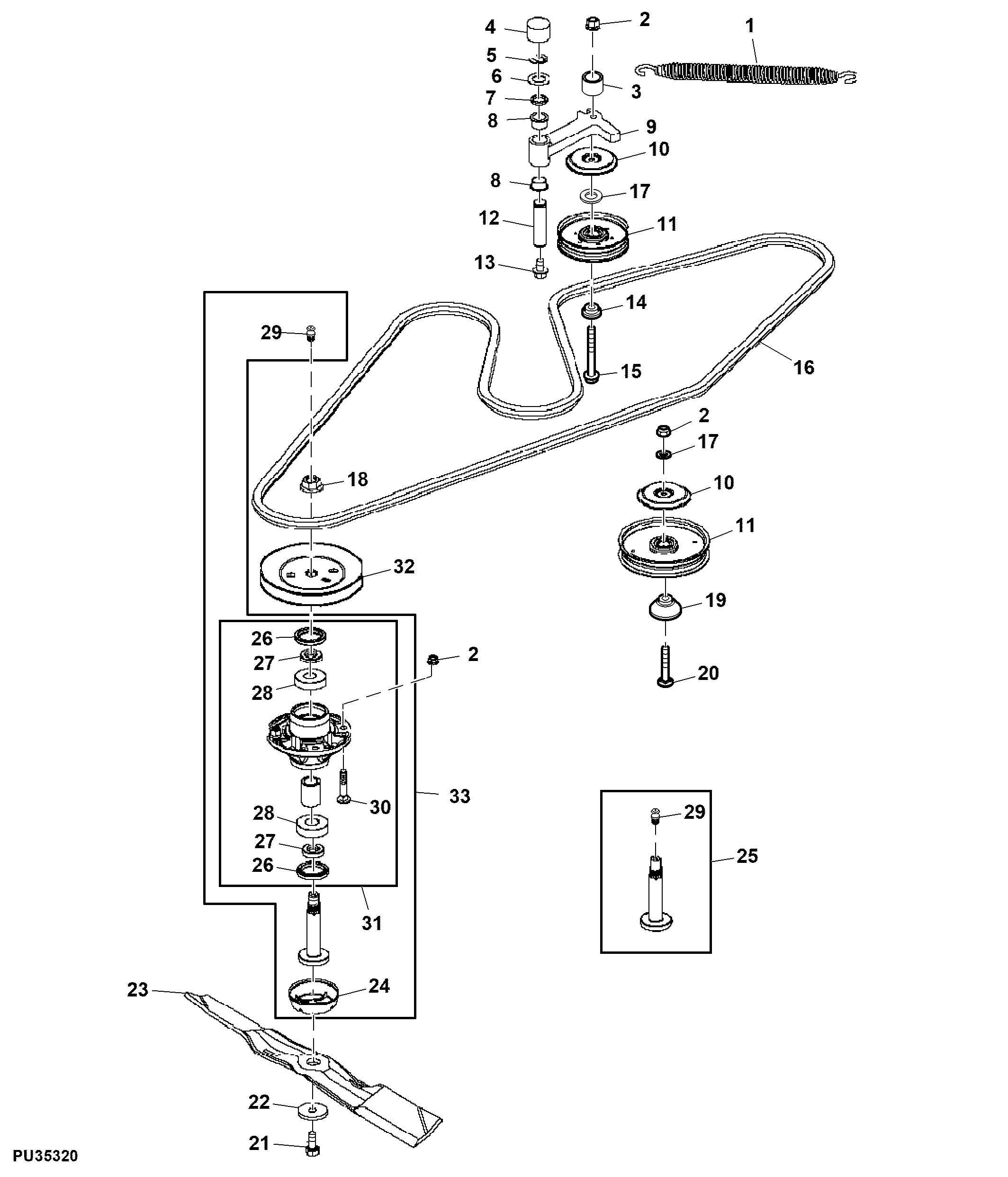

Mower Drive Belt, Sheaves, Spindles and Blades, 48C

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	M148163	1	Spring	-
2	14M7396	14	Lock Nut	M8
3	M111180	1	Spacer	-
4	M131119	1	Cap	-
5	T40189	1	Snap Ring	-
6	24H1391	1	Washer	25/32" X 1-5/16" X 0.060"
7	M91256	1	Seal	-
8	M146073	2	Bushing	-
9	M134968	1	Arm	-
10	M165520	2	Shield	-
11	AM147272	1	Sheave Assembly	SUB FOR AM136357, V-Idler
12	M142705	1	Shaft	-
13	19M7784	1	Screw	M10 X 20
14	M110316	1	Washer	-
15	19M7803	1	Screw	M8 X 70
16	M163989	1	V-Belt	LGTH = 2834.100 mm, WIDTH = 16 mm, TK = 14.73 mm, SUB FOR M143888; Secondary
17	M146490	2	Washer	-
18	M153583	3	Nut	-
19	M78658	1	Spacer	-
20	03M7216	1	Bolt	M8 X 50
21	19M7872	3	Cap Screw	M12 X 25
22	M147138	3	Washer	-
23	UC22009	3	Mower Blade	SUB FOR M145476
24	M157142	3	Deflector	USE WITH AM144377; SUB FOR M131928
25	AM148011	3	Spindle Kit	SUB FOR AM127432
26	ET15755	6	Seal	USE WITH AM135349
27	M110008	6	Bushing	USE WITH AM135349
28	M110024	6	Ball Bearing	USE WITH AM135349
29	JD7803	3	Lubrication Fitting	-
29	JD7849	3	Fitting	USE WITH AM127432
30	19M7868	12	Screw	M8 X 30
31	AM135349	3	Bearing With Housing	ORDER AM144377
32	M131814	3	Pulley	OD = 142.8 mm
33	AM144377	3	Spindle	-

Mower Drive Belt, Sheaves, Spindles and Blades, 48C
