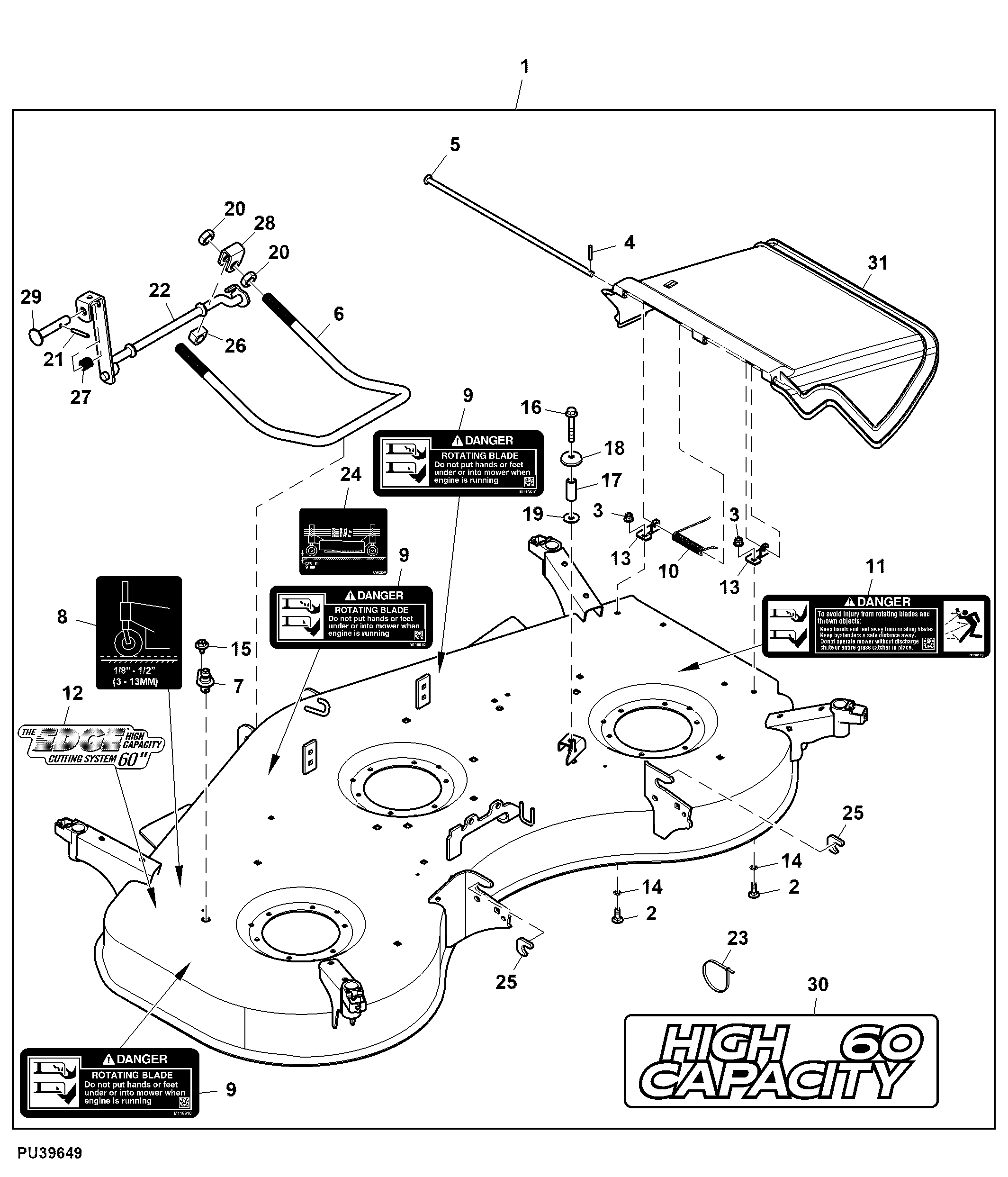

Mower Deck, 60HC inch (040001 - 070000)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AUC11357	1	Mower Deck	SUB FOR AM148220 OR AM145842
2	03M7093	2	Bolt	M8 X 25
3	14M7396	2	Lock Nut	M8, USE WITH AUC11357
3	14M7166	2	Lock Nut	M8, USE WITH AM148220 OR AM145842
4	34M7130	1	Spring Pin	4 X 20 mm
5	M133359	1	Pin	-
6	UC12602	1	Draft Link	USE WITH AUC11357
7	GX22426	1	Port Plate	-
8	M177592	1	Label	Gauge Wheel Adjust USE WITH AUC11357 OR AM148220
9	M118610	3	Label	Danger, Blade Contact USE WITH AM148220 OR AM145842
10	M132768	1	Spring	USE WITH AM148220 OR AM145842
10	UC18422	1	Spring	USE WITH AUC11357
11	M139128	1	Label	Danger, Thrown Object
12	M163916	1	Label	High Capacity ORDER UC20016; USE WITH AM148220 OR AM145842
13	M165145	2	Hinge	-
14	M84309	2	Nut	-
15	AM146246	1	Screw With Washer	-
16	19M7808	1	Screw	M10 X 65
17	M175116	1	Bushing	-
18	M173707	1	Shield	Idler Arm
19	24M7178	1	Washer	10.500 X 30 X 2.500 mm
20	14H904	4	Nut	3/4", USE WITH AUC11357
21	34H385	1	Spring Pin	1/4" X 1-3/4", USE WITH AUC11357
22	AUC12025	1	Pivot	USE WITH AUC11357
23	H77698	1	Tie Band	USE WITH AM148220
24	LVU21017	1	Label	Gauge Wheel Adjust USE WITH AM145842
25	M175592	2	Plate	Welded USE WITH AM148220 OR AM145842
26	M112208	2	Spacer	USE WITH AUC11357
27	M42578	1	Compression Spring	USE WITH AUC11357
28	M112207	2	Clevis	USE WITH AUC11357
29	M112867	1	Pin Fastener	USE WITH AUC11357
30	UC20016	1	Label	High Capacity USE WITH AUC11357
31	-	1	Part 33	ORDER TCA24830
