Jack sheave, Idlers and Belt, 60HC (030001 - 070000)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	M84309	3	Nut	-
2	19M7979	2	Screw	M8 X 55
3	24M7024	4	Washer	9 X 28 X 3 mm
4	14M7166	1	Lock Nut	M8
5	M110316	2	Washer	Pivoting Idler
6	19M7867	2	Screw	M8 X 25
7	M146337	2	Label	Belt Installation
8	M135488	2	Bracket	-
9	M71682	1	Bushing	-
10	AM118447	1	Sheave	OD = 94.1 mm, INCLUDES JD8535
11	M147446	1	Shield	-
12	M155570	1	Arm	-
13	M144494	1	Clevis	-
14	03M7185	1	Bolt	M8 X 25
15	M144110	1	Blower Fan	-
16	GX25679	1	Lever	-
17	GX25307	1	Rod	-
17	GX26226	1	Rod	-
18	24M7095	2	Washer	8.400 X 15 X 1.600 mm
19	GX26084	1	Spring	-
20	19M7866	6	Screw	M8 X 20
21	M167768	1	Bracket	Hinge Front
22	M167769	1	Bracket	Hinge Aft
23	M167738	2	Bracket	Hinge Ramp
24	ET11380	2	Cap Screw	-
25	A48972	2	Nut	-
26	19M7560	4	Cap Screw	M6 X 16
27	14M7528	6	Lock Nut	M6
29	M156277	1	Cover	-
30	GY22250	1	Sheave Assembly	OD = 138 mm
31	GY22257	1	Sheave Assembly	OD = 103.7 mm
32	AM128189	1	Pulley With Dampener	OD = 77.7 mm
33	M126012	1	V-Belt	LGTH = 2415.4 mm, WIDTH = 12.7 mm and TK = 7.874 mm
33	M112490	1	V-Belt	LGTH = 2505 mm, WIDTH = 12.7 mm and TK = 7.874 mm
34	GX25862	1	Shield	SUB FOR TCU16331
35	M133741	1	Label	Warning, Candian / French
36	M158499	1	Label	Warning, Spanish
37	M158500	1	Label	Warning, Not for Canada and USA
38	M80072	4	Washer	-
39	14M7396	11	Lock Nut	M8
40	GX26325	1	Bracket	-
41	JD8535	1	Ball Bearing	Not Illustrated
28A	GY21874	1	Bracket	-
28B	AUC12234	1	Bracket	SUB FOR GY21874

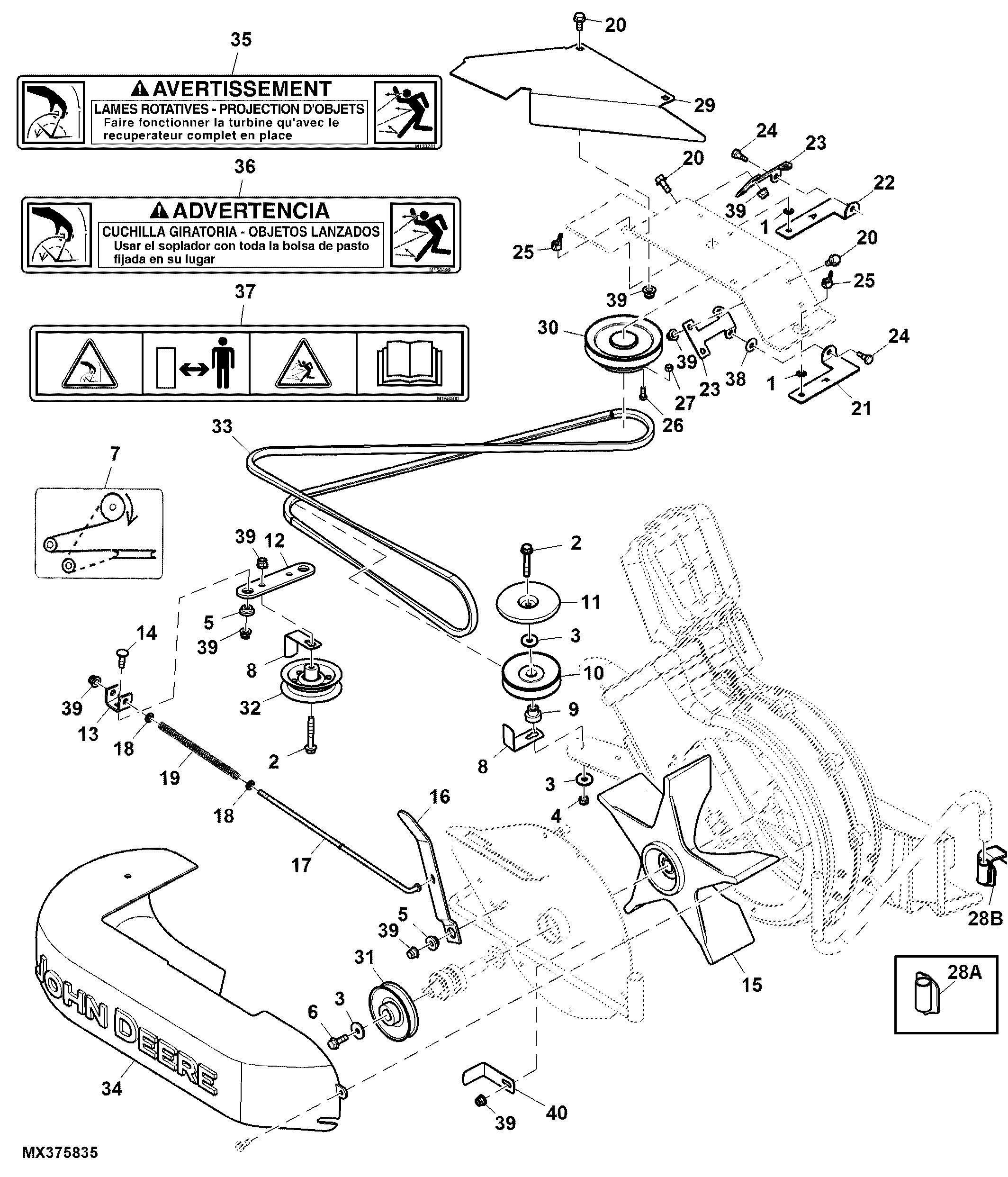

Jack sheave, Idlers and Belt, 60HC (030001 - 070000)
